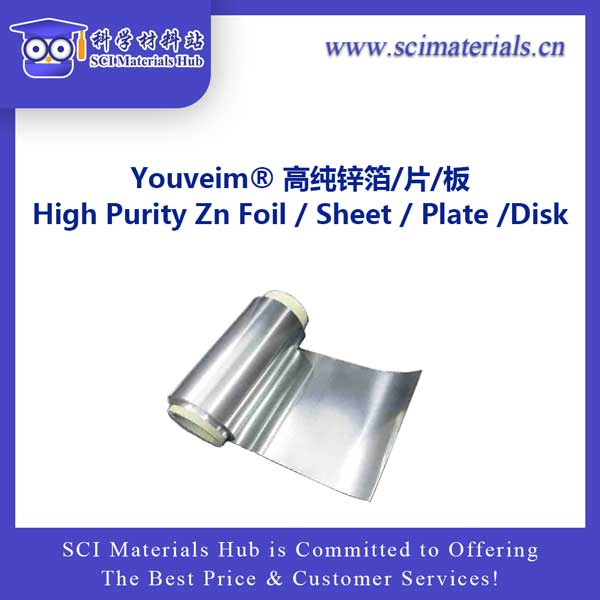

高纯锌箔/片/板

  • 产品代码:0.05mm*120mm,99.9%
  • 产品描述:High Purity Zinc (Zn) Foil / Sheet / Plate /Disk
  • 品牌:SCI Materials Hub
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:高纯锌箔/片/板, High Purity Zinc (Zn) Foil / Sheet / Plate /Disk, 科学材料站, SCI Materials Hub
65.7K

希腊和罗马人都知道锌是铜合金黄铜的组成部分,但直到16世纪才发现金属锌。帕拉塞尔库斯的世纪。锌是一种有蓝色铸件的易碎金属。它很容易获得,因为它存在于浓缩的矿石中,很容易从中提取(它在地壳中的丰度为75 ppm)。萃取是通过用碳加热氧化物并蒸馏出金属来实现的。锌在空气中变色,并与酸和碱发生反应。锌在整个工业中广泛使用;例如,它用作钢上的电镀涂层以防止腐蚀,并用作各种合金系统的成分(例如黄铜中的铜),以及可用于压铸的锌基合金(其他合金成分为铝、铜和镁)。纯锌用作丹尼尔电池和干电池的电极。氧化锌用作某些等级橡胶和塑料的稳定剂,以及用于涂料制造的无毒白色颜料。氧化锌还具有收敛和舒缓的特性,用作面霜和软膏的成分。


纯金属和金属合金薄板。由于其易碎性,一些箔的一面涂有丙烯酸或聚酯支架。如果支撑箔,则在详细的项目描述中说明。

高纯锌箔:科研创新的引擎,电池技术的新里程!

高纯锌箔是一种由纯度较高的锌材料制成的薄片或箔片。它具有优异的物理和化学性能,可广泛应用于科学研究和电池研发领域。高纯锌箔通常用于制备电极材料、进行电化学实验、开发新型电池技术等。其高导电性、良好的耐腐蚀性和可塑性使其成为理想的材料选择。同时,高纯锌箔还提供多种规格和尺寸可供选择,以满足不同研究项目的需求。

产品特性:

1. 高纯度:高纯锌箔通常具有99.99%以上的锌含量,确保了材料的纯净性,避免了杂质对实验结果的干扰。

2. 优异的导电性:高纯锌箔具有良好的电导率,能够有效传导电流,适用于电池、电化学实验等需要良好导电性的应用。

3. 耐腐蚀性:高纯锌箔对于一些常见的腐蚀介质(如酸、碱等)具有较好的抗腐蚀性能,能够在恶劣环境下长时间稳定使用。

4. 可塑性:高纯锌箔具有良好的可塑性,能够轻松弯曲、折叠和成型,适用于各种形状和尺寸的需求。

5. 易处理:高纯锌箔易于切割、焊接和钻孔,便于进行后续加工和组装。

6. 多样化规格:高纯锌箔提供多种规格和尺寸可供选择,满足不同研究项目和应用的需求。

产品参数:

注意事项:

1. 避免污染:在处理高纯锌箔之前,应确保使用干净的工具和手套,以避免杂质的污染。因为杂质的存在可能会影响实验结果或产品性能。

2. 注意防护:在处理高纯锌箔时,应注意使用个人防护装备,如手套、护目镜等,以保护自己的安全。

3. 合理处理废弃物:废弃的高纯锌箔应根据当地环保法规进行妥善处理,避免对环境造成污染。

4. 注意储存条件:高纯锌箔应存放在干燥、无腐蚀性气体和低温的环境中,以保持其性能和质量。

主要用途:

高纯锌箔由于其优异的导电性、耐腐蚀性和可塑性,被广泛应用于电池制造、电化学实验、电子材料和防腐蚀等领域。

1. 电池制造:作为锌空气电池、锌锰电池和锌银电池等电池的正极材料,提供稳定的电流输出。

2. 电化学实验:作为电极材料,用于电解、电沉积、腐蚀等电化学实验和研究。

3. 电子材料制造:用于制造导电胶带、电子元件的引线,以及热敏电阻器等。

4. 防腐蚀:用于制作防腐蚀层、防腐蚀涂层或防腐蚀材料的基底,应用于海洋工程、化工设备等领域。

5. 纳米材料制备:在纳米颗粒、纳米线、纳米薄膜等纳米材料制备中起重要作用。

6. 科研和实验室应用:在科研、实验室和教育领域广泛应用于实验、分析和研究项目中,如电化学分析、材料表征等。

联系我们:

如果您对高纯锌箔有任何疑问或需要进一步了解,请随时与我们联系。我们的团队将竭诚为您提供支持和解答。官网微信:SCI-Materials-Hub,官方邮箱:contact@scimaterials.cn

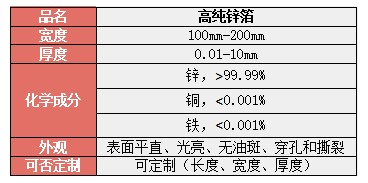

高纯锌箔/片/板

品名

高纯锌箔/片/板

厚度

0.01 mm - 10 mm

宽度

100 mm -200 mm

化学成分

锌, >99.99%

铜,<0.001%

铁,<0.001%

外观

表面平直、光亮、无油斑、穿孔和撕裂

可否定制

可定制(长度,宽度,厚度)


1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

高纯锌箔/片/板

产品代码

产品描述

价格及规格货期
11010361-10.01mm x 100mm¥180 (1m), ¥350 (2m), ¥800 (5m)1天
11010361-20.01mm x 110mm¥180 (1m), ¥350 (2m), ¥800 (5m)现货
11010361-30.015mm x 100mm130 (1m), 250 (2m), 580 (5m)1天
11010361-40.02mm x 110mm¥95 (1m), ¥185 (2m), ¥450 (5m)现货
11010361-50.03mm x 110mm¥95 (1m), ¥185 (2m), ¥450 (5m)现货
11010361-60.038mm x 120mm¥95 (1m), ¥185 (2m), ¥450 (5m)1天
11010361-70.05mm x 110mm¥95 (1m), ¥185 (2m), ¥450 (5m)现货
11010361-80.05mm x 120mm¥95 (1m), ¥185 (2m), ¥450 (5m)1天
11010361-90.07mm x 110mm¥100 (1m), ¥195 (2m), ¥470 (5m)现货
11010361-100.08mm x 110mm¥105 (1m), ¥205 (2m), ¥500 (5m)现货
11010361-110.1mm x 100mm¥115 (1m), ¥225 (2m), ¥550 (5m)现货
11010361-120.1mm x 150mm¥129 (1m), ¥240 (2m), ¥580 (5m)1天
11010361-130.2mm x 100mm¥129 (1m), ¥240 (2m), ¥580 (5m)1天
11010361-140.2mm x 150mm¥139 (1m), ¥260 (2m), ¥630 (5m)现货
11010361-150.3mm x 150mm¥150 (1m), ¥290 (2m), ¥700 (5m)现货
11010361-160.4mm x 150mm¥170 (1m), ¥330 (2m), ¥800 (5m)现货
11010361-170.5mm x 150mm¥180 (1m), ¥350 (2m), ¥850 (5m)现货
11010361-180.8mm x 150mm¥250 (1m), ¥490 (2m), ¥850 (1180)现货
11010361-191.0mm x 150mm¥280 (1m), ¥550 (2m), ¥850 (1300)现货
11010361-202.0mm x 150mm¥120 (10mm)
现货
11010361-213.0mm x 150mm¥160 (10mm)现货
11010361-225.0mm x 150mm¥240 (10mm)现货

We Are Committed to Provide the Best Price & Customer Services!

*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票
