首页 > 品牌 > 日本东丽Toray > Toray 060T疏水碳纸(标准款)

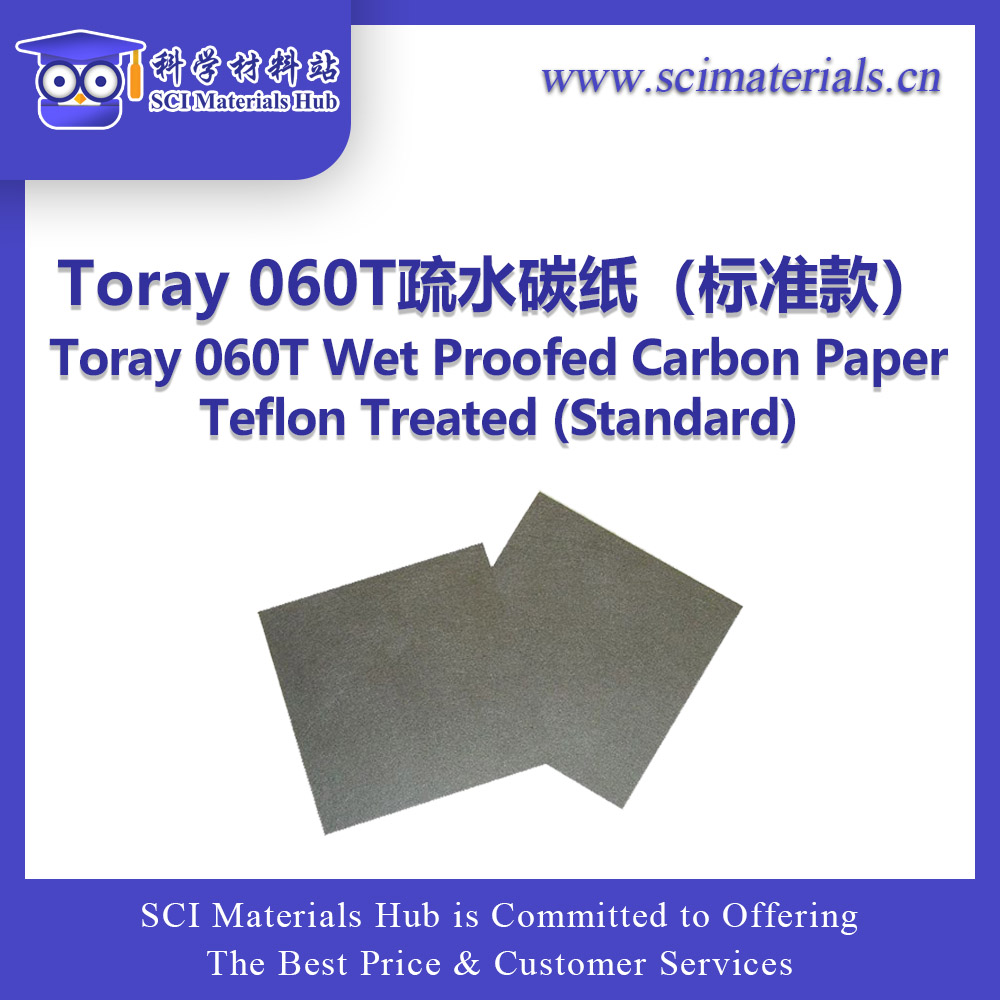

Toray 060T疏水碳纸(标准款)

  • 产品代码:20002013
  • 产品描述:Toray 060T Wet Proofed Carbon Paper - Teflon Treated (Standard)
  • 品牌:SCI Materials Hub
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Toray 060T疏水碳纸(标准款), Toray 060T Wet Proofed Carbon Paper - Teflon Treated (Standard), SCI Materials Hub, 科学材料站
65.7K

1. Introduction (介绍)

Toray TGP-H-060是一种碳纤维复合纸,适合用作催化剂背衬层。它的总厚度为190微米。Toray 060是传统编织碳纤维布气体扩散层(GDL)材料的一种低成本替代品。


科学材料站对Toray 060进行1-80%防水层(PTFE)处理,适合用作催化剂背衬,采用燃料电池级(Fuel Cell Grade)防水材料,性能更加优越!

点击上方【购买渠道】进行购买或咨询


2. 东丽最终使用保证

· 购买此商品,即表示您同意,您将如上所述将商品及其复制品仅用于民用,并且绝不会将其用于开发或制造大规模杀伤性武器,例如核武器,生物武器或化学武器。武器和导弹。如果您决定将货物用于其他任何用途,则在将货物用于此类其他用途之前,您将立即以书面形式通知东丽公司。


3. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Toray 060T Wet Proofed Carbon Paper - 4.6-5.8% Teflon Treated, was obtained from SCI Materials Hub.

Toray TGP-H-060 疏水碳纸

材料类型

碳纤维纸

厚度

0.19毫米(190微米)

堆积密度

0.44克/立方厘米

孔隙率(%)

78

气体渗透率

1900

电阻率(通过平面)

80 mOhm cm

抗折强度(MPa)

40

弯曲模量(GPa)

10

抗拉强度

50

表面粗糙度Ra

8 μm(微米)

电阻率(平面内)

5.8 mOhm cm

导热系数(通过平面,室温)

1.7 W/ (mk)

导热系数(平面内,室温)

21 W/ (mk)

导热系数(面内,100°C)

23 W/ (mk)

平面内的热膨胀系数

-0.8

疏水处理

1-80%

微孔层

没有


疏水碳纸的质量影响因素

影响疏水碳纸的主要因素有3点:1. 碳纸基底;2. 疏水层质量;3.疏水层制作工艺

科学材料站中的疏水碳纸(包含带MPL的气体扩散层)由我们美国的合作伙伴直接提供。

其中碳纸基底包含AvCarb GDL (EP40, EP55, P50, P75) 和MGL (MGL190, MGL280, MGL370)系列,SpectraCarb系列,Toray paper系列等

采用高质量且专门用于燃料电池领域的特种疏水材料,并利用成熟的疏水涂层工艺,获得高质量、涂层均匀、气体扩散优良的疏水碳纸。

1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

Toray 060T疏水碳纸(标准款)

产品代码

产品描述

产品价格及规格货期
20002013(1)0.8-1.5% Wet Proofed

¥198 (5cm*5cm,货号:20002013(1)-0505)

¥398 (10cm*10cm,货号:20002013(1)-1010)

¥1398 (20cm*20cm,货号:20002013(1)-2020)

现货
20002013(5)4.6-5.8% Wet Proofed

¥148 (5cm*5cm,货号:20002013(5)-0505)

298 (10cm*10cm,货号:20002013(5)-1010)

598 (20cm*20cm,货号:20002013(5)-2020)

现货
20002013(10)9.3-10.9% Wet Proofed

¥198 (5cm*5cm,货号:20002013(10)-0505)

398 (10cm*10cm,货号:20002013(10)-1010)

¥1398 (20cm*20cm,货号:20002013(10)-2020)

现货
20002013(15)14.5-16.3% Wet Proofed

¥198 (5cm*5cm,货号:20002013(15)-0505)

¥398 (10cm*10cm,货号:20002013(15)-1010)

¥1398 (20cm*20cm,货号:20002013(15)-2020)

4周
20002013(20)18.9-20.5% Wet Proofed

¥198 (5cm*5cm,货号:20002013(20)-0505)

398 (10cm*10cm,货号:20002013(20)-1010)

1398 (20cm*20cm,货号:20002013(20)-2020)

现货
20002013(30)29.8-31.2% Wet Proofed

¥248 (5cm*5cm,货号:20002013(30)-0505)

498 (10cm*10cm,货号:20002013(30)-1010)

1498 (20cm*20cm,货号:20002013(30)-2020)

现货
20002013(40)39.5-41.3% Wet Proofed

¥248 (5cm*5cm,货号:20002013(40)-0505)

598 (10cm*10cm,货号:20002013(40)-1010)

1598 (20cm*20cm,货号:20002013(40)-2020)

现货
20002013(50)49.7-51.6% Wet Proofed

¥248 (5cm*5cm,货号:20002013(50)-0505)

698 (10cm*10cm,货号:20002013(50)-1010)

1698 (20cm*20cm,货号:20002013(50)-2020)

现货
20002013(60)59.7-62.3% Wet Proofed

¥248 (5cm*5cm,货号:20002013(60)-0505)

¥698 (10cm*10cm,货号:20002013(60)-1010)

¥1698 (20cm*20cm,货号:20002013(60)-2020)

4周
20002013(70)69.4-72.5% Wet Proofed

¥298 (5cm*5cm,货号:20002013(70)-0505)

¥898 (10cm*10cm,货号:20002013(70)-1010)

¥1998 (20cm*20cm,货号:20002013(70)-2020)

4周
20002013(80)80.1-83.6% Wet Proofed

¥298 (5cm*5cm,货号:20002013(80)-0505)

¥898 (10cm*10cm,货号:20002013(80)-1010)

¥1998 (20cm*20cm,货号:20002013(80)-2020)

4周
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn

References citing our materials

二氧化碳还原

1. Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


电池

1. Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


2. A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.


催化-ORR

1. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.
