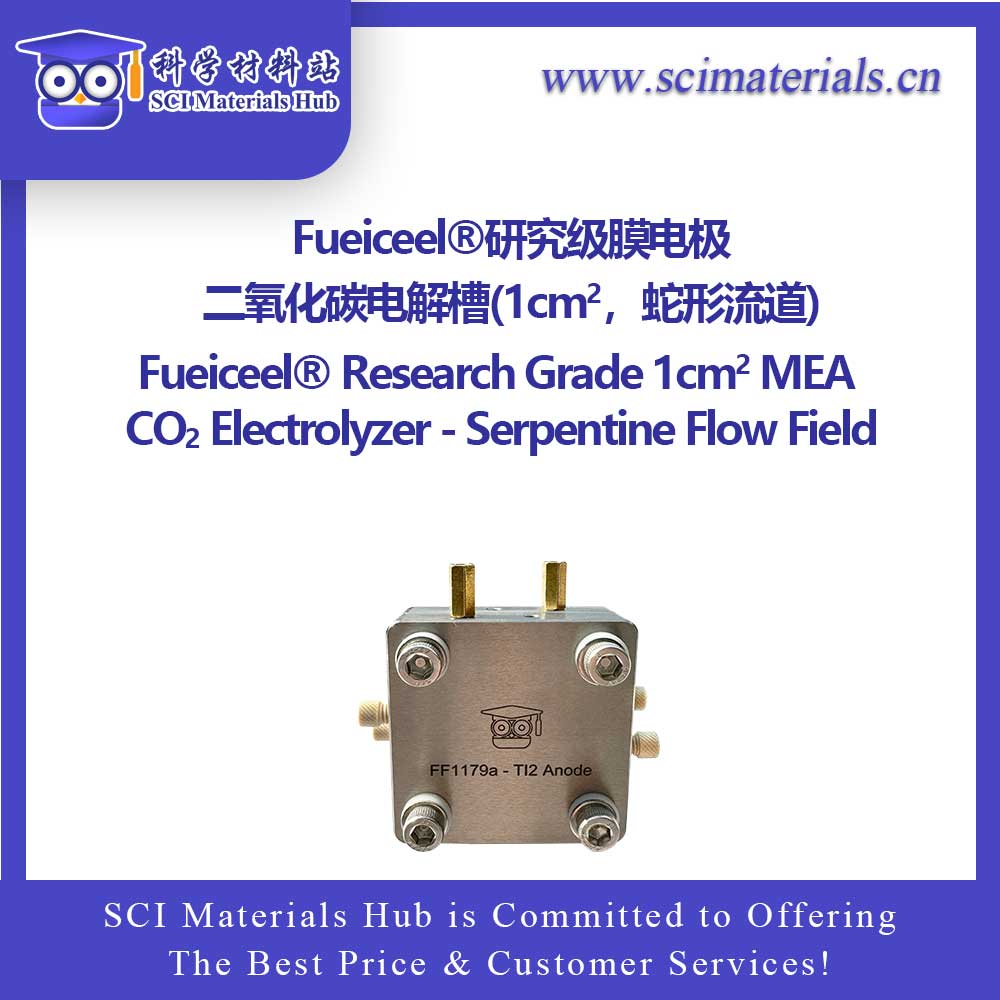

Fueiceel®研究级膜电极二氧化碳电解槽(1cm2,蛇形流道)由科学材料站自主研发,是一种用于二氧化碳电解产合成气,同时可以被用于多种其它电化学反应。
部分测试报告:
Test Report - CRRMEA5a #0167 Signed.pdf
部分参考文献:
Adv. Energy Mater. Tailoring Microenvironments and In Situ Transformations of Cu Catalysts for Selective and Stable Electrosynthesis of Multicarbon Products (CRRMEA5a, Sci-Materials Hub)
Angew pH-Universal Electrocatalytic CO2 Reduction with Ampere-level Current Density on Doping-engineered Bismuth Sulfide (CRRMEA1a 1cm2 MEA electrolyzer, Figure 4d)
Chem Identification of Cu0/Cu+/Cu0 interface as superior active sites for CO2 electroreduction to C2+ in neutral condition (CRRMEA1a, Figure S34)
根据用户需求,可以提供完整电解槽,即对相关电解槽进行出厂前的标准测试,并提供测试报告,作为您放心使用的保障。同时,完整电解槽可以作为标样,开启您的电催化二氧化碳还原之旅。Fueiceel®研究级膜电极二氧化碳电解槽(1cm2,蛇形流道)经过广大用户和我们的工程师测试,性能稳定可靠,相关电解槽已在全球范围内售出数千台,得到广泛好评!
该产品出厂时由科学材料站工程师组装好并做出厂前做密封测试24-72小时,配件包含:
备注:除以下硬件外,科学材料站可提供完整电解槽,即电解槽内部含测试用的MEA和测试报告,1cm2完整电解槽比对应的硬件价格更高(详情请咨询)。该电解槽经过内部和用户广泛测试,产品无质量瑕疵,为您的实验保驾护航!
Fueiceel®研究级膜电极二氧化碳电解槽(1cm2,蛇形流道) | ||
电解池型号 | 组件 | 说明 |
CRRMEA1a-1 | FF1176a-S13不锈钢阴极流道板(x1)、FF1179a-TI2钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥7890 |
CRRMEA1a-2 | FF1176a-S13不锈钢阴极流道板(x1)、FF1179a-TI2P镀铂钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥10890 |

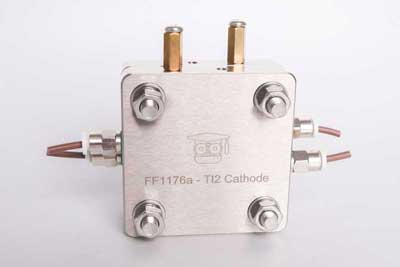

CRRMEA1a-3 | FF1176a-TI2钛阴极流道板(x1)、FF1179a-TI2钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥8890 |
CRRMEA1a-4 | FF1176a-TI2钛阴极流道板(x1)、FF1179a-TI2P镀铂钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥11890 |

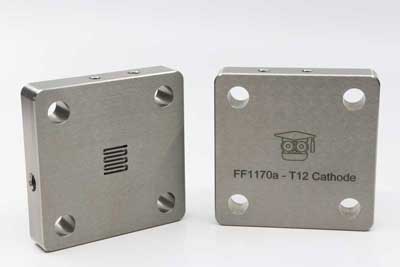

CRRMEA1a-5 | FF1170a-TI2钛阴极流道板(x1)、FF1170a-TI2钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥8890 |
CRRMEA1a-6 | FF1170a-TI2钛阴极流道板(x1)、FF1170a-TI2P镀铂钛阳极流道板(x1)、PTFE垫片一组(x1)、不锈钢螺栓+螺母+垫片一组(x1)、O型圈一组(x1)、螺栓绝缘管+肩部垫圈套件一组(x1)、PEEK螺栓一组(x1) | ¥11890 |
Fueiceel®研究级膜电极二氧化碳电解槽(1cm2,蛇形流道) - 配件详情 | ||||

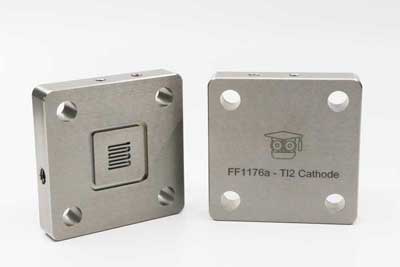

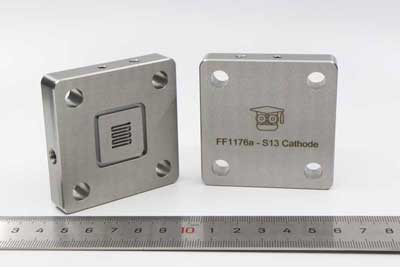

阴极流道板 | FF1176a-S13不锈钢,¥3980/个 FF1176ar-S13不锈钢 参比电极款,¥4980/个 | FF1176a-TI2钛,¥4980/个 FF1176ar-TI2钛 参比电极款,¥5980/个 | FF1170a-TI2钛,¥4980/个 | |

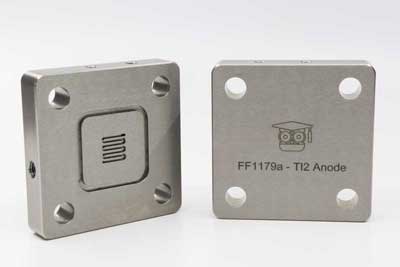

阳极流道板 | FF1179a-TI2钛,¥4980/个 FF1179ar-TI2钛 参比电极款,¥5980/个 | FF1170a-TI2钛,¥4980/个 | FF1179a-TI2P镀铂钛,¥7580/个 | FF1170a-TI2P镀铂钛,¥7580/个 |

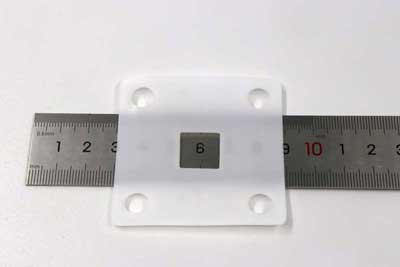

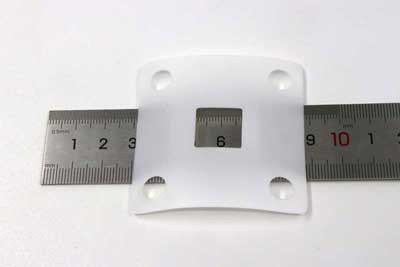

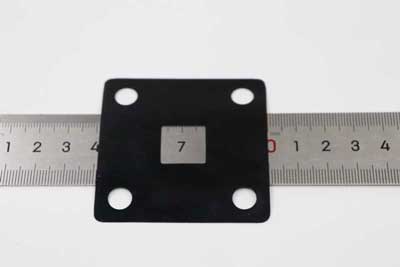

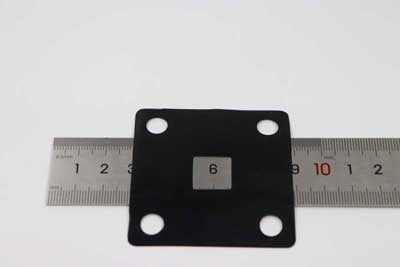

垫片 | PTFE阳极垫片 (100/200/250/300/400/500/1000μm) (¥50/件) | PTFE阴极垫片 (100/200/250/300/400/500/1000μm) (¥50/件) | FKM阳极垫片 (100/200/250/300/400/500/1000μm)(¥50/件) | FKM阴极垫片 (100/200/250/300/400/500/1000μm) (¥50/件) |

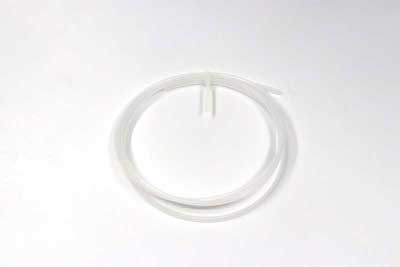

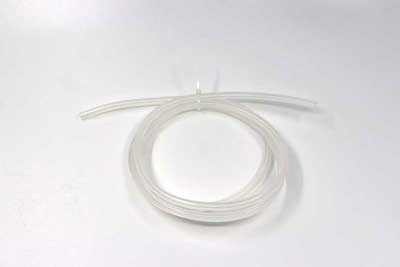

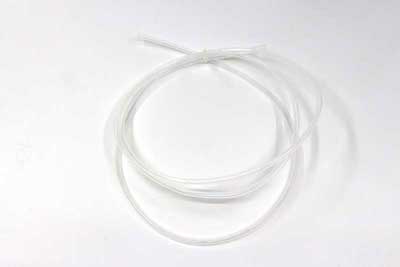

管路 | PE硬管 (内径1/16" , 外径1/8") (¥10/m) | 普通硅胶软管 (内径1.6mm,外径 4.8mm) 用于蠕动泵 (¥10/m) | Teflon硬管 (内径1/16" , 外径1/8") ¥100/m | 蠕动泵耐腐蚀软管 (内径1.6mm 外径4.8mm) ,¥300/m |

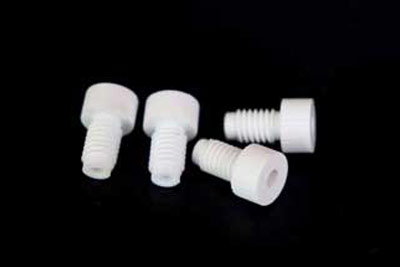

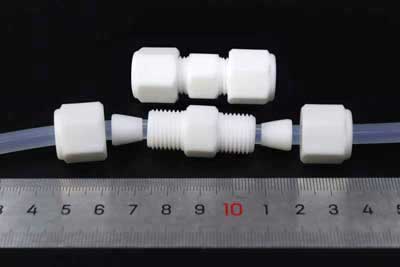

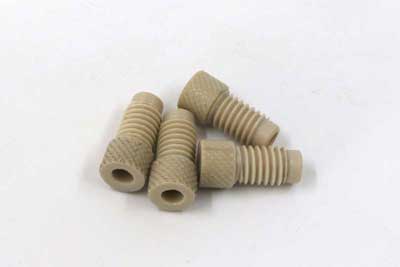

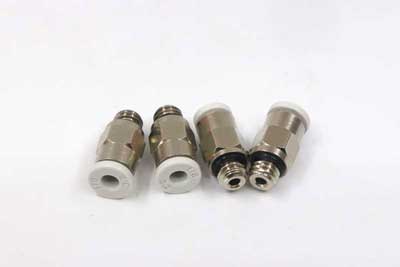

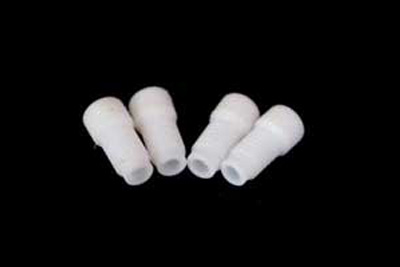

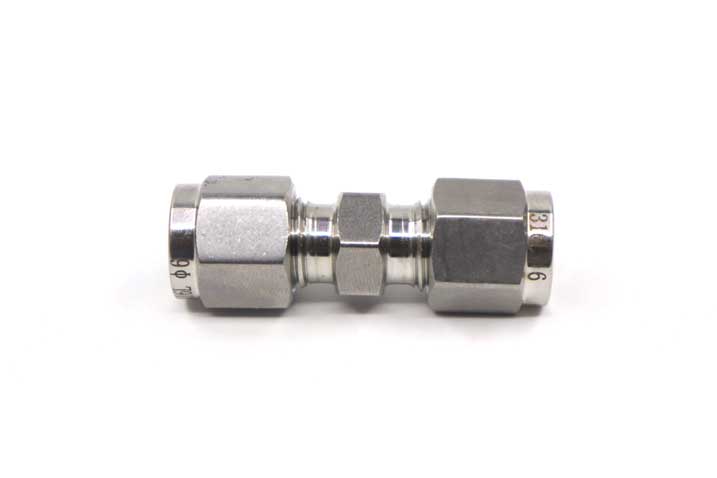

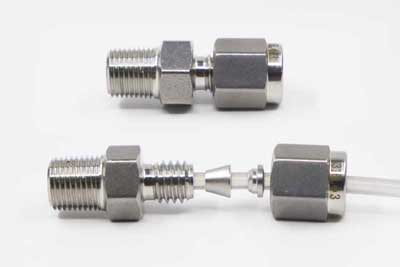

管路接头 | ABS螺栓 (内径3.2mm),¥80/套 | PTFE螺栓 (内径3.2mm),¥100/套 | PEEK螺栓 (内径3.2mm),¥120/套 | 镍基快插螺栓 (内径3.2mm),¥120/套 |

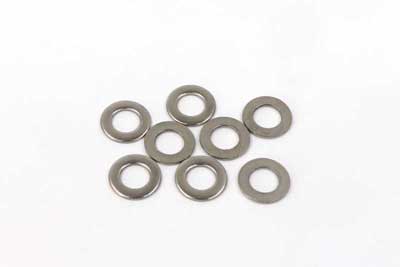

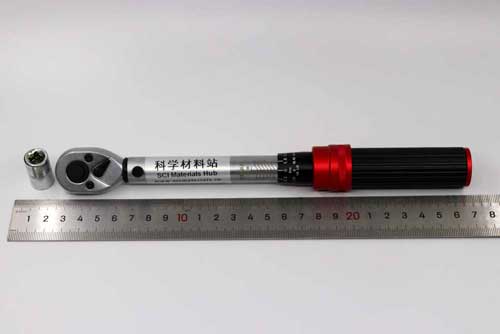

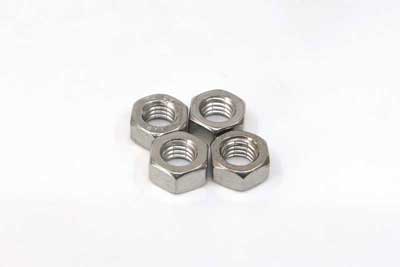

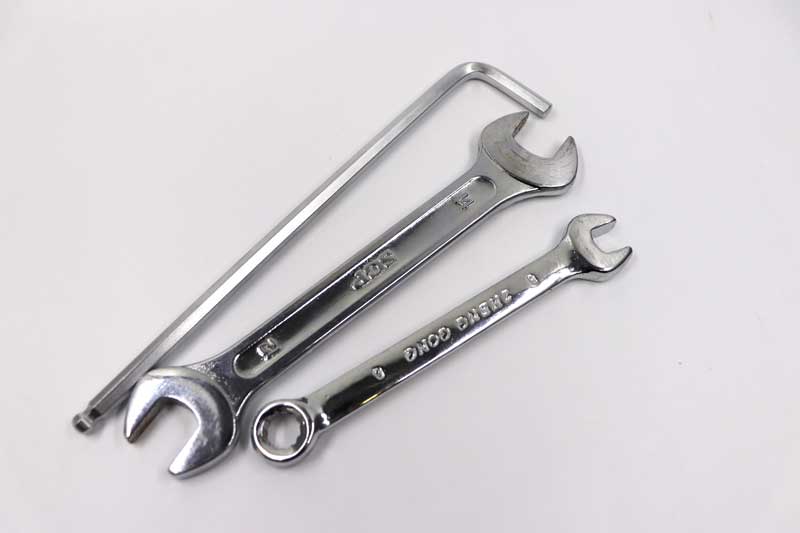

其他 | 不锈钢螺母,¥4/套 | 不锈钢垫片,¥4/套 | 扭矩扳手+套筒 (1-25 Nm),¥600/套 | |

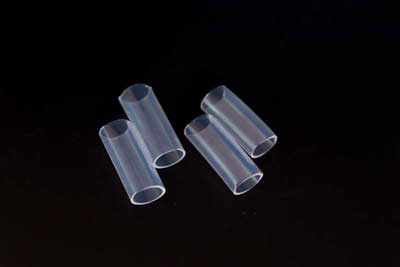

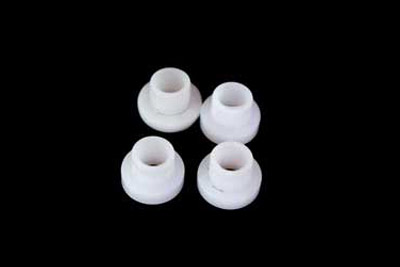

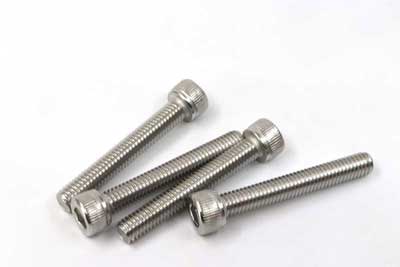

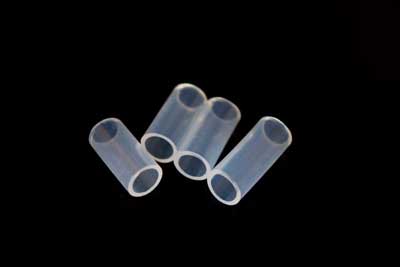

不锈钢螺栓,¥4/套 | 肩部垫圈,¥4/套 | 螺栓绝缘管 (厚度 0.5mm),¥4/套 | 螺栓绝缘管 (厚度 1mm),¥4/套 | |

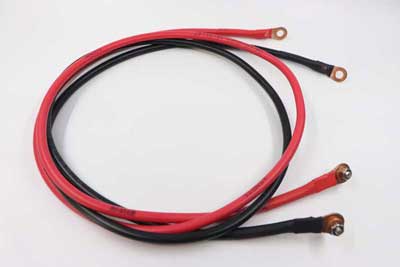

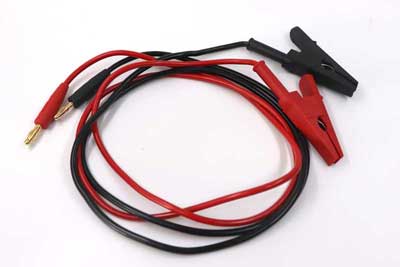

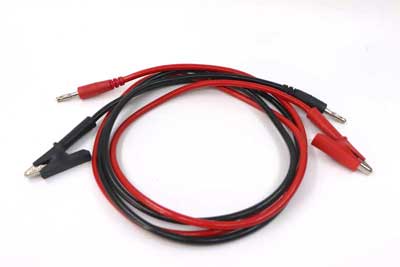

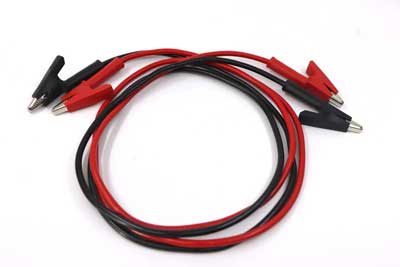

25A大电流鳄鱼夹导电线 ¥60/对/0.5米; ¥70/对/1米 ¥80/对/1.5米; ¥100/对/2米 | 25A大电流香蕉头转鳄鱼夹导电线 ¥60/对/0.5米; ¥70/对/1米 ¥80/对/1.5米; ¥100/对/2米 | 35A大电流香蕉头转鳄鱼夹导电线 ¥80/对/0.5米; ¥90/对/1米 ¥100/对/1.5米; ¥120/对/2米 | 40A Ring-Ring导电线 ¥100/对/0.5米; ¥120/对/1米 ¥140/对/1.5米; ¥160/对/2米 | |

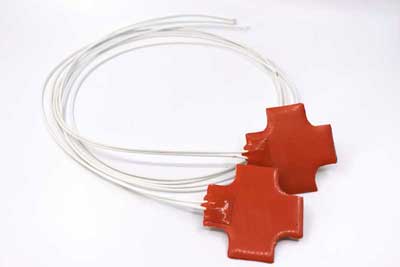

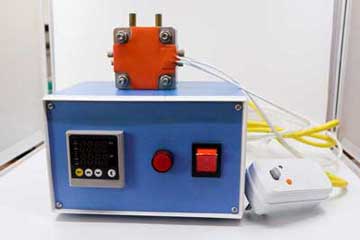

温控系统 (加热片x2个、温控盒x1个、空气开关x1个、热电偶x1个、精度0.1°C):¥2980/套 | 加热片加热片 (¥980/对) 加热片助粘剂, 25ml/¥199 | O型圈套件,¥10/套 | 常规扳手套件,¥60/套 | |

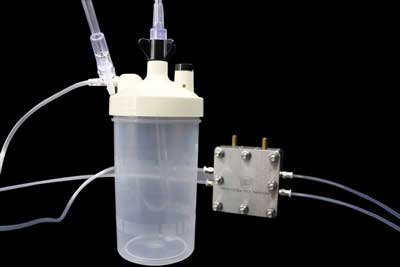

配套加湿瓶,¥240 | 进口加湿瓶,¥980 | 配套单通道小型蠕动泵,¥1980/台 配套单通道蠕动泵,¥2980/台 配套双通道蠕动泵,¥3980/台 配套齿轮泵,¥4980 | 配套电源(具有记录存储数据、恒流恒压功能),¥6000 | |

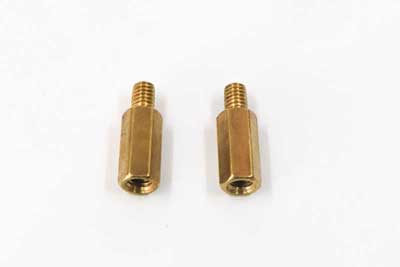

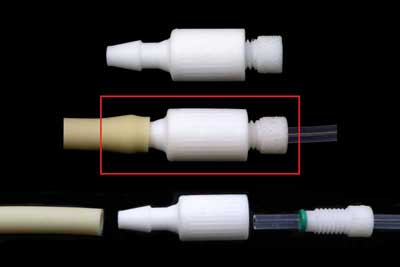

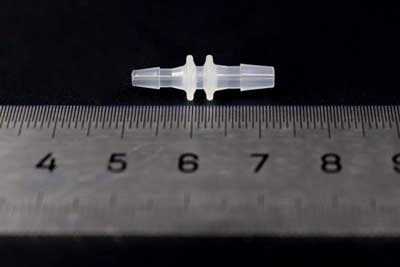

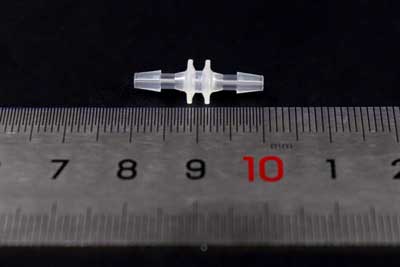

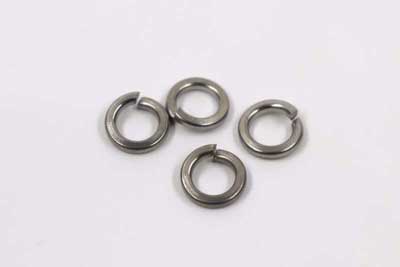

不锈钢弹片,¥4/套 | 导电铜柱,¥2/套 | PP等径宝塔软管接头 DI016软管内径Φ1-Φ1.6mm,¥10/个 DI024软管内径Φ1.6-Φ2.4mm,¥10/个 DI032软管内径Φ2.4-Φ3.2mm,¥10/个 DI040软管内径Φ3.2-Φ4mm,¥10/个 DI048软管内径Φ4-Φ4.8mm,¥10/个 | PP变径宝塔软管接头 软管内径Φ1.6↔Φ2.4,¥10/个 软管内径Φ1.6↔Φ3.2,¥10/个 软管内径Φ2.4↔Φ3.2,¥10/个 软管内径Φ2.4↔Φ4,¥10/个 软管内径Φ3.2↔Φ4,¥10/个 | |

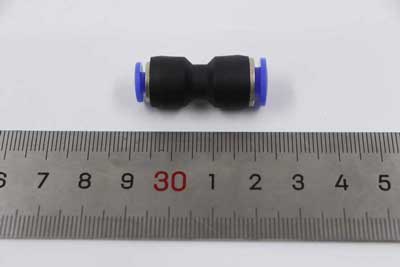

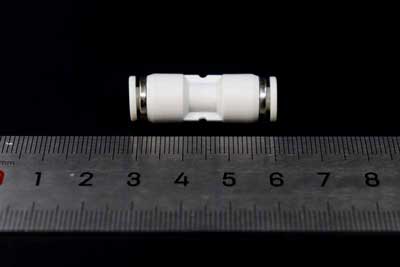

PE等径硬管接头 硬管外径Φ3-Φ3mm,¥10/个 硬管外径Φ3.2-Φ3.2mm,¥10/个 硬管外径Φ4-Φ4mm,¥10/个 硬管外径Φ6-Φ6mm,¥10/个 | PE变径硬管接头 硬管外径Φ3-Φ3.2mm,¥10/个 硬管外径Φ3-Φ4mm,¥10/个 硬管外径Φ3-Φ5mm,¥10/个 硬管外径Φ3-Φ6mm,¥10/个 硬管外径Φ3.2-Φ4mm,¥10/个 硬管外径Φ3.2-Φ6mm,¥10/个 | PTFE耐腐蚀软硬管转接头 硬管外径Φ3.2mm↔软管内径Φ1.6mm,¥50/个 硬管外径Φ3.2mm↔软管内径Φ2.4mm,¥50/个 硬管外径Φ3.2mm↔软管内径Φ3.2mm,¥50/个 硬管外径Φ3.2mm↔软管内径Φ4mm,¥50/个 | PTFE耐腐蚀等径硬管接头 Φ3mm↔Φ3mm,¥50/个 Φ3.2mm↔Φ3.2mm,¥50/个 Φ4mm↔Φ4mm,¥50/个 Φ6mm↔Φ6mm,¥60/个 Φ8mm↔Φ8mm,¥60/个 | |

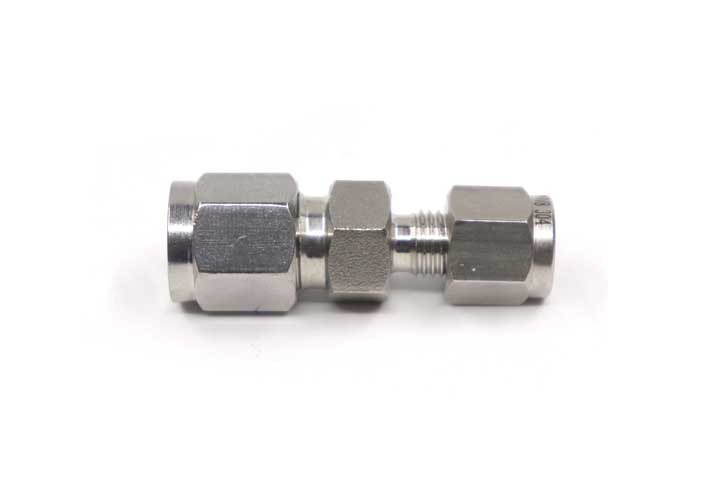

PTFE耐腐蚀变径硬管接头 Φ3mm↔Φ3.2mm,¥60/个 Φ3mm↔Φ4mm,¥60/个 Φ3mm↔Φ6mm,¥60/个 Φ3.2mm↔Φ4mm,¥60/个 Φ4mm↔Φ6mm,¥60/个 | 316L不锈钢等径接头 Φ3mm↔Φ3mm,¥120/个 Φ3.2mm↔Φ3.2mm,¥120/个 Φ4mm↔Φ4mm,¥120/个 Φ6mm↔Φ6mm,¥120/个 Φ8mm↔Φ8mm,¥120/个 | 316L不锈钢变径接头 Φ3mm↔Φ3.2mm,¥180/个 Φ3mm↔Φ4mm,¥180/个 Φ3mm↔Φ6mm,¥180/个 Φ4mm↔Φ6mm,¥180/个 | 316L不锈钢卡套接头 管外径Φ1/8",¥70/个 管外径Φ1/4",¥70/个 |
耗材(离子膜、粘结剂、催化剂、气体扩散层、电极等) | ||||
阴离子交换膜 | NexIonic A20 | |||
离聚物 | ||||
气体扩散层 | Youveim® Ni fiber paper | DM SS fiber paper Youveim® SS fiber paper | DiffuCarb® CP-A210R raw carbon paper DiffuCarb® CP-A330R raw carbon paper DiffuCarb® CP-A400R raw carbon paper DiffuCarb® CP-H450R raw carbon paper DiffuCarb® CP-H850R raw carbon paper | Youveim® Ti fiber paper Youveim® Ti screen Youveim® Platinized Ti fiber paper Youveim® Platinized Ti screen |
IrO2 | ||||
DM IrO2-carbon paper DiffuCarb® E300 IrO2-carbon paper DiffuCarb® E300T IrO2-carbon paper with hydrophobic interface DiffuCarb® E300H IrO2-carbon paper with hydrophilic interface | Youveim® E301T IrO2-SS fiber paper with hydrophobic interface Youveim® E301H IrO2-SS fiber paper with hydrophilic interface Youveim® E301PT IrO2-Platinized SS fiber paper Youveim® E301G IrO2-Gold Plated SS fiber paper | |||
Youveim® E303T IrO2-Ti fiber paper with hydrophobic interface Youveim® E303H IrO2-Ti fiber paper with hydrophilic interface Youveim® E303PT IrO2-Platinized Ti fiber paper Youveim® E303G IrO2-Gold Plated Ti fiber paper | Youveim® E305T IrO2-Nickel fiber paper with hydrophobic interface Youveim® E305H IrO2-Nickel fiber paper with hydrophilic interface Youveim® E305PT IrO2-Platinized Nickel fiber paper Youveim® E305G IrO2-Gold Plated Nickel fiber paper | |||
Youveim® E309 IrO2/Ti fiber paper Youveim® E310 IrO2/Platinized Ti fiber paper Youveim® E311 Pt-IrO2/Platinized Ti fiber paper | Youveim® E314 IrO2/Ti screen Youveim® E315 IrO2/Platinized Ti screen Youveim® E316 Pt-IrO2/Platinized Ti screen | |||
Youveim® E320 IrO2/Ti foam Youveim® E321 IrO2/Platinized Ti foam Youveim® E322 Pt-IrO2/Platinized Ti foam | ||||
DiffuCarb® E330 Ir-carbon paper DiffuCarb® E330T Ir-carbon paper with hydrophobic interface DiffuCarb® E330H Ir-carbon paper with hydrophilic interface | Youveim® E340T Ir-Ti fiber paper with hydrophobic interface Youveim® E340H Ir-Ti fiber paper with hydrophilic interface Youveim® E341T Ir-Platinized Ti fiber paper with hydrophobic interface Youveim® E341H Ir-Platinized Ti fiber paper with hydrophilic interface | |||
Youveim® E343 Ir/Ti screen Youveim® E344 Ir/Platinized Ti screen Youveim® E345 Pt-Ir/Platinized Ti screen | Youveim® E347 Ir/Ti fiber paper Youveim® E348 Ir/Platinized Ti fiber paper Youveim® E349 Pt-Ir/Platinized Ti fiber paper | Youveim® E351 Ir/Ti foam Youveim® E352 Ir/Platinized Ti foam Youveim®E353 Pt-Ir/Platinized Ti foam | ||
阴极电极 | DM Ag碳纸阴极电极 DiffuCarb® E400 Ag碳纸阴极电极 | DM 甲酸电解池阴极电极 DiffuCarb® E410甲酸电解池阴极电极 |
