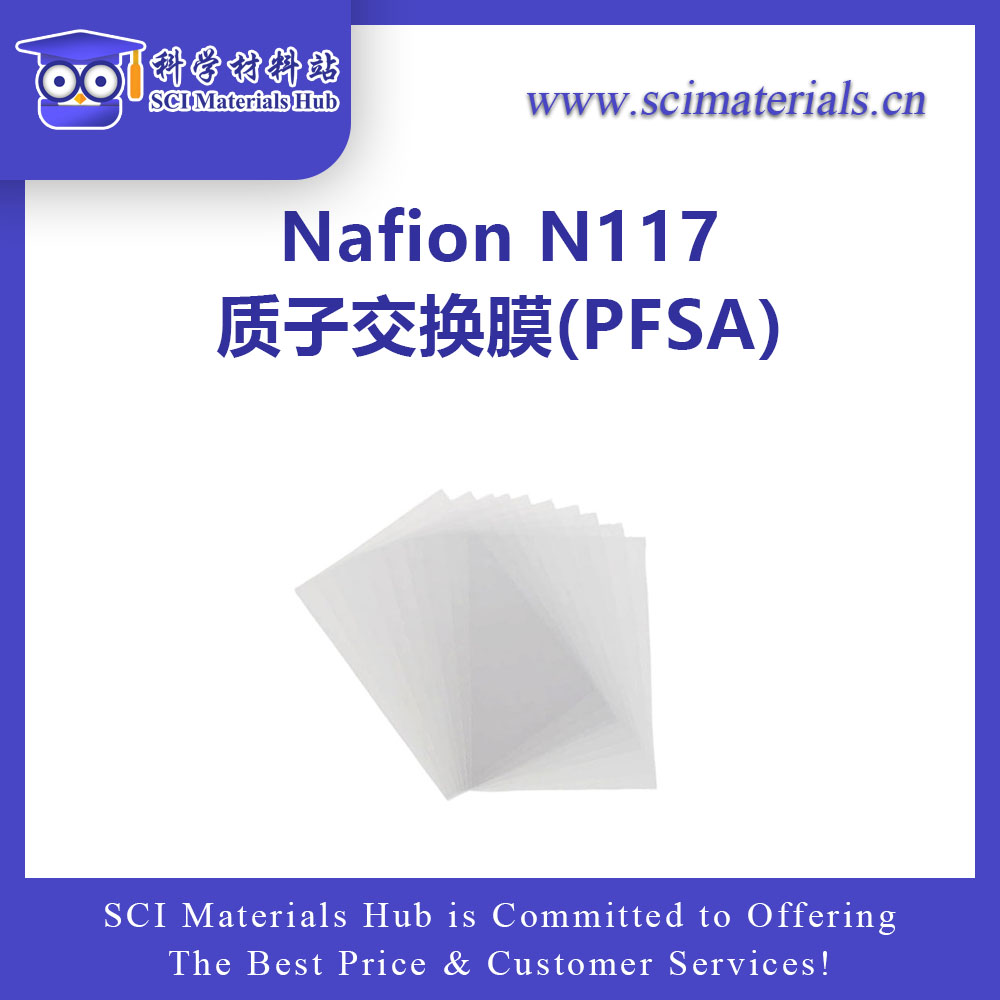

1. 介绍

Nafion膜用于分隔质子交换膜燃料电池和水电解槽的阳极室和阴极室。这种特殊的阳离子交换膜Nafion N117的厚度使其适合直接甲醇燃料电池（DMFC）。Nafion 117的厚度为183微米。

Chemours（以前称为DuPont）Nafion 117膜是非增强膜，基于化学稳定的酸（H +）形式的全氟磺酸/ PTFE共聚物。化学稳定膜的物理性能保持不变，与非稳定聚合物相比，其释放的氟离子大大降低，这是化学耐久性得到改善的标志。Nafion PFSA膜广泛用于质子交换膜（PEM）燃料电池和水电解槽。该膜在各种电化学电池中充当隔膜和固体电解质的角色，这些电化学电池需要该膜选择性地将阳离子转运穿过整个细胞结。该聚合物具有耐化学性和耐用性。

点击上方【购买渠道】进行购买或咨询

更多详情参见以下链接：

科学材料站Z博士：Nafion磺酸膜知多少？

2. 用途

适用于燃料电池、钒电池、电解槽、电渗析、电化学传感器中的电解质隔膜

3. 特征

-厚度25.4微米

-产品在50%相对湿度下切割至尺寸的+/-1%

-未经处理的Nafion 117的厚度为183微米

-良好的热稳定性，可耐高温；

-抗电化学氧化性，腐蚀性低，化学稳定性佳；

-良好的机械性能，寿命长；

-较高的电导率，输出功率高。

4. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Nafion N117 was obtained from SCI Materials Hub.

资料下载：

Nafion_Membrane_Chart.pdf

Nafion 115, 117, and 1110 Membrane Properties Sheet.pdf

NRE-211_212.pdf

Handling and Storage of Chemours Nafion? Perfluorinated Membranes.pdf

Nafion Membrane Safety Handling Technical Information Bulletin T-01.pdf

Nafion Membrane Technical Bulletin No. 93-01 for DRY H+ Membrane Pretreatment.pdf

预处理方法（建议）

杜邦公司提示：N117膜使用前可进行预处理，具体方法为：

- 首先将 Nafion117 膜在 80 °C 下、用5 wt.%的 H2O2 水溶液中处理 1h，以去除膜内的有机杂质。

- 其次用去离子水反复冲洗膜，将其浸泡在 80 °C 的去离子水中煮 1h，以完全除去残留的 H2O2。

（以下根据需求选择）

-再次将膜浸泡于 80 °C 、1.0 M 的H2SO4 溶液中煮 1h，通过离子交换将膜转为 H+型。

-最后用去离子水反复冲洗膜，将其浸泡在 80 °C 的去离子水中热处理 1h，以完全除去膜内残留的 H2SO4。此过程重复2-3次。

或者根据用户的既定习惯，只进行电解质溶液浸泡后使用，亦可。

保存

不用的时候，放到塑料袋里密封保存，避免受潮。
