Gore戈尔(8μm, 12μm, 15μm, 18μm) 质子交换膜

  • 产品代码:20021007 20021016 20021019
  • 产品描述:MX765.08, M788.12, M775.15, M735.18
  • 品牌:Gore
  • 货期:1天, 大量现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Gore戈尔质子交换膜 (8μm, 12μm, 18μm), MX765.08, M788.12, M775.15, M735.18, 科学材料站, SCI Materials Hub
65.7K

1994 年,戈尔Gore基于其在工程 ePTFE 方面的专业知识开发了其专有的增强膜技术。从那时起,Gore已经生产了数百万个膜电极组件,比业内任何其他供应商都多。


Gore产品线包括:

GORE-SELECT 膜

GORE PRIMEA 膜电极组件

GORE 电极和电极组件


戈尔电化学产品已用于多种应用,例如:

用于汽车、固定、备用和便携式电源的 PEM 燃料电池

用于热电联产(电力和热力)的 PEM 燃料电池

一氧化碳探测器

电池

液流电池

EDLC(双电层电容器)


戈尔燃料电池组件具有高耐用性和功率密度,经过设计和测试,适用于全球最苛刻的燃料电池应用:

交通运输——为汽车和公共汽车提供可靠的零排放动力

固定 — 关键系统和偏远地区的备用电源

便携式 — 燃料电池发电机和紧凑型充电设备

热电联产——为家庭提供经济高效的热电


Gore戈尔质子交换膜:高性能离子交换膜的领导者!

介绍

Gore戈尔8μm,12μm,15μm,18μm)质子交换膜是一种高性能的离子交换膜,由美国戈尔公司(Gore)开发和生产。它是一种用于燃料电池和电解水制氢等应用的关键组件。戈尔质子交换膜采用了聚四氟乙烯(PTFE)基材,通过特殊的处理和改性工艺,使其具有优异的质子传导性能。该膜具有高度的化学稳定性、耐高温性和耐腐蚀性,能够在极端环境下长时间稳定运行

产品特性:

1.高质子传导性能:该膜能够高效地传导质子,提供稳定的电导率,从而提高燃料电池的效率和性能。

2.优异的耐化学性:戈尔质子交换膜能够抵抗酸碱、氧化剂和还原剂等化学物质的侵蚀,保证系统的长期稳定运行。

3.良好的耐温性:该膜能够在高温环境下保持稳定的性能,适用于高温燃料电池和其他高温应用。

4.高机械强度:戈尔质子交换膜具有较高的机械强度和耐撕裂性,能够抵抗挤压和拉伸等力量,提高膜的使用寿命。

注意事项:

1.温度范围:确保在戈尔质子交换膜的温度范围内操作。超出温度范围可能导致膜的性能下降或损坏。

2.酸碱环境:避免将戈尔质子交换膜暴露在过高或过低的酸碱环境中,以免对膜的化学稳定性产生不利影响。

3.氧化剂和还原剂:避免与强氧化剂或还原剂接触,以免对膜的性能和稳定性造成损害。

4.机械应力:避免过度挤压、拉伸或撕裂戈尔质子交换膜,以免影响其机械强度和使用寿命。

5.污染物:确保戈尔质子交换膜不受杂质、颗粒物或污染物的污染,以免影响膜的传导性能和稳定性。

主要用途:

Gore戈尔质子交换膜广泛应用于燃料电池、电解水制氢、电解池、电化学反应等领域。

在燃料电池中,戈尔质子交换膜作为电解质,将氢气和氧气分离,并传导质子,从而产生电能。它可以提高燃料电池的效率、稳定性和寿命,同时减少能源消耗和环境污染。

在电解水制氢领域,通过将水分子分解成氢气和氧气,可以实现清洁、可再生的氢能源生产。戈尔质子交换膜具有高效的质子传导性能和耐高温性,能够在电解水制氢过程中提供稳定的电导率,提高制氢效率。

在电解池和电化学反应中,如电解池中的离子交换、电化学合成和电化学分析等。它的高质子传导性能和化学稳定性使其成为这些应用中的理想选择。

联系我们:

如果您对Gore戈尔8μm,12μm,15μm,18μm)质子交换膜有任何疑问或需要进一步了解,请随时与我们联系。我们的团队将竭诚为您提供支持和解答。官网微信:SCI-Materials-Hub,官方邮箱:contact@scimaterials.cn


戈尔质子交换膜在实验室研究中的应用:

  1. 材料开发研究
    • 用于研究燃料电池材料在不同厚度膜下的电化学性能,评估膜与电极界面的相互作用。
  2. 性能优化实验
    • 测试质子传导率、气体阻隔性能和耐久性,优化催化剂层的设计和MEA的制造工艺。
  3. 新技术验证
    • 在低湿度、高温或动态工况下进行模拟实验,为下一代燃料电池技术提供数据支持。
  4. 寿命评估
    • 研究膜在高电流密度和长期运行下的衰减特性,评估其寿命及稳定性。

性能对比表:

参数MX765.08M788.12M775.15M735.18
厚度 (μm)8121518
适用功率密度高功率密度中高功率密度中等功率密度中低功率密度
机械强度较低中等非常高
耐化学腐蚀性优秀优秀优秀极佳
气体阻隔性能较好很好极佳
操作湿度范围中高湿宽范围宽范围宽范围
耐高温能力中等极高
典型应用便携式设备研究汽车燃料电池研究重型车辆燃料电池研究工业能源系统研究
实验室优势支持高效小型化系统设计广泛适应性,便于优化实验提供长期耐久性测试平台强调稳定性与寿命研究

选择建议:

  • MX765.08:适合高功率密度研究,例如便携式燃料电池的性能优化。
  • M788.12:广泛适用于汽车燃料电池系统研究,具有良好的适应性和易用性。
  • M775.15:用于高负载场景下的寿命与耐久性研究,适合重型车辆应用验证。
  • M735.18:适用于恶劣环境及工业用燃料电池的长期性能评估实验。

此表格和分析有助于研究者根据实验需求选择最合适的戈尔质子交换膜型号。

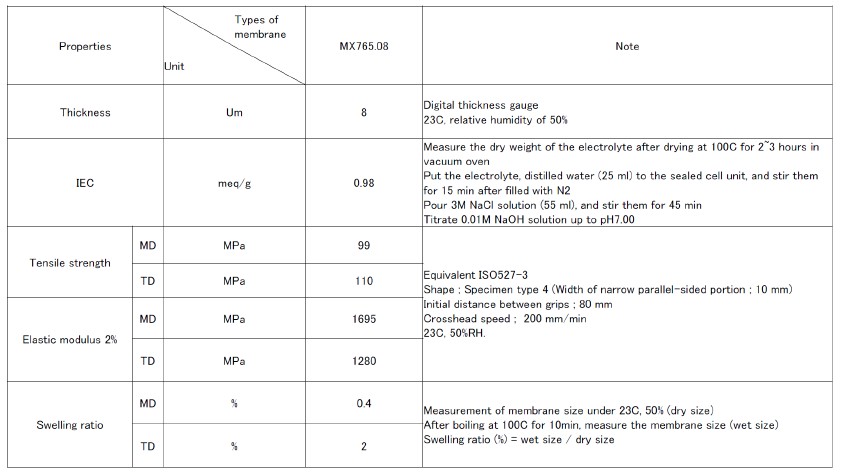

Gore MX768.08技术参数

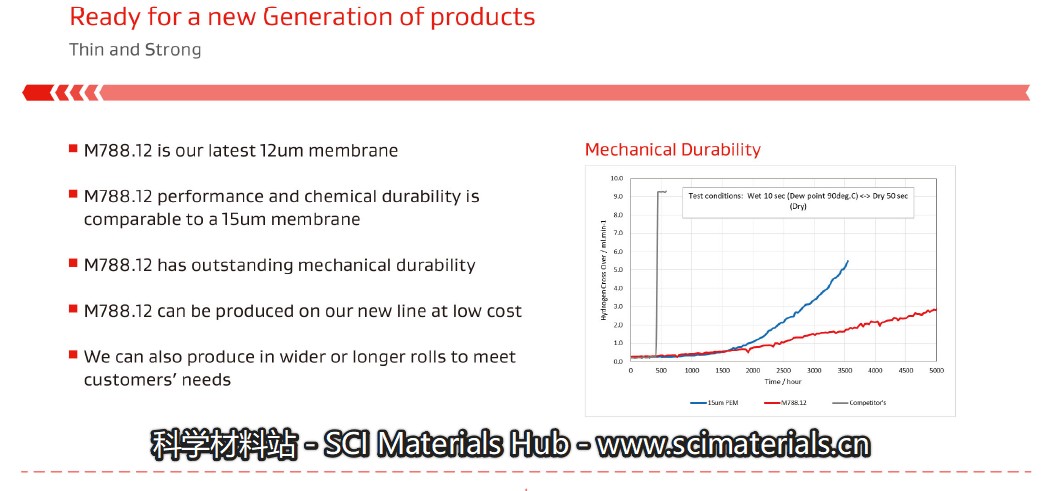

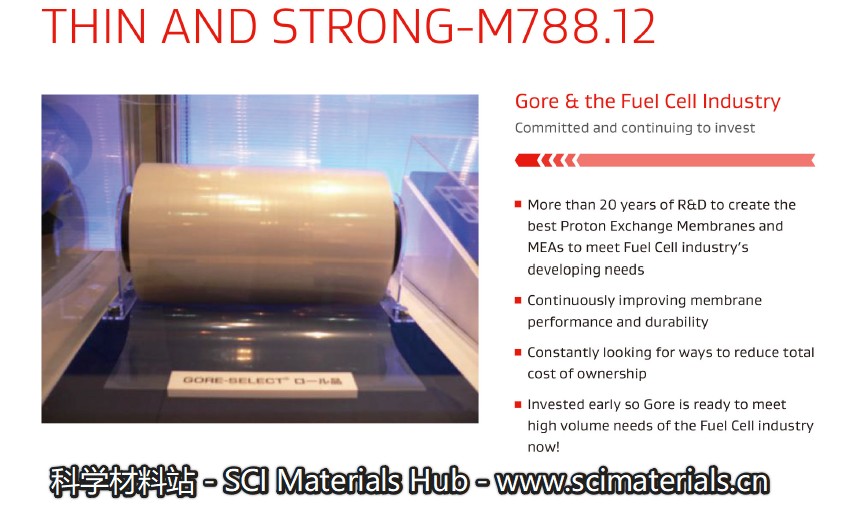

Gore M788.12技术参数

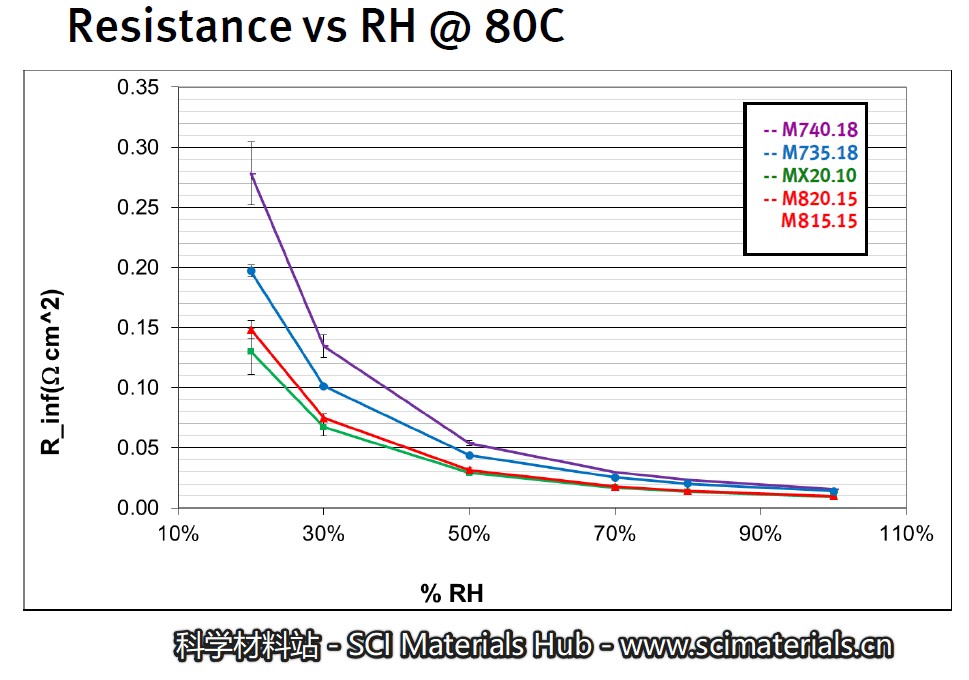

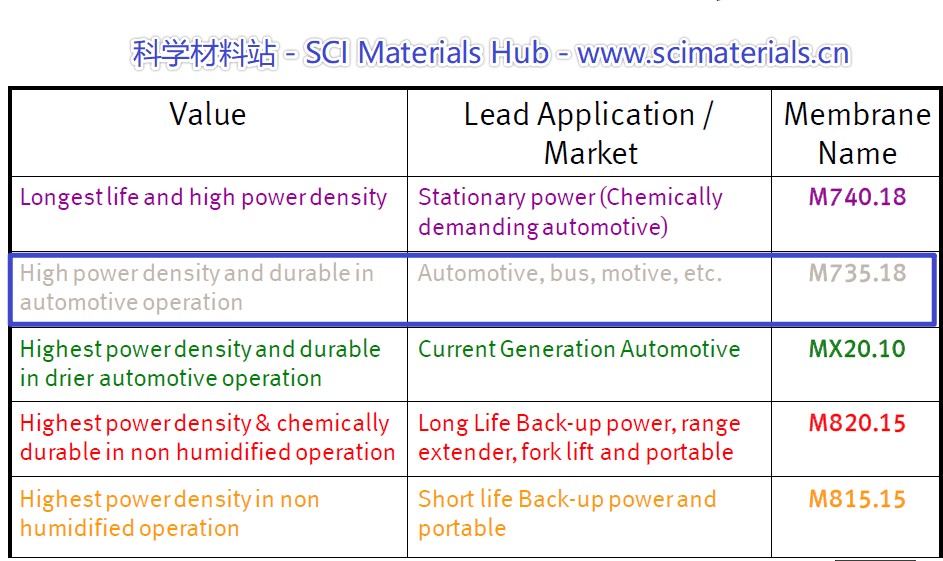

Gore M735.18技术参数

1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

Gore戈尔质子交换膜 (8μm, 12μm, 15um, 18μm)

产品代码

产品型号产品价格及规格货期

MX765.08

¥175 (10x10cm);¥420 (14x20cm)

¥550 (20x20cm);¥850 (20x34cm)

现货

M788.12

¥175 (10x10cm);¥300 (10x19.4cm)

¥550 (19.4x20cm);¥850 (20x29.4cm)

现货
M775.15

¥175 (10x10cm);¥450 (14x20cm)

¥600 (20x20cm);¥950 (20x34cm)

现货

M735.18

¥175 (10x10cm);¥450 (14x20cm)

¥600 (20x20cm);¥950 (20x34cm)

现货
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!


* 大量需求请联系我们咨询更多折扣

** 可提供13%增值税专用发票

*** 3平米及以上需求请联系我们咨询大量优惠价


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn
