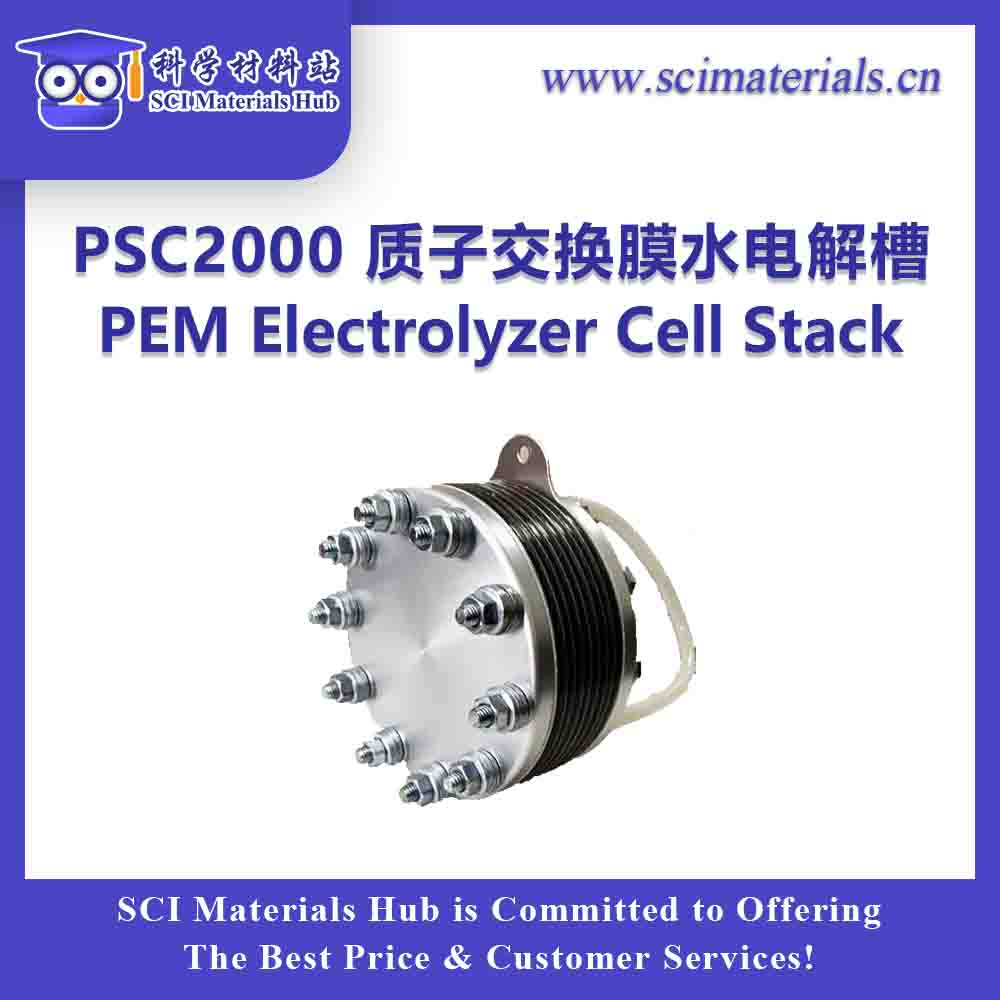

PSC2000 质子交换膜电解槽

  • 产品代码:2712000
  • 产品描述:PSC2000 PEM Electrolyzer Cell Stack
  • 品牌:SCI Materials Hub
  • 货期:1-2周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:PSC2000 PEM Electrolyzer Cell Stack, PSC2000 PEM电解槽, SCI Materials Hub, 科学材料站
65.7K


1.介绍

PSC series PEM Electrolyzer Stacks is an advanced patented product, which is lower voltage and higher efficiency, energy-saving and of environmental protection, producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali).

PSC系列质子交换膜电解槽是一种先进的专利产品,具有电压低、效率高、节能环保的特点,通过电解纯水(不加碱)生产氢气和氧气。


The PSC series PEM electrolzyer employs solid polymer electrolyte (SPE) and titanium components, which are the most advantageous and latest technologies in PEM electrolyzers!!!

PSC系列质子交换膜电解器采用固体聚合物电解质(SPE)和钛组件,这是质子交换膜电解器中最先进和最新的技术!!!


The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes, which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency. The electrolyzers with titanium components have higher performance than traditional electrolyzers.

SPE电极作为电池的核心,是一种高度活性的催化电极,电极之间的距离几乎为零,由复合催化剂和高电解效率的离子膜结合而成。钛合金电解槽比传统电解槽具有更高的性能。


点击上方【购买渠道】进行购买或咨询


2. 工作原理

The proton exchange membrane (PEM), which only allows water and positive ions to cross between compartments. The membrane also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes such as concentrated potassium hydroxide.

质子交换膜(PEM),它只允许水和正离子在隔间之间穿过。这种膜也可以作为电池中的电解质,不需要像浓缩氢氧化钾这样的危险液体电解质。


PEM water electrolysis simply splits pure deionized water (H2O) into its constituent parts, hydrogen (H2) and oxygen (O2), on either side of this membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode, or oxygen electrode, are oxidized to oxygen and protons, while electrons are released.

质子交换膜水电解只是在膜的两侧将纯去离子水(H2O)分解为其组成部分氢(H2)和氧(O2)。当向电解槽施加直流电压时,供给阳极或氧电极的水被氧化为氧和质子,同时释放电子。


The protons (H+ ions) pass through the PEM to the cathode, or hydrogen electrode, where they meet electrons from the other side of the circuit, and are reduced to hydrogen gas.

质子(H+离子)通过质子交换膜到达阴极或氢电极,在那里与电路另一侧的电子相遇,并被还原为氢气。


The two reactions that occur in the cell are as follows:

电池中发生的两种反应如下:

  1. 2H2O -> 4H+ + 4e- + O2

  2. 4H+ + 4e- -> 2H2


Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in Figure 1 below.

因此,气流中唯一可能的成分是氢、氧和水分,如下图1所示。


Figure 1

3. 应用

- Redundant renewable energy transformation and storage
- Lab experiment and teaching
- Laboratory analytic instrument
- Hydrogen healthy care industrial
- Hydrogen beauty industrial
- Fuel for special field
- Hydrogen supply for fuel cell
- Other pure H2 application field

-冗余可再生能源转换和储存

-实验室实验与教学

-实验室分析仪器

-氢保健工业

-氢美容工业

-专用燃料

-燃料电池的氢气供应

-其他纯氢应用领域


4. 产品优势

- Produce hydrogen by electrolysis pure water (forbid adding alkaline)
- No corrosion or pollution
- High hydrogen purity
- Low electrolyzer cell resistance
- No heat and long desiccant replacement cycle
- Lower power consumption and high electrolysis efficiency

-电解纯水制氢(禁止加碱)

-无腐蚀或污染

-高氢纯度

-低电解槽电阻

-无需加热,干燥剂更换周期长

-低功耗和高电解效率


We can make all kinds of custom-order product upon request.

我们可以根据客户要求定制各种产品。

资料下载

PSC Series Electrolyzer Cell Instruction.pdf

PSC Series Technical Data Sheet.pdf


PSC系列质子交换膜电解槽 技术参数
产品代码271006027101202710180271024027103002710500271075027110002712000
产品PSC60PSC120PSC180PSC240PSC300PSC500PSC750PSC1000PSC2000
电堆数123412348
堆栈直径 (mm)85858585138138138138138
氢气流量 (mL/min)0 - 600 - 1200 - 1800 - 2400 - 3000 - 5000-7500 - 10000 - 2000
氧气流量 (mL/min)0 - 300 - 600 - 900 - 1200 - 1500 - 2500-3750 - 5000 - 1000
电压 (V, DC)2468246816
最大输入电流 (A, DC)99994040404040
耗水率(cc/h)4812161830456060
工作温度40°F to 113°F (5°C to 45°C)
输出压力0 - 10 barg (0 - 145 psi)
膜类型Nafion PFSA
烧结钛扩散介质
贵金属电极
需要去离子水或再蒸馏水
水电阻率: >1 MΩ*cm
水电导率:<1 us/cm
预计使用寿命:如果水质和电源始终处于理想状态,您可以预期约10000小时的运行。
科学材料站致力于提供最优的价格和用户服务!


Q1: PSC系列PEM电解槽,夹具、双极板分别用的是什么材料?

夹具: 小型的是铝合金; 大型的是不锈钢板。

双极板是TA1


Q2: 电极面积可以做到多大?

电极面积目前最大能做到0.5m2


PSC60, 单层反应面积是12cm2,1层,共12cm2

PSC120, 单层反应面积是12cm2,2层,共24cm2

PSC180, 单层反应面积是12cm2,3层,共36cm2

PSC240,单层反应面积是12cm2,4层,共48cm2


PSC300, 单层反应面积是56cm2,1层,共56cm2

PSC500, 单层反应面积是56cm2,2层,共112cm2

PSC750, 单层反应面积是56cm2,3层,共168cm

PSC1000, 单层反应面积是56cm2,4层,共224cm2


Q3: PSC120电解槽中水的管路是什么样的?

硅胶管,内径6mm,外径9-10mm




Q4: PSC2000电解槽中水的管路是什么样的?

进出水口,是用内径为6mm,外径为9mm的硅胶管

氢气出口,可以做成Φ3的接头,或者G1/8"卡套接头, 或者Φ4,Φ6的快插接头


Q5: PSC2000电压和电流要求是多少?

电源的电压要求是24V±20%, 电流是36A,实际工作电压在17~20V。

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

PSC系列质子交换膜电解槽

产品代码

产品描述

价格(¥)货期
2710060PSC60 PEM Electrolyzer Cell Stack

¥5172(PSC60完整电解槽、含CCM和测试报告)

1-2周
2710120PSC120 PEM Electrolyzer Cell Stack

¥5980(PSC120配套CCM)

¥5980(PSC120硬件,不含CCM)

¥7499(PSC120完整电解槽、含CCM和测试报告)

1-2周
2710180PSC180 PEM Electrolyzer Cell Stack

¥7980(PSC180配套CCM)

¥7980(PSC180硬件,不含CCM)

¥9899(PSC180完整电解槽、含CCM和测试报告)

1-2周
2710240PSC240 PEM Electrolyzer Cell Stack

9980(PSC240配套CCM)

¥9980(PSC240硬件,不含CCM)

11247(PSC240完整电解槽、含CCM和测试报告)

1-2周
2710300PSC300 PEM Electrolyzer Cell Stack

10980(PSC300配套CCM)

¥10980(PSC300硬件,不含CCM)

12669(PSC300完整电解槽、含CCM和测试报告)

1-2周
2710500PSC500 PEM Electrolyzer Cell Stack

¥14980(PSC500配套CCM)

¥14980(PSC500硬件,不含CCM)

16478(PSC500完整电解槽、含CCM和测试报告)

1-2周
2710750PSC750 PEM Electrolyzer Cell Stack

¥22980(PSC750配套CCM)

¥22980(PSC750硬件,不含CCM)

24988(PSC750完整电解槽、含CCM和测试报告)

1-2周
2711000PSC1000 PEM Electrolyzer Cell Stack

¥28980(PSC1000配套CCM)

¥28980(PSC1000硬件,不含CCM)

30596(PSC1000完整电解槽、含CCM和测试报告)

1-2周
2712000PSC2000 PEM Electrolyzer Cell Stack

¥45980(PSC2000配套CCM)

¥45980(PSC2000硬件,不含CCM)

49919(PSC2000完整电解槽、含CCM和测试报告)

1-2周
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!


可以单独在科学材料站订制PSC系列配套的CCM,如:

配套PSC2000 PEM Electrolyzer Cell Stack的一套CCM信息如下:
1. 8张MEA

2. 膜类型:N117

3. 带催化剂的有效面积为:56cm2

4. 催化剂类型:阴极是铱,阳极是铂

5. 催化剂负载量为4-5 mg/cm2
