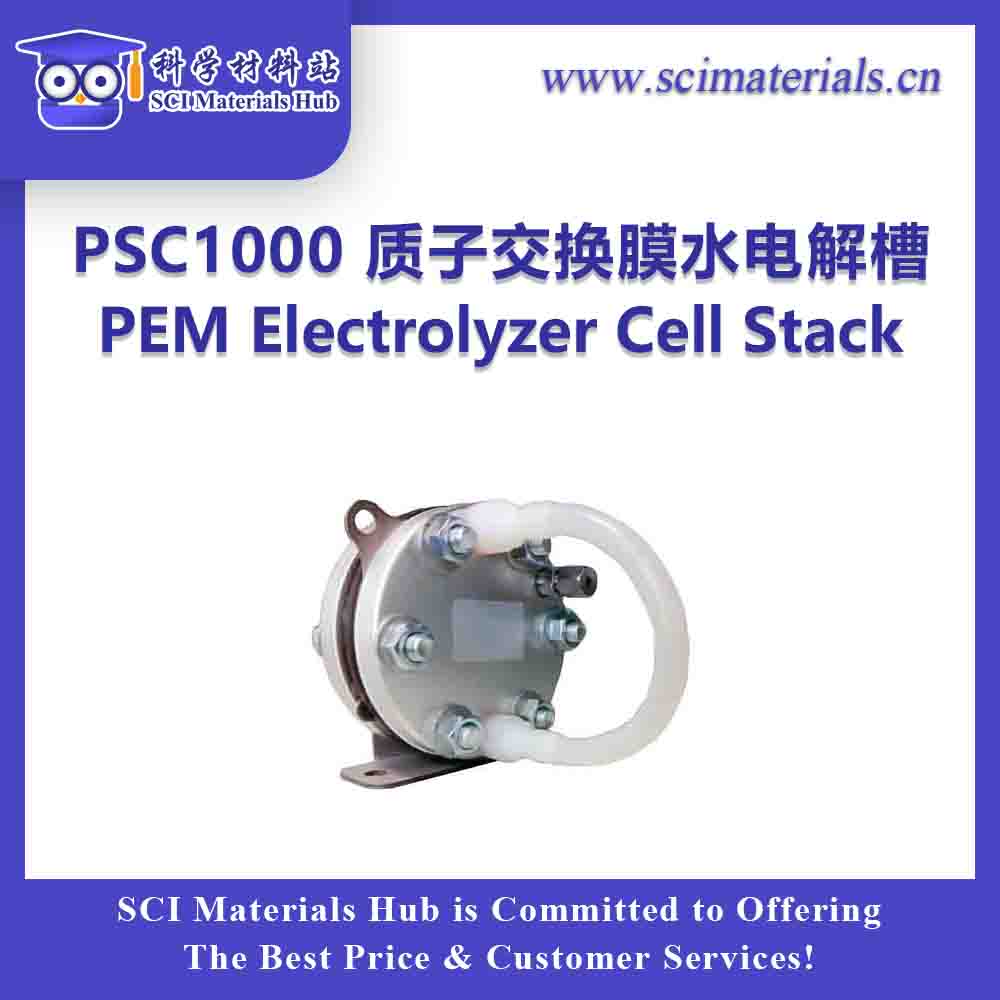

1.介绍

PSC series PEM Electrolyzer Stacks is an advanced patented product, which is lower voltage and higher efficiency, energy-saving and of environmental protection, producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali).

PSC系列质子交换膜电解槽是一种先进的专利产品，具有电压低、效率高、节能环保的特点，通过电解纯水（不加碱）生产氢气和氧气。

The PSC series PEM electrolzyer employs solid polymer electrolyte (SPE) and titanium components, which are the most advantageous and latest technologies in PEM electrolyzers!!!

PSC系列质子交换膜电解器采用固体聚合物电解质（SPE）和钛组件，这是质子交换膜电解器中最先进和最新的技术！！！

The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes, which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency. The electrolyzers with titanium components have higher performance than traditional electrolyzers.

SPE电极作为电池的核心，是一种高度活性的催化电极，电极之间的距离几乎为零，由复合催化剂和高电解效率的离子膜结合而成。钛合金电解槽比传统电解槽具有更高的性能。

点击上方【购买渠道】进行购买或咨询

2. 工作原理

The proton exchange membrane (PEM), which only allows water and positive ions to cross between compartments. The membrane also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes such as concentrated potassium hydroxide.

质子交换膜（PEM），它只允许水和正离子在隔间之间穿过。这种膜也可以作为电池中的电解质，不需要像浓缩氢氧化钾这样的危险液体电解质。

PEM water electrolysis simply splits pure deionized water (H₂O) into its constituent parts, hydrogen (H₂) and oxygen (O₂), on either side of this membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode, or oxygen electrode, are oxidized to oxygen and protons, while electrons are released.

质子交换膜水电解只是在膜的两侧将纯去离子水（H₂O）分解为其组成部分氢（H₂）和氧（O₂）。当向电解槽施加直流电压时，供给阳极或氧电极的水被氧化为氧和质子，同时释放电子。

The protons (H⁺ ions) pass through the PEM to the cathode, or hydrogen electrode, where they meet electrons from the other side of the circuit, and are reduced to hydrogen gas.

质子（H⁺离子）通过质子交换膜到达阴极或氢电极，在那里与电路另一侧的电子相遇，并被还原为氢气。

The two reactions that occur in the cell are as follows:

电池中发生的两种反应如下：

1. 2H₂O -> 4H⁺ + 4e^- + O₂

2. 4H⁺ + 4e^- -> 2H₂




Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in Figure 1 below.

因此，气流中唯一可能的成分是氢、氧和水分，如下图1所示。

Figure 1

资料下载

PSC Series Electrolyzer Cell Instruction.pdf

PSC Series Technical Data Sheet.pdf

Q1: PSC系列PEM电解槽，夹具、双极板分别用的是什么材料？

夹具: 小型的是铝合金; 大型的是不锈钢板。

双极板是TA1

Q2: 电极面积可以做到多大？

电极面积目前最大能做到0.5m²

PSC60, 单层反应面积是12cm²，1层，共12cm²

PSC120, 单层反应面积是12cm²，2层，共24cm²

PSC180, 单层反应面积是12cm²，3层，共36cm²

PSC240，单层反应面积是12cm²，4层，共48cm²

PSC300, 单层反应面积是56cm²，1层，共56cm²

PSC500, 单层反应面积是56cm²，2层，共112cm²

PSC750, 单层反应面积是56cm²，3层，共168cm

PSC1000, 单层反应面积是56cm²，4层，共224cm²

Q3: PSC120电解槽中水的管路是什么样的？

硅胶管，内径6mm，外径9-10mm

1. 手机淘宝（官方淘宝店铺：科学材料站）

2. 点击进入淘宝网页链接

可以单独在科学材料站订制PSC系列配套的CCM，如：

配套PSC2000 PEM Electrolyzer Cell Stack的一套CCM信息如下：
1. 8张MEA

2. 膜类型：N117

3. 带催化剂的有效面积为：56cm2

4. 催化剂类型：阴极是铱，阳极是铂

5. 催化剂负载量为4-5 mg/cm2
