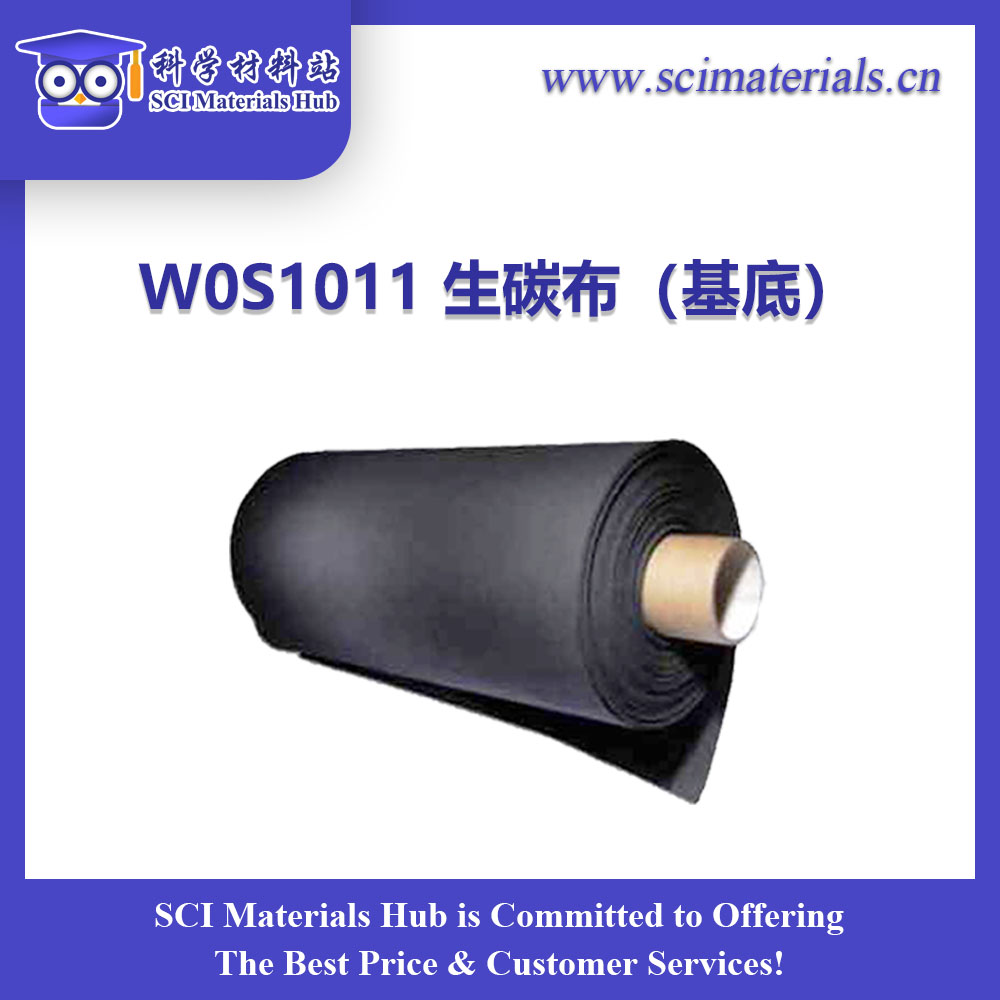

W0S1011 生碳布(基底)

  • 产品代码:121004
  • 产品描述:W0S1011 Carbon Cloth Substrate without PTFE & MPL
  • 品牌:SCI Materials Hub
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:W0S1011 生碳布(基底), W0S1011 Carbon Cloth Substrate without PTFE& MPL, 科学材料站, SCI Materials Hub
65.7K

<

点此链接,观看更多开箱视频,关注科学材料站Bilibili主页


1. 介绍

CeTech是一种没有微孔层(MPL)的编织碳纤维布。它的总厚度为330微米。CeTech是传统碳布气体扩散层(GDL)材料的低成本替代品。

更多介绍请阅读科学材料站Z博士:碳布基材知多少?

科学材料站与碳能建立官方合作,成为其一级经销商,在全球范围内推广碳能全系列产品。

欢迎广大厂商、经销商询价,价格从优。


点击上方【购买渠道】进行购买或咨询


2. CeTech碳布的优点

- 高压缩性

- 自动质量控制检验系统

- 避免“水淹”


3. 特点:

(1)引导气体从石墨板的导流沟槽到触煤层;

(2)顺利把反应式产生物-水排除于触媒层之外,避免淹水问题;

(3)电流的传导器;

(4)在燃料电池反应时具散热功用;

(5)足够的强度支撑MEA当其因为吸水过多而变形。


4. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

W0S1011 Carbon Cloth Substrate was obtained from SCI Materials Hub.

参数下载:

CeTech产品目录_210204.pdf


W0S1011 生碳布(基底) 技术参数

材料类型

碳纤维编织布

厚度

0.36毫米(360微米)

基本重量(克/平方米)

130

透气度

<10

电阻率(通过平面)

<5mΩ*cm2

抗拉强度

MD:10 N / cm和XD:5 N / cm

PTFE处理

微孔层


碳布一般采用PAN聚丙烯腈作为原料加以纺织,再经过高温处理而成。台湾碳能生产的W0S1009W0S1011碳布是基础型碳布基底,呈弱疏水性,一般用作材料生长或负载的基底。如果有需要,可以采用不同方法如化学法(如硫酸浸泡等)、物理法,将疏水性碳布改性成亲水性碳布。


台湾碳能生产的W1S1009W1S1010W1S1011碳布是疏水微孔层处理型碳布,呈强疏水性,分别是在W0S1009、W0S1010、W0S1011基础型碳布表面涂布了微孔层MPL和PTFE,增强透气性,一般用作各类燃料电池如氢燃料电池的空气阴极。


如果客户希望将碳布用作燃料电池阴极,可以直接购买W1S1009W1S1010W1S1011碳布,自己负载催化剂层C即可,如果购买W0S1009W0S1011碳布,除了负载催化剂层C外,还需要在碳布另外一面负载碳基底层A和气体扩散层B。


简要方法如下,文献参考:Cheng, S.; Liu, H.; Logan, B. E. (2006), Electrochemistry Communications 8, 489-494. A(碳布基底层)、B(PTFE即特氟龙扩散层)、C(Pt/C催化剂层)。下面就ABC的制作分别阐述:


A:涂覆碳基底层

1. 用小刀裁剪碳布4*8 cm(两块4*4 cm的阴极);

2. 按照1cm2碳布负载1.56 mg的标准,用电子天平称量50mg炭黑;

3. 按照1 mg炭黑对应12 uL 40%PTFE(特氟龙,聚四氟乙烯)的标准,用移液器取600 uL;

4. 将称量的炭黑加入一个小塑料瓶,放入6-8颗小玻璃珠,加入移取的PTFE,盖上瓶盖,摇晃20s,形成悬浮液;

5. 用刷子将悬浮液涂覆在碳布的一面,注意动作轻慢,避免炭黑进入碳布的另一面;

6. 将涂覆有炭黑的碳布放入一个硬纸板上,静置2h自然干燥,或者用一个电吹风加速;

7. 将自然干燥的碳布放在一个预热到370摄氏度炉子里面的高温陶瓷板上(注意一定要戴高温手套,避免烧伤),加热20-30 min;

8. 将高温陶瓷板从炉中拿出来,让碳布自然冷却,或者将炉关闭,炉门打开,缓慢降温;由于碳布上已经涂布了PTFE,碳布会变得更卷曲,这是正常现象


B.涂覆扩散层(PTFE,即特氟龙,聚四氟乙烯)

(1)充分摇晃60%的PTFE,保证这种悬浮液充分混匀;

(2)将摇匀的60%PTFE溶液均匀涂覆在刚才的碳布那面;

(3)用毛刷去除任何气泡或大块PTFE;

(4)空气干燥5-10 min,干燥时涂覆面颜色变白;

(5)将涂覆有PTFE的碳布放入炉中370摄氏度加热10-15 min;

(6)将其自然冷却,颜色会变成亮黑色;

(7)再重复步骤(1)-(5)3次,使得PTFE涂层一共有4层,这是Z适宜的扩散层厚度;

(8)用剪刀裁剪出12cm2的圆形阴极碳布,或者用一个小铁锤击打木板模具获得这种12cm2的圆形阴极碳布;


C. 涂覆Pt/C催化剂

(1)称量10%的Pt/C催化剂,确保1cm2的碳布碳布有0.5 mg的Pt,比如12cm2的碳布需要6 mg Pt,需要60 mg的Pt/C催化剂;

(2)将称量好的Pt/C催化剂放入一个塑料瓶中,按照1mg Pt/C催化剂配比0.83 uL的蒸馏水的比例,如60 mg的Pt/C催化剂需要50 uL的蒸馏水。将蒸馏水逐滴滴加到塑料瓶中,加6-8颗玻璃珠,摇晃20 s.这个步骤叫做Pt催化剂的“水处理”;

注意:如果水的量不够,或者没有摇匀,会使得Pt与Nafion膜中的乙醇反应,导致放热甚至起火;

(3)按照1 mg的Pt/C催化剂加入6.67 uL的Nafion溶液和3.33 uL的异丙醇比例,比如60 mg的Pt/C催化剂需要加入400 uL的5%的Nafion溶液和200 uL的异丙醇;

(4)将调好的糊状物涂覆在碳布的扩散层(PTFE)的另一面;

(5)将涂覆好的碳布空气干燥至少24h,或者用电吹风的低档加热以加速。


科学材料站与台湾碳能CeTech公司于2021年6月建立官方合作,将在全球范围内推广碳能全系列产品。供应质量优异的碳纸、碳布、石墨毡、钛纤维毡等产品,可以用于燃料电池膜组件、电极材料制备、纳米材料基底合成、液流电池等研究方向。

1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

W0S1011 生碳布(基底)

产品代码

产品描述

产品价格及规格货期
121004

W0S1011 Carbon Cloth

Substrate without PTFE& MPL

¥72 (10cm*10cm,货号:121004-1010)

245 (20cm*20cm,货号:121004-2020)

¥762 (40cm*40cm,货号:121004-4040)

现货

SCI Materials Hub is Committed to Offering The Best Price & Customer Services!

* 大量需求请联系我们咨询更多折扣

** 可提供13%增值税专用发票

*** 3平米及以上需求请联系我们咨询大量优惠价


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn



Partial references citing our materials (from Google Scholar)


二氧化碳还原

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.


5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.


6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO2 electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.


7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.


8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).


9. Advanced Energy Materials Interatomic Electronegativity Offset Dictates Selectivity When Catalyzing the CO2 Reduction Reaction

The bipolar membrane (Fumasep FBM), carbon paper (SIGRACET 29BC, Freudenberg paper H23C2), ion exchange membrane (Nafion N117), and anion exchange membrane (Fumasep, FAA-3-PK-130) were all obtained from SCI Materials Hub.


10. Separation and Purification Technology *CO spillover induced by bimetallic xZnO@yCuO active centers for enhancing C–C coupling over electrochemical CO2 reduction

5 % Nafion solution was obtained through SCI Materials Hub.


11. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

In this paper, PiperION-A5-HCO3 anion exchange resin, Fumion FAA anion exchange resin, PiperION-A15-HCO3 and FAA-3-50 were purchased from SCI Materials Hub.


12. Vacuum Controllable dual Cu–Cu2O sites derived from CuxAl-LDH for CO2 electroreduction to hydrocarbons

Nafion and carbon paper (TGPH060) were supplied through SCI Materials Hub.


电池

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.


3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.


4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.


5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.


6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.


7. SSRN Cr-induced improvement of structural stability of δ-MnO2 optimizes cycling stability of aqueous Zn-ion batteries

The Zn sheet (99.99%) was purchased from SCI Materials Hub.


8. Nature Communications Atomic-scale regulation of anionic and cationic migration in alkali metal batteries

The lithium metal disk (purity: 99.9%, diameter: 16 mm, thickness: 0.6 mm) was obtained from SCI Materials Hub.


9. Chemical Engineering Journal Zinc-based energy storage with functionalized carbon nanotube/polyaniline nanocomposite cathodes

CNTs were purchased from SCI Materials Hub.


10. ACS Nano Interfacial Chemistry Modulation via Amphoteric Glycine for a Highly Reversible Zinc Anode

Zn foil (>99.99%, 100 μm) was purchased from SCI Materials Hub.


11. ACS Nano High-Energy and Long-Lived Zn–MnO2 Battery Enabled by a Hydrophobic-Ion-Conducting Membrane

Zn foil (99.9%), carbon paper, and carbon felt were obtained from SCI Materials Hub.


12. Nature Communications Unravelling rechargeable zinc-copper batteries by a chloride shuttle in a biphasic electrolyte

Carbon cloth (CeTech W0S1011), PP membrane (Celgard 2300), Glass fiber (Whatman GF/A), anion exchange membrane (Fumasep FAB-PK-130), and cation exchange membrane (Nafion N-117) were purchased from sci materials hub.


13. PROCEEDINGS OF SPIE A dendrite-free and corrosion-suppressive metallic Zn anode regulated by the hybrid aqueous/organic electrolyte

Zn foil (99.9%, 100 μm thickness) was obtained from the SCI Materials Hub.


电解水

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.


2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.


3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub.


4. Chemical Engineering Journal Electronic configuration of single ruthenium atom immobilized in urchin-like tungsten trioxide towards hydrazine oxidation-assisted hydrogen evolution under wide pH media

The non-reinforced anion exchange membrane (AEM) of the coupled system was obtained from SCI Materials Hub (Fumasep FAA-3-50).


5. Cell Reports Physical Science Non-layered dysprosium oxysulfide as an electron-withdrawing chainmail for promoting electrocatalytic oxygen evolution

Nickel foam (NF) was offered by SCI Materials Hub (Wuhu, China), and was ultrasonicated in HCl solution, ethanol, and acetone in proper order before being used in electrochemical measurements.


6. Materials Today Catalysis Valence engineering via double exchange interaction in spinel oxides for enhanced oxygen evolution catalysis

Commercial Cu foam was purchased from SCI Materials Hub.


7. Advanced Functional Materials Elucidating the Critical Role of Ruthenium Single Atom Sites in Water Dissociation and Dehydrogenation Behaviors for Robust Hydrazine Oxidation-Boosted Alkaline Hydrogen Evolution

The nonreinforced anion exchange membrane (AEM) of the HzOR-assisted OWS system was purchased from SCI Materials Hub (Fumasep FAA-3-50).


8. ACS Omega Boosting Hydrogen Evolution through the Interface Effects of Amorphous NiMoO4–MoO2 and Crystalline Cu

Pt/C (20 wt %) was purchased from SCI Materials Hub.


9. SSRN The Dual Active Sites Reconstruction on Gelatin In-Situ Derived 3d Porous N-Doped Carbon for Efficient and Stable Water Splitting

Nafion D521 was purchased from SCI Materials Hub.


燃料电池

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.


2. Polymer Development of rigid side-chain poly(ether sulfone)s based anion exchange membrane with multiple annular quaternary ammonium ion groups for fuel cells

Fumion FAA-3-solut-10 was obtained from SCI Materials Hub.


3. Journal of Power Sources Boosting the power density of the H3PO4/polybenzimidazole high-temperature proton exchange membrane fuel cell to >1.2 W cm-2 via the deposition of acid-based polymer layers on the catalyst layers

PBI resin (molecular weight: 60000, SCI Materials Hub), carbon paper 39BB (SGL Carbon), 70 wt% Pt/C (TANAKA) were obtained from SCI Materials Hub.


催化-ORR

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.


2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.


3. Catalysis Solution-Phase Synthesis of Co-N-C Catalysts Using Alkali Metals-Induced N-C Templates with Metal Vacancy-Nx sites

In this paper, PtRu-C (60 % PtRu (3.5nm) on High Surface Area Carbon, Pt:Ru = 1:1, SCI Materials Hub), an alkaline dispersion (PiperION-A5-HCO3-EtOH, 5 wt.%, SCI Materials Hub), anion exchange membrane (PiperION-A type-HCO3, SCI Materials Hub) were used as received.


电容器

1. Journal of Energy Storage Unraveling the detrimental crosstalk between cathode and anode in the aqueous asymmetric capacitor of activated carbon /copper oxide

In this paper, Fumasep FAA-3-50 anion exchange membrane (Thickness 50 μm, surface resistance 0.6–1.5 Ω cm−2, transference number 92–96 %) was bought from SCI Materials Hub.


催化加氢

1. Nature Communications Electrosynthesis of polymer-grade ethylene via acetylene semihydrogenation over undercoordinated Cu nanodots

In this paper, activated carbon (Vulcan XC-72) was obtained from SCI Materials Hub.


水处理

1. Water Research Electro-peroxone with solid polymer electrolytes: A novel system for degradation of plasticizers in natural effluents

In this paper, Nafion® N324 (SCI Materials Hub), between a 15 cm2 (3 cm × 5 cm) graphite plate anode and a graphite felt cathode (EP-SPE system)


表征

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.


理论计算

1. Sustainable Energy & Fuels A desulfurization fuel cell with alkali and sulfuric acid byproducts: a prototype and a model

A Fumasep®FKD-PK-75 membrane was used as the cation exchange membrane, in which the the oxygen permeability of membrane was about 1 cm3(STP)/(s cm2 cm Hg) [Ref. SCI Materials Hub]


器件

1. Journal of Materials Science: Materials in Electronics Preparation and application of electrical conductive composites with skin temperature-triggered attachable and on-demand detachable adhesion

Carbon black (CB, Ketjenblack EC 600JD) was purchased from SCI Materials Hub.
