欢迎来到科学材料站!
首页 > 品牌 > 日本东丽Toray > Toray TGP-H-060 raw paper 生碳纸

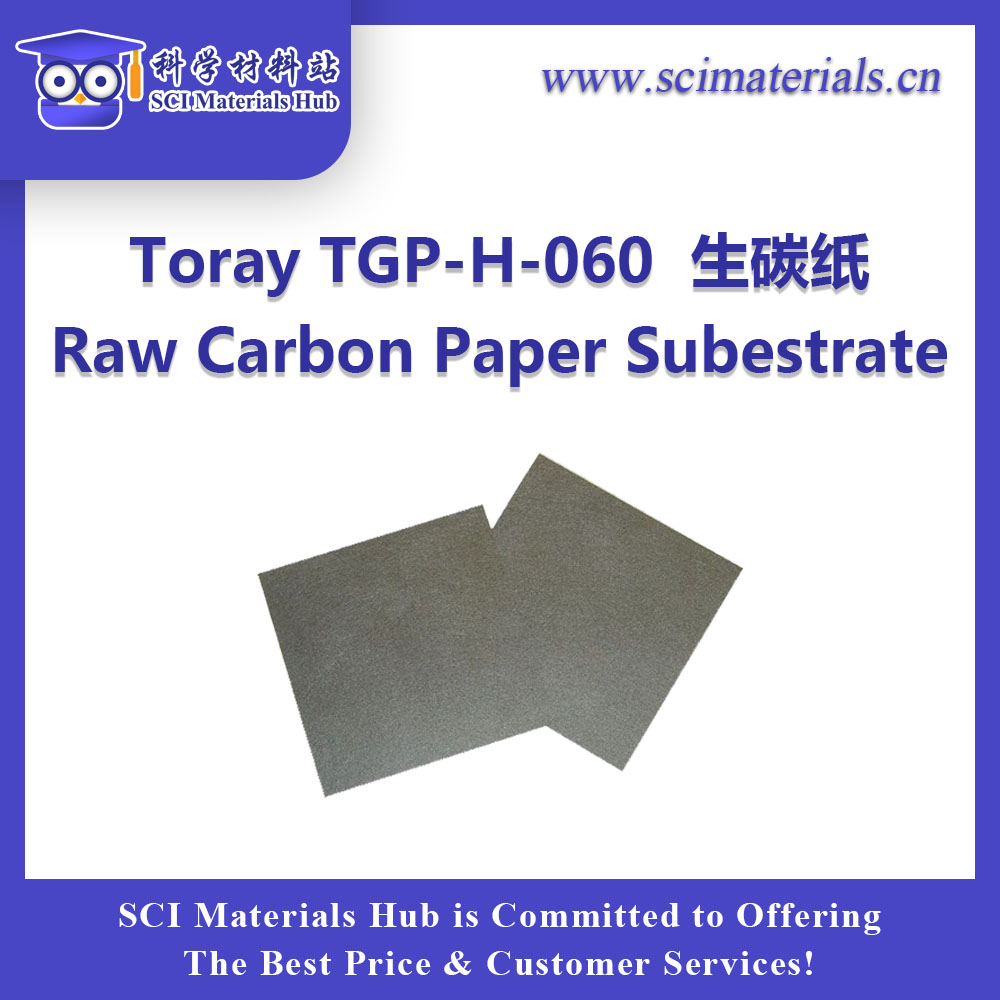

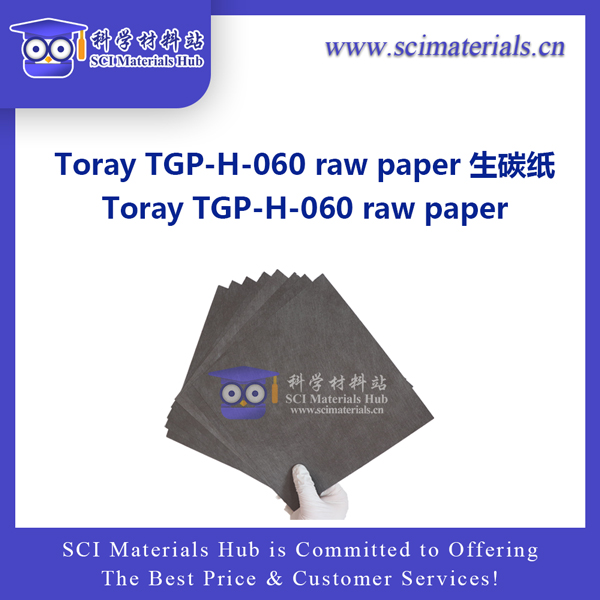

Toray TGP-H-060 raw paper 生碳纸

  • 产品代码:23060000
  • 产品描述:Toray TGP-H-060 raw paper
  • 品牌:Toray
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:东丽碳纸TGP-H-060 亲水, SCI Materials Hub, 科学材料站
65.7K

1. Introduction (介绍)

Toray Paper 060 - TGP-H-060 - is a carbon fiber composite paper suitable for use as a catalyst backing layer. It has a total thickness of 190 um (microns). Toray Paper 060 is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.

点击上方【购买渠道】进行购买或咨询


2. 东丽最终使用保证

· 购买此商品,即表示您同意,您将如上所述将商品及其复制品仅用于民用,并且绝不会将其用于开发或制造大规模杀伤性武器,例如核武器,生物武器或化学武器。武器和导弹。如果您决定将货物用于其他任何用途,则在将货物用于此类其他用途之前,您将立即以书面形式通知东丽公司。


3. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Toray TGP-H-060 raw paper was obtained from SCI Materials Hub.

东丽Toray TGP-H-060 碳纸(科学材料站 www.scimaterials.cn)

材料类型

碳纤维纸

厚度

0.19毫米(190微米)

堆积密度

0.44克/立方厘米

孔隙率(%)

78

气体渗透率

1900

电阻率(通过平面)

80 mOhm cm

抗折强度(MPa)

40

弯曲模量(GPa)

10

抗拉强度

50

表面粗糙度Ra

8 μm(微米)

电阻率(平面内)

5.8 mOhm cm

导热系数(通过平面,室温)

1.7 W/ (mk)

导热系数(平面内,室温)

21 W/ (mk)

导热系数(面内,100°C)

23 W/ (mk)

平面内的热膨胀系数

-0.8

PTFE处理

nonw

微孔层

没有


1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

Toray TGP-H-060 raw paper 生碳纸

产品代码

产品描述

推广价格及规格货期
23060000

Toray TGP-H-060 raw paper

¥60 (10cm*10cm,货号:23060000-1010)

¥225 (20cm*20cm,货号:23060000-2020)

¥745 (20cm*20cm*4张,货号:23060000-20204)

现货
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn




References citing our materials

二氧化碳还原

1. Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


电池

3. Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


4. A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.
