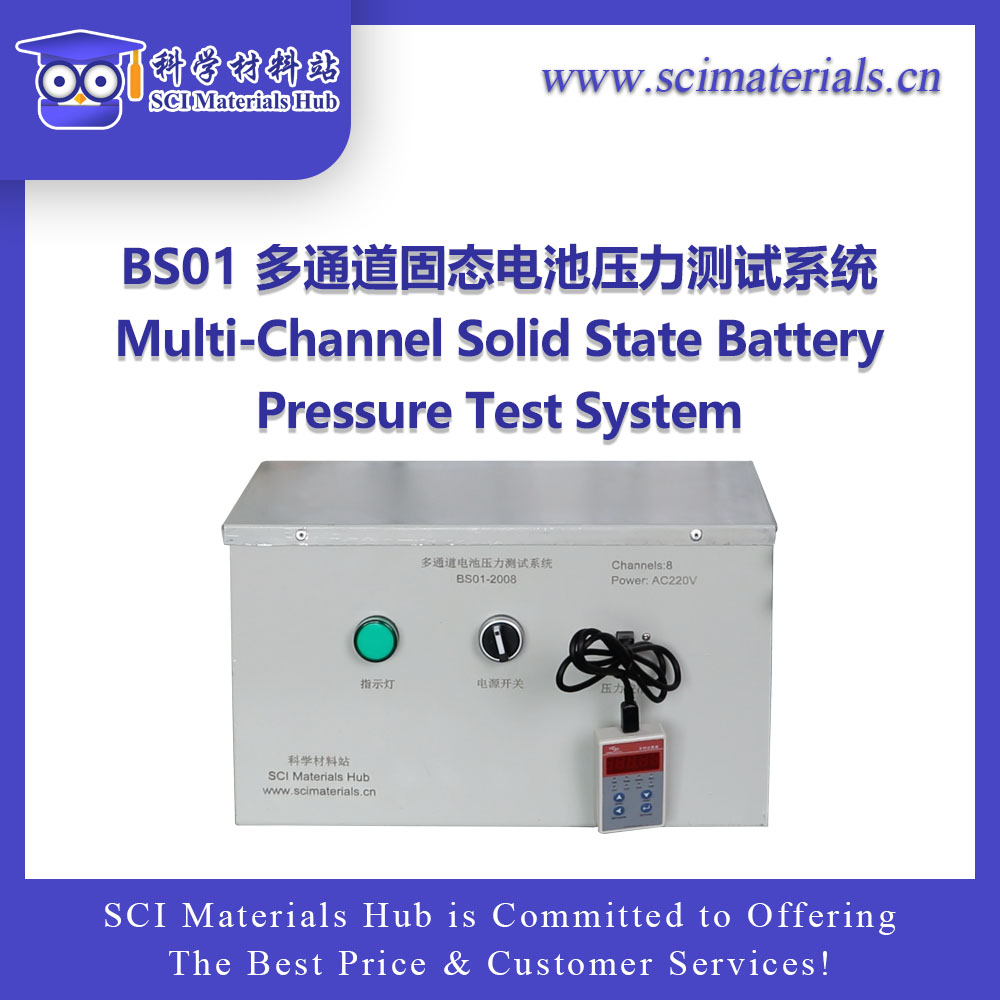

多通道固态电池压力测试系统是一套适用于研究固态锂离子电池的系统。该装置通过模拟固态电池的结构和工作原理,对不同电解质材料固态电池在不同初始压力下进行电化学性能的测试与研究,同时可以实时记录电池在充放电过程中的压力变化情况。
多通道固态电池压力测试系统中的模具为BM01固态锂离子电池测试模具 (不含压力传感器和传动控制系统),该模具可单独购买。

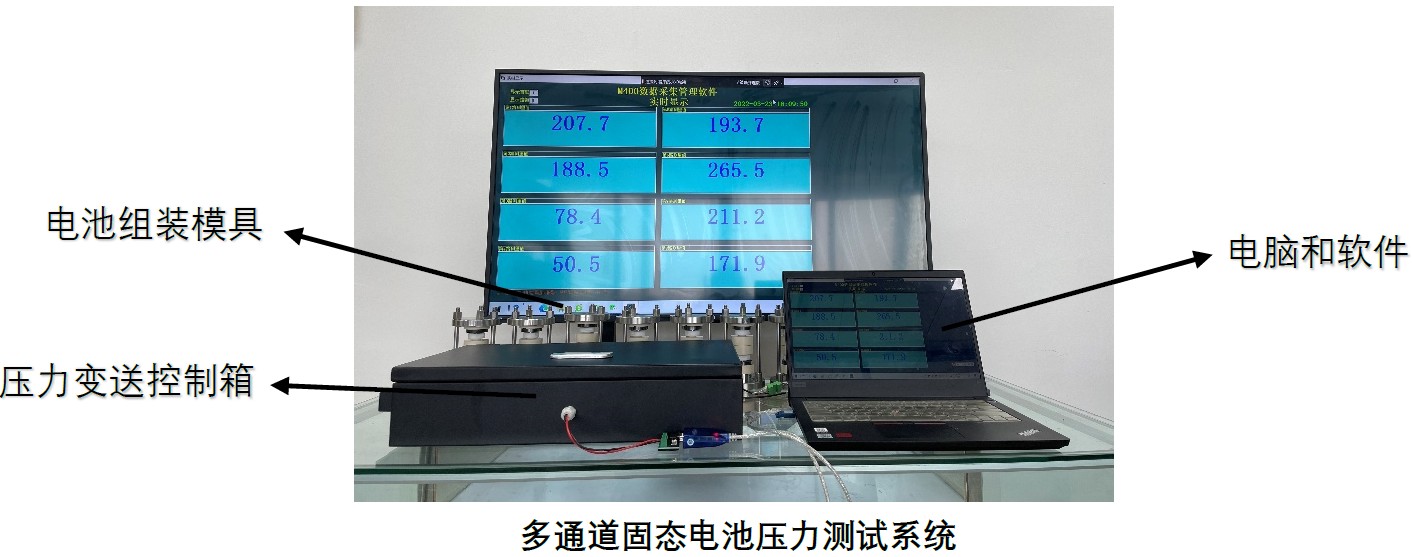

本系统主要由三部分构成:

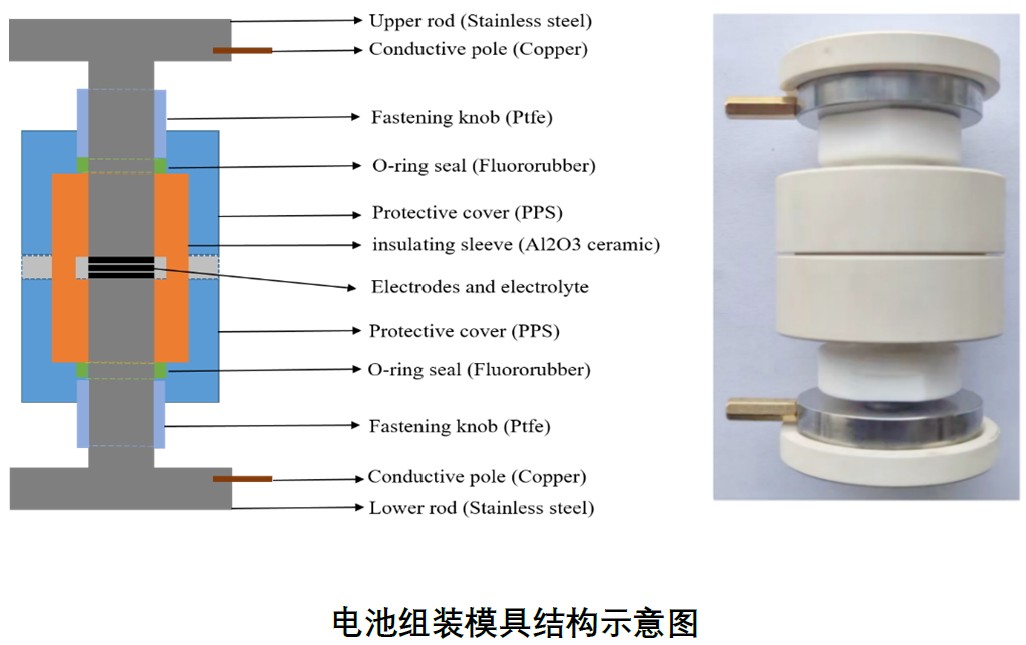

1、固态电池组装模具;
2、压力传感器和变送控制系统;
3、电脑和记录软件(电脑由客户自行提供)。
使用流程:
1、传感器校准标定:所有传感器在使用前需进行校准标定操作。
2、电池组装:依次在绝缘套筒中加入片状电解质及复合电极材料/金属电极/阻塞电极/集流体中的一种或几种,手动拧紧PPS保护盖,放入O形密封圈,用扳手紧固PTFE旋钮。接着将模具置入带有压力传感器的金属外架中,用扳手固定最上面3个螺母。(此过程需在手套箱内完成)
3、将组装好的电池模具从手套箱内取出,依次将传感器公接口接入控制箱对应的传感器母接口。
4、启动控制箱电源,将数据传输线接入电脑USB插口,插入软件保护U盘。
5、打开电脑“设备管理器”,点击“端口(COM和LPT)”,找到COM端口号。
6、打开软件,依次点击“通讯”、“串口设置/仪表通讯设置”,选择对应的端口号,设置好通道数、地址、上下限等参数,并存储返回。
7、依次点击“欢迎进入本系统”、“实时数值显示”,选择需要的通道路数,即可显示实时各通道实时压力数值。
8、使用扳手调节外架最上面三个螺母,确定初始预紧力。
9、配合其他测试仪进行电池充放电性能测试。
10、点击“历史数据报表提取”,选择需要的时间段,导出压力数据。
