BM01固态锂离子电池测试模具

  • 产品代码:28030001
  • 产品描述:BM01 Solid state lithium ion battery test mould
  • 品牌:SCI Materials Hub
  • 货期:7天
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:BM01固态锂离子电池测试模具, BM01 Solid state lithium ion battery test mould, SCI Materials Hub, 科学材料站
65.7K

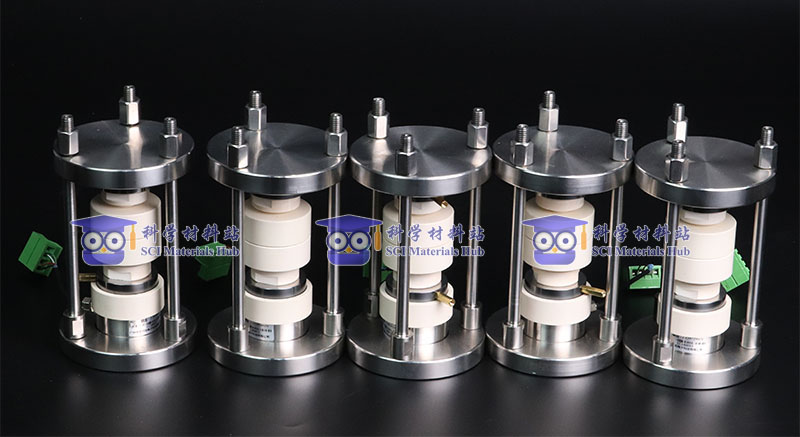

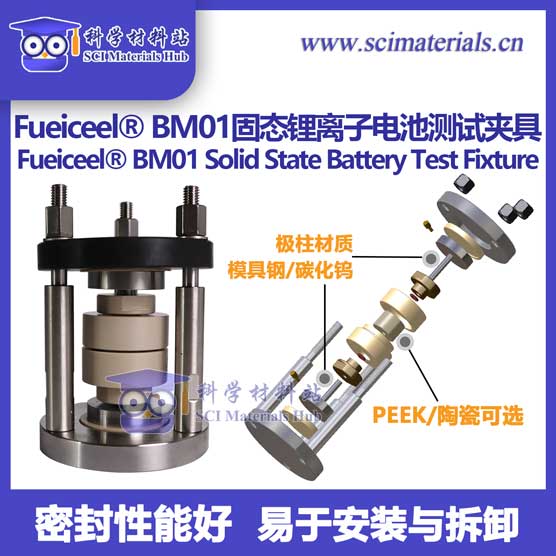

BM01模具系列是一款适用于研究锂离子电池固态电解质电池的装置 (不含压力传感器和传动控制系统),该装置通过模拟固态电解质池的结构和工作原理,对不同电解质材料固态池进行电化学性能的测试和研究。根据研究需求对多个通道设置不同的压力值、同步运作、数据单独保存、导出,方便后期性能对比。

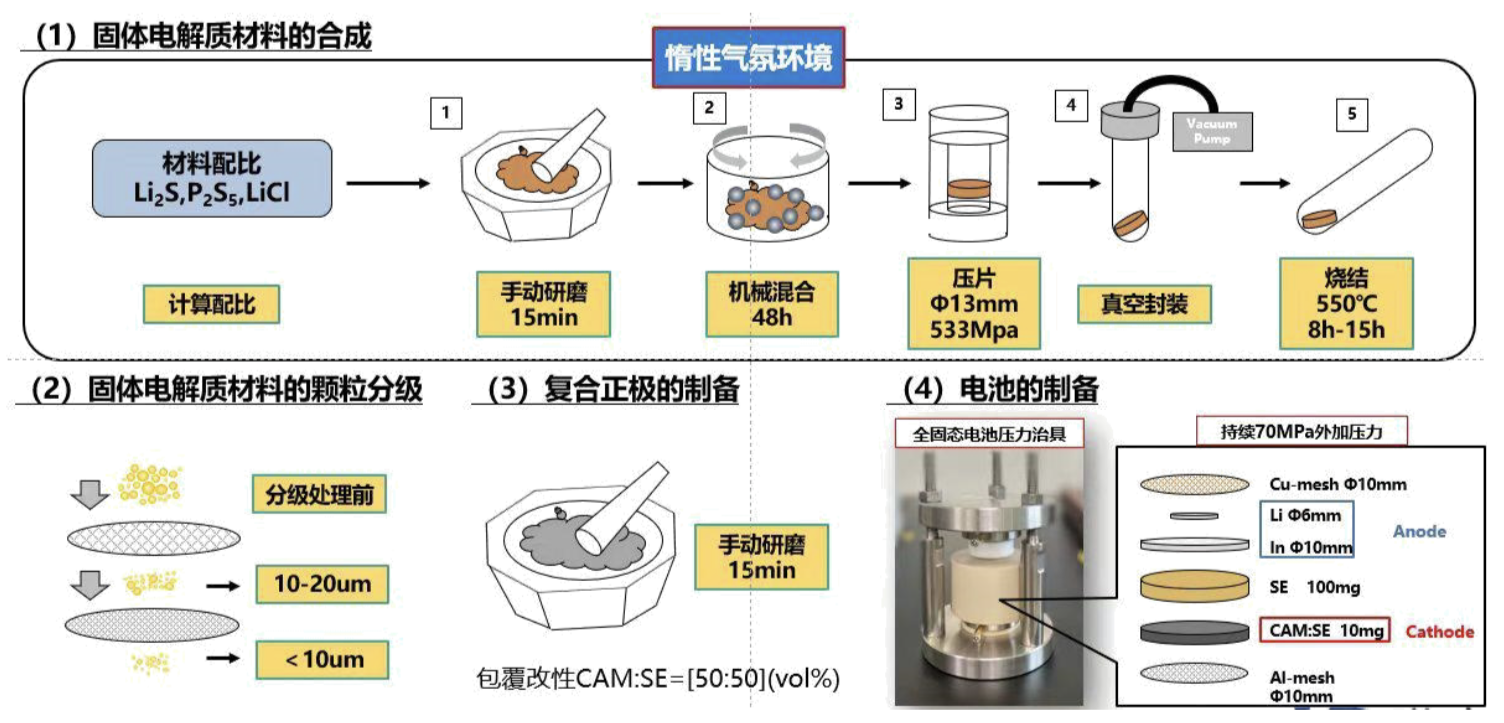

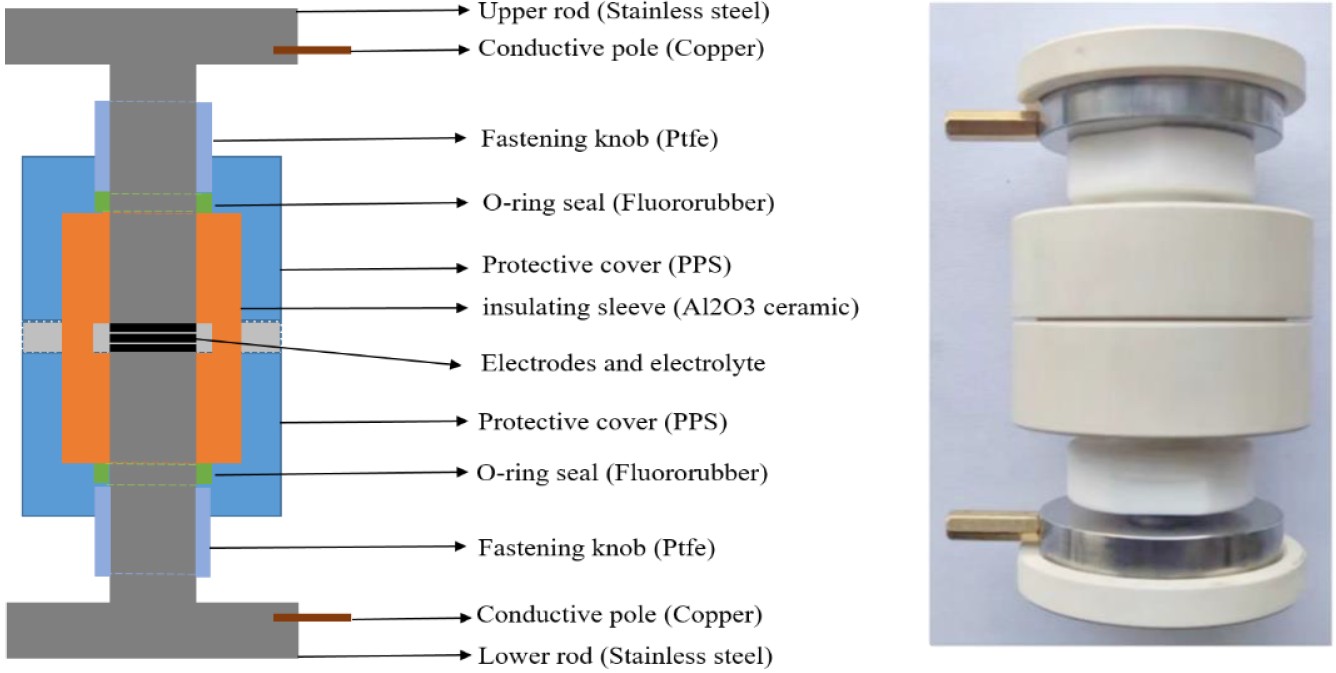

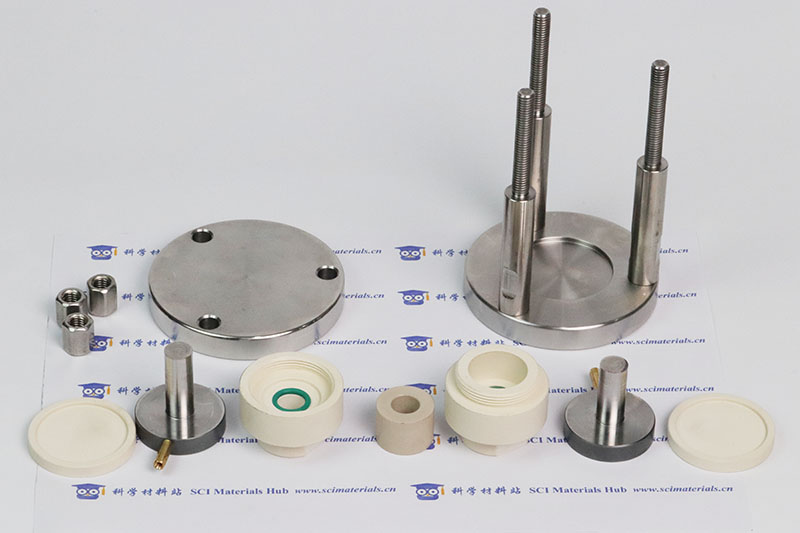

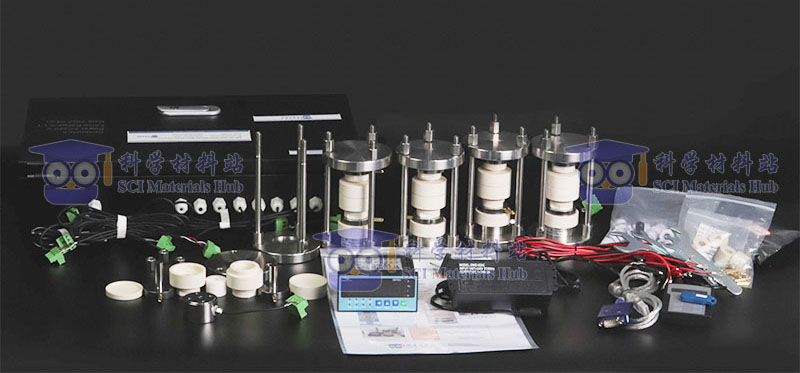

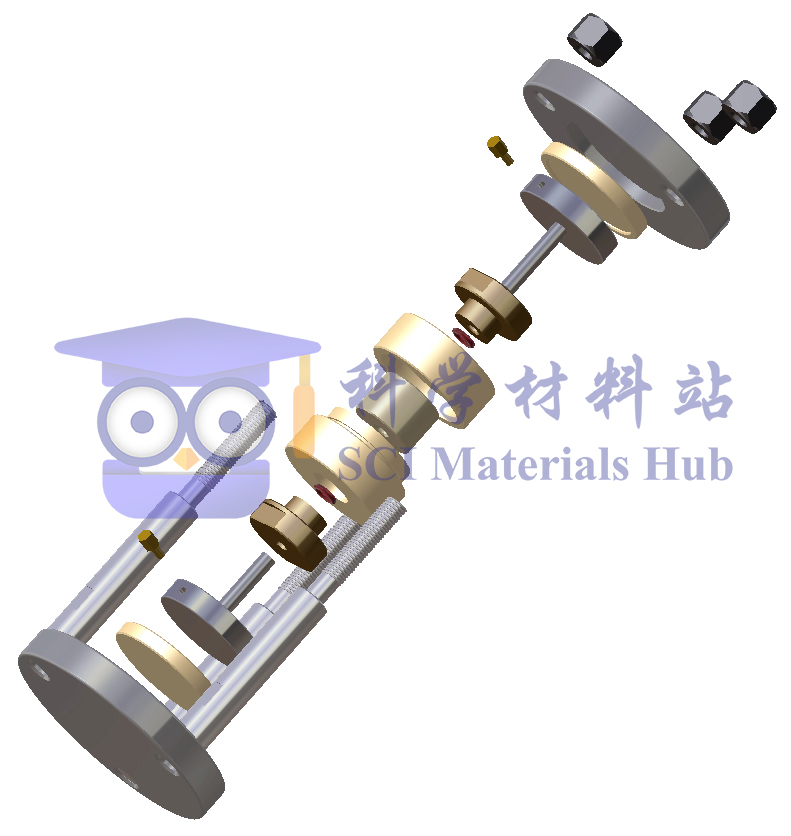

BM01模具包含1个不锈钢外架、 2个模具钢顶杆、 2个极柱、2个紧固旋钮、 2个 O形密封圈、 2个保护盖以及 1个陶瓷绝缘套筒、PPS 材料保护件、香蕉头转鳄鱼夹线(1对)、M3螺丝、铜鼻子和导线

根据装样部分直径,可分为BM01-10, BM01-12, BM01-15, BM01-20,直径分别为10mm、12mm、15mm和20mm。其它规格可定制。

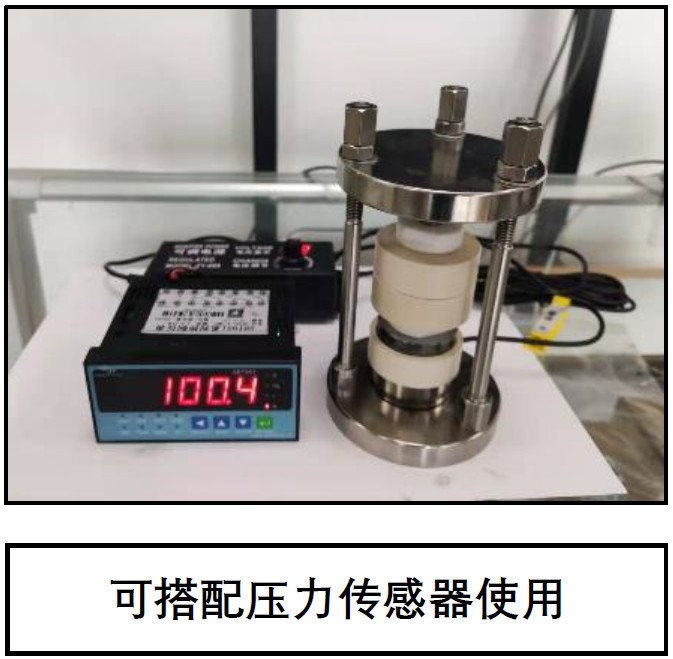

该模具可与BS01 多通道固态电池压力测试系统协同使用。


以BM01-10为例

内部规格:(连 PPS 套)直径 40mm。腔体直径 10mm。总高度 70mm

整体规格: 装置外直径 90mm,连丝杆总高 130mm


特性

- 稳定性高,密封好;

- 可长期在 可长期在300 Mpa压力下使用;

- 装卸方便,易于操作;

- 可长期在 -40~200℃温度环境下使用;

- 尺寸(mm,BM01-10含不锈钢外架):100 L x 100 W x 130 H

- 重量(kgBM01-10含不锈钢外架):2kg


受压测试

1、最高压力可至 400 Mpa

2、压机压到 1 吨压力约等于压强 125 Mpa


优势

1、保护套件,绝缘压片均采用 PPS

2、双密封圈技术,更好保证模具密封性。(压住密封圈为特氟龙,对比 peek,更好贴合密封圈,而使得密封性更好)

3、用料好而价格低

4、压柱,垫片、模底、进行磨床处理,更好的平面,与光洁度



注意:

1、固态电池的组装,整个过程需在手套箱中操作

2、模具保压测试,压力约为 80-150MPa,如果有锂片或者铟片,压力应降低至 80Mpa 以内固态电池绝缘模具说明

1、模具和粉末压片机配合使用

2、绝缘模具采用 PPS 材质保护外件、陶瓷(或者 PEEK)内胆制作,具有硬度高,韧性好,光洁度优,精度准,寿命长、易损件更换便捷等特点。


安装、加压过程:

在手套箱内先将模套置于模底上,将压片机螺旋丝杆向下旋转直到顶住压杆。加到所需压力后,将转移夹具顶部螺丝再次拧紧、达到密封保压效果、移除手套箱在常规环境下进行测试。(也可在压料杆和内模套的缝隙处涂抹少量真空脂或凡士林,再拿出手套箱进行测试)


注意事项:

1、使用模具时,必须遵守磨具最大工作压力的限制

2、超过工作限制压力会导致磨具损坏,不同直径的磨具最大工作压力不同

3、模具使用完毕后,应对模具进行污垢清洁后再次酒精清洗,给顶杆内涂抹润滑油脂、带上橡胶套进行保护以防止表面氧化腐蚀,再置于干燥密闭环境下进行保养

4、该固态电池测试磨具应用于固态电池的特性测试,在手套箱内用转移夹具将绝缘磨具卡住,放到压片机中压到合适压力,扭紧固定磨具上面的螺丝,泄压,将转移夹具和绝缘磨具一起取出去测试。

FAQ1: 如何设定到想要的压力?

对于有经验的使用者,可以使用扭矩扳手。如实验室有条件,可以使用压力机,将压力机设定到固定压力,当压力到达设定压力时,拧经螺丝。


FAQ2: 如何测试不同压力状态下的电导率?

使用压力机将电池模具设定到不同压力时拧紧。


FAQ3: 测试过程中压力变化如何解决?

当压力在100MPa以内时,我们可以加装弹簧缓冲装置,以缓冲压力变化,保证压力恒定

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

BM01固态锂离子电池测试模具

产品代码

产品描述

价格(¥)货期
28030001-10BM01-10固态锂离子电池测试模具请咨询请咨询
28030001-12BM01-12固态锂离子电池测试模具请咨询请咨询
28030001-15BM01-15固态锂离子电池测试模具请咨询请咨询
28030001-20BM01-20固态锂离子电池测试模具请咨询请咨询

SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn
