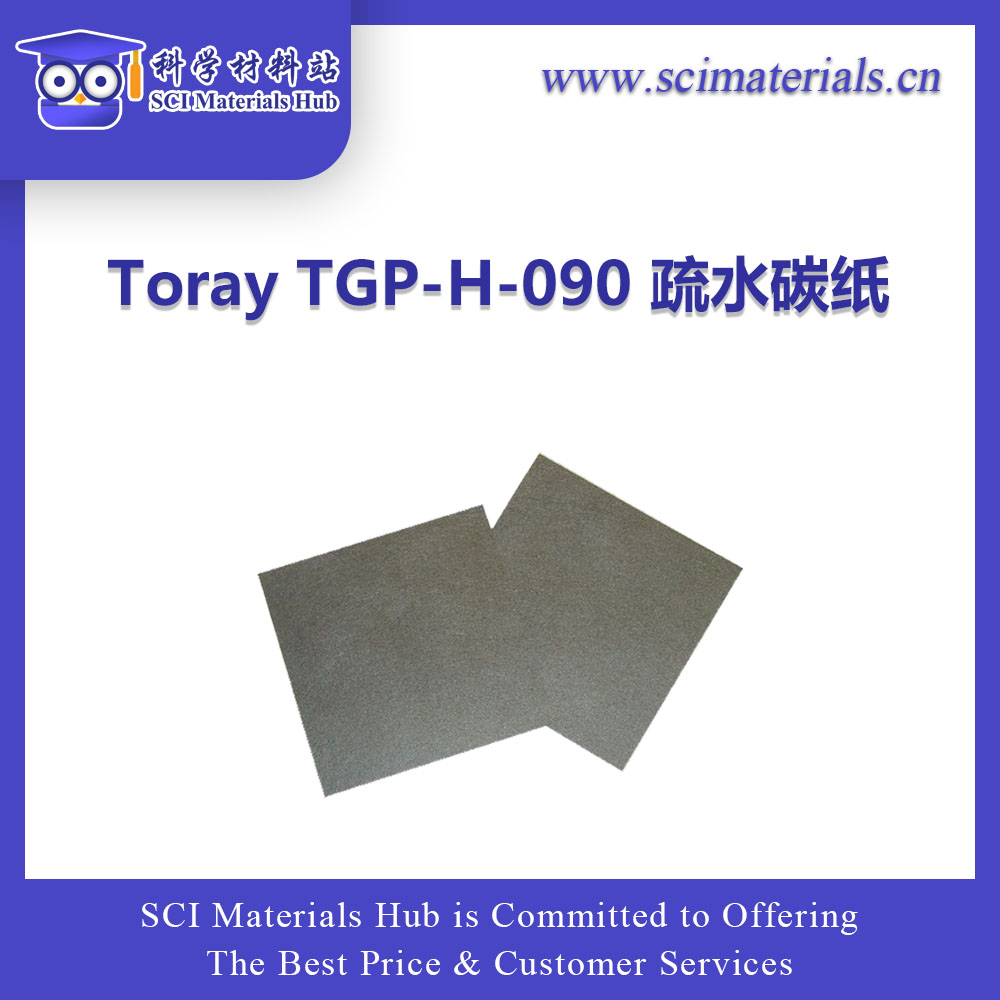

TGPH090T疏水碳纸(标准款)

  • 产品代码:23090101
  • 产品描述:TGPH090T Wet Proofed Carbon Paper with Teflon Treated
  • 品牌:Toray
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:TGPH090T疏水碳纸, TGPH090T Wet Proofed Carbon Paper with Teflon Treated, Wet Proofed, SCI Materials Hub, 科学材料站
65.7K

1. Introduction (介绍)

东丽纸TGP-H-090-是一种碳纤维复合纸,适合用作催化剂背衬层。它的总厚度为280微米(微米)。Toray Paper 090是传统编织碳纤维布气体扩散层(GDL)材料的绝佳低成本替代品。


科学材料站对Toray 090进行1-80%防水层处理,适合用作催化剂背衬,采用燃料电池级(Fuel Cell Grade)防水材料,性能更加优越!

点击上方【购买渠道】进行购买或咨询


2. 技术指标

疏水处理:1-80%

疏水层:科学材料站燃料电池级专用疏水材料

厚度:280um


3. 东丽最终使用保证

购买此商品,即表示您同意,您将如上所述将商品及其复制品仅用于民用,并且绝不会将其用于开发或制造大规模杀伤性武器,例如核武器,生物武器或化学武器。武器和导弹。如果您决定将货物用于其他任何用途,则在将货物用于此类其他用途之前,您将立即以书面形式通知东丽公司。


4. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Toray TGP-H-090 carbon paper, 4.6-5.8% Wet Proofed, was obtained from SCI Materials Hub.

Toray TGP-H-090 疏水碳纸

材料类型

碳纤维纸

厚度

0.28毫米(280微米)

堆积密度

0.44克/立方厘米

孔隙率(%)

78

气体渗透率

1700

电阻率(通过平面)

80 mOhm cm

抗折强度(MPa)

40

弯曲模量(GPa)

10

抗拉强度

70

表面粗糙度Ra

8 μm(微米)

电阻率(平面内)

5.6 mOhm cm

导热系数(通过平面,室温)

1.7 W/ (mk)

导热系数(平面内,室温)

21 W/ (mk)

导热系数(面内,100°C)

23 W/ (mk)

平面内的热膨胀系数

-0.8

疏水处理

1-80%

微孔层

没有


疏水碳纸的质量影响因素

影响疏水碳纸的主要因素有3点:1. 碳纸基底;2. 疏水层质量;3.疏水层制作工艺

其中碳纸基底包含AvCarb GDL (EP40, EP55, P50, P75) 和MGL (MGL190, MGL280, MGL370)系列,SpectraCarb系列,Toray paper系列等

采用高质量且专门用于燃料电池领域的特种疏水材料,并利用成熟的疏水涂层工艺,获得高质量、涂层均匀、气体扩散优良的疏水碳纸。

1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

TGPH090T疏水碳纸

TGPH090T Wet Proofed Carbon Paper with Teflon Treated

产品代码

产品描述

产品价格及规格货期
23090101(1)0.8-1.5% Wet Proofed

¥198 (5cm*5cm,货号:23090101(1)-0505)

¥398 (10cm*10cm,货号:23090101(1)-1010)

¥1398 (20cm*20cm,货号:23090101(1)-2020

4周
23090101(5)4.6-5.8% Wet Proofed

¥148 (5cm*5cm,货号:23090101(5)-0505)

298 (10cm*10cm,货号:23090101(5)-1010)

598 (20cm*20cm,货号:23090101(5)-2020)

现货
23090101(10)9.3-10.9% Wet Proofed

¥198 (5cm*5cm,货号:23090101(10)-0505)

398 (10cm*10cm,货号:23090101(10)-1010)

1398 (20cm*20cm,货号:23090101(10)-2020)

4周
23090101(15)14.5-16.3% Wet Proofed

¥198 (5cm*5cm,货号:23090101(15)-0505)

¥398 (10cm*10cm,货号:23090101(15)-1010)

¥1398 (20cm*20cm,货号:23090101(15)-2020)

4周
23090101(20)18.9-20.5% Wet Proofed

¥198 (5cm*5cm,货号:23090101(20)-0505)

398 (10cm*10cm,货号:23090101(20)-1010)

1398 (20cm*20cm,货号:23090101(20)-2020)

4周
23090101(30)29.8-31.2% Wet Proofed

¥248 (5cm*5cm,货号:23090101(30)-0505)

498 (10cm*10cm,货号:23090101(30)-1010)

1498 (20cm*20cm,货号:23090101(30)-2020)

4周
23090101(40)39.5-41.3% Wet Proofed

¥248 (5cm*5cm,货号:23090101(40)-0505)

598 (10cm*10cm,货号:23090101(40)-1010)

1598 (20cm*20cm,货号:23090101(40)-2020)

4周
23090101(50)49.7-51.6% Wet Proofed

¥248 (5cm*5cm,货号:23090101(50)-0505)

¥698 (10cm*10cm,货号:23090101(50)-1010)

1698 (20cm*20cm,货号:23090101(50)-2020)

4周
23090101(60)59.7-62.3% Wet Proofed

¥298 (5cm*5cm,货号:23090101(60)-0505)

¥798 (10cm*10cm,货号:23090101(60)-1010)

¥1898 (20cm*20cm,货号:23090101(60)-2020)

4周
23090101(70)69.4-72.5% Wet Proofed

¥298 (5cm*5cm,货号:23090101(70)-0505)

¥898 (10cm*10cm,货号:23090101(70)-1010)

¥1998 (20cm*20cm,货号:23090101(70)-2020)

4周
23090101(80)80.1-83.6% Wet Proofed

¥298 (5cm*5cm,货号:23090101(80)-0505)

¥998 (10cm*10cm,货号:23090101(80)-1010)

¥2498 (20cm*20cm,货号:23090101(80)-2020)

4周
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票
