首页 > 日本东丽Toray > TGPH120 > TGPH120T疏水碳纸


  • 产品代码:23120101

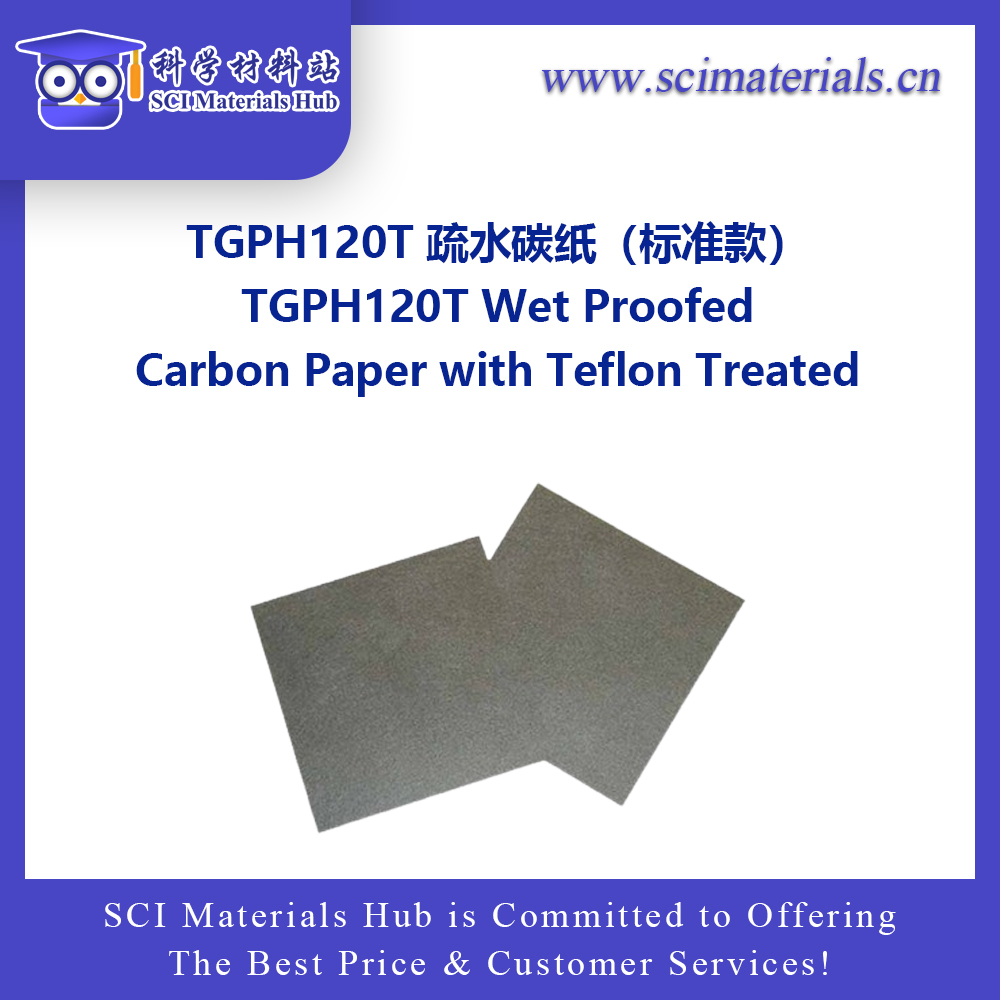

  • 产品描述:TGPH120T Wet Proofed Carbon Paper with Teflon Treated
  • 品牌:Toray
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:TGPH120T疏水碳纸, TGPH120T Wet Proofed Carbon Paper with Teflon Treated, SCI Materials Hub, 科学材料站

1. Introduction (介绍)

东丽TGPH120碳纸是一种碳纤维复合纸,适合用作催化剂背衬层。它的总厚度为370微米(微米)。Toray Paper 120是传统编织碳纤维布气体扩散层(GDL)材料的绝佳低成本替代品。

科学材料站对Toray 120进行1-80%防水层处理,适合用作催化剂背衬,采用燃料电池级(Fuel Cell Grade)防水材料,性能更加优越!


2. 技术指标




3. 东丽最终使用保证


4. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Toray TGP-H-120 carbon paper, 4.6-5.8% Wet Proofed, was obtained from SCI Materials Hub.

Toray TGP-H-120 疏水碳纸




0.37 毫米(370微米)








80 mOhm cm








8 μm(微米)


4.7 mOhm cm


1.7 W/ (mk)


21 W/ (mk)


23 W/ (mk)








影响疏水碳纸的主要因素有3点:1. 碳纸基底;2. 疏水层质量;3.疏水层制作工艺

其中碳纸基底包含AvCarb GDL (EP40, EP55, P50, P75) 和MGL (MGL190, MGL280, MGL370)系列,SpectraCarb系列,Toray paper系列等



2. 点击进入淘宝网页链接




23120101(1)0.8-1.5% Wet Proofed

¥198 (5cm*5cm,货号:23120101(1)-0505)

¥398 (10cm*10cm,货号:23120101(1)-1010)

¥1398 (20cm*20cm,货号:23120101(1)-2020

23120101(5)4.6-5.8% Wet Proofed

¥148 (5cm*5cm,货号:23120101(5)-0505)

298 (10cm*10cm,货号:23120101(5)-1010)

598 (20cm*20cm,货号:23120101(5)-2020)

23120101(10)9.3-10.9% Wet Proofed

¥198 (5cm*5cm,货号:23120101(10)-0505)

398 (10cm*10cm,货号:23120101(10)-1010)

1398 (20cm*20cm,货号:23120101(10)-2020)

23120101(15)14.5-16.3% Wet Proofed

¥198 (5cm*5cm,货号:23120101(15)-0505)

¥398 (10cm*10cm,货号:23120101(15)-1010)

¥1398 (20cm*20cm,货号:23120101(15)-2020)

23120101(20)18.9-20.5% Wet Proofed

¥198 (5cm*5cm,货号:23120101(20)-0505)

398 (10cm*10cm,货号:23120101(20)-1010)

1398 (20cm*20cm,货号:23120101(20)-2020)

23120101(30)29.8-31.2% Wet Proofed

¥248 (5cm*5cm,货号:23120101(30)-0505)

498 (10cm*10cm,货号:23120101(30)-1010)

1498 (20cm*20cm,货号:23120101(30)-2020)

23120101(40)39.5-41.3% Wet Proofed

¥248 (5cm*5cm,货号:23120101(40)-0505)

598 (10cm*10cm,货号:23120101(40)-1010)

1598 (20cm*20cm,货号:23120101(40)-2020)

23120101(50)49.7-51.6% Wet Proofed

¥248 (5cm*5cm,货号:23120101(50)-0505)

698 (10cm*10cm,货号:23120101(50)-1010)

1698 (20cm*20cm,货号:23120101(50)-2020)

23120101(60)59.7-62.3% Wet Proofed

¥248 (5cm*5cm,货号:23120101(60)-0505)

¥798 (10cm*10cm,货号:23120101(60)-1010)

¥1898 (20cm*20cm,货号:23120101(60)-2020)

23120101(70)69.4-72.5% Wet Proofed

¥298 (5cm*5cm,货号:23120101(70)-0505)

¥898 (10cm*10cm,货号:23120101(70)-1010)

¥1998 (20cm*20cm,货号:23120101(70)-2020)

23120101(80)80.1-83.6% Wet Proofed

¥298 (5cm*5cm,货号:23120101(80)-0505)

¥998 (10cm*10cm,货号:23120101(80)-1010)

¥2498 (20cm*20cm,货号:23120101(80)-2020)

SCI Materials Hub is Committed to Offering The Best Price & Customer Services!



3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352


如需报价单请联系:Email: contact@scimaterials.cn
