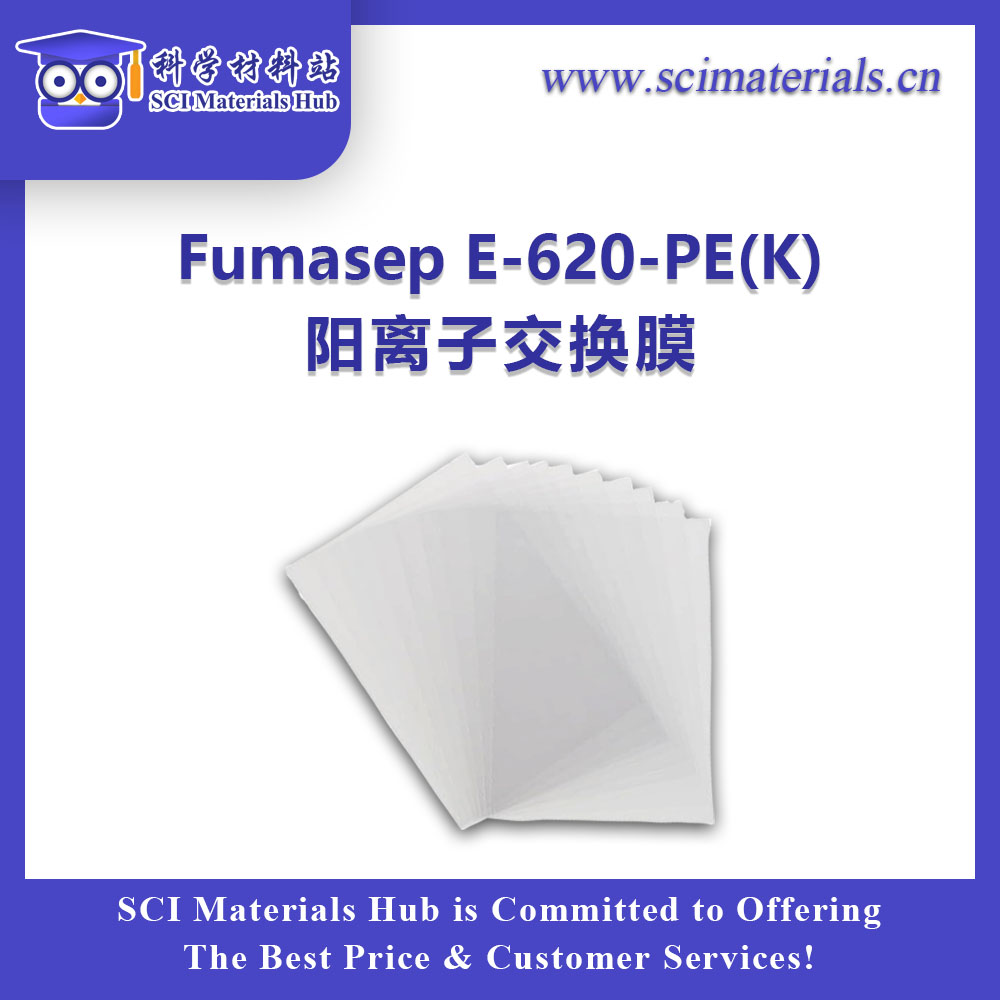

Fumasep E-620-PE(K)

  • 产品代码:15220203
  • 产品描述:Fumasep E-620-PE(K) Cation Exchange Membrane
  • 品牌:FuMA-Tech
  • 货期:1天
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Fumasep E-620-PE(K) Cation Exchange Membrane, 阳离子交换膜, 科学材料站, SCI Materials Hub


1. General

Membrane type: Cation-exchange membrane – PE-reinforced – thickness 20 μm, with very low resistance, high selectivity and high stability in pH acidic and basic environment.

2. Application

Electrochemical applications, e.g. capacitive deionisation and others.

3. Delivery

The membrane is the slightly opaque foil, delivered on a backing layer (colorless rigid PET foil). Carefully separate the membrane from the backing layer.

4. Handling and Storage

Keep membrane package closed / sealed when unused. Store, handle and process the membrane in a clean and dust-free area. Use only new and sharp knives or blades, when cutting the membrane. Always wear protective gloves when handling the membrane. Handle with care, be sure not to puncture, crease or scratch the membrane, otherwise leaks will occur. All surfaces which may get into contact with the membrane during inspection, storage, pretreatment and mounting must be free of sharp edges or angles.

Dry form: Storage for long time scale (> 12 month) may be done in dry state (sealed container). Wet form: Storage for short and medium time scale (hours up to several weeks) may be done in unsealed containers in 0.5 – 1.5 wt% NaCl solution or comparable neutral pH electrolytes. For storage over a longer time period a sealed container is recommended using afore said electrolyte with additional biozide to avoid biological fouling.

5. Pretreatment

The membrane is supplied in K-form and dry state, stabilized with polyethylene glycol (PEG) as protection for embrittlement, which can be easily removed by soaking in DI water (before or after assembling). If additional cleaning is required rinse the membrane in either the application solution or deionized water according to the application requirement. Do not let the membrane dry out since micro-cracks may likely occur during shrinkage. Membranes will expand and contract based on water / electrolyte content.

6. Welcome to cite our materials in your papers

Fumasep E-620-PE(K), a PE-reinforced cation exchange membrane (CEM), was obtained from SCI Materials Hub.

If you have any concerns about storage, chemical stability, and pretreatment please feel free to contact us for further information.


fumasep E-620-PE (K) Technical Data Sheet.pdf

Membrane Properties - Fumasep E-620-PE(K)
Membrane TypeCation Exchange Membrane
AppearanceSlightly opaque
Backing FoilPET foil (white)
ReinforcementMicroporous PE
Counter IonK form
Delivery FormDry
Thickness (dry)15 - 25 μm
Weight per unit area (dry)22 - 30 g m2
Area resistance in Na+ form< 2.0 Ω cm2
Selectivity 0.1 / 0.5 mol/kg KCl at T = 25 °C> 97%
Dimensional swelling in H2O at T = 25 °C< 2%
Young’s modulus at 23 °C / 50 % r.h.> 500 MPa
Tensile strength at 23 °C / 50 % r.h.> 10 MPa
Elongation at break at 23 °C / 50 % r.h.> 20%
Burst test in water at T = 25 °C> 2.5 bar
pH stability range at 25 °C0 - 14
Operational temperature range15 - 40 °C
We Are Committed to Provide the Best Price & Customer Services!

1. 手机淘宝(官方淘宝店铺:科学材料站)

2. 点击进入淘宝网页链接

Fumasep E-620-PE 阳离子交换膜




Fumasep E-620-PE Cation Exchange Membrane


¥598 (10CM*10CM,货号:15220203-1010)

¥2398 (20CM*30CM,货号:15220203-2030)



SCI Materials Hub is Committed to Offering The Best Price & Customer Servics!



3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352


如需报价单请联系:Email: contact@scimaterials.cn
