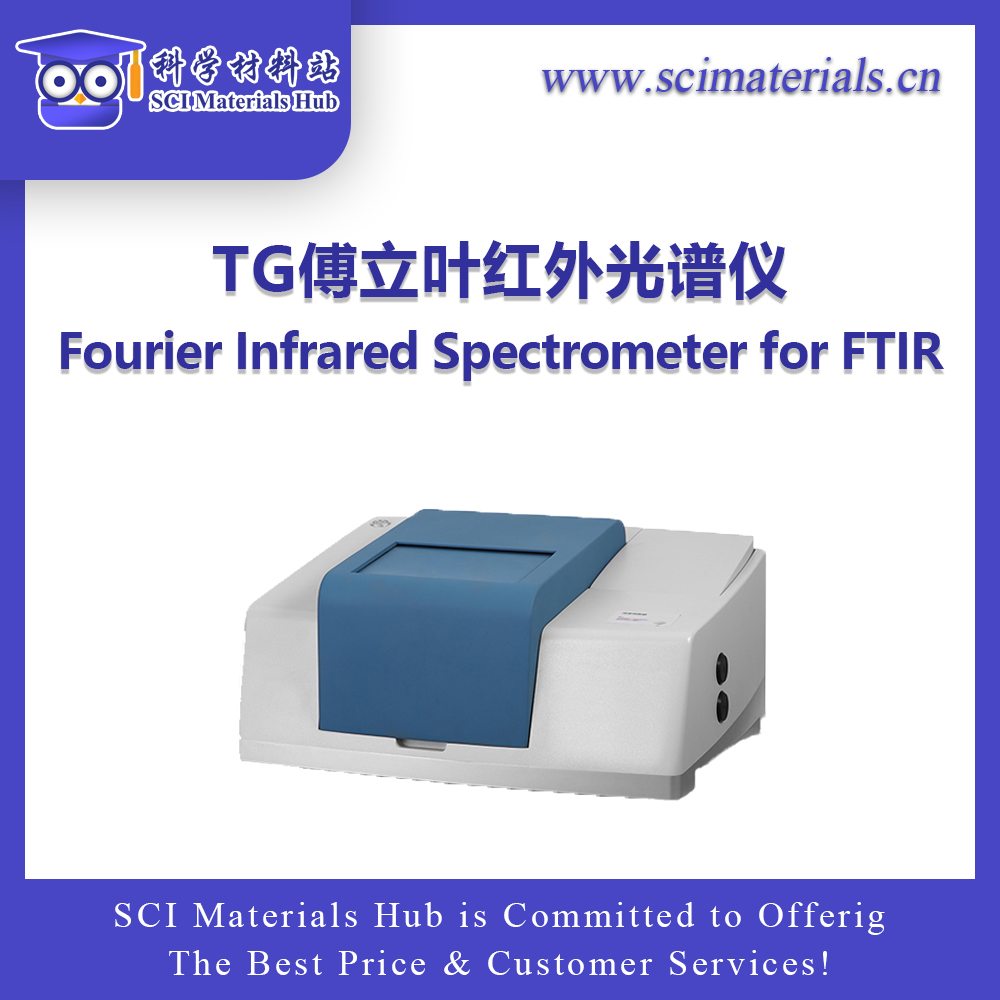

此系列包含TG29 傅立叶变换红外光谱仪，TG30 傅立叶红外光谱仪，TG31 国产傅立叶红外光谱仪， TG32 傅立叶变换红外光谱仪，TG33 傅里叶红外光谱仪，ALPHA德国布鲁克便携式红外光谱仪。

TG29 傅立叶变换红外光谱仪：

TG29傅立叶变换红外光谱仪是结合多年红外生产经验，开发出适合中国市场使用的新型傅立叶变换红外光谱仪，应用了多种独特技术来确保此款紧凑型的红外光谱仪具有很高的性能。

TG29在光学设计、软件及固件设计方面独具特色，可以显著减少总分析次数。干涉仪采用新型的迈克尔逊自补偿光学系统，能去除许多常规光学干涉仪中存在的光学校正问题，TG29设计中避免了传统三面直角棱镜的使用并能动态校正。

TG30 傅立叶红外光谱仪：

它结合了当今最新的光学、电子学、材料科学和人工智能技术，所有的细节无不体现设计的宗旨：操作简便，性能卓越、功能强大、制样简便、智能操作、维护成本低等特点，可广泛地应用在制药、石油、化工、环保、食品、材料科学、公安、国防等各个领域，是实验室研究及常规应用分析的得力工具，是科研、生产不可缺少的分析测试仪器。

TG31型国产傅立叶红外光谱仪：

TG31型付立叶变换红外光谱仪具有操作简便，维护成本低，软件丰富流畅等特点，可广泛地应用在石油、化工、医药、环保、食品、材料科学、公安、国防等各个领域，是科研、生产不可缺少的分析测试仪器。

TG32傅立叶变换红外光谱仪：

该仪器强有力的分析手段使用户在材料的分析和鉴别上倍增信心。TG32傅立叶变换红外光谱仪适用领域广泛，可用于制药、珠宝玉石检测、粉尘中游离二氧化硅检测、光学镀膜、塑料、橡胶、粘性液体、漆料、石英玻璃中羟基含量分析、新型材料、添加剂、化妆品、纤维、单晶硅中碳氧含量等等分析测试用。

TG33傅里叶红外光谱仪：

超轻的重量，仅有16公斤，超大的样品仓高强度红外光源，可以在一个实验室内放置多台，或多个实验室共用一台仪器，方便您任意搬动它到您的实验所需的地方。

仪器带可装配标准透射附件，如液体池或KBr压片的制样附件。超大样品仓可方便安装各种附件，加快样品准备时间，缩短清洗时间，扩展仪器功能。高强度红外光源可获得均匀、稳定的红外辐射。

ALPHA德国布鲁克便携式红外光谱仪：

小巧、轻便的身材、即插即用的操作、简单、易学的软件以及QuickSnapTM测量模块确保了其强大、可靠的红外光谱分析能力，ALPHA不仅会为您的实验室节省出很多必需的实验台空间，同时它也会成为您“随手”的测量工具，在更广的范围内满足人们对红外光谱仪的需求。

TG29 傅立叶变换红外光谱仪：

规格参数：

光谱范围：7800～375^-1

分辨率：优于1.0 cm^-1

100%τ线倾斜范围：优于0.5τ%（2200~1900cm^-1）

信噪比：10000:1∕30000:1 (P-P值，4cm^-1，一分钟扫描)

分束器：KBr基片镀锗（进口）

光源:高能量、高效率、长寿命陶瓷光源（进口）

干涉仪：30度入射角Michelson干涉仪

接收器：带有防潮膜的高灵敏度DLATGS接收器（进口）

TG29的外形尺寸:450mm×350mm×235 mm，是一款紧凑而通用的傅立叶红外光谱仪。

TG30 傅立叶红外光谱仪：

技术参数：

光谱范围：4000~10000px^-1

分辨率：37.5px^-1

检测器：高灵敏度DTGS检测器（国外进口）

分束器：多层镀膜溴化钾

扫描速度：微机控制和选择不同的扫描速度，档次连续可调.

分束器：KBr基片镀锗

光　源：长寿命高强度空气冷却红外光源

噪音：＜4.3*10ˉ5A

电源：AC220V,50Hz

外形尺寸：1207.5px × 890px × 1080px

重量：16Kg

TG31国产傅立叶红外光谱仪：

技术参数：

波数范围：7800-10000px^-1

分辨率：21.25px^-1

波数精度：±0.25px^-1

扫描速度：0.2-62.5px/s,微机控制和选择不同的扫描速度。档次连续可调，特别适合MCT和光声光谱附件的应用。

信噪比：优于15000:1（RMS值，在52500px^-1处，100px^-1分辨率，DTGS探测器，1分钟数据采集。）

分束器：KBr基片镀锗

探测器：DTGS,任选MCT

光　源：高强度空气冷却红外光源

TG32傅立叶变换红外光谱仪：

规格参数：

波长范围：7800-9375px^-1

分辨率：优于25px^-1，最高分辨率可达0.5 cm^-1

扫描速度：微机控制可选择不同的扫描速度，6档可选。

信噪比：优于30,000:1（RMS值，在2100 cm^-1附近，100px^-1分辨率，DLATGS,1分钟数据采集）

线性度：≤0.1%T

波数精度：0.01 cm^-1

分束器：多层镀膜KBr

孔径比：1/3.2

探测器：进口低噪音DLATGS

光源：进口长寿命高强度风冷陶瓷红外光源

干涉仪：自动校正

清洗功能：是

频率参数（数据采集）：He-Ne Laser

样品处光束：10mm dia

射束直径：30mm

喷射端口：可选

数据传输：USB2.0

样品室：200×260×160mm

外形尺寸：590×380×190mm

工作电压：AC 90-230V 40W

操作系统：Windows 98/2000/XP/Vista 32-bit

重量：24kg

环境温度：15-28℃

环境湿度：低于65%

TG33傅里叶红外光谱仪：

规格参数：

光谱范围：7800~375 cm^-1

分辨率：1 cm^-1

检测器：高灵敏度DTGS检测器

分束器：多层镀膜溴化钾

扫描速度：微机控制和选择不同的扫描速度

光　 源：长寿命高强度空气冷却红外光源

信噪比：30000：1（测试条件：DTGS检测器在4 cm^-1分辨率，一分钟背景及样品扫描时间，2100 cm^-1处）

电 源：AC220V/50Hz

外形尺寸：45 cm× 35 cm× 21 cm

重 量：16Kg

ALPHA德国布鲁克便携式红外光谱仪：

技术参数：

光谱范围：7800- 8750px^-1

分 辨 率：≤25px^-1 ,优于20px^-1，连续可调

信／噪比：优于20,000：1（峰－峰值，1分钟测试） 优于120,000：1（均方差值, 1分钟测试）

波数精度：0.01 cm^-1，吸收精度：0.07%T

干 涉 仪：RockSolidTM 专利干涉仪，镀金光学镜面，300 光学补偿设计，

扫描速度：10次/秒

电磁驱动、无摩擦轴承，光路永远准直。

检 测 器：采用DigiTectTM 技术的DLATGS检测器，全数字化设计

红外光源：陶瓷光源，1550K

分束器：ZnSe分束器，可在高湿度环境下正常操作

A /D转换：24位、高速Delta SigmaTM 型A/D转换器

仪器资格：自动监测

测量技术：透射、ATR、漫反射、外反射

计算机接口：以太网

供 电：100 - 240 VAC、50 - 60 Hz、20 W；可充电电池，交直流供电，可直接连接汽车直流电源的适配装置。

仪器尺寸：22 x 30 x 25 cm (w x d x h)

重 量：7 kg
