一、概述

1.1主要用途

广泛应用于地质、矿产、冶金、电子、建材、陶瓷、化工、轻工、医药、美容、环保等部门，比如：电子陶瓷、结构陶瓷、磁性材料、钴酸锂、锰酸锂、催化剂、荧光粉、长余辉发光粉、稀土抛光粉、电子玻璃粉、燃料电池、陶瓷电容器、氧化锌压敏电阻、压电陶瓷、纳米材料、圆片陶瓷电容、MLCC、热敏电阻（PTC、NTC）、ZnO压敏电阻、避雷器阀片、钛酸锶环形压敏电阻、陶瓷滤波器、介质陶瓷、压电换 能器、压电变压器、片式电阻、厚膜电路、焦电位器、氧化铝陶瓷、氧化锆陶瓷、 荧光粉、氧化锌粉料、氧化钴粉料、Ni-Zn铁氧体、Mn-Zn铁氧体等产品的生产领域及行业。

1.2工作原理

在一转盘上装有四个球磨罐，当转盘转动时，球磨罐在绕主盘轴公转的同时又绕自身轴反向作行星式自转运动，罐中磨球和物料在高速运动中产生相互碰撞、剪切及摩擦，达到粉碎、研磨、混合与分散物料的目的。该设备能用干、湿两种方法研磨粒度不同、材料各异的各类固体颗粒、悬浮液和糊膏，研磨产品最小粒度可至0.1微米。

1.3 设备分类

我司行星球磨机根据设备结构及功能分为：立式行星球磨机、卧式行星球磨机、全方位行星球磨机及双行星式球磨机四大类型。

二、 立式行星球磨机说明

2.1立式行星球磨机简介

立式方形行星球磨机是混和、细磨、小样制备、新产品研制和小批量生产高新技术材料的必备装置。我司立式行星式球磨机体积小、功能全、效率高、噪声低，是科研单位、高等院校、企业实验室获取研究试样（每次实验可同时获得四个样品）的理想设备，配用真空球磨罐，可在真空状态下磨制试样。

2.2立式行星球磨机结构简图

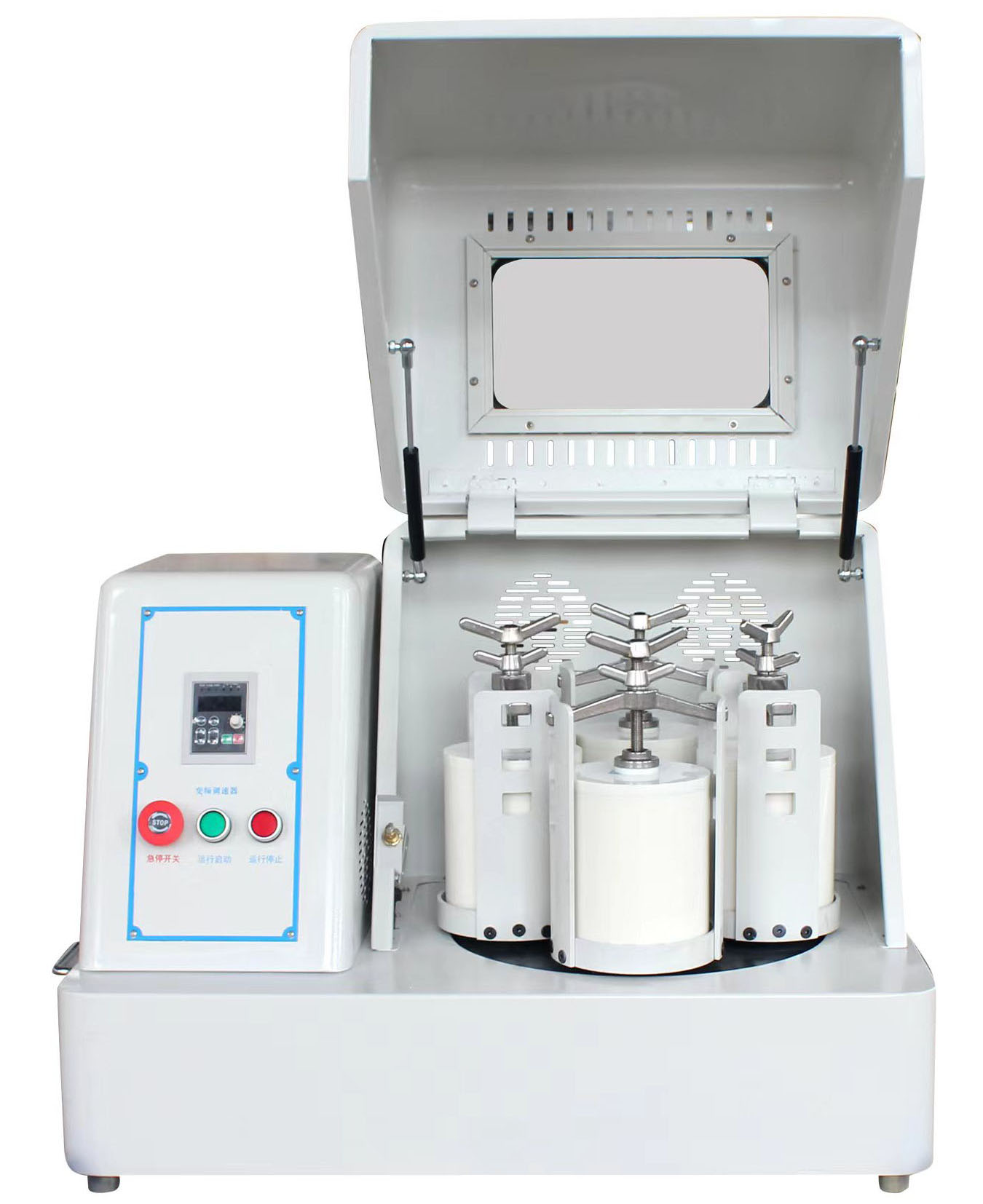

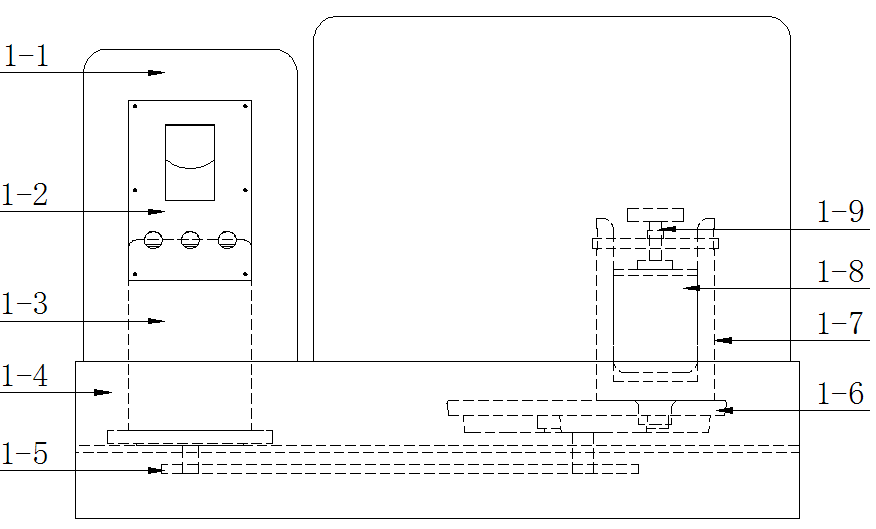

图1立式方形行星球磨机结构简图

图1-1.控制箱；图1-2.控制面板；图1-3.电机；图1-4.机架； 图1-5.传动带；图1-6.行星机构；图1-7.磨罐座；图1-8.球磨罐；图1-9.磨罐顶紧装置；

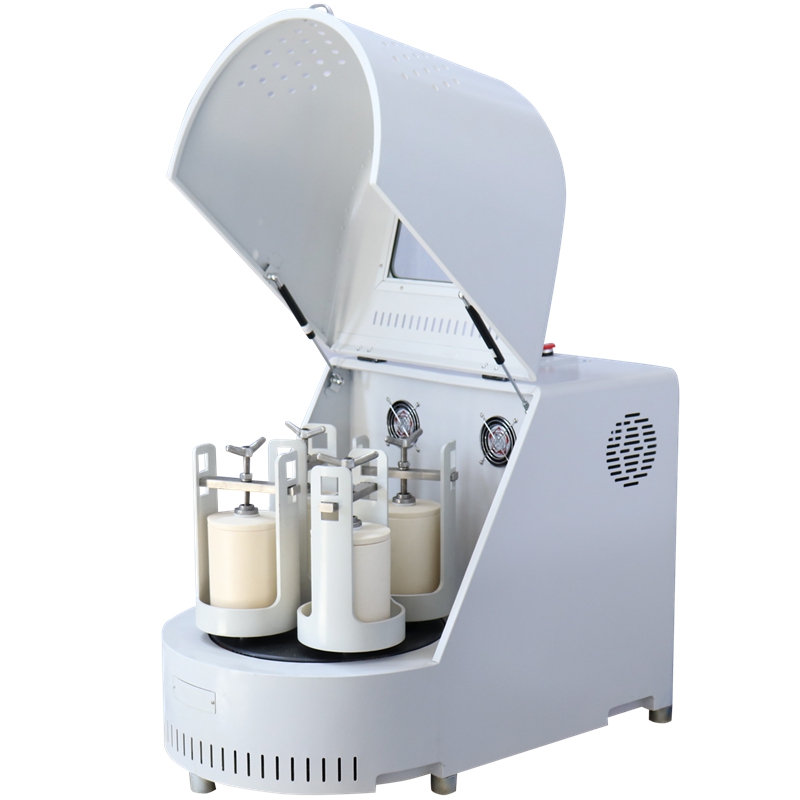

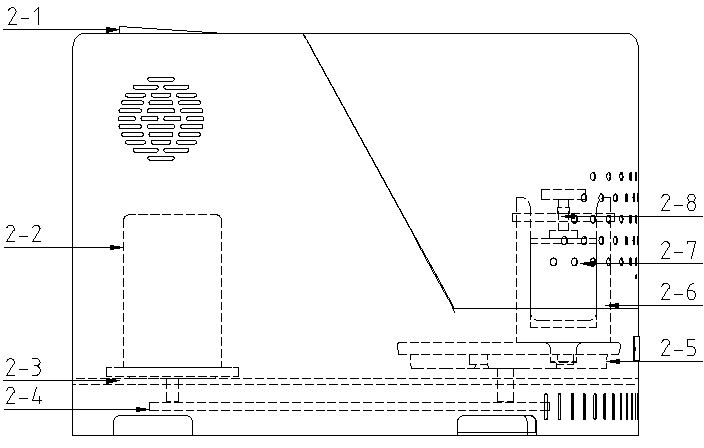

图2 立式半圆形行星球磨机结构简图

图2-1.控制面板； 图2-2.电机； 图2-3.机架； 图2-4.传动带；图2-5.行星机构；图2-6.磨罐座； 图2-7.球磨罐； 图2-8. 磨罐顶紧装置；

备注：上结构简图仅供参考，不同机型结构图及部件位置可能存在差异。

2.3立式行星球磨机主要技术参数

表1 立式半圆形行星球磨机主要技术参数

2.4操作步骤

操作流程：检查（附件检查、通电试机检查）--->配球装料--->装罐---> 通电待机--->设置变频器参数---> 磨料---> 停机---> 卸罐---> 卸料---> 清理设备

2.4.1检查

2.4.1.1附件、外壳检查

拆箱后首先查看装箱单，检查附件是否齐全、检查设备外壳在运输过程是否受损，如有任何附件短缺或外壳受损，请即刻通知我司售后人员，检查一切正常后，按要求接通电源进行球磨机空载试运行。

2.4.1.2空载试机

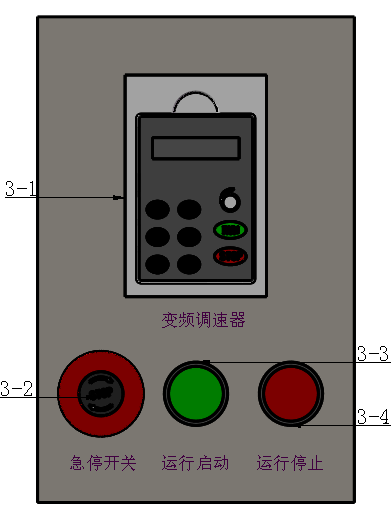

图3立式行星球磨机控制面板示意图

图3-1.变频调速器（显示屏上默认转速显示）；

图3-2.急停开关；

图3-3.启动按钮；

图3-4.停止按钮；

空载试机操作步骤：

① 接通电源，打开空气开关；

② 将变频调速器（3-1）上调速旋钮逆时针调整至最大位置；

③ 启动急停开关（3-2）（急停开关为紧急情况下断开电源停机用，④ 按下时为断开，顺时针旋转弹起状态为启动），检查变频调速器（3-1）是否有数字显示（无显示：检查电源连接是否到位；有显示：进行下一步操作）；

⑤ 按下启动按钮（3-3）启动设备，检查变频调速器（3-1）转速显示是否归零，顺时针缓慢旋转变频调速器（3-1）上调速旋钮调速至设备额定最高转速1/2，试运行5分钟；

⑥ 如未发现异常情况，将变频调速器（3-1）上调速旋钮调整归零，分别按下停止按钮（3-4）、急停开关（3-2），并切断电源，设备停机。

注意事项：QM系列行星球磨机有部分机型未配置空气开关。

2.4.2配球装料

图4 立式行星球磨机磨罐座及顶紧装置实物图

4-1.顶杆；4-2.防松螺母；4-3.横梁；4-4.球磨罐；4-5.磨罐座；

为获取最佳球磨效果，通常大、中、小球搭配使用。大球用于配重与砸碎物料以及分散小球，小球用于混合及研磨物料，正常情况球、料总体积不超过球磨罐（4-4）总体积的2/3。

注意事项：为避免磨球和物料洒落到设备内部，导致齿轮及轴承磨损，请先将磨球、物料装入球磨罐（4-4）中之后，再将装满物料的球磨罐（4-4）安装到磨罐座（4-5）内，不允许采取先安装空罐，再往罐内装球与物料的操作方式。

2.4.3装罐

装罐操作步骤：

① 先在磨罐座（4-5）底部放置橡胶垫；

② 将装好磨球和物料的球磨罐（4-4）放置到磨罐座（4-5）内；

③ 将磨罐顶紧装置横梁（4-3）嵌入到磨罐座（4-5）相应的位置；

④ 将顶杆（4-1）拧紧，使球磨罐（4-4）固定在磨罐座（4-5）内；

⑤ 最后拧紧防松螺母（4-2），使整个装置处于顶紧状态。 注意事项：

① 球磨罐（4-4）必须对称安装，禁止单罐或三罐运行，对称两球磨罐总重量（磨罐重量+球重量+物料重量）尽量保证一致；

② 球磨罐（4-4）底中心尽量与磨罐座（4-5）中心一致；

③ 在拧紧顶杆（4-1）与防松螺母（4-2）时必须保证足够的锁紧力度。

2.4.4通电待机

将设备接通电源后，开启空气开关、启动急停开关（3-2）（顺时针旋转弹起状态），变频调速器（3-1）有数字显示，设备进入通电待机状态。

2.4.5设置变频器参数（详见行星球磨机变频器操作说明）

2.4.6磨料

设置变频器功能参数后，盖紧机盖，按下启动按钮（3-3）启动设备，缓慢旋转变频调速器（3-1）上调速旋钮调整至设定转速，开始磨料。

注意事项：

① 设备运行5分钟后请打开机盖，检查磨罐顶紧装置是否有松动，如出现松动，必须重新锁紧；

② 变频器显示转速为自转转速及球磨罐实际转速；

③ 转速越高不一定代表球磨效果越好，转速过高将加快设备机械部件磨损，缩短设备使用寿命，建议用户根据物料实际需要，尽量降低球磨转速；

④ 设备运行过程中，使用者务必加强设备巡检，一旦发现设备运行异常，请及时停机检查。

2.4.7停机

设备运行达到设定时间后，将变频调速器（3-1）上调速旋钮调整归零，分别按下停止按钮（3-4）、急停开关（3-2），并切断电源，设备停机。

注意事项：变频调速器上调速旋钮调整归零后，设备仍处通电待机状态，必须按下停止按钮（3-4）、急停开关（3-2），并切断电源。

2.4.8卸罐

① 打开机盖；

② 将防松螺母（4-2）松开；

③ 将顶杆（4-1）松开；

④ 取下顶紧装置；

⑤ 最后取出球磨罐（4-4）；

注意事项：中、大型行星球磨机设备由于球磨罐较重，人工装、卸罐不方便，客户可根据需要选购对应行星球磨机装卸料吊装装置。

2.4.9卸料

将球磨罐中的物料和磨球倒入球、料分离装置（客户选购）进行球、料分离。

2.4.10设备清理

把球磨罐和磨球清洗干净后待用，用干净抹布将设备从里到外擦拭干净。
