1. YLJ01小型压片机
| 1.1 参数表 | |||||
| 型号 | YLJ01-10T（2柱） | YLJ01-15T（2柱） | YLJ01-15T（4柱） | YLJ01-24T（4柱） | YLJ01-30T（4柱） |
| 压力范围 | 0~10吨 | 0~15吨 | 0~15吨 | 0~24吨 | 0~30吨 |
| 压强范围 | 0~16.7MPa | 0~25MPa | 0~25MPa | 0~40MPa | 0~35MPa |
| 活塞直径 | 87mm | 87mm | 87mm | 87mm | 105mm |
| 最大活塞行程 | 20mm | 20mm | 20mm | 20mm | 20mm |
| 工作空间 | 140×140×120mm | 140×140×150mm | 94×94×150mm | 94×94×140mm | 140×140×150mm |
| 压力稳定性 | ≤1Mpa/5min | ≤1Mpa/5min | ≤1Mpa/5min | ≤1Mpa/5min | ≤1Mpa/5min |
| 净重 | 35kg | 35kg | 36kg | 40kg | 50kg |
| 毛重（含木箱） | 40kg | 40kg | 41kg | 45kg | 55kg |
| 外形尺寸 | 280×210×500mm | 280×210×500mm | 280×210×500mm | 280×260×500mm | 325×230×550mm |

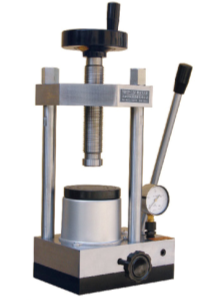

| 产品图片 |  |  |  |  |  |
| 1.2 压力换算表 | ||||||||
| YLJ01-10T（2柱） | 油缸实际压力（吨） | 3 | 6 | 9 | 10 | / | / | / |
压力表示值（MPa） | 5 | 10 | 15 | 16.5 | / | / | / | |
| YLJ01-15T（4柱） | 油缸实际压力（吨） | 3 | 6 | 9 | 12 | 15 | / | / |
压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | / | / | |
| YLJ01-24T（4柱） | 油缸实际压力（吨） | 3 | 6 | 9 | 12 | 15 | 20 | 24 |
压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 33.4 | 40 | |
| YLJ01-30T（4柱） | 油缸实际压力（吨） | 4.3 | 8.6 | 12.9 | 17.2 | 21.5 | 25.8 | 30 |
压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 30 | 35 | |

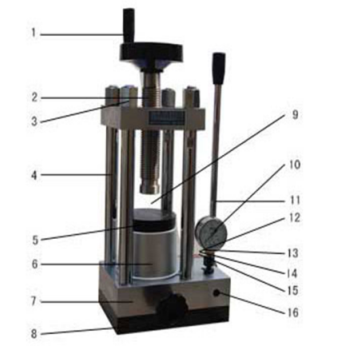

| 1.3 仪器结构 （图1.1） | |||
| No. | 名称 | No. | 名称 |
| 1 | 手轮 | 9 | 工作台 |
| 2 | 丝杠 | 10 | 压力表 |
| 3 | 螺母 | 11 | 手动压把 |
| 4 | 立柱 | 12 | 柱塞泵 |
| 5 | 顶盖 | 13 | 注油孔螺钉 |
| 6 | 大油缸 | 14 | 限位螺钉 |
| 7 | 大板 | 15 | 吸油阀 |
| 8 | 油池 | 16 | 出油阀 |
 YLJ01-10T（2柱） |  YLJ01-15T（4柱） |  YLJ01-24T（4柱） |  YLJ01-30T（4柱） |
【操作说明（见图1.1）】
先将注油孔螺钉13旋松，顺时针拧紧放油阀7，将模具置于工作台5的中央，用丝杠2拧紧后，前后摇动手动压把11，达到所需压力，保压后，逆时针松开放油阀7，取下模具即可。
【应用范围】
该仪器主要应用于红外分光光度计固体样品制样及各种小型粉末压片成型。广泛应用于催化、硅酸盐、电池、陶瓷及粉末冶金等行业。
【油路原理（见图1.2）】
工作时，放油阀7关闭。摆动手动压把11,油液从油池8中经单向阀15吸入，通过出油阀16压出进入大油缸6中，这样不断储存能量，从而形成高压油，并在压力表10中显示出来。当开启放油阀7,即可卸荷。
图1.2：YLJ01小型压片机油路图
【注意事项】
1. 使用前必须先松开注油孔螺钉13,压片机才能正常工作。
2. 请定期在丝杠2及柱塞泵12处加润滑油。
3. 加压决不允许超过机器的压力范围，否则会发生危险。
4. 压片机使用清洁的46号机油为宜，绝不可用刹车油。
5. 加压时，如果感觉手动压把11有力，但压力表10无指示，应立即卸荷并检查压力表10。
6. 新机器或较长段时间没有使用时，在使用之前要稍紧放油阀，加压到20~25MPa时即卸荷，连续重复2~3次，即可正常使用。
7. 大活塞6的行程不要超过20mm。
| 1.4 故障排除 | ||
| 故障现象 | 原因 | 排除方法 |
| 无压 | 1. 出油阀16内阀口钢柱密封不严或有异物。 2. 无油。 | 1. 用6mm内六角扳手旋开阀螺钉16，取出弹簧，再用一根6mm左右的铁棒或螺钉，一个头顶住钢珠，另一头附磁铁，吸出钢珠，清洗铁屑或异物，再依次复位。 2. 旋开阀螺钉15。 注入油后，用手指按住阀口，开动机器，感到非常有力时，再拧紧阀螺钉15即可。 3. 从注油孔加30号清洁机油。 |
上压不稳且慢 | 1. 漏油。 2. 放油阀7拧紧力不够。 3. 小柱塞泵12内有残余气体。 4. 大油缸6内有残余气体。 | 1. 检查漏油处，拧紧或排除。2.拧紧放油阀手轮。 3. 将整机后仰90°(即表面向上),摆动手柄11若干次(后仰时要拧紧注油孔螺钉13)。 4. 拧开顶部大螺钉，关紧放油阀7打压至油液溢出，再拧上顶部螺钉。 |
丝杠弯曲 | 1. YLJ01-15T加压超过25Mpa，YLJ01-24T加压超过40Mpa。 2.立柱大螺母松动 | 1. 调直或更换新丝杠。 2. 及时拧紧大螺母。 |
2. YLJ01中型压片机
| 2.1参数表 | ||
| 型号 | YLJ01-40T（4柱） | YLJ01-60T（4柱） |
| 压力范围 | 0~40吨 | 0~60吨 |
| 压强范围 | 0~33.3MPa | 0~34MPa |
| 活塞直径 | 125mm | 150mm |
| 最大活塞行程 | 40mm | 40mm |
| 工作空间 | 180×180×210mm | 220×220×260mm |
| 压力稳定性 | ≤1Mpa/5min | ≤1Mpa/5min |
| 净重 | 100kg | 155kg |
| 毛重（含木箱） | 105kg | 160kg |
| 外形尺寸 | 350×260×620mm | 445×240×740mm |
| 产品图片 |
|
|
| 2.2压力换算表 | ||||||||
| YLJ01-40T（4柱） | 油缸实际压力（吨） | 6 | 12 | 18 | 24 | 30 | 36 | 40 |
| 压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 30 | 33.3 | |
| YLJ01-60T（4柱） | 油缸实际压力（吨） | 8.8 | 17.6 | 26.4 | 35.2 | 44 | 52.8 | 60 |
| 压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 30 | 34 | |
| 2.3仪器结构（图2.1） | |||
| NO. | 名称 | NO. | 名称 |
| 1 | 油筒 | 11 | 主板 |
| 2 | 压力表 | 12 | 大活塞 |
| 3 | 低压阀 | 13 | 工作台导轨 |
| 4 | 小活塞 | 14 | 工作台 |
| 5 | 高压阀 | 15 | 防护罩 |
| 6 | 放油阀 | 16 | 立柱 |
| 7 | 高压阀 | 17 | 丝杠 |
| 8 | 低压溢流阀 | 18 | 上板 |
| 9 | 副板 | 19 | 螺母 |
| 10 | 低压阀 | 20 | 手轮 |
YLJ01-40T（4柱） |
YLJ01-60T（4柱） | ||
【操作说明（见图2.1）】
松开油筒1的螺钉，拧紧放油阀6，打开防护门15，拉出工作台14，将模具（或受压物品）放在工作台14上，再将工作台14推进去，用丝杠17将受压物品预紧，关上防护门15，摇动小活塞4的压把，给受压物品加压，压至所需压力后，松开放油阀6，将受压物品取出即可。
【应用范围】
该仪器主要应用于荧光光谱仪上固体样品制样及各种小型粉末压片成型。广泛应用于催化、硅酸盐、电池、陶瓷及粉末冶金等行业。
【油路原理（见图2.2）】
油筒1中的油，经小活塞4，再经低压阀3、10，高压阀5、7进入大活塞12，压力由压力表2显示，松开放油阀6，大活塞12中的油在压力的作用下回到油筒1中，大活塞12复位。
图2.2：YLJ01中型压片机油路图
【注意事项】
1.使用前必须将油筒1上的螺钉松开（运输时将此螺钉拧紧），松开放油阀6，摇动小活塞4的压把，空打数下以排除系统中的空气。
2.用丝杠17预紧受压物品时，力不要过大。
3.大活塞行程不能超过50mm。
4.维修时将油筒后座的阀关闭，以免油筒1里的油流出。
5.加压不允许超过其压力范围，以免发生危险。
6.油筒1里的油为46#机油。
| 2.4故障排除 | ||
| 故障现象 | 原因 | 排除方法 |
| 无压 | 1.漏油。 2.放油阀没拧紧。 | 1.更换密封垫，解决漏油处。 2.拧紧。 3.将大活塞压至最底部。 |
| 掉压 | 1.漏油。 2.放油阀口处不严或有异物。 3.大活塞3内有残余气体。 | 1.找出微小漏油处，进行排除。 2.关闭维修螺钉，然后拧出放油阀杆，用磁铁连接6mm铁棒吸出钢珠，用铁棒一端顶住钢珠，用榔头轻砸铁棒外露出一端，使阀口密封紧密，然后复位。 3.旋开活塞顶部的螺钉，并旋紧放油阀手轮，打压至液体油溢出。 |
| 机器变形 | 1.压力较高，并长期频繁使用，立柱大螺母松动。 2.超过允许压力。 | 1.拧紧立柱或立柱螺母。 2.降低使用压力，否则会损坏机器及发生安全事故。 |
3. YLJ01大型压片机
| 3.1参数表 | ||
| 型号 | YLJ01-100T（4柱） | YLJ01-150T（4柱） |
| 压力范围 | 0~100吨 | 0~150吨 |
| 压强范围 | 0~39.3MPa | 0~47.8MPa |
| 活塞直径 | 180mm | 200mm |
| 最大活塞行程 | 50mm | 50mm |
| 工作空间 | 220×220×280mm | 250×250×320mm |
| 压力稳定性 | ≤1Mpa/5min | ≤1Mpa/5min |
| 净重 | 220kg | 310kg |
| 毛重（含木箱） | 225kg | 315kg |
| 外形尺寸 | 480×300×840mm | 560×425×950mm |
| 产品图片 |  |  |
| 3.2压力换算表 | |||||||||||
| YLJ01-100T（4柱） | 油缸实际压力（吨） | 12.7 | 25.4 | 38.1 | 50.9 | 76.3 | 89 | 100 | / | / | / |
| 压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 30 | 39.3 | / | / | / | |
| YLJ01-150T（4柱） | 油缸实际压力（吨） | 15.7 | 31.4 | 47.1 | 62.8 | 78.5 | 92.4 | 109.9 | 123.4 | 141.3 | 150 |
| 压力表示值（MPa） | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 39.3 | 45 | 47.8 | |
| 3.3仪器结构（图3.1） | |||
| NO. | 名称 | NO. | 名称 |
| 1 | 上板 | 9 | 放油阀 |
| 2 | 丝杠 | 10 | 压力把A |
| 3 | 主油缸 | 11 | 压力把B |
| 4 | 主板 | 12 | 放气螺钉 |
| 5 | 压力表 | 13 | 立柱 |
| 6 | 副板 | 14 | 螺母 |
| 7 | 高压阀 | 15 | 手轮 |
| 8 | 低压阀 | 16 | 维修螺钉（背面） |
YLJ01-100T（4柱） |
YLJ01-150T（4柱） | ||
【操作说明（见图3.1）】
（1）松开放油筒顶部放气密封螺钉12和维修螺钉16，并逆时针旋松放油阀手轮，摆动快速复合油泵A及高压油泵B手柄各2~3下，使油路系统工作顺畅。
（2）用丝杠缓慢将工作台压至最低部，然后将丝杠旋紧。
（3）将模具或所压物品放置工作台，用丝杠进行预紧。
（4）顺时针旋紧放油阀手轮9，关好防护门。
（5）先摆动快速复合泵A升至14MPa左右，再改用高压泵8升至所需压力。
（6）压制完成后，逆时针旋松放油阀手轮，取出模具或所压物品。
【应用范围】
该仪器主要应用于需要大压力才能成型的样品，例如陶瓷、金属粉末等各种大型尺寸模具使用。
【油路原理（见图3.2）】
当需要升压时，先将放油阀E关闭，摇动快速复合柱塞泵A使复合泵大，小泵将油从油筒D分别经单向阀A1，A1*吸入，再经单向阀A2*,A3*;A2、A3进入工作缸C，并在压力表F中显示，其中大泵在超过2MPa时经逆流阀G泄流
小泵打到大约14MPa 改用高压泵B加压，此时油经单向阀B1,B2,B3进入工作缸C增压，直至打到所需压力。
注意：不要超过机器设定的最大压力（40MPa或48MPa）。
图3.2：YLJ01大型压片机油路图
【注意事项】
1.使用前必须先松开油筒上的放气螺钉12和维修螺钉16，再松开放油阀的状态下空打两柱塞，使系统正常工作。
2.每次使用前及使用中，都应把工作台用丝杠压至最底部。
3.保持机油的清洁，尤其是大小活塞滑动处，丝杠要定期加油润滑。
4.如发生渗漏及维修，要及时补充压力油，使之达到距油筒顶部100mm以内，压力油为46#清洁机油。
5.随时检查压力示值，决不允许超压使用，否则会发生危险。
6.大活塞6不要超过行程50mm。
| 3.4故障排除 | ||
| 故障现象 | 原因 | 排除方法 |
| 无压 | 1.漏油。 2.放油阀没拧紧。 | 1.更换密封垫，解决漏油处。 2.拧紧。 3.将大活塞压至最底部。 |
| 掉压 | 1.漏油。 2.放油阀口处不严或有异物。 3.大活塞3内有残余气体。 | 1.找出微小漏油处，进行排除。 2.关闭维修螺钉，然后拧出放油阀杆，用磁铁连接6mm铁棒吸出钢珠，用铁棒一端顶住钢珠，用榔头轻砸铁棒外露出一端，使阀口密封紧密，然后复位。 3.旋开活塞顶部的螺钉，并旋紧放油阀手轮，打压至液体油溢出。 |
| 机器变形 | 1.压力较高，并长期频繁使用，立柱大螺母松动。 2.超过允许压力。 | 1.拧紧立柱或立柱螺母。 2.降低使用压力，否则会损坏机器及发生安全事故。 |
