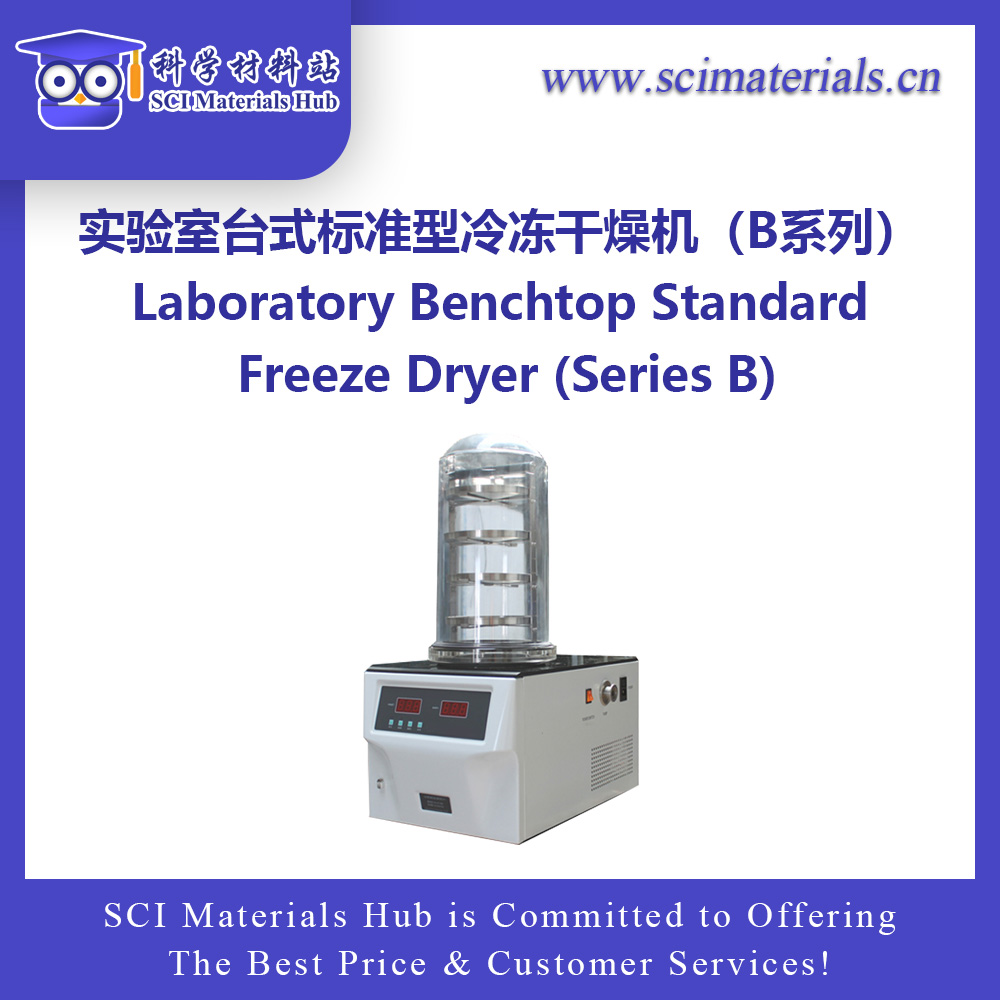

实验室台式标准型冷冻干燥机(B系列)

  • 产品代码:30050002 30050003 30050004 30050005 30050006 30050007 30050008 30050009
  • 产品描述:Laboratory Benchtop Standard Freeze Dryer (Series B)
  • 品牌:SCI Materials Hub
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:实验室台式标准型冷冻干燥机(B系列), Laboratory Benchtop Standard Freeze Dryer (Series B), 科学材料站, SCI Materials Hub
65.7K

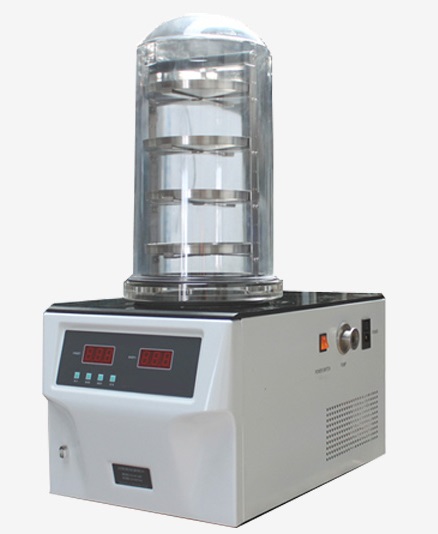

1、DGJ02实验室台式标准型冷冻干燥机(B系列,850 W ,0.12 m2/-55 ℃

冷阱温度为-50℃,配置丰富,操作简便,具有紧凑的结构和灵活的组合方式,主机可与不同的干燥装置进行组合,以适应不同产品的冻干,例如:选用不锈钢盘可冻干散装物料,与带压盖装置的有机玻璃干燥室组合可冻干西林瓶,与带挂瓶的有机玻璃干燥室组合可冻干在烧瓶内的样品,与T型架附件组合可冻干安瓿,用于菌种保藏工作。


DGJ02主要特点

★ 干燥仓一体成型。无粘接、高强度,无泄漏。

★ 体积小、重量轻,适合各类实验室使用。

★ 采用低温制冷及高真空技术,适合各种冻干材料。

★ 国际品牌压缩机,高效稳定、噪音低。

★ 冷阱预冻功能。

★ 强制导流技术,缩短干燥周期。

★ 特殊样品冷阱低温干燥功能。

★ 原装进口充气阀,可充氮气或者惰性气体进行干燥后的保存。

★ 采用国际品牌压缩机,高效稳定、噪音低。

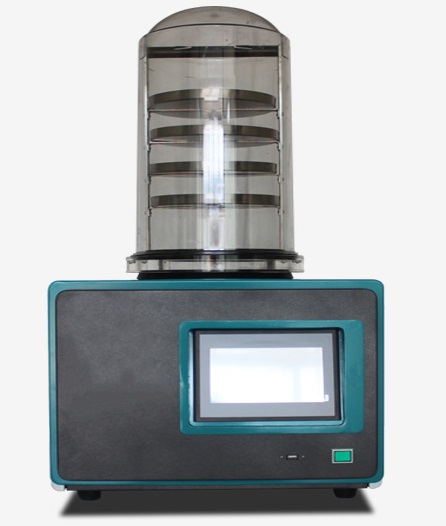

2、DGJ03实验室台式标准型冷冻干燥机(B系列,850 W,0.12 m2/-55 ℃

该系列冻干机有五款基本配置:普通型、压塞型、多歧型管型、多歧管压塞型,T型多歧管型(24只)。


DGJ03主要特点

★ 干燥仓一体成型。无粘接、高强度,无泄漏。

★ 品牌压缩机,稳定、噪音低。

★ 冷阱预冻功能。

★ 样品温度监视,可实时监控样品温度。

★ 冻干曲线绘制功能,可查看、存储冻干曲线。

★ 冻干数据显示存储功能,支持U盘数据导出功能。最远监控距离1.5 KM(选配)。

★ 手机监控系统:可手机监控设备运行状况,简单便捷(选配)。

★ 氧含量监控系统:可监控冻干过程中氧气含量,对易氧化物质做有效保护(选配)。

★ 湿度监控系统:可监控冻干过程中水蒸气湿度含量,对冻干的进度进行有效的判断(选配)。

★ 冻干终点判定系统:可在解析干燥阶段结束后自动进行冻干终点测试,确保物质含水率到达标准要求(选配)。

★ 特殊样品冷阱低温干燥功能。

★ 原装进口充气阀,可充氮气或者惰性气体进行干燥后的保存。

★ 工业触摸屏(七寸触摸屏)+工业PLC,安全稳定。

★ U盘数据导出功能,可导出冻干数据,方便冻干过程分析。

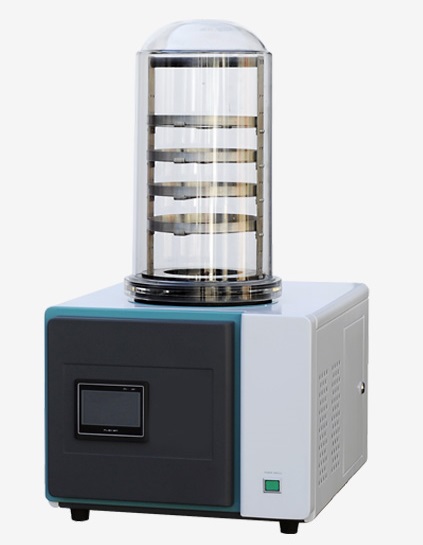

3、DGJ04实验室台式标准型冷冻干燥机(B系列,900 W,0.12 m2/-55 ℃

该型号有五款基本配置:普通型、压塞型、多歧型管型、多歧管压塞型,T型多歧管型(24只)。


DGJ04主要特点

★ 干燥仓透明门采用航空亚克力材料,无粘结、高强度无泄漏。

★ 冷阱预冻功能。

★ 导流筒技术,提高冻干效率。

★ 制冷系统采用品牌压缩机,稳定、噪音低。

★ 真空系统采用日本品牌真空泵,抽速大、噪音小,质量稳定可靠。

★ 特殊样品冷阱低温干燥功能。

★ 可充氮气或者惰性气体进行干燥后的保存。

★ 采用工业触摸屏,人机互动型好,简单易懂,不需说明书也可进行简易操作。

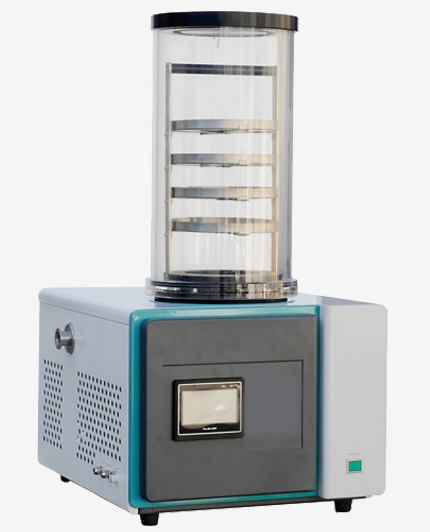

4、DGJ05实验室台式标准型冷冻干燥机(B系列,900 W,0.12 m2/-55 ℃

该系列冻干机,干燥仓采用航空亚克力材料,无粘接、高强度,无泄漏。冷阱预冻功能。特殊样品冷阱低温干燥功能。可充氮气或者惰性气体进行干燥后的保存。


DGJ05主要特点

干燥仓透明门采用航空亚克力材料,无粘结、高强度无泄漏。

★ 冷阱预冻功能。

★ 采用品牌压缩机,稳定、噪音低。

★ 采用国外品牌真空泵,抽速大,质量稳定可靠。

★ 特殊样品冷阱低温干燥功能。

★ 可充氮气或者惰性气体进行干燥后的保存。

★ 采用工业触摸屏,人机互动型好,简单易懂,不需说明书也可进行简易操作。

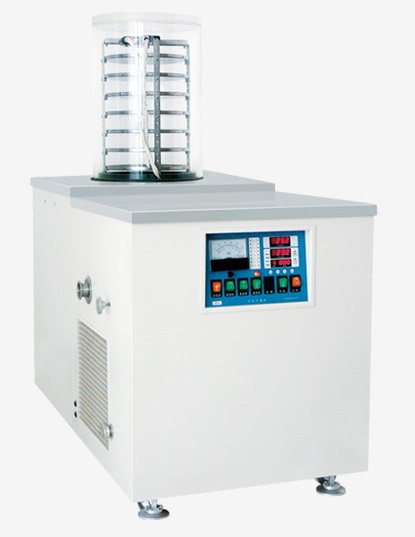

5、DGJ06 (0.4 m2, -55 ) / DGJ07 (0.4 m2, -85 ) & DGJ08 (0.8 m2, -55 ) / DGJ09 (0.8 m2, -85 ℃) 实验室台式标准型冷冻干燥机(B系列,3000W)

该型号为无压塞标准装置,其对应的压塞型为:实验室立式手动压盖型冷冻干燥机(B系列,3000W)。


DGJ06/07 & DGJ08/09主要特点

★ 干燥仓采用航空亚克力材料,高强度、无泄漏。

★ 冷阱预冻功能。

★ 品牌压缩机,稳定、噪音低。

★ 特殊样品冷阱低温干燥功能。

★ 可充氮气或者惰性气体进行干燥后的保存。

★ 每层板层独立测温控温技术。

★ 实时显示真空度、冷阱温度。

★ 共晶点测试技术,可离线、在线测试制品的共晶点温度,可人工或自动分析图谱(选配)。

★ 远程控制系统:可远程控制设备,存储曲线及数据(选配)。

★ 手机监控系统:可手机监控设备,夜间无需人员值守(选配)。

★ 远程控制系统:可远程监控设备运行状况,最远监控距离1.5 KM(选配)。

★ 氧含量监控系统:可监控冻干过程中氧气含量,对易氧化物质做有效保护(选配)。

★ 湿度监控系统:可监控冻干过程中水蒸气湿度含量,对冻干的进度进行有效的判断(选配)。

★ 冻干终点判定系统:可在解析干燥阶段结束后自动进行冻干终点测试,确保物质含水率到达标准要求(选配)。

型号
DGJ02DGJ03DGJ04DGJ05DGJ06DGJ07DGJ08DGJ09
样品盘Φ200 mm*4Φ200 mm*4Φ200 mm*4Φ200 mm*4/
/
/
/
冷阱尺寸Φ220*130 mmΦ220*130 mm//////
冻干面积0.12 m20.12 m20.12 m20.12 m20.4 m20.4 m20.8 m20.8 m2
冷阱温度
-55 -55 ℃-55 ℃-55 ℃-55 ℃-85 ℃-55 ℃-85 ℃
真空度<9 Pa<6 Pa<6 Pa<6 Pa<6 Pa<1 Pa<6 Pa<1 Pa
捕水能力3 L3 L3 L3 L10 L10 L10 L10 L
冻干效率2 L/24 h2 L/24 h2 L/24h2 L/24h6 L/24h6 L/24h6 L/24h6 L/24h
压缩机功率7/8 HP7/8 HP7/8 HP7/8 HP////
真空泵2 L/S2 L/S2 L/S2 L/S6 L/S6 L/S6 L/S6 L/S
功率850 W850 W900 W900 W3000 W3000 W3000 W3000 W

整机尺寸

350*600*345 mm350*600*345 mm470*600*400 mm470*600*400 mm////


实验室冷冻干燥机(B系列)可选款型及特点

实验室冷冻干燥机(B系列)有五款基本配置:普通型、压塞型、多歧型管型、多歧管压塞型,T型多歧管型(24只)。

普通型:适合装载散装物料。

压塞型:适合装载西林瓶装物料。

多歧型管型:适合装载外挂瓶装物料。

多歧型管压塞型:适合装载散装物料、瓶装物料及外挂瓶装物料。

T型多歧型管型:适合装载外挂瓶及安瓿瓶装物料。

五款可冻干样品类型:水溶性溶液、悬浊液或糊状物质,其共晶点温度高于-20 ℃。


实验室冷冻干燥机(B系列)选配

共晶点测试仪样品温度监视器6/8层透明冻干仓6/8层外挂瓶冻干仓
冷阱内置冻干仓T16/24/52/104歧型管冻干仓安瓿瓶封口器西林瓶封盖器
进口真空泵油雾过滤器广口瓶装置真空泵防返油装置
进口真空油回填过滤器外挂冻干瓶西林瓶


1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

实验室台式标准型冷冻干燥机(B系列)

产品代码

产品描述

产品价格及规格库存状态
30050002DGJ02实验室台式标准型冷冻干燥机(B系列,850W)

¥19800

现货
30050003
DGJ03实验室台式标准型冷冻干燥机(B系列,850W)请询价请咨询
30050004DGJ04实验室台式标准型冷冻干燥机(B系列,900W)请询价请咨询
30050005DGJ05实验室台式标准型冷冻干燥机(B系列,900W)请询价请咨询
30050006DGJ06实验室台式标准型冷冻干燥机(B系列,3000W)请询价请咨询
30050007DGJ07实验室台式标准型冷冻干燥机(B系列,3000W)请询价请咨询
30050008DGJ08实验室台式标准型冷冻干燥机(B系列,3000W)请询价请咨询
30050009DGJ09实验室台式标准型冷冻干燥机(B系列,3000W)请询价请咨询
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn
