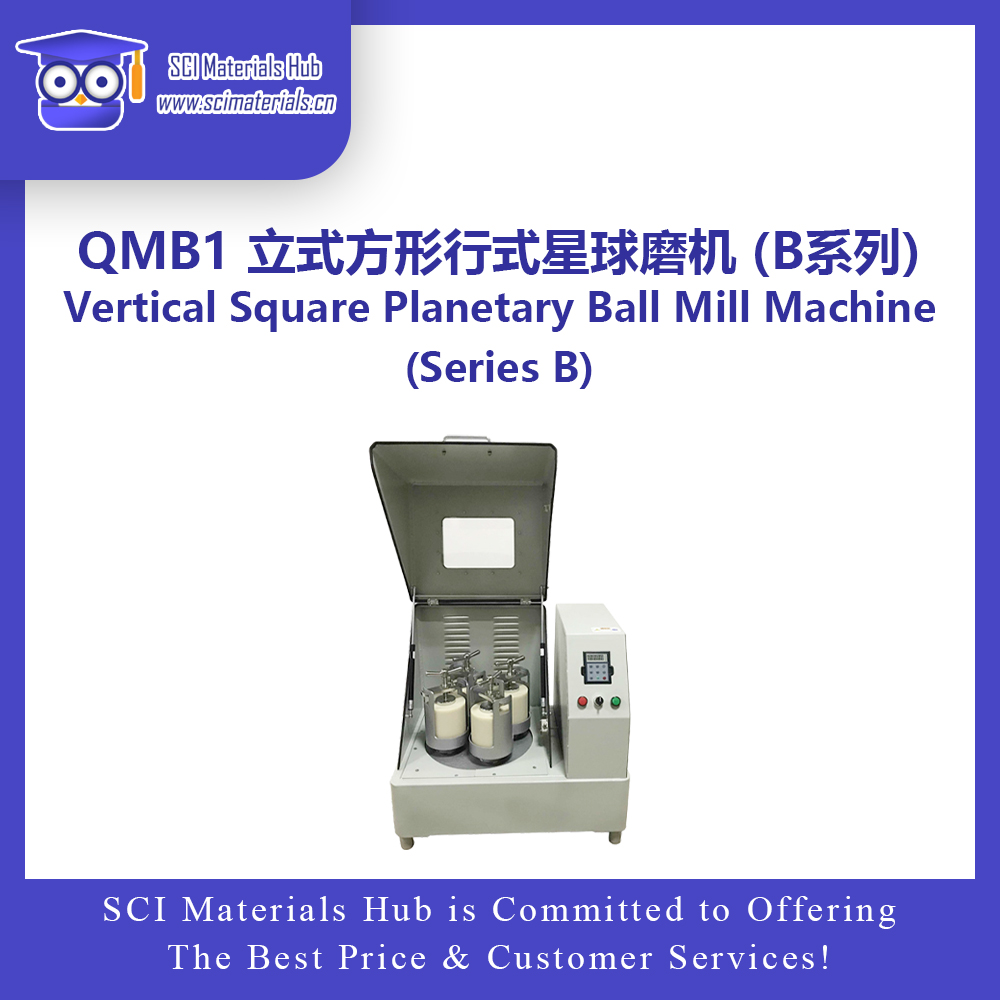

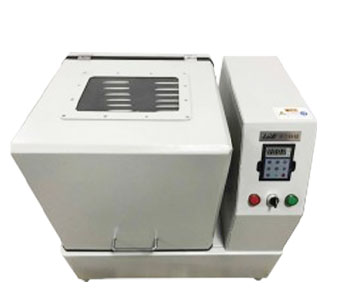

行星式球磨机的用途：

行星式球磨机是混和、细磨、小样制备、新产品研制和小批量生产高新技术材料的必备装置。

该产品体积小、功能全、效率高、噪声低，是科研单位、高等院校、企业实验室获取研究试样（每次实验可同时获得四个样品）的理想设备，配用真空球磨罐，可在真空状态或惰性气体保护状态下磨制试样。

广泛应用于地质、矿产、冶金、电子、建材、陶瓷、化工、轻工、医药、环保等部门。

行星式球磨机是在一转盘上装有四个球磨罐，当转盘转动时，球磨罐中心轴作行星运动，罐中磨球在高速运动中研磨和混和样品。

该产品能用干、湿两种方法粉碎和混和粒度不同，材料各异的产品，研磨产品最小粒度可至0.1微米（即1.0×10^-4mm）

行星式球磨机的齿轮传动的优点：

一致性好　同样的工艺条件，同样的材料，四罐研磨的结果一致。

重复性好　同样的工艺条件，同样的材料，多次试验的结果一致。

使用方便　无需更换行星轮皮带，大大减轻了劳动强度。

齿轮传动彻底解决了皮带传动中皮带打滑、皮带磨损所引起的一系列问题。

行星式球磨机的几项主要考核指标：

1. 转速　转速是行星式球磨机重要的一项指标。要使材料磨细、磨快，应选用合适的转速。

2. 最大连续工作时间　用行星式球磨机制作亚微米或纳米材料，往往需要设备满负荷连续工作50小时以上，并力求工艺条件（如转速）不发生变化。

3. 一致性　对同一种材料、同一种工艺，要求两罐或四罐磨出的结果完全一致，运用齿轮传动完全能够做到，而用皮带传动很难。

4. 重复性　对同一种材料，同一种工艺，要求反复多次球磨的结果完全一致。运用齿轮传动能做到，而用皮带传动无法实现。

5. 噪音　在空载高速转动状态下，皮带转动的噪音为66dB，齿轮传动的噪音为68dB，但在满负荷工作状态下，两种传动的噪音一样，均为75dB。

这主要是磨球材料相互撞击、研磨发出的声音。因为只有负载状态下的噪音才有意义，所以，皮带传动和齿轮传动的噪音效果是一样的。

6. 转速比：公转与自转的转速比是行星式球磨机一项技术性能指标，该参数与转速大小，研磨时间等因素有着密切，复杂的关系。

为了让用户在试验中减少影响因素，简化工艺条件，在研制行星磨的过程中，经过大量反复的对比试验，最后选定1：2（≤4L）和1：1.5(≥12L)为最佳转速比（这与进口行星磨的转速比基本相吻合）。

为广大用户免去了在此工作中的试验摸索，节约了大量的宝贵时间。

行星式球磨机的特点：

采用齿轮传动，确保试验的一致性和重复性。

转度快、能量大、效率高、粒度细。

一次实验可同时获得四种大小不同、材料各异的样品。

变频、程控无级调速，根据试验结果选定理想转速。

装有定时关机、自动定时正、反转装置，根据需要可自由选择，实用方便。

本机具有重心低、刚性好、结构紧凑、操作方便、安全可靠、噪声低、无污染、损耗小等优点。
