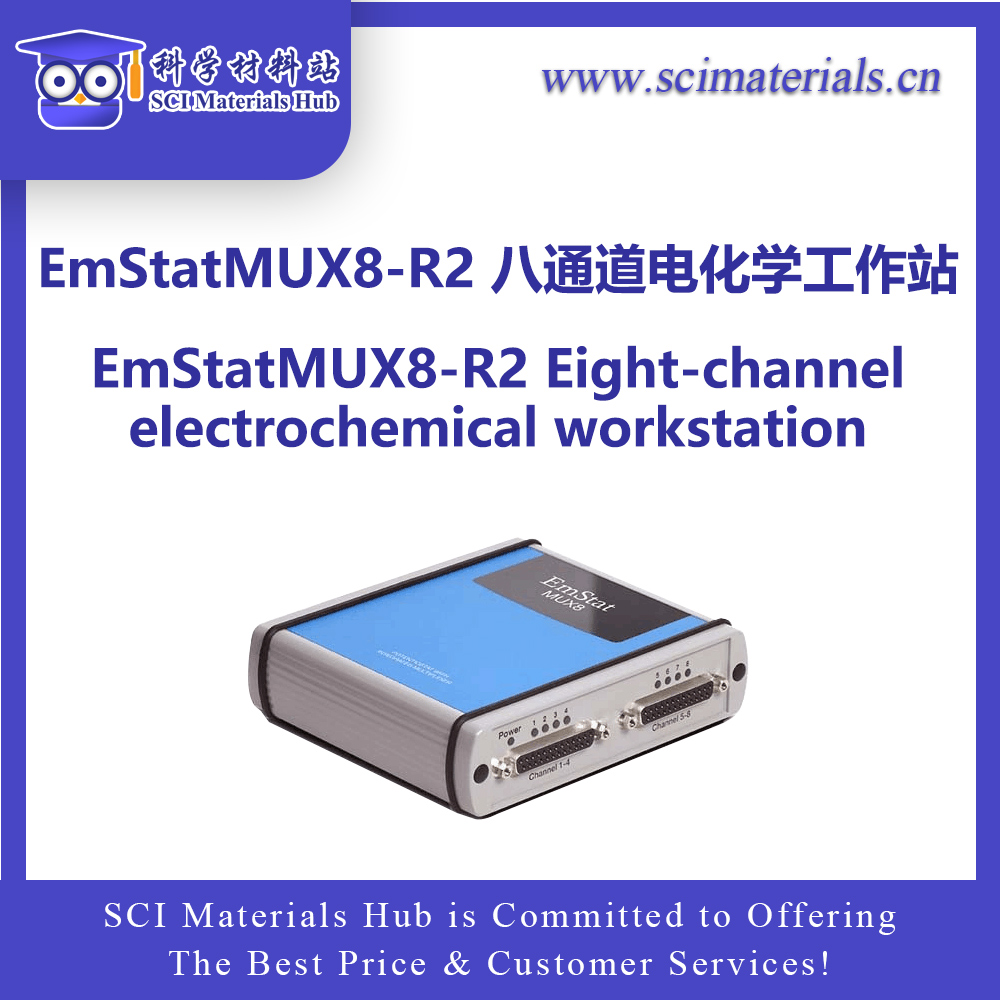

EmStatMUX8-R2 八通道电化学工作站

  • 产品代码:
  • 产品描述:EmStatMUX8-R2 Eight-channel electrochemical workstation
  • 品牌:SCI Materials Hub
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:EmStatMUX8-R2 八通道电化学工作站, EmStatMUX8-R2 Eight-channel electrochemical workstation, 科学材料站, SCI Materials Hub
65.7K

带多路复用器的EmStatMUX8-R2恒电位仪设计用于多达8个通道, 带有2或3个电极传感器或电池。该仪器由MUX8-R2多路复用器与集成的EmStat3或EmStat3+恒电位仪组成。

EmStatMUX8-R2具有一个链路连接器, 可用于以菊花链方式连接到MUX8-R2多路复用器, 从而扩展了通道数量。菊花链中最多可以连接16个多路复用器,最多提供128个通道。

PSTrace软件自动检测以菊花链方式连接的多路复用器数量, 并在用户界面中显示可用的通道数。


支持转换模式

在顺序模式下,每个通道在下一次测量开始之前设置;

在交替模式下,在每个间隔时间内快速扫描通道, 从而对所选通道进行虚拟同步测量

技术支持
伏安法顺序模式交替模式
线性扫描伏安法LSV
循环伏安法CV
快速循环伏安法FCV
交流伏安法ACV
脉冲法
差分脉冲伏安法DPV
方波伏安法SWV
常规脉冲伏安法NPV
电流-时间
计时电流法CA
零电阻电流法ZRA
多级电流法MA
快速电流检测FAM
脉冲电流检测PAD
多级脉冲电流检测MPAD
恒电流法
电流线性扫描法LSP
计时电位法CP
多级电位法MP
开路电位OCP
溶出计时电位法(电位溶出分析)SCP or PSA
其他
混合模式MM
交流阻抗EIS/GEIS


系统参数
常规
EmStat 3EmStat 3+
直流电位范围±3.000V±4.000V
输出电压范围±5V±8V
施加电位分辨率0.1mV0.125mV
施加电位精度≤0.2%
偏置误差: max. 2 mV
≤0.3%
偏置误差: max. 3mV
电流量程1nA to 10mA(8)1nA to 100mA(9)
最大测定电流±20mA (典型值) and ±15mA minimum±100mA (典型值)
恒电位模式
电流分辨率0.1% (当前所选量程)
电流精度1pA (最低量程)
≤1% (1nA)
<0.5% (10nA)
≤0.2% (100nA to 100uA)
≤0.5% (1mA,10mA and 100mA)
偏置误差: all with max. 0.2%
静电计
静电计放大器输入>100Gohm // 4pF
上升时间approx.100us
通道数量8 (当使用菊花链时可以达到128通道)
多路(复用)器switches 8x (WE, S, RE and CE)
WE的电阻1.5ohm typical
WE上的电荷注入20pC typical
漏电流<20pA(5pA typical) at 25℃
转换时间2ms
其他
尺寸: 138mm x 121mm x 37mm
重量+/-250g
温度范围0o C to +40o C
供电方式USB
连接方式USB-C


测试参数
NPV扫描速率0.025mV/s (0.125mV step) to 50mV/s (5mV step)
DPV脉冲时间5ms to 300ms
SWV频率1Hz to 500Hz
LSV扫描速率0.01mV/s (0.1mV step) to 5V/s (5mV step)
CV
AD采样间隔1ms to 300s
运行时间1s to hours
PAD采样间隔50ms to 300s
脉冲时间1ms to 1s
数据点/个10s to hours
MPAD脉冲时间100 ms to 2s
运行时间10s to hours
电位范围数目3
OCP采样间隔1ms to 30s
运行时间hours
MA采样间隔1ms to 30s
电位范围数目1 to 255
循环次数1 to 20000
最大运行时间hours


MUX8-R2 各连接口的功能
接口功能
INPUT通过Y-cable 连接仪器的电极接口和(数字)AUX 接口
AUX可用于测量辅助输入,如:温度、pH 和开关外围部件(通过PSTrace 设置数字信号)
LINK连接下一多通道转换器,组合多个通道器时使用
USB-C提供额外电源,当仪器连接多于2 个多通道转换器时
CHANNEL 1-4连接1-4 通道
CHANNEL 5-8连接5-8 通道



EmStatMUX8-R2 (EmStat 3)EmStatMUX8-R2 (EmStat 3+)
选项A、双屏蔽传感器电缆((推荐)
B、带套圈的高密度电缆
C、连接(螺钉)端子
D、丝网印刷电极适配器
A、双屏蔽传感器电缆((推荐)
B、带套圈的高密度电缆
C、连接(螺钉)端子
D、丝网印刷电极适配器
Product image


1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

Article code:
Price(CNY)
ES3-MUX08-R2EmStat3 potentiostat with integrated 8-channel multiplexer68600
ES3P-MUX08-R2EmStat3+ potentiostat with integrated 8-channel multiplexer76600

*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票
