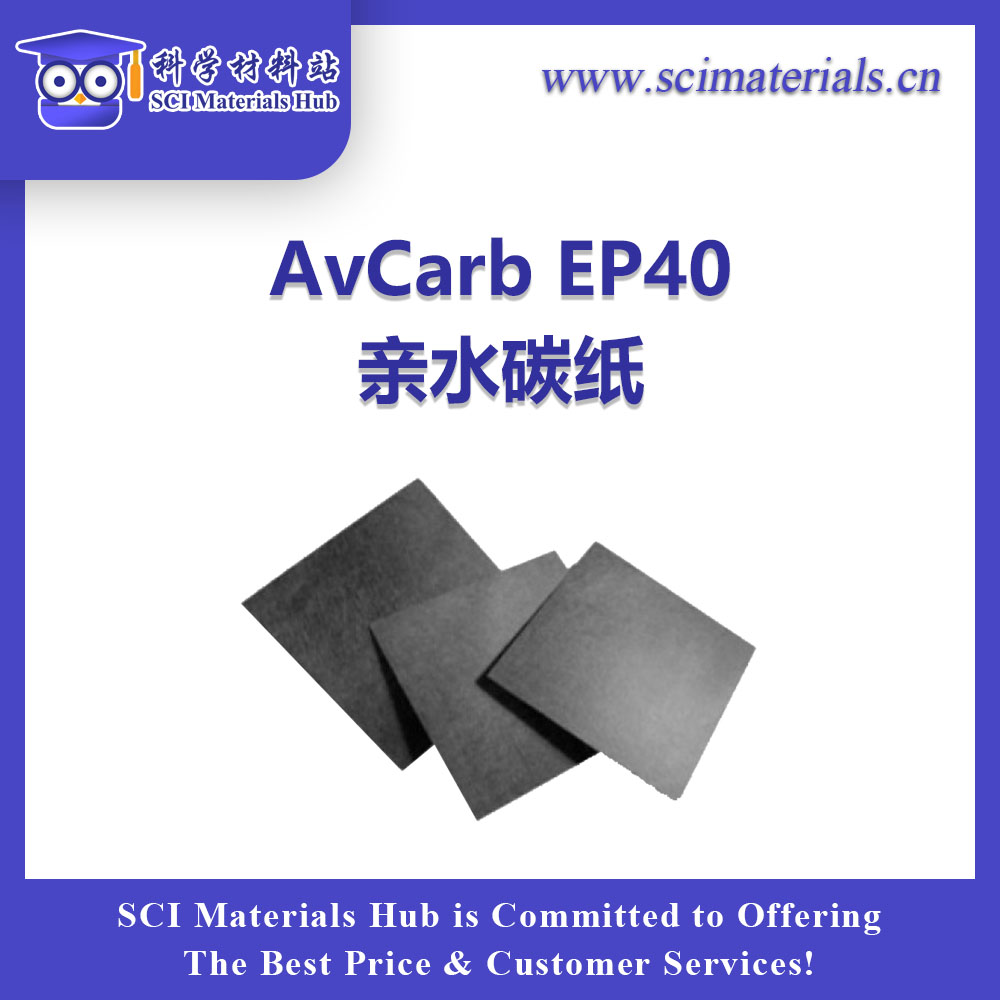

AvCarb EP40 生碳纸

  • 产品代码:112000
  • 产品描述:AvCarb EP40
  • 品牌:AvCarb
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:燃料电池, 气体扩散层, AvCarb EP40, SCI Materials Hub, 科学材料站
65.7K

点此链接,观看更多开箱视频,关注科学材料站Bilibili主页


1. Introduction (介绍)

Substrates are critical components of fuel cell membrane electrode assemblies (MEAs). AvCarb EP40 Gas Diffusion substrates are unparalleled in their ability to meet the rigorous demands of the fuel cell, including platinum catalyst and functional layer support, effective transport of gases and liquids, and conduction of heat and electricity. Moreover AvCarb EP40 substrates are highly durable, both chemically and mechanically.

AvCarb Carbon Fiber Papers are used as gas diffusion substrates or electrode backings for fuel cell applications.

AvCarb EP40 is the base substrate used in the gas diffusion layers: GDS3215, GDS3250, and GDS3260.

点击上方【购买渠道】进行购买或咨询


2. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

AvCarb EP40, a plain carbon fiber paper, was obtained from SCI Materials Hub.


3. 科学材料站中AvCarb 碳纸系列 (AvCarb carbon fiber paper series in SCI Materials Hub)

AvCarb GDL carbon paper series
ModeMateirals TypeThickness

Air Permeability

(Gurley) through-plane

Air Permeability

(Gurley) in-plane

Through-Plane ResistivityPTFE Treatment
EP40Carbon Paper Substrate0.2mm4.5 sec/100cc50.9 sec/100cc8.0 mOhm*cm2None
EP40TCarbon Paper Substrate0.2mm7.5 sec/100cc75 sec/100cc13.0 mOhm*cm25-50wt%
EP55Carbon Paper Substrate0.262mm5.0 sec/100cc----None
P50Carbon Paper Substrate0.17mm35 sec/100cc295 sec/100cc6.7 mOhm*cm2None
P50TCarbon Paper Substrate0.18mm50 sec/100cc596 sec/100cc11.7 mOhm*cm25-50wt%
P75Carbon Paper Substrate0.245mm15 sec/100cc83 sec/100cc7.8 mOhm*cm2None
P75TCarbon Paper Substrate0.255mm25 sec/100cc26 sec/100cc13.4 mOhm*cm25-50wt%
AvCarb MGL carbon paper series
ModeMateirals TypeThickness

Gas Permeability

(Gurley sec)

Electrical Resistivity

(through plane)

PorosityPTFE Treatment
MGL190Molded Graphite Laminate0.19mm2.275 mOhm cm78%None
MGL190TMolded Graphite Laminate0.19mm2.275 mOhm cm78%5-50wt%
MGL280Molded Graphite Laminate0.28mm3.375 mOhm cm78%None
MGL280TMolded Graphite Laminate0.28mm3.375 mOhm cm78%5-50wt%
MGL370Molded Graphite Laminate0.37mm4.475 mOhm cm78%None
MGL370TMolded Graphite Laminate0.37mm4.475 mOhm cm78%5-50wt%

我们接受定制1wt%-50wt% PTFE疏水层!所有产品和技术均由我们的美国合作伙伴提供。

All products are made in USA.

资料下载:

AvCarb Carbon Fiber Paper.pdf

AvCarb Gas Diffusion Substrates.pdf

AvCarb GDL Selection Guide.pdf

AvCarb MSDS.pdf


AvCarb Carbon Paper Properties
Material TypeCarbon Paper Substrate
Nominal Thickness (@ 1psi / 0.7 N/cm2)0.200 mm (200 microns)
Nominal Thickness (@ 7.3psi / 5.1 N/cm2)0.190 mm (190 microns)
Nominal Basis Weight36 g/m2
Break Strength machine direction5.0 MPa
Break Strength cross machine direction3.5 MPa
Stiffness machine direction9.5 Taber
Stiffness cross machine direction3.5 Taber
Bulk Density (@ 0.69 N/cm3 / 1psi)0.19 g/cm3
Air Permeability (Gurley) through-plane4.5 sec/100cc
Air Permeability (Gurley) in-plane50.9 sec/100cc
Compressibility ((22N - 113N)/22 x 100%)14.0%
Through-Plane Resistivity8.0 mOhm*cm2
PTFE TreatmentNone
Microporous Layer (MPL)None


AvCarb carbon fiber papers consist of high purity carbon fibers bonded together using a porous carbon matrix. Delivered on rolls, this material is used in demanding electrochemical applications including specialty batteries, fuel cells, and electrolyzers.

AvCarb carbon fiber papers are unparalleled in their ability to meet the rigorous demands of electrochemical applications, including catalyst and microporous layer support, effective transport of gases and liquids, and conduction of heat and electricity in corrosive and high temperature environments.

PTFE treated carbon fiber papers are available for applications in which liquid water repellency is required.


PFTE Treatments

- AvCarb Material Solutions offers carbon fiber papers with standard PTFE treatments for water repellency

- Custom PTFE treatments areavailable for all AvCarb Gas Diffusion Substrates at levels 5%–35% PTFE by weight

- Custom MPLs are also available, please contact us for details


1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

AvCarb EP40 生碳纸

产品代码

112000

产品描述

AvCarb EP40

产品价格及规格

¥198 (10cm*10cm,货号:112000-1010)

¥398 (20cm*20cm,货号:112000-2020)

1198 (40cm*40cm,货号:112000-4040)

¥30000 (10m2,货号:112000-10m2)

¥140000 (50m2,货号:112000-50m2)

¥250000 (100m2,货号:112000-100m2)

库存状态

1天

SCI Materials Hub is Committed to Offering The Best Price & Customer Servics!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn



References citing our materials

二氧化碳还原

1. Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


电池

3. Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


4. A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.
