福优塞尔®CRRS1a膜电极二氧化碳电解堆（实验级1cm²）专门为二氧化碳电解实验研究设计，使用阴离子交换膜。该电堆可以实现电流密度0.1-2.5A/cm².

配件	配件详情

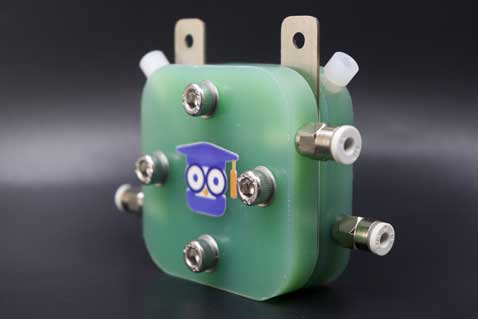

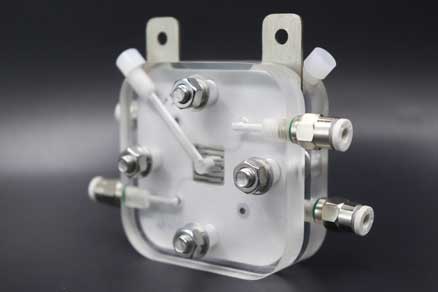

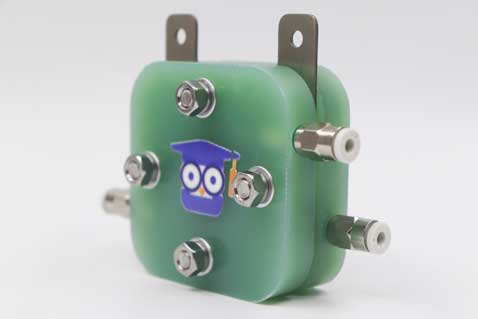

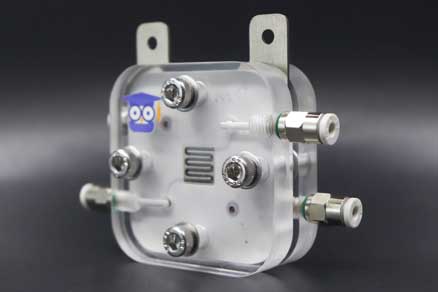

电堆实物图	常规版-单槽，￥3980	常规测温孔版-单槽（含两个温度传感器和读数器），￥4980	可观测版-单槽，￥3980	可观察测温孔版-单槽（含两个温度传感器和读数器），￥4980

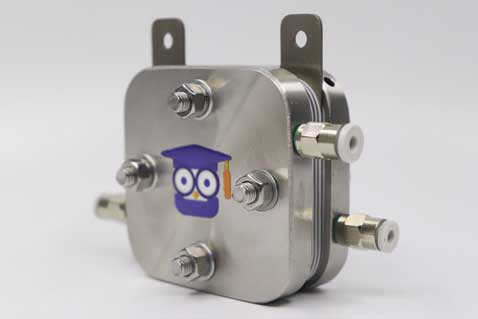

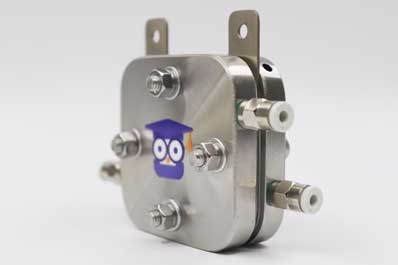

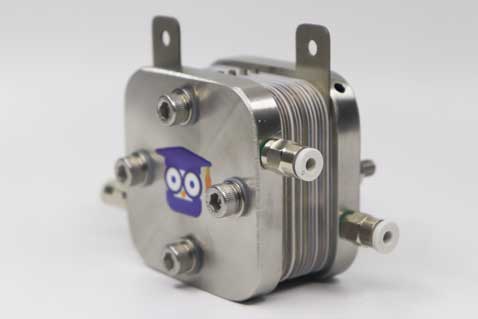

	耐腐蚀不锈钢版-单槽，￥4980	耐腐蚀不锈钢版-2电堆串联，￥5980	耐腐蚀不锈钢版-3电堆串联，￥6980	耐腐蚀不锈钢版-5电堆串联，￥8980
	CRRS1a电堆系列可根据用户需求进行串联、并联以及串并联共存组装
垫片	PTFE阳极垫片 (100/200/250/300/400/500/1000μm) (￥50/件)	PTFE阴极垫片 (100/200/250/300/400/500/1000μm) (￥50/件)	FKM阳极垫片 (100/200/250/300/400/500/1000μm)(￥50/件)	FKM阴极垫片 (100/200/250/300/400/500/1000μm) (￥50/件)
阴离子交换膜	Sustainion X37-50 Grade RT Sustainion X37-50 Grade 60	机械增强膜：PiperION A10R / PiperION A22R 自支撑膜：PiperION A13 / PiperION A17 / PiperION A20 / PiperION A25
离聚物	Sustainion XA-9粉末 Sustainion XA-9分散液 Sustainion XC-1分散液 Sustainion XC-2分散液	PiperION-A TP-85粉末 PiperION A5分散液	Fumion FAA-3-SOLUT-10 Fumion FAA-3 5wt% in ethanol	Nafion D520分散液 Nafion D521分散液 Nafion D2020分散液 Nafion D2021分散液
阳极电极	DM IrO2碳纸阳极电极 福优塞尔® E300 IrO2-碳纸电极 E300T IrO2-碳纸电极(疏水界面) E300H IrO2-碳纸电极(亲水界面) E300PT IrO2-镀铂碳纸电极(亲水界面)	福优塞尔® E304T IrO2-钛纤维纸电极(疏水界面) E304H IrO2-钛纤维纸电极(亲水界面) E304PT IrO2-镀铂钛纤维纸电极(亲水界面)	福优塞尔®E305 IrO2-泡沫镍钛电极 E305PT IrO2-镀铂泡沫镍钛电极
	E306T Pt/IrO2-钛纤维纸电极(疏水界面，适用于耐氧化、高温环境) E306H Pt/IrO2-钛纤维纸电极(亲水界面) E306PT Pt/IrO2-镀铂钛纤维纸电极(亲水界面)	福优塞尔® E309 IrO2/钛纤维纸电极(IrO2体镀层) E309S IrO2/钛纤维纸电极(单面IrO2镀层) E310 IrO2/镀铂钛纤维纸电极(IrO2体镀层) E310S IrO2/镀铂钛纤维纸电极(单面IrO2镀层)	E311 Pt-IrO2/钛纤维纸电极(Pt-IrO2体镀层) E311S Pt-IrO2/钛纤维纸电极(单面Pt-IrO2镀层) E312 Pt-IrO2/镀铂钛纤维纸电极(Pt-IrO2体镀层) E312S Pt-IrO2/镀铂钛纤维纸电极(单面Pt-IrO2镀层)	福优塞尔® E314 IrO2/钛网电极(IrO2体镀层) E315 IrO2/镀铂钛网电极(IrO2体镀层) E316 Pt-IrO2/钛网电极(IrO2体镀层) E317 Pt-IrO2/镀铂钛网电极(IrO2体镀层)
	福优塞尔® E320 IrO2/泡沫镍钛电极(IrO2体镀层) E321 IrO2/镀铂泡沫镍钛电极(IrO2体镀层) E322 Pt-IrO2/泡沫镍钛电极(IrO2体镀层) E323 Pt-IrO2/镀铂泡沫镍钛电极(IrO2体镀层)	福优塞尔® E330 Ir-碳纸电极 E330T Ir-碳纸电极(疏水界面) E330H Ir-碳纸电极(亲水界面) E330PT Ir-镀铂碳纸电极	福优塞尔® E340T Ir-钛纤维纸电极(疏水界面) E340H Ir-钛纤维纸电极(亲水界面) E340PT Ir-镀铂钛纤维纸电极
	福优塞尔® E343 Ir/钛网电极(Ir体镀层) E343PT Ir/镀铂钛网电极(Ir体镀层) E345 Pt-Ir/钛网电极(Ir体镀层) E345PT Pt-Ir/镀铂钛网电极(Ir体镀层)	福优塞尔® E347 Ir/钛纤维纸电极(Ir体镀层) E347S Ir/钛纤维纸电极(Ir单面镀层) E348 Ir/镀铂钛纤维纸电极(Ir体镀层) E348S Ir/镀铂钛纤维纸电极(Ir单面镀层)	E349 Pt-Ir/钛纤维纸电极(Ir体镀层) E349S Pt-Ir/钛纤维纸电极(Ir单面镀层) E350 Pt-Ir/镀铂钛纤维纸电极(Ir体镀层) E350S Pt-Ir/镀铂钛纤维纸电极(Ir单面镀层)	福优塞尔® E351 Ir/泡沫镍钛电极 E352 Ir/镀铂泡沫镍钛电极 E353 Pt-Ir/泡沫镍钛电极 E354 Pt-Ir/镀铂泡沫镍钛电极
	福优塞尔® E355 Ir/碳纸电极(Ir体镀层) E355S Ir/碳纸电极(Ir单面镀层) E356 Ir/镀铂碳纸电极(Ir体镀层) E356S Ir/镀铂碳纸电极(Ir单面镀层)	E357 Pt-Ir/碳纸电极(Ir体镀层) E357S Pt-Ir/碳纸电极(Ir单面镀层) E358 Pt-Ir/镀铂碳纸电极(Ir体镀层) E358S Pt-Ir/镀铂碳纸电极(Ir单面镀层)	福优塞尔® E360T Ir-不锈钢纤维纸电极(疏水界面) E360H Ir-不锈钢纤维纸电极(亲水界面) E360PT Ir-镀铂不锈钢纤维纸电极	福优塞尔® E362T Pt/Ir-不锈钢纤维纸电极(疏水界面) E362H Pt/Ir-不锈钢纤维纸电极(亲水界面) E362PT Pt/Ir-镀铂不锈钢纤维纸电极
	福优塞尔® E370 Ir/不锈钢纤维纸电极(Ir体镀层) E370S Ir/不锈钢纤维纸电极(Ir单面镀层) E371 Ir/镀铂不锈钢纤维纸电极(Ir体镀层) E371S Ir/镀铂不锈钢纤维纸电极(Ir单面镀层)	E372 Pt-Ir/不锈钢纤维纸电极(Ir体镀层) E372S Pt-Ir/钛纤维纸电极(Ir单面镀层) E373 Pt-Ir/镀铂不锈钢纤维纸电极(Ir体镀层) E373S Pt-Ir/镀铂不锈钢纤维纸电极(Ir单面镀层)
阴极电极	DM Ag碳纸阴极电极 福优塞尔® E400 Ag碳纸阴极电极	DM 甲酸电解池阴极电极 福优塞尔® E410甲酸电解池阴极电极
气体扩散层	CP-A210R生碳纸 CP-A330R生碳纸 CP-A400R生碳纸 CP-H450R生碳纸 CP-H850R生碳纸	CP-A210疏水碳纸(1-60wt%) CP-A330疏水碳纸(1-60wt%) CP-F200T疏水碳纸(1-60wt%) CP-F380T疏水碳纸(1-60wt%) CP-A400T疏水碳纸(1-60wt%) CP-H450T疏水碳纸(1-60wt%) CP-H850T疏水碳纸(1-60wt%)	CP-D220M疏水微孔层碳纸 CP-B300M疏水微孔层碳纸	福优塞尔®钛纤维纸 福优塞尔®镀铂钛纤维纸
阴离子交换膜窗*	阴极膜窗14x14mm; 阳极膜窗15.5x15.5mm; 膜面积25x25mm Fumasep FAA-3-PK-130, ￥60/片 Sustainion X37-50 Grade RT 或 60, ￥130/片 PiperION A20, ￥100/片; PiperION A40, ￥110/片 PiperION A60, ￥120/片; PiperION A80, ￥130/片		阴极膜窗10x10mm; 阳极膜窗10x10mm; 膜面积20x20mm Fumasep FAA-3-PK-130, ￥50/片 Sustainion X37-50 Grade RT 或 60, ￥100/片 PiperION A20, ￥80/片; PiperION A40, ￥90/片 PiperION A60, ￥100/片; PiperION A80, ￥110/片
阴离子交换膜窗电极**	阴极膜窗14x14mm; 阳极膜窗15.5x15.5mm; 膜面积25x25mm 阴离子膜：PiperION A20 阴极催化剂：Ag纳米催化剂 阳极催化剂：IrO2纳米催化剂 粘结剂：Nafion 5wt% ionomer		阴极膜窗10x10mm; 阳极膜窗10x10mm; 膜面积20x20mm 阴离子膜：PiperION A20 阴极催化剂：Ag纳米催化剂 阳极催化剂：IrO2纳米催化剂 粘结剂：Nafion 5wt% ionomer
管路	PE硬管 (内径1/16" , 外径1/8") (￥10/m)	普通硅胶软管 (内径1.6mm，外径 4.8mm) 用于蠕动泵 (￥10/m)	Teflon硬管 (内径1/16" , 外径1/8") ￥100/m	蠕动泵耐腐蚀软管 (内径1.6mm 外径4.8mm) ，￥300/m
管路接头	ABS螺栓 (内径3.2mm)，￥80/套	PTFE螺栓 (内径3.2mm)，￥100/套	PEEK螺栓 (内径3.2mm)，￥120/套	镍基快插螺栓 (内径3.2mm)，￥120/套

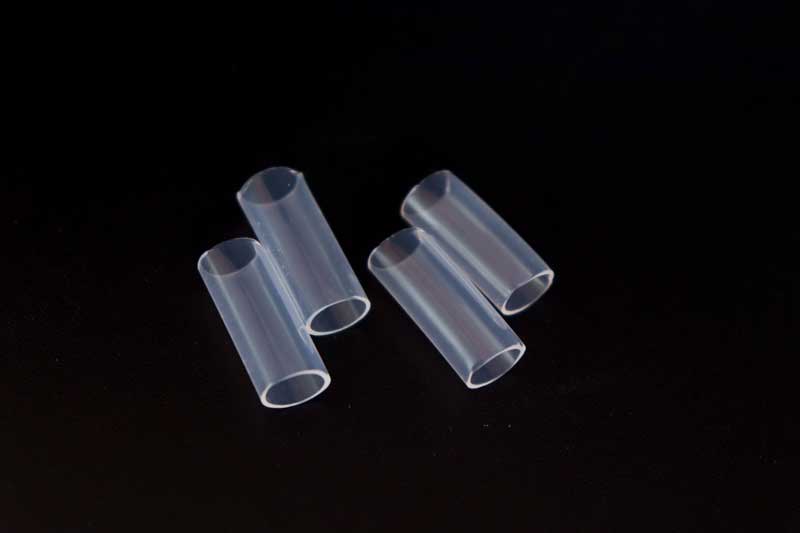

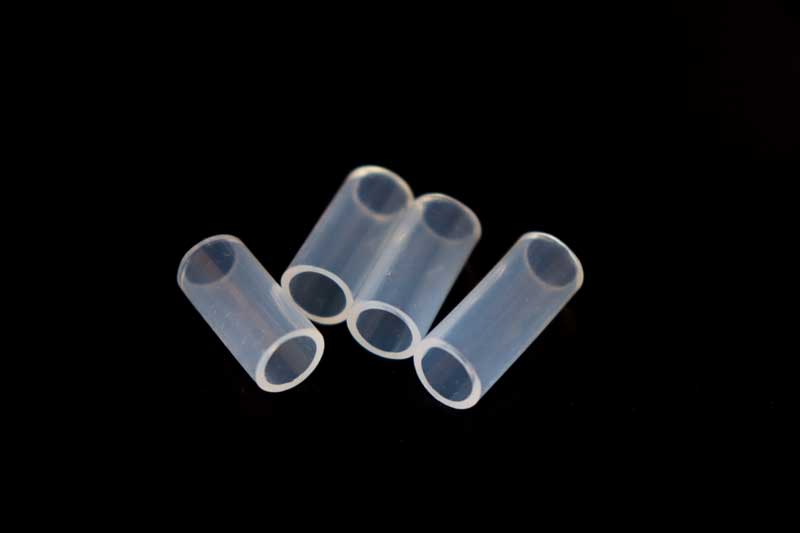

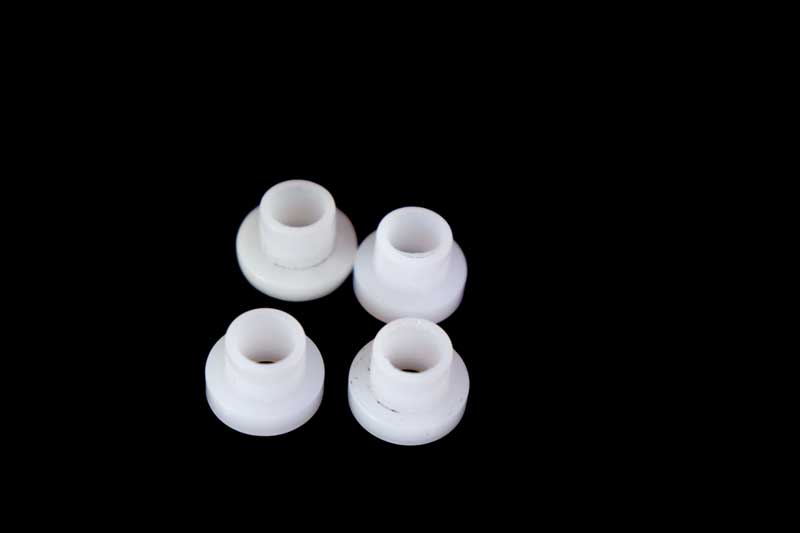

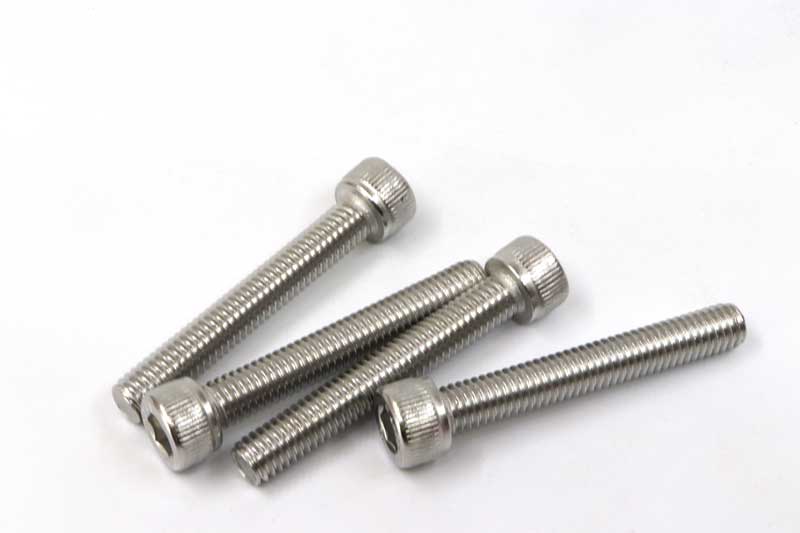

其他	不锈钢螺母，￥4/套	不锈钢螺栓，￥4/套	肩部垫圈，￥4/套	螺栓绝缘管 (厚度 0.5mm)，￥4/套

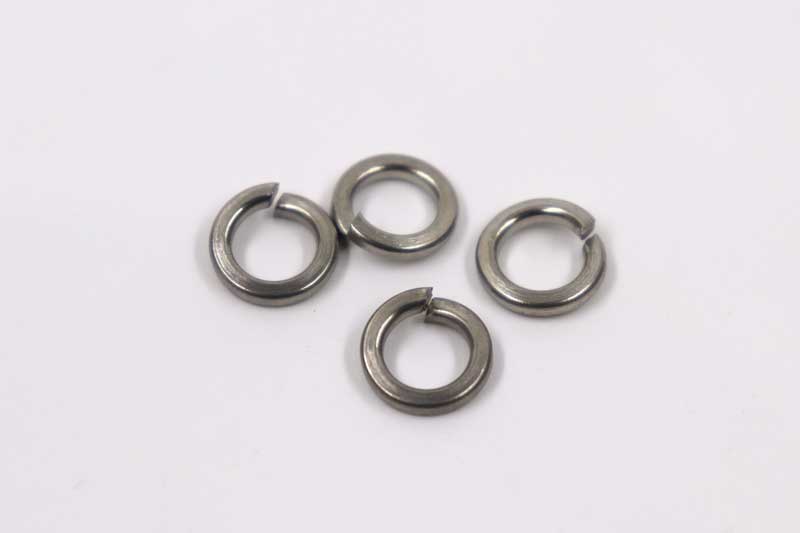

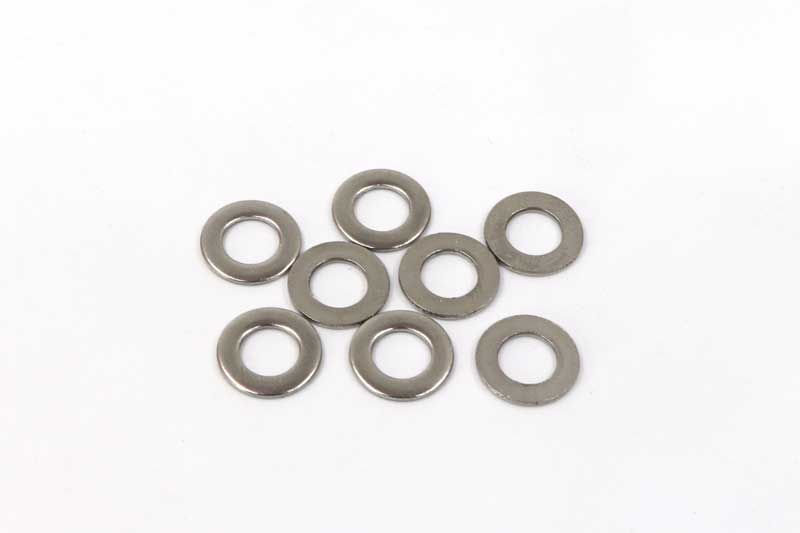

	螺栓绝缘管 (厚度 1mm)，￥4/套	不锈钢垫片，￥4/套	不锈钢t弹片，￥4/套	扭矩扳手+套筒 (1-25 Nm)，￥600/套
	25A大电流鳄鱼夹导电线 ￥60/对/0.5米; ￥70/对/1米 ￥80/对/1.5米; ￥100/对/2米	25A大电流香蕉头转鳄鱼夹导电线 ￥60/对/0.5米; ￥70/对/1米 ￥80/对/1.5米; ￥100/对/2米	35A大电流香蕉头转鳄鱼夹导电线 ￥80/对/0.5米; ￥90/对/1米 ￥100/对/1.5米; ￥120/对/2米	40A Ring-Ring导电线 ￥100/对/0.5米; ￥120/对/1米 ￥140/对/1.5米; ￥160/对/2米
	温控系统 (加热片x2个、温控盒x1个、空气开关x1个、热电偶x1个、精度0.1°C)：￥2980/套	加热片加热片 (￥980/对) 加热片助粘剂, 25ml/￥199	O型圈套件，￥10/套	常规扳手套件，￥60/套
	配套单通道简易蠕动泵，￥1980/台 配套单通道蠕动泵，￥2980/台 配套双通道蠕动泵，￥3980/台 配套齿轮泵，4980/台	配套电源（具有记录存储数据、恒流恒压功能），￥6000	进口加湿瓶，￥480	配套加湿瓶，￥240
	VHP01真空加热台	PP等径宝塔软管接头 DI016软管内径Φ1-Φ1.6mm,￥10/个 DI024软管内径Φ1.6-Φ2.4mm,￥10/个 DI032软管内径Φ2.4-Φ3.2mm,￥10/个 DI040软管内径Φ3.2-Φ4mm,￥10/个 DI048软管内径Φ4-Φ4.8mm,￥10/个	PP变径宝塔软管接头 软管内径Φ1.6↔Φ2.4,￥10/个 软管内径Φ1.6↔Φ3.2,￥10/个 软管内径Φ2.4↔Φ3.2,￥10/个 软管内径Φ2.4↔Φ4,￥10/个 软管内径Φ3.2↔Φ4,￥10/个	PE等径硬管接头 硬管外径Φ3-Φ3mm,￥10/个 硬管外径Φ3.2-Φ3.2mm,￥10/个 硬管外径Φ4-Φ4mm,￥10/个 硬管外径Φ6-Φ6mm,￥10/个
	PE变径硬管接头 硬管外径Φ3-Φ3.2mm,￥10/个 硬管外径Φ3-Φ4mm,￥10/个 硬管外径Φ3-Φ5mm,￥10/个 硬管外径Φ3-Φ6mm,￥10/个 硬管外径Φ3.2-Φ4mm,￥10/个 硬管外径Φ3.2-Φ6mm,￥10/个	PTFE耐腐蚀软硬管转接头 硬管外径Φ3.2mm↔软管内径Φ1.6mm,￥50/个 硬管外径Φ3.2mm↔软管内径Φ2.4mm,￥50/个 硬管外径Φ3.2mm↔软管内径Φ3.2mm,￥50/个 硬管外径Φ3.2mm↔软管内径Φ4mm,￥50/个	PTFE耐腐蚀等径硬管接头 Φ3mm↔Φ3mm,￥50/个 Φ3.2mm↔Φ3.2mm,￥50/个 Φ4mm↔Φ4mm,￥50/个 Φ6mm↔Φ6mm,￥60/个 Φ8mm↔Φ8mm,￥60/个	PTFE耐腐蚀变径硬管接头 Φ3mm↔Φ3.2mm,￥60/个 Φ3mm↔Φ4mm,￥60/个 Φ3mm↔Φ6mm,￥60/个 Φ3.2mm↔Φ4mm,￥60/个 Φ4mm↔Φ6mm,￥60/个
	316L不锈钢卡套接头 管外径Φ1/8",￥70/个 管外径Φ1/4",￥70/个

*阴离子交换膜窗为科学材料站自主开发的电解槽配件，其具有以下优势：

1. 完全匹配科学材料站研发的电解槽

2. 可根据用户要求定制

3. 阴离子交换膜窗可以直接在电解液直接预处理活化、以及在电解液中长期储存

4. 阴离子交换膜窗可以有效避免在预处理过程中的褶皱、弯曲等现象，极大的便于安装

5. 用户可以对阴离子交换膜窗直接进行膜电极制作

**阴离子交换膜窗电极为科学材料站在阴离子交换膜窗基础上自主开发的电解槽配件

*阴离子交换膜窗为科学材料站自主开发的电解槽配件，其具有以下优势：

1. 完全匹配科学材料站研发的电解槽

2. 可根据用户要求定制

3. 阴离子交换膜窗可以直接在电解液直接预处理活化、以及在电解液中长期储存

4. 阴离子交换膜窗可以有效避免在预处理过程中的褶皱、弯曲等现象，极大的便于安装

5. 用户可以对阴离子交换膜窗直接进行膜电极制作

**阴离子交换膜窗电极为科学材料站在阴离子交换膜窗基础上自主开发的电解槽配件

1. 手机淘宝（官方淘宝店铺：科学材料站）

2. 点击进入淘宝网页链接

3. 其它联系方式

电话：+86 130-0303-8751/+86 156-0553-2352

微信：SCI-Materials-Hub

如需报价单请联系：Email: contact@scimaterials.cn
