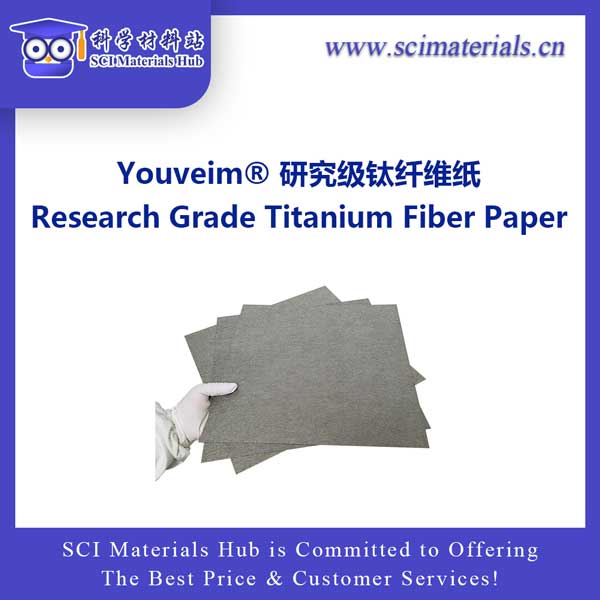

钛纤维毡(研究级)

  • 产品代码:钛纤维毡(研究级)
  • 产品描述:Research Grade Titanium fiber felt
  • 品牌:SCI Materials Hub
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Research Grade Titanium fiber felt, 钛纤维毡(研究级), SCI Materials Hub, 科学材料站
65.7K

点此链接,观看更多开箱视频,关注科学材料站Bilibili主页


Titanium fiber felts are primarily used in electrolyzer stacks as the flow field or diffuser material, particularly on the oxygen (anode) side.


Since electrolyzer hardwares cannot use carbon-based gas diffusion layers (GDLs) at the oxygen evolution electrode due to immediate oxidation of carbon to CO2 (if the medium is acidic) or carbonate ions (if the medium is basic) during the electrolysis reaction, titanium fiber felt becomes an ideal candidate as the diffusion medium and also provide electrical contact between the anode catalyst layer and bipolar plate or current collector component at the anode side.


Our titanium fiber felts are produced from small-diameter titanium fibers that has been compressed to flattened form and annealed (i.e., sintered), ensuring a smooth, flat surface suitable for use in electrolyzer. While the most industrial applications operate their electrolyzers in the anode-fed mode, this product is also an ideal diffusion medium for researchers conducting cathode-fed electrolyzer research.


While the most industrial applications operate their electrolyzers in the anode-fed mode and this product makes an excellent diffusion medium for the oxygen evolution electrode, it can also be used as an ideal diffusion medium for researchers conducting cathode-fed electrolyzer research.


For unitized fuel cells or electrolyzers or regenerative electrochemical devices systems, titanium fiber felt can be used at anode or cathode as the diffusion medium. Electrochemical oxygen concentrators, electrochemical inerters, certain class of batteries such as redox flow batteries, etc. can also benefit from this product as the diffusion medium regardless of the nature of the reactants.

Product Features

- Low resistance

- Hydrogen generator applicable or other applications

- Incompressible

- Highly smooth

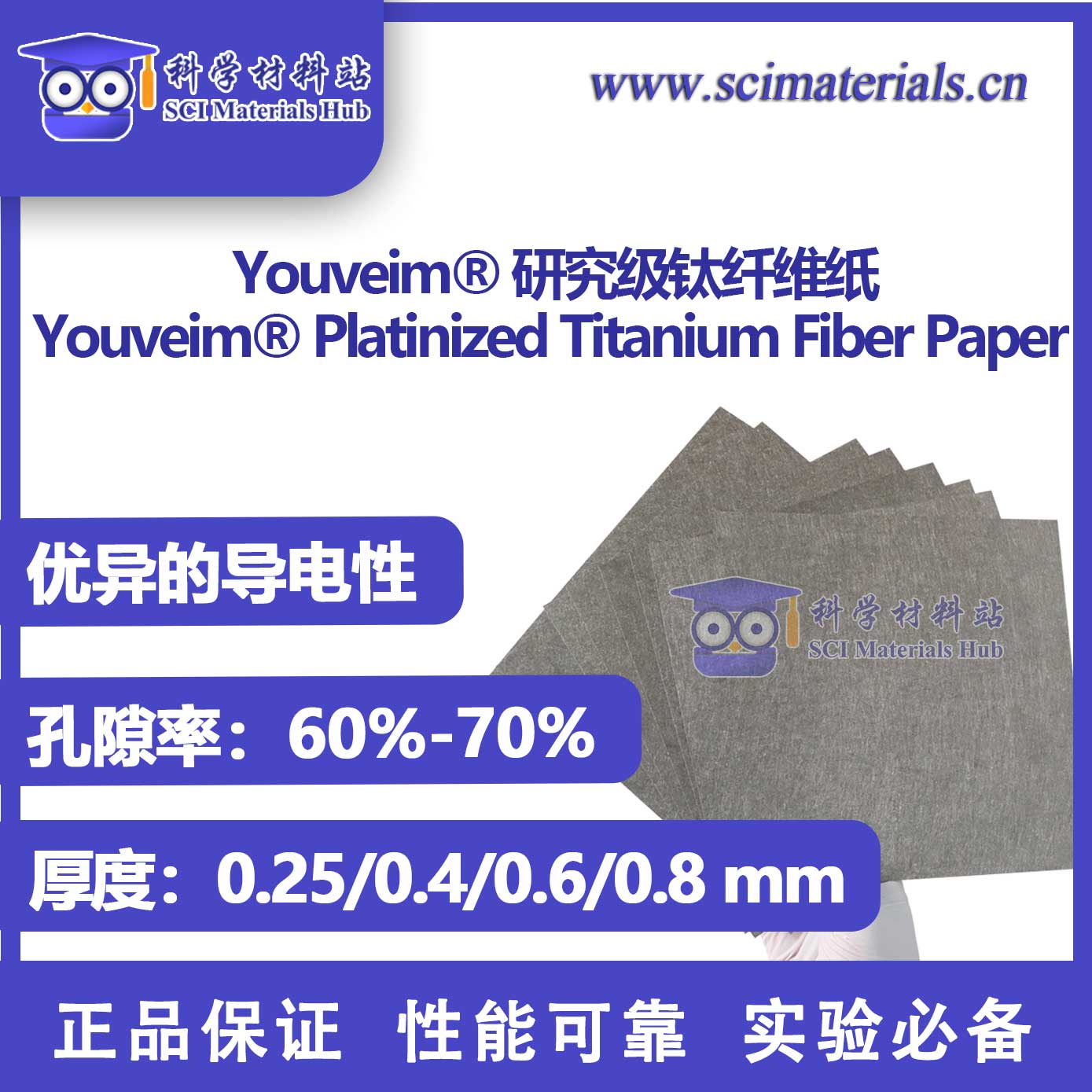

Specifications of Titanium Fiber Paper

High Porosity: 60-70%

- Thickness: 0.25/ 0.40/ 0.6/ 0.8 mm

- Average diameter equivalent: 30-60 μm

- Dimensions: 5x5 cm, 10x10 cm and 20x20 cm

- Custom dimensions are welcome


Low Porosity: 50-60%

- Thickness: 0.25/ 0.40/ 0.6/ 0.8 mm

- Average diameter equivalent: 30-60 μm

- Dimensions: 5x5 cm, 10x10 cm and 20x20 cm

- Custom dimensions are welcome


1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

钛纤维毡

产品代码

产品描述

产品价格及规格货期

0.25mm钛纤维毡

¥380 (5cm*5cm,货号:)

¥890 (10.5cm*10.5cm,货号:)

2099 (21cm*21cm,货号:)

现货

0.4mm钛纤维毡

¥450 (5cm*5cm,货号:)

¥899 (9cm*10cm,货号:)

¥999 (10cm*10cm,货号:)

¥2999 (19cm*30cm,货号:)

现货

0.8mm钛纤维毡

¥600 (5cm*5cm,货号:)

¥1299 (10cm*10cm,货号:)

现货
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!


2-4张 (9.5折); 5-9张 (9折); ≥10张 (8.5折)

- Porosity: 60-70%, can be customized upon request

- Typical thickness: 0.25 mm (0.2-0.3 mm), 0.4 mm (0.35-0.45 mm), 0.8mm (0.75-0.85 mm)


* 大量需求请联系我们咨询更多折扣

** 可提供13%增值税专用发票

*** 3平米及以上需求请联系我们咨询大量优惠价
