在锂、钠、钾、铝、镁、钙等金属电池体系研究中，稳定可靠的电池夹具不仅影响测试数据的重复性，也直接关系到原位观察、电化学性能评估和长循环测试的准确性。Fueiceel® BM02 可观测电池测试硬件是由科学材料站研发的一款高精度两电极电池测试夹具，专为实验室电化学研究、材料验证和工业电池性能测试场景设计。
BM02 采用紧凑型结构设计，兼顾气密性、导电稳定性和手套箱内操作便利性，可用于多种金属电池体系的固定、密封与电气连接。其可视化窗口结构使研究人员能够在测试过程中观察电池内部反应状态，为电极界面变化、液态电解液行为、固态电解质接触状态等研究提供更直观的实验条件。

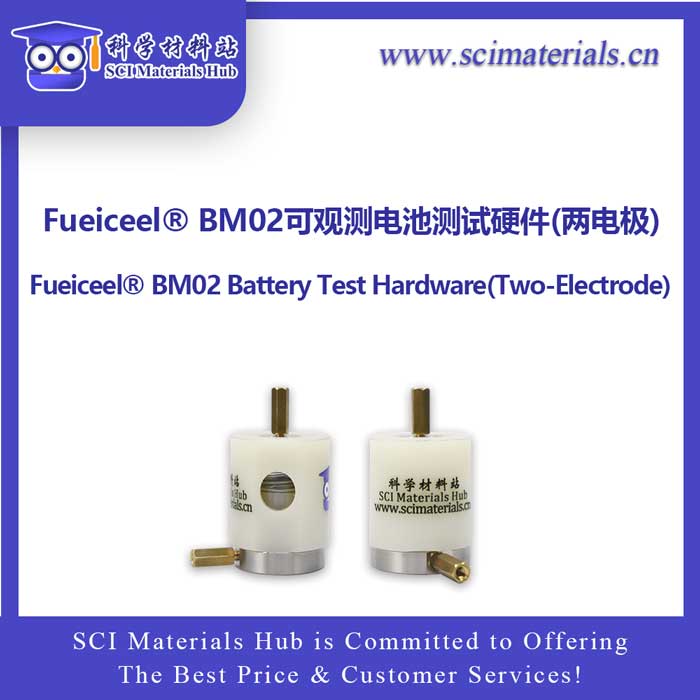

Fueiceel® BM02 是一款面向两电极测试体系的可观测电池夹具，适用于锂金属电池、钠金属电池、钾金属电池，以及铝、镁、钙等多种金属体系。夹具可支持 Φ6mm–Φ20mm 电极测试，默认适配 Φ16mm 电极规格，并可根据实验需求进行尺寸、电极结构和密封方案定制。
在标准组装示例中，BM02 可适配 Φ6–14mm 极片与 Φ16mm 隔膜，并通过内部弹簧结构提供均匀压紧力，从而改善电极、隔膜和垫片之间的接触一致性。对于需要长期循环、原位观察或高重复性数据的实验而言，这种稳定压紧结构能够有效降低接触不良带来的测试偏差。
与传统封闭式测试夹具相比，BM02 的重要优势在于可观测窗口设计。例如 Φ16mm 标准型号配置 Φ10mm 可视窗口，可用于观察测试过程中电极界面、电解液浸润、气泡生成、颜色变化或材料形貌变化等现象。
这一设计特别适合原位电化学观察实验，可辅助研究人员理解电池在充放电、静置、过充或其他特定工况下的内部变化过程。对于金属负极沉积/剥离、隔膜润湿性、界面副反应以及固态电解质接触状态研究，BM02 能够提供更加直观的实验支持。
BM02 夹具主体可选高耐溶剂聚合物材料，包括 ABS、PTFE、PEEK 等不同方案，以适配不同实验环境和电解液体系。电极材料可根据需求选择 316L 不锈钢、钛、钼等高导电金属材料，也可根据实验条件定制镀金不锈钢、镀金钛等方案，以进一步提升耐腐蚀性与电接触稳定性。

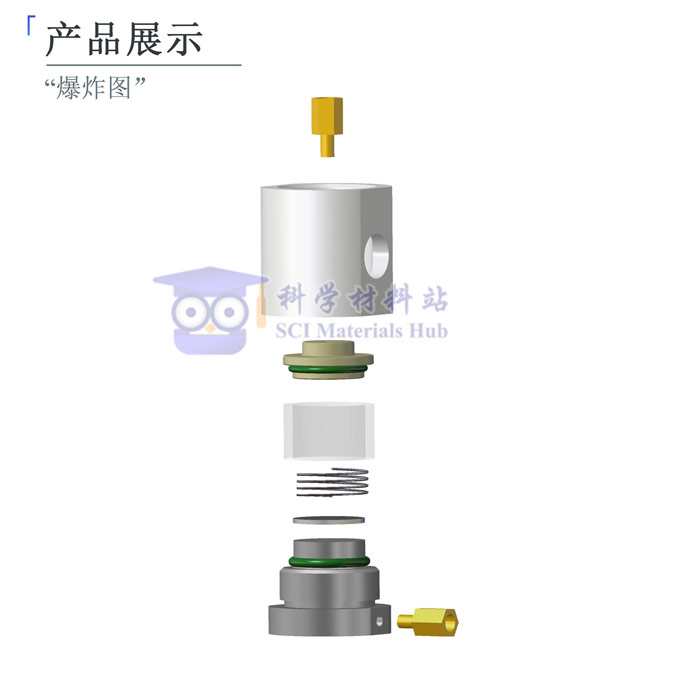

夹具内部采用高精度固定结构，通过金属垫片、透明绝缘柱、内置弹簧、密封 O 型圈和正负极基座共同实现稳定夹持。该结构能够帮助极片保持良好贴合，降低因极片偏移、接触不均或夹持压力不足造成的数据波动。
在导电连接方面，BM02 通过两端导电铜柱分别连接测试设备正负极，确保电信号稳定传输。对于电压、电流、容量、内阻、循环寿命等关键指标测试，稳定的导电路径是获得可靠数据的重要基础。
产品名称：Fueiceel® BM02 可观测电池测试硬件（两电极）
适用电极直径：Φ6mm–Φ20mm，默认 Φ16mm
标准可视窗口直径：默认 Φ10mm
标准组装示例：适配 Φ6–14mm 极片，Φ16mm 隔膜
壳体材质：ABS / PTFE / PEEK 等聚合物材料可选
电极材质：316L 不锈钢 / 钛 / 钼等高导电金属材料可选
定制服务：支持尺寸、电极结构、密封方式、材料方案等定制
BM02 可用于金属电池的基础电化学性能测试，包括电压、电流、容量、倍率性能和内阻等参数评估。夹具稳定的电气连接结构有助于提高测试数据的重复性和可信度。
在长时间充放电循环过程中，夹具需要保持稳定的压紧力和导电接触。BM02 的弹簧加压结构能够在多次循环中维持较好的接触一致性，适合用于循环寿命、容量保持率和库伦效率等研究。
BM02 可用于过充、热失控相关研究及其他特殊实验场景。进行此类实验时，应结合实验室安全规范、防护设备和合适的测试环境，确保操作安全。
除常规电池测试外，BM02 也可用于离子膜、固态电解质或界面材料的电导率研究。其稳定夹持结构有助于改善样品与电极之间的接触状态，从而提高测试结果的一致性。

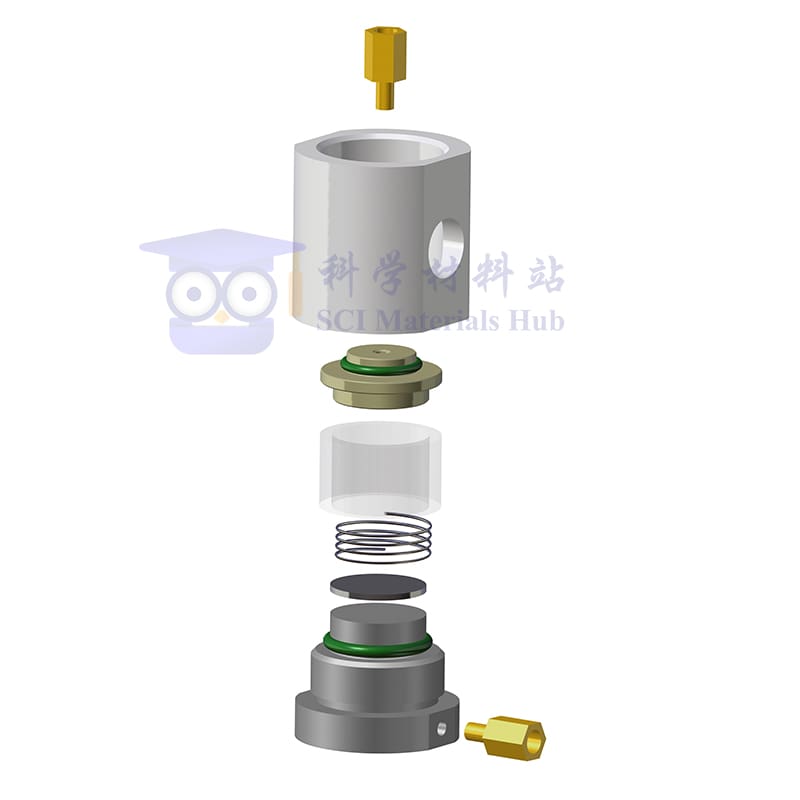

BM02 的组装过程简洁清晰，适合在手套箱中完成。标准组装流程如下：
首先取出负极基座，将底部密封 O 型圈套入基座凹槽，确保密封圈平整贴合。随后依次放入负极片、隔膜和正极片。极片直径可根据实验设计选择，标准示例中适配 Φ6–14mm 极片；隔膜标准直径为 Φ16mm，应完全覆盖极片区域，以降低短路风险。
完成极片堆叠后，在正极片上方放置金属垫片，使其均匀贴合电极表面。随后套入透明绝缘柱，用于隔绝上下导电结构，避免正负极直接接触。接着将加压弹簧垂直放入透明绝缘柱内部，为电池组件提供均匀压紧力。
之后，将密封 O 型圈套于正极基座下端，并将正极基座垂直下压，使其压紧弹簧与绝缘柱。随后扣合带观测窗口的反应腔筒体，并缓慢旋紧，确保内部密封可靠，减少漏液、漏气风险。
最后，分别安装两端导电铜柱：底部负极侧铜柱连接测试设备负极，顶部正极侧铜柱连接测试设备正极。完成后，即可得到完整组装的 BM02 可视化电池夹具，用于半电池、液态电解液体系及原位观察类电化学实验。
为保证测试稳定性和夹具使用寿命，建议每次测试前检查电极接触点是否清洁，避免电解液残留、氧化物或污染物影响导电性能。组装过程中应注意正负极分离，确保隔膜完整覆盖极片，避免短路风险。
在长期使用后，应定期检查 O 型圈、绝缘柱、金属垫片、弹簧和导电铜柱的状态。如发现密封圈老化、弹簧变形或电极表面腐蚀，应及时更换相关组件。对于强腐蚀性电解液或高温实验环境，应优先选择更合适的壳体材料和电极材料方案。
Fueiceel® BM02 可观测电池测试硬件支持现货供应，交付快速，并可根据用户实验体系提供定制服务，包括夹具尺寸、电极材料、可视窗口规格、电极结构和密封方案等。产品可提供正规发票，适用于高校、科研院所、企业研发部门和电池材料测试平台采购。
如需定制、批量采购或技术支持，欢迎联系科学材料站。
官方邮箱：contact@scimaterials.cn
微信公众号：SCI-Materials-Hub
Fueiceel® BM02 将两电极电池测试夹具、可视化窗口、稳定导电结构和高气密性设计集成于一体，为金属电池性能测试、循环寿命研究、原位观察和膜电导率测试提供了可靠硬件支持。对于追求高重复性、高稳定性和实验可观察性的电化学研究人员而言，BM02 是一款兼具实用性与拓展性的专业测试夹具。
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn
标准电极规格：Φ16 mm｜两电极结构｜支持定制
Fueiceel® BM02 系列可观测电池夹具适用于锂、钠、钾、铝、镁、钙等多种金属电池体系的电化学测试，可用于电池性能测试、循环寿命测试、膜电导率测试及原位可视化观察实验。产品支持不同导电材料、壳体材料及温度范围配置，满足常规测试、耐腐蚀测试、高低温测试及高导电测试等多种实验需求。
| 型号 | 特点描述 | 极柱材质 | 壳体材质 | 使用温度范围 | 价格 |
|---|---|---|---|---|---|
| BM02-1 | 常规电池测试夹具 | 316L不锈钢 | ABS | -30 ～ 100 ℃ | ￥149 / 套 |
| BM02-2 | 耐腐蚀型 | 钛 | ABS | -30 ～ 100 ℃ | ￥599 / 套 |
| BM02-3 | 耐腐蚀增强型 | 钼 | ABS | -30 ～ 100 ℃ | ￥799 / 套 |
| BM02-4 | 高导电率 | 镀金不锈钢 | ABS | -30 ～ 100 ℃ | ￥999 / 套 |
| BM02-5 | 高导电 + 耐腐蚀 | 镀金钛 | ABS | -30 ～ 100 ℃ | ￥1499 / 套 |
| BM02-6 | 高低温通用 | 316L 不锈钢 | PTFE | -200 ～ 200 ℃ | ￥299 / 套 |
| BM02-7 | 高低温 + 耐腐蚀 | 钛 | PTFE | -200 ～ 200 ℃ | ￥699 / 套 |
| BM02-8 | 高低温 + 强耐腐蚀 | 钼 | PTFE | -200 ～ 200 ℃ | ￥899 / 套 |
| BM02-9 | 高低温 + 高导电 | 镀金不锈钢 | PTFE | -200 ～ 200 ℃ | ￥1099 / 套 |
| BM02-10 | 高低温 + 高导电 + 耐腐蚀 | 镀金钛 | PTFE | -200 ～ 200 ℃ | ￥1599 / 套 |
| 定制款 | 支持壳体、电极材料、电极尺寸及结构定制 | PEEK / PI / PFA 等可选 | 定制 | -200 ～ 200 ℃ | 咨询客服 |
注：以上价格为标准 Φ16 mm 电极规格参考价格，特殊尺寸、特殊材料、批量采购及非标结构请联系客服确认最终报价。
每套 BM02 可观测电池夹具标准配置如下：
| 序号 | 标配组件 | 数量 | 说明 |
|---|---|---|---|
| 1 | 导电端柱 | 2 个 | 用于连接外部测试设备 |
| 2 | 上 / 下导电柱 | 各 1 个 | 材质与所选型号对应 |
| 3 | 导电垫片 | 1 个 | 用于电极接触与电流传导 |
| 4 | 弹簧 | 1 个 | 可选 316L 不锈钢或钛材质 |
| 5 | 电池壳体 | 1 件 | ABS 或 PTFE，根据型号配置 |
| 6 | 密封圈 | 2 个 | 用于夹具密封 |
| 7 | 透明观测腔 | 1 个 | 用于原位观察电池内部状态 |
| 8 | 鳄鱼夹导电线 | 1 对 | 用于连接测试仪器 |
适用于标准 Φ16 mm 规格
| 配件类别 | 可选规格 | 价格 |
|---|---|---|
| 弹簧 | 304L 不锈钢 | ￥10 / 个 |
| 弹簧 | 316L 不锈钢 | ￥15 / 个 |
| 弹簧 | 钛 | ￥80 / 个 |
| 反应腔室 | ABS | ￥100 / 个 |
| 反应腔室 | PTFE | ￥200 / 个 |
| 反应腔室 | PEEK | ￥300 / 个 |
| 反应腔室 | PFA / PI | ￥800 / 个 |
| 鳄鱼夹导电线 | 标准导电线 | ￥30 / 对 |
| 导电端柱 | 标准端柱 | ￥5 / 个 |
| 螺钉 | 标准螺钉 | ￥1 / 个 |
BM02 系列支持根据不同实验体系进行非标定制，常见定制方向如下：
| 定制项目 | 可选范围 / 说明 |
|---|---|
| 电极尺寸 | Φ6 mm – Φ20 mm，可支持方形尺寸定制 |
| 壳体材料 | ABS、PTFE、PEEK、PI、PFA 等 |
| 高温材料方案 | PEEK 可耐约 300 ℃，PI 可耐约 400 ℃ |
| 特殊测试需求 | PFA 可用于部分透 X 射线测试场景 |
| 电极结构 | 可根据极片、隔膜、固态电解质或膜材料结构定制 |
| 适配材料 | 铜箔、铝箔、碳纸、碳布、泡沫镍、石墨毡、自支撑片材等 |
| 适配测试系统 | Gamry、CHI、Autolab、Zahner、蓝电、新威等 |
| 实验需求 | 推荐型号 |
|---|---|
| 常规电池测试、预算优先 | BM02-1 |
| 常规耐腐蚀测试 | BM02-2 |
| 强腐蚀体系或特殊电解液 | BM02-3 / BM02-8 |
| 对导电稳定性要求较高 | BM02-4 / BM02-9 |
| 同时要求高导电与耐腐蚀 | BM02-5 / BM02-10 |
| 高低温实验 | BM02-6 至 BM02-10 |
| 特殊尺寸、特殊材料、原位测试结构 | 定制款 |
Fueiceel® BM02 可观测电池夹具支持现货供应、批量采购及非标定制。用户可根据电极尺寸、实验温度、腐蚀环境、导电性能需求及测试系统接口选择合适型号。
如需定制壳体材料、电极尺寸、导电部件材质、密封结构或特殊测试方案，请提供实验体系、样品尺寸、使用温度、电解液类型及测试设备型号，以便快速匹配合适方案。
