科学材料站（SCI Materials Hub）可以提供各种分散液和膜溶液产品，用于燃料电池、电解槽、液流电池和其他电化学设备。分散液和膜溶液可用于制造不同厚度的自支撑和机械增强膜。气体扩散电极也可以利用这些分散液和膜溶液制作。

Pention系列分散液（也称为离聚体溶液）是高导电性和稳定的液体溶液，因此可用于包含阴离子交换膜（AEM）的电极层中。分散液结构为聚降冰片烯主链，以官能化和非官能化两种形式出售。官能化聚合物用季铵盐基团官能化，作为用于电极层的分散液出售（例如制备用于催化气体扩散层或气体扩散电极GDE等的催化剂油墨或浆液）。官能化聚合物不溶于传统溶剂体系，因此对于膜浇铸，非官能化聚合物溶解在有机溶液中，并且必须在膜制作步骤之后进行官能化。无功能聚合物以溶液形式出售。产品名称中的“D”代表分散液，“S”代表膜溶液。分散液是一种离子导电材料，可以按收到的形式使用。另一方面，解决方案目前正以非官能化的形式提供，用这些解决方案制造的产品需要官能化，以使其具有离子导电性。

下图为季铵改性聚降冰片烯聚合物的化学结构：

目前，科学材料站（SCI Materials Hub）的Pention-D型分散液有D18、D35、D72三个系列。

Pention分散液的亲水性顺序为：D72系列（亲水性最强）＞D35系列＞D18系列（亲水性最低）。小于D72系列疏水分散液（至少D72系列）是疏水的。如果保持水化或保持水对预期用途很重要，则应使用最亲水的分散液。如果去除副产品水对预期用途很重要，则应使用中间或最疏水的分散液。

Pention-D18-5wt%是一种季铵盐官能化分散液，聚合物浓度为5wt%。该分散液属于D18系列。其IEC（meq/g）为1.05-1.15，该分散液产品很适合电极制造，例如催化气体扩散层和其他类似产品/组件。

Pention-D35-5wt%是一种季铵盐官能化分散液，聚合物浓度为5wt%。该分散液属于D35系列。其IEC（meq/g）为1.95-2.05，该分散液产品很适合电极制造，例如催化气体扩散层和其他类似产品/组件。

Pention-D72-5wt%是一种季铵盐官能化分散液，聚合物浓度为5wt%。该分散液属于D72系列。其IEC（meq/g）为3.45-3.55，该分散液产品很适合电极制造，例如催化气体扩散层和其他类似产品/组件。

Pention系列分散液（也称为分散液）产品可用于各种电化学应用，包括燃料电池、电解槽、传感器、液流电池和其他各种电化学应用。用Pention树脂制成的膜显示了AEM燃料电池的最高记录性能，峰值功率密度为3.4 W/cm2（美国可再生能源实验室、南卡罗来纳大学和乔治亚理工学院联合开展的研究，研究原文见文末或本站下载中心）。所述的电化学性能数据仅供参考，并取决于MEA、CCM或GDE制造方法、使用的膜厚度、测试硬件设计和测试硬件中使用的组件以及操作参数（温度、压力、反应物流速等），这些值可能会或可能不会达到。

Pention系列分散液（也称离聚体溶液）的主要优点：

√ 非常高的导电性

√ 化学稳定性高

√ 亲水性或疏水性取决于所选系列的分散产品

请注意，Pention系列分散剂为有机溶剂，如果长时间接触瓶盖，可能会破坏瓶子的密封。我们建议在收到货物后立即将瓶子直立存放，以减少意外泄漏的可能性。

如有需求，请联系我们的团队。

1. 简介

Pention dispersions (also known as ionomers) are highly conductive and stable liquid solutions, and therefore useful for incorporation into electrode layers involving anion exchange membranes (AEM).

2. 应用

Pention dispersion products can be used in various electrochemical applications including fuel cells, electrolyzers, sensors, and flow batteries and other electrochemical applications/technologies. Membranes with Pention resin have demonstrated the highest recorded AEM fuel cell performance with a peak power density of 3.4 W/cm2 (jointly conducted study between NREL, University of South Carolina, and Georgia Institute of Technology).

3. 特性

The ionomer structure contains a poly(norbornene) backbone and is sold in either functionalized and non-functionalized forms. The functionalized polymer is sold as a dispersion for use in electrode layers and is functionalized with a quaternary ammonium group.

The functionalized polymer is not soluble in conventional solvent systems, so for membrane casting the unfunctionalized polymer is dissolved in solution and must be functionalized after membrane manufacture.

The unfunctionalized polymer is sold in the solution form. "D" in the product name stands for dispersion and "S" in the product name stands for solution. Dispersions are ionically conducting materials and ready to be used in the as received form. Solutions, on the other hand, are currently being supplied in the unfunctionalized form and the products made with the solutions needs to be functionalized in order to make them ionically conductive.

4. 理化性质

Chemical composition of the quaternary ammonium modified poly(norbornene) polymer is provided below.

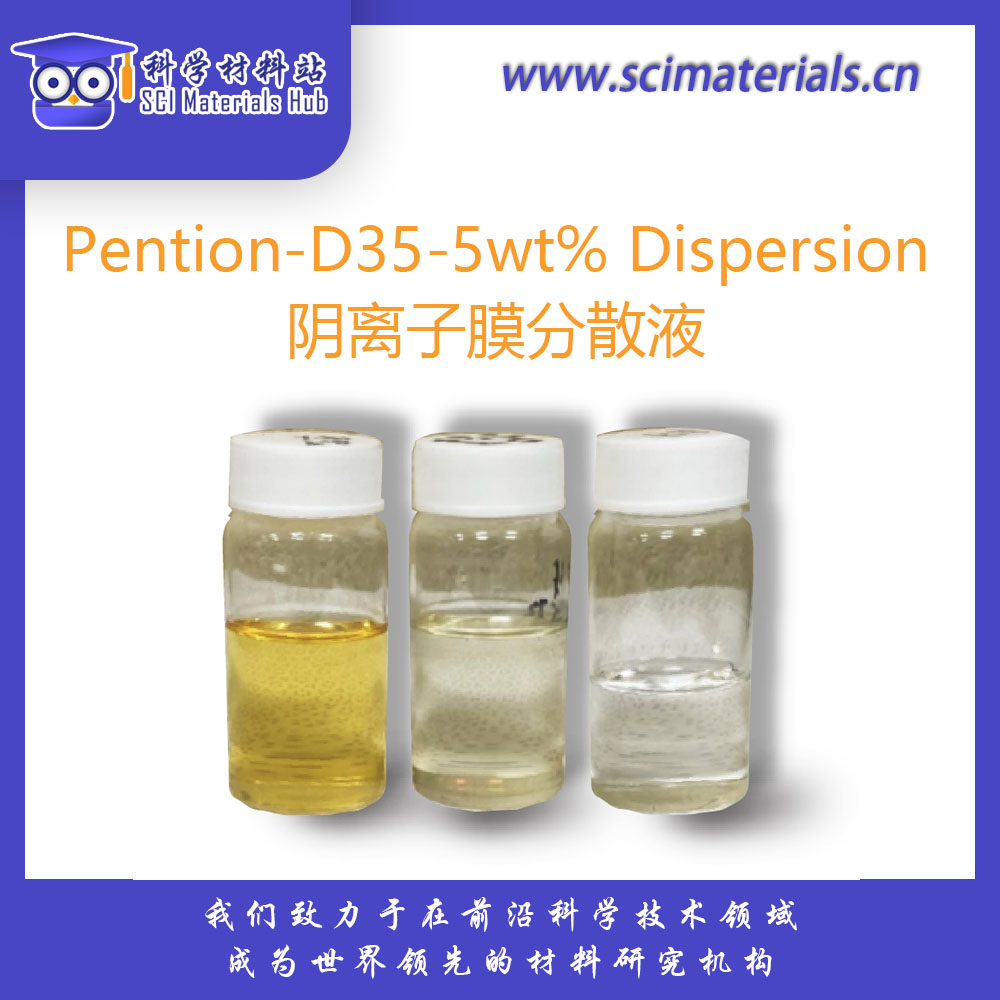

Pention-D35-5wt% is a quaternary ammonium functionalized dispersion with 5wt% polymer concentration in an organic solvent. This dispersion belongs to D35 series. This product has an IEC (meq/g) of 1.95 to 2.05. Dispersion products are highly suitable for electrode manufacturing such as catalyzed gas diffusion layers and other similar products/components.

5. 亲疏水性

Hydrophilic order of Pention dispersions as follows: D72 series (the most hydrophilic) >> D35 series >> D18 series (the least hydrophilic).

Hydrophobic order of Pention dispersions as follows: D72 series (the least hydrophobic) << D35 series << D18 series (the most hydrophobic).

If maintaining the hydration or keeping the water is important for the intended application, then the most hydrophilic dispersion should be used. If removal of the by-product water is important for the intended application, then the intermediate or most hydrophobic dispersion should be used.

Pention dispersion (also known as ionomers) products can be used in various electrochemical applications including fuel cells, electrolyzers, sensors, and flow batteries and other electrochemical applications/technologies. Membranes with Pention resin have demonstrated the highest recorded AEM fuel cell performance with a peak power density of 3.4 W/cm2 (jointly conducted study between NREL, University of South Carolina, and Georgia Institute of Technology). The stated electrochemical performance data is for reference only and depending on the MEA, CCM or GDE manufacturing method, used membrane thickness, testing hardware design and components used in the test hardware, and operational parameters (temperature, pressure, reactant flow rates, etc.), those values may or may not be attained.

- Very high conductivity
- Great chemical stability
- Hydrophilic or hydrophobic natured depending on the selected series of the dispersion products

7. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)中获取的材料

Pention-D35-5wt%, a quaternary ammonium functionalized dispersion with 5wt% polymer concentration in an organic solvent, was obtained from SCI Materials Hub.

Pention dispersions are considered hazardous items under DOT and IATA regulation. 125 mL and 250 mL dispersions will incur a hazardous fee to accommodate the regulations based on the final shipping location (which is included in the pricing listed on the Fuel Cell Store product pages).

Please note that Pention dispersions contain solvents that may compromise the seals of the bottles if the solvents are left in direct contact with the lids for long periods of time. We recommend always storing the bottles in an upright orientation as soon as the shipment is received to lessen the likelihood of inadvertent leakage.

A typical lead time of 2-3 weeks is to be expected.

Partial references citing our materials (from Google Scholar)

N

二氧化碳还原

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO₂ Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO₂ battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO₂-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO₂ battery.

2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!

3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO₂ Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT), purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.

4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO₂ Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.

5. Appl. Catal. B Efficient utilization of nickel single atoms for CO₂ electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.

6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO₂ electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.

7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.

8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd.

Note: Wuhu Eryi Material Technology Co. is a company hold by SCI Materials Hub.

9. Advanced Energy Materials Interatomic Electronegativity Offset Dictates Selectivity When Catalyzing the CO2 Reduction Reaction

The bipolar membrane (Fumasep FBM), carbon paper (SIGRACET 29BC, Freudenberg paper H23C2), ion exchange membrane (Nafion N117), and anion exchange membrane (Fumasep, FAA-3-PK-130) were all obtained from SCI Materials Hub.

10. Separation and Purification Technology *CO spillover induced by bimetallic xZnO@yCuO active centers for enhancing C–C coupling over electrochemical CO2 reduction

5 % Nafion solution was obtained through SCI Materials Hub.

11. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

In this paper, PiperION-A5-HCO3 anion exchange resin, Fumion FAA anion exchange resin, PiperION-A15-HCO3 and FAA-3-50 were purchased from SCI Materials Hub.

12. Vacuum Controllable dual Cu–Cu2O sites derived from CuxAl-LDH for CO2 electroreduction to hydrocarbons

Nafion and carbon paper (TGPH060) were supplied through SCI Materials Hub.

13. Chemical Engineering Journal Coupling electrocatalytic CO2 reduction with glucose oxidation for concurrent production of formate with high efficiency

An AEM membrane (PiperION, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.

14. Chem Identification of Cu⁰/Cu⁺/Cu⁰ interface as superior active sites for CO₂ electroreduction to C2+ in neutral condition

In this paper, Sustainion X37-50 Grade RT membrane and the MEA electrolyzer (CRRMEA1a, Figure S34) with 1cm² active area were obtained from SCI Materials Hub.

微信公众号中文报道：Chem：基于热力学驱动的混合策略形成Cu0/Cu+/Cu0界面用于中性条件CO2电还原C2+

15. Surfaces and Interfaces Modulating surface microenvironment based on Ag-adorned CuO flower-liked nanospheres for strengthening C-‍C coupling during CO2RR

5 wt.% of Nafion solution, and N115 proton exchange membrane were procured with the help of SCI Materials Hub

16. ACS Appl. Energy Mater. Nanoporous Bismuth Induced by Surfactant-Modified Dealloying for Efficient Electrocatalytic Reduction of CO2 to Formic Acid

The anion exchange membrane (AEM, PiperION A20) and cation exchange membrane (CEM, Nafion 117) were obtained from SCI Materials Hub.

17. Adv. Energy Mater. Tailoring Microenvironments and In Situ Transformations of Cu Catalysts for Selective and Stable Electrosynthesis of Multicarbon Products

For GDE-based CO₂ electrolysis, the MEA reactor (CRRMEA5a, Sci-Materials Hub) consists of a titanium anode plate and a cathode plate with flow fields, along with insulating gaskets, integrated into a compression cell. The geometric area of each flow field is 5 cm² An anion exchange membrane (PiperION, A40-HCO3, Versogen) was used to separate the anode and the cathode.

18. Journal of Environmental Chemical Engineering Evaluation of electromethanogenesis in a microbial electrolysis cell using nylon cloth as a separator: reactor performance and metagenomic analysis

A commercial Nafion PEM (SCI Materials Hub) was used as the control to compare the electromethanogenesis performance.

19. Angew pH-Universal Electrocatalytic CO2 Reduction with Ampere-level Current Density on Doping-engineered Bismuth Sulfide

CRRMEA1a 1cm2 MEA electrolyzer (Figure 4d) was obtained from SCI Materials Hub.

微信公众号中文报道：安徽师范大学最新Angew！全pH范围内铋基催化剂用于安培级电流密度电催化CO2还原

20. Separation and Purification Technology Coupling regulation of boron doping and morphology in nano-floral CuO using one pot method for electrocatalytic CO2 reduction

Carbon paper (TGPH060), Dupont Nafion solution (D520), and proton exchange membrane (N117) were acquired by SCI Materials Hub.

21. Chemical Engineering Journal Manipulating dual effects of morphology and oxygen vacancies through the incorporation of CuO onto CeO2 nanospheres for electrochemical CO2 reduction

Carbon paper (TGPH060), Dupont Nafion solution (D520), and proton exchange membrane (N117) were acquired by SCI Materials Station Hub (SCI Materials Hub, the same author as Ref. 20).

22. Advanced Materials Universal Formation of Single Atoms from Molten Salt for Facilitating Selective CO2 Reduction

The Nafion D520 dispersion and gas diffusion electrode (GDE, Sigracet, 39BB) were obtained from SCI Materials Hub (www.scimaterials.cn).

23. Science Bulletin Compressive strain in Cu catalysts: Enhancing generation of C2+ products in electrochemical CO2 reduction

CRRMEA1a 1cm2 MEA electrolyzer (Figure 3a) was obtained from SCI Materials Hub.

微信公众号中文报道：Science Bulletin：优化水覆盖度促进安培级电流密度下CO2还原C2+

24. Processes Investigation of a Hydrophobic Sputtered Cu Electrode to Electrocatalyze CO2 Towards a C2+ Product: The Effect of Substrate and Catalyst Thickness

Carbon paper (SGL CARBON, SGL36BB, purchased from SCI Materials Hub)

25. Chemical Engineering Journal In-situ reconstruction of active bismuth for enhanced CO2 electroreduction to formate

Anion-exchange membrane (Fumasep FAA-3–50) was purchased from SCI Materials Hub.

26. Nature Communications Bromide-mediated membraneless electrosynthesis of ethylene carbonate from CO2 and ethylene

Nafion D520 polymer binder solution (5 wt%) was purchased from SCI Materials Hub.

27. Ionics Sulfur-modified promoting the electrochemical CO2 reduction into formate performance of BiOI

Carbon black (Vulcan XC- 72, Cabot), teflon-treated carbon paper (TGP-H- 060, Toray), and proton exchange membrane (Nafion- 117) were purchased from SCI Materials Hub.

28. Nature Communications Continuous decoupled redox electrochemical CO2 capture

The anion exchange membrane (FAA-3-PK-75) with a thickness of 75 ± 5 μm was purchased from SCI Materials Hub.
