面向HER/OER催化剂评价、电极开发、隔膜测试、电解槽结构优化、 电堆开发及中试验证设计。采用标准16 cm²有效反应面积， 支持1 Cell至20+ Cell模块化扩展，可针对不同隔膜、电极、 催化剂及流场体系进行反复拆装和对比实验。

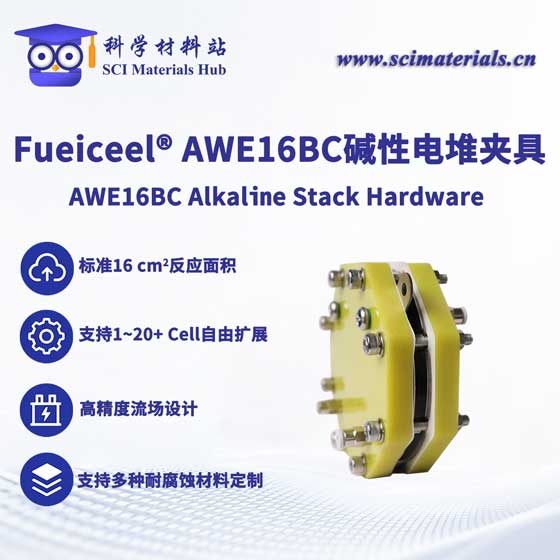

Fueiceel® AWE16BC 系列是一款面向碱性水电解 （ALK / AWE）研究开发的模块化电解槽夹具平台。 产品采用标准 16 cm²有效反应面积 / Cell设计，从单室测试到多室电堆均采用统一的基础结构理念， 方便科研人员围绕电极、隔膜、催化剂、流体分配、 反应腔厚度及电堆结构开展系统化研发工作。
与固定式或焊接式电解槽相比，夹具式结构能够快速打开和重新组装， 更适合材料更换频繁的研发场景。用户可以根据实验任务选用不同 HER / OER 电极、隔膜及催化体系，使同一测试平台覆盖 材料筛选、结构优化、单电池评价、电堆放大及中试验证等不同阶段。
围绕科研可重复拆装、材料快速更换和多Cell扩展进行设计。
统一的单Cell有效面积设计， 便于不同电极、隔膜与实验条件之间进行横向比较。
从单室材料评价平滑扩展至多室电堆开发， 也支持非标Cell数量定制。
极板、电极、隔膜、密封件和反应腔可独立配置， 方便频繁拆装与更换实验材料。
适配镍基、贵金属及多种HER/OER电极体系， 同时兼容多类ALK隔膜。
可通过泡沫镍Backer补偿不同电极厚度， 改善压紧和界面接触条件。
端板集成电解液进出口和气液出口， 便于连接循环、气液分离及测试系统。
O型圈、垫片及螺栓压紧组件共同构成密封系统， 方便维护及重复装配。
可用于催化材料筛选、电极评价、 电堆结构开发以及放大验证研究。
在碱性电解液环境下，阴极进行析氢反应， 阳极进行析氧反应，OH⁻通过隔膜迁移。
| 项目 | 参数 |
|---|---|
| 产品名称 | ALK碱性电解水电堆夹具 |
| 品牌 | Fueiceel® |
| 系列型号 | AWE16BC |
| 单Cell有效面积 | 16 cm² |
| Cell数量 | 1–20+ Cell，可定制更多Cell配置 |
| 推荐电解液 | 30 wt% KOH |
| 参考工作温度 | 25–80 ℃ |
| 标准版本参考压力 | 常压–0.5 MPa |
| 推荐电流密度 | 50–1000 mA/cm² |
| 密封方式 | O型圈 / PTFE / FKM密封组件 |
| 组装方式 | 螺栓均匀压紧式 |
| 主要用途 | HER/OER评价、电极开发、隔膜测试、 电解槽优化、电堆开发及放大验证 |
| 型号 | Cell数量 | 参考尺寸（厚 × 宽 × 高） |
|---|---|---|
| AWE16BC-1 | 1 Cell | 30 × 100 × 100 mm |
| AWE16BC-2 | 2 Cells | 38 × 100 × 100 mm |
| AWE16BC-3 | 3 Cells | 45 × 100 × 100 mm |
| AWE16BC-4 | 4 Cells | 52 × 100 × 100 mm |
| AWE16BC-5 | 5 Cells | 60 × 100 × 100 mm |
| AWE16BC-10 | 10 Cells | 98 × 100 × 100 mm |
| AWE16BC-15 | 15 Cells | 136 × 100 × 100 mm |
| AWE16BC-20 | 20 Cells | 174 × 100 × 100 mm |
单室与双室均采用模块化拆解设计，便于直观看清端板、极板、反应腔、电极、 隔膜、密封件及双极板之间的位置关系。
标准夹具与用户自配材料分开展示，便于下单前快速核对。
固定反应腔有助于保持装配几何条件一致， 不同厚度电极可通过Backer进行厚度补偿。
| 位置 | 参考腔体深度 | 主要说明 |
|---|---|---|
| 阴极反应腔 | 3.2 mm | 阴极电极与Backer总体厚度需要与腔体结构匹配 |
| 阳极反应腔 | 2.0 mm | 阳极电极与Backer总体厚度需要与腔体结构匹配 |
电极选项采用横向标签矩阵展示，减少纵向占用，便于快速查看兼容材料。
| 隔膜类型 | 特点 / 使用方向 |
|---|---|
| DiffuLayer™ ALK 多孔膜 | 面向ALK实验研究，可用于常规电极及电解槽评价。 |
| DiffuLayer™ PPS 多孔膜 | PPS体系具有良好耐碱与耐温特性，适合较长周期ALK实验。 |
| Zirfon® PPS复合膜 | 可用于工业ALK体系模拟、电堆开发及相关研究。 |
结合温度、压力、KOH浓度、导电需求及研发预算选择结构材料。
以下流程用于帮助建立标准化装配顺序， 实际实验应结合所使用隔膜、电极和密封材料进行调整。
确认极板、反应腔、电极、隔膜、Backer、 O型圈、垫片、接头及紧固件齐全。 检查流体通道无堵塞、密封件无明显损伤。
按隔膜供应商规定完成去离子水浸泡、 KOH活化或其他预处理。 安装前保持隔膜状态符合实验要求。
按“阴极极板 → 泡沫镍Backer → 阴极电极 → 隔膜”的顺序完成阴极侧装配。
按“隔膜 → 阳极电极 → 泡沫镍Backer → 阳极极板”的顺序完成阳极侧装配。
将O型圈完整放置于密封槽内， 核对各垫片方向和流体孔位， 避免错位、翘曲或夹伤。
建议采用多阶段对角交叉方式逐步增加锁紧力， 例如约30% → 60% → 100%的分阶段方式， 避免单侧一次性完全锁紧。
正式加入KOH之前，可先使用与系统兼容的安全测试介质 对管路连接、液密性和流路方向进行检查， 确认无异常后再进入正式实验阶段。
多室版本通过双极板连接多个反应单元。 在串联电堆结构中，各Cell可使用相同电流， 电堆总电压由各Cell电压叠加， 更适合进行电堆结构、流体分配和放大研究。
| 型号 | Cell数量 | 名义总反应面积 |
|---|---|---|
| AWE16BC-2 | 2 Cells | 32 cm² |
| AWE16BC-5 | 5 Cells | 80 cm² |
| AWE16BC-10 | 10 Cells | 160 cm² |
| AWE16BC-20 | 20 Cells | 320 cm² |
标准型号数量较少，直接展示全部型号，方便一次完成Cell数量、尺寸与价格对比。
| 型号 | Cell数量 | 总有效面积 | 参考尺寸（厚 × 宽 × 高） | 参考价格（CNY） |
|---|---|---|---|---|
| AWE16BC-1 | 1 Cell | 16 cm² | 30 × 100 × 100 mm | ¥3,800 |
| AWE16BC-2 | 2 Cells | 32 cm² | 38 × 100 × 100 mm | ¥4,200 |
| AWE16BC-3 | 3 Cells | 48 cm² | 45 × 100 × 100 mm | ¥4,600 |
| AWE16BC-4 | 4 Cells | 64 cm² | 52 × 100 × 100 mm | ¥5,000 |
| AWE16BC-5 | 5 Cells | 80 cm² | 60 × 100 × 100 mm | ¥5,500 |
| AWE16BC-10 | 10 Cells | 160 cm² | 98 × 100 × 100 mm | ¥8,500 |
| AWE16BC-15 | 15 Cells | 240 cm² | 136 × 100 × 100 mm | ¥12,500 |
| AWE16BC-20 | 20 Cells | 320 cm² | 174 × 100 × 100 mm | ¥16,800 |
标准科研夹具价格，不含电极、隔膜、泡沫镍Backer、KOH、电源及循环系统。 非标材质、流场、Cell数量及高压版本请单独询价。
查看在线购买页面可按实验需求提供已完成组装的AWE16BC完整电堆， 含隔膜、阴极/阳极电极及配套测试报告， 适合希望直接开展系统测试或减少自行装配工作的用户。
AWE16BC可与循环、温控、气液分离、电源及测试系统组成完整科研平台。
可通过视频进一步了解夹具结构、组件布局及实验平台配置。
标准16 cm² / Cell测试平台 ｜ 支持1–20+ Cell扩展 ｜ 兼容多种电极与隔膜体系 ｜ 支持反复拆装与材料更换 ｜ 覆盖HER/OER研究、电极开发、隔膜评价、电解槽优化及电堆放大。
AWE16BC不仅是一套ALK碱性电解水测试夹具， 更可以作为从材料研究、单电池测试到多Cell电堆开发的统一实验平台， 方便科研人员在相对一致的结构条件下开展连续研发工作。
标准型号可直接查询；非标Cell数量、特殊极板材质、 特殊流场、高压结构或完整ALK系统方案可联系技术人员确认。 另外提供组装好的完整电堆（含膜和电极、配套测试报告），价格请咨询。
