在质子交换膜燃料电池（PEMFC）中，**气体扩散层（Gas Diffusion Layer，GDL）**不仅承担电子传输作用，更负责反应气体输运、水管理、热管理以及催化层机械支撑，其性能直接影响燃料电池的输出功率、效率和使用寿命。
Freudenberg® H15 系列是德国 Freudenberg Performance Materials 推出的新一代高性能碳纸气体扩散层，采用高品质碳纤维纸作为基材，结合PTFE 疏水处理及单面微孔层（Microporous Layer，MPL），兼顾低接触电阻、优异的气体扩散能力和稳定的水管理性能。
相比传统GDL产品，H15系列更加面向：
其中：
SCI Materials Hub（科学材料站）长期供应 Freudenberg 全系列燃料电池材料，包括：
同时提供：
SCI Materials Hub 根据多年燃料电池科研经验，对官方参数进行了统一整理，并结合实际应用对各型号进行了工程化分类，帮助科研人员快速完成材料选型。
H15系列具有以下共同特点：
✔ 高纯度碳纤维纸基材
✔ 单面MPL微孔层
✔ PTFE疏水处理
✔ 优异电子导电性
✔ 良好的压缩回复能力
✔ 优秀机械稳定性
✔ 长寿命循环性能
✔ 高一致性批次质量
尤其适用于：
为便于比较，所有数据统一采用 mm、g/m²、mΩ·cm²、N/cm 等单位。
| 型号 | 厚度（mm） | 面密度（g/m²） | 穿透电阻（mΩ·cm²） | 气体透过性 | 抗拉强度（N/cm） | PTFE处理 | MPL |
|---|---|---|---|---|---|---|---|
| H15C13 | 0.195 | 93 | 9.0 | 2.7 μm²（@1 MPa） | ＞14 | 是 | 单面 |
| H15C14 | 0.191 | 91 | 7.3 | 官方未公布 | 17.2 | 是 | 单面 |

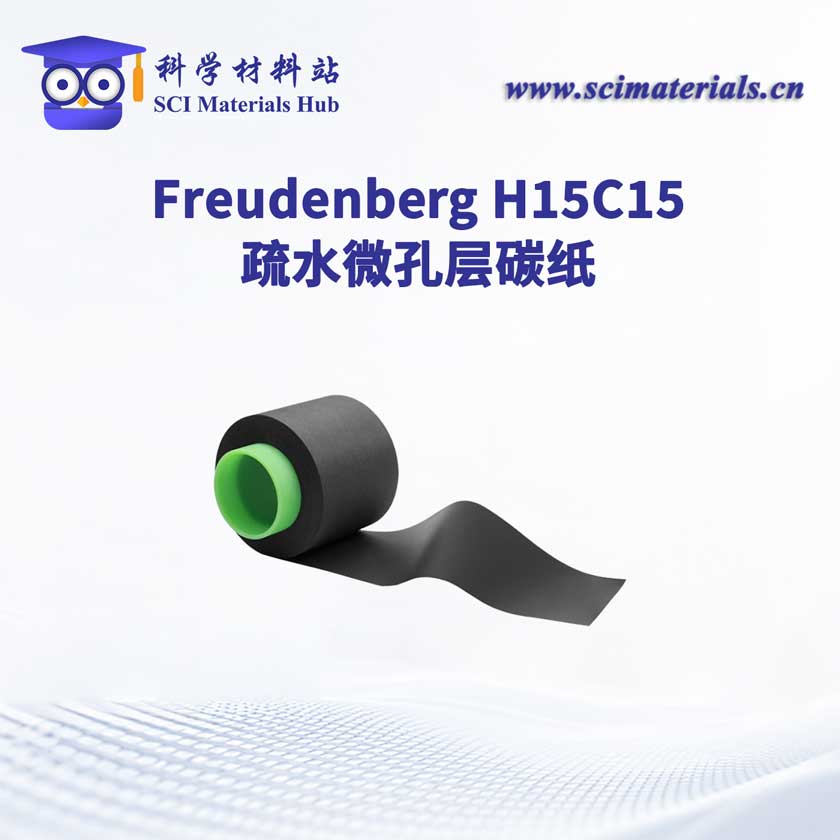

| H15C15 | 0.155 | — | 7.5 | Gurley 18 s | — | 是 | 单面 |
注：
- H15C14 为原 H15CX483 的升级命名版本。
- H15C15 官方未公布面密度及抗拉强度，因此表中保留官方数据，不进行推算。
- H15C15 厚度及电阻均为 1 MPa 压缩条件 下测试。
不同于普通产品介绍，SCI Materials Hub 更关注这些参数在燃料电池中的实际意义。
厚度直接影响：
一般来说：
其中：
| 型号 | 特点 |
| H15C15 | 最薄（0.155 mm），适合高功率密度电堆 |
| H15C14 | 厚度适中，兼顾性能与稳定性 |
| H15C13 | 厚度最大，更适合高湿工况 |
面密度反映单位面积碳纤维含量。
较高面密度意味着：
但同时可能降低部分孔隙率。
H15系列均控制在约90–95 g/m²范围，兼顾导电性、机械性能和扩散能力。
该参数决定电子通过GDL进入双极板时的阻抗。
通常：
H15系列定位如下：
| 型号 | 导电能力评价 |
| H15C14 | ★★★★★ |
| H15C15 | ★★★★★ |
| H15C13 | ★★★★☆ |
其中H15C14拥有系列中最低电阻，更适用于汽车燃料电池。
优秀的气体扩散能力可以：
H15C15采用 Gurley 方法测量，其 Gurley 值为18 s，适用于重载燃料电池长期稳定运行。
H15C13则采用渗透率表示，在高湿环境下具有较好的传质能力。
三款产品均采用：
单面 Microporous Layer（MPL）
其主要作用包括：
MPL通常朝向催化层安装。
H15系列全部进行了PTFE疏水处理，可有效：
对于固定式CHP系统及长时间连续运行电堆尤为重要。
| 型号 | 推荐应用 | 综合评价 |
| H15C13 | 高湿固定式PEMFC、CHP | ★★★★★ |
| H15C14 | 汽车燃料电池、固定式PEMFC | ★★★★★ |
| H15C15 | 重卡、公交、列车、船舶、航空燃料电池 | ★★★★★ |
根据多年燃料电池材料供应经验，SCI Materials Hub 推荐如下：
H15C13
适用于：固定式CHP、高湿运行、长时间连续工作
特点：水管理能力优秀、稳定性高、耐久性好
H15C14
适用于：PEMFC汽车、通用燃料电池研发、中高功率电堆
特点：导电性能优秀、综合性能最佳、应用范围最广
H15C15
适用于：重型商用车、巴士、火车、船舶、航空燃料电池
特点：超薄设计、高功率密度、面向重载工况、长寿命运行
Freudenberg H15系列虽然均属于带有 PTFE 疏水处理 + 单面 MPL 的碳纸气体扩散层，但由于厚度、导电性及气体扩散能力不同，在不同电化学系统中的最佳应用也有所区别。
SCI Materials Hub 根据大量科研项目及工程经验，总结出以下推荐方案。
这是 H15系列最主要的应用方向。
推荐型号：
| 应用场景 | 推荐型号 | 推荐理由 |
|---|---|---|
| 科研实验 | H15C14 | 综合性能均衡，适用范围广 |
| 单电池测试 | H15C14 | 导电性能优异，重复性好 |
| 小型电堆 | H15C14、H15C15 | 接触电阻低，输出稳定 |
| 高湿运行 | H15C13 | 水管理能力更优 |
| 长寿命运行 | H15C13、H15C15 | 长时间运行稳定性高 |
PEMFC 中，MPL 一侧应始终朝向催化层，以保证最佳气体扩散及排水效果。
CHP（Combined Heat and Power）系统通常连续运行数千小时，对水管理能力要求极高。
推荐：H15C13、H15C14
原因：较厚基材具有更好的储水能力；PTFE 疏水层可有效降低阴极淹没风险；长期运行电压衰减较低。
包括：重卡、公交车、工程机械、火车、船舶、航空燃料电池
推荐：H15C15
原因：更薄的结构降低欧姆损失；更适合高功率密度设计；在高压紧力下仍保持良好的导电性能；满足长寿命循环要求。
H15系列同样适用于 AEMFC。
推荐：H15C14、H15C15
建议：由于 AEMFC 生成水的位置与 PEMFC 不同，应根据电极结构优化 MPL 的朝向及压紧压力，以获得最佳排水效果。
在 CO₂ 电还原中，碳纸通常作为气体扩散电极（Gas Diffusion Electrode，GDE）的基底。
推荐：H15C14、H15C15
适用于：
优点：MPL 可形成稳定的三相界面；良好的疏水性有助于防止电解液浸没气体通道；导电性优异，可降低欧姆损失。
H15 系列虽然主要针对燃料电池设计，但也可作为实验型电极基底。
适用于：电催化剂筛选、小尺寸实验电池、实验室电极制备
通常需根据实验要求对表面进行进一步改性，以满足电解水工况。
适用于：
① 配制催化墨水
通常包括：
固含量一般控制在 2%–10%。
② 超声分散
建议：
③ 喷涂
将墨水均匀喷涂于 MPL 一侧。
常用方法：
④ 干燥
60–80 ℃ 烘干，每层喷涂后适当干燥，可减少开裂和团聚。
步骤：
优点：
适用于：
优点：
典型参数（仅供参考）：
| 参数 | 推荐范围 |
| 温度 | 120–140 ℃ |
| 压力 | 1–2 MPa |
| 时间 | 2–5 min |
不同膜材料、离聚物及催化剂体系应根据实际情况优化热压条件。
对于 H15系列：
MPL 一侧应朝向催化层（Catalyst Layer）。
原因：
若安装方向错误，可能导致：
碳纸属于多孔材料，应控制合理压缩率。
SCI Materials Hub 推荐：
| 应用 | 推荐压缩率 |
| PEMFC | 20%–30% |
| AEMFC | 20%–30% |
| CO₂RR | 15%–25% |
| 电解水 | 根据流场设计优化 |
压缩率过低：
压缩率过高：
推荐工具：
避免：
切割时尽量保持边缘整齐，以减少纤维脱落。
建议：
虽然 PTFE 具有较好的耐化学性，但长期暴露于污染环境可能影响表面性能。
一般情况下：
Freudenberg H15系列无需任何预处理，可直接使用。
但在特殊实验中，可根据需要进行：
不建议：
这些操作可能导致：
根据长期服务燃料电池科研及产业客户的经验，SCI Materials Hub 对 H15系列的定位如下：
SCI Materials Hub 提供多种规格及定制裁切服务，可根据电池面积、流场设计及实验需求，推荐最合适的 H15系列产品，并提供电极制备、MEA 组装及材料选型等技术支持。
Freudenberg 的 H14、H15、H23 系列均属于高性能碳纸气体扩散层，但针对不同应用进行了优化设计。
| 系列 | 厚度范围（mm） | 主要特点 | 推荐应用 |
|---|---|---|---|
| H14 系列 | 0.145–0.185 | 超薄、低电阻、快速响应 | PEMFC、汽车燃料电池、科研开发 |
| H15 系列 | 0.155–0.195 | 高湿稳定、重载应用、耐久性更强 | 固定式 CHP、重卡、公交、船舶、轨道交通 |
| H23 系列 | 0.210–0.230（不同型号略有差异） | 更高机械强度、更大孔隙体积 | 大面积电堆、长期连续运行、高耐久系统 |
SCI Materials Hub 建议：
| 产品型号 | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm | 整张材料 |
| H15C13 | ✔ | ✔ | ✔ | ✔ |
| H15C14 | ✔ | ✔ | ✔ | ✔ |
| H15C15 | ✔ | ✔ | ✔ | ✔ |
支持：
具体价格及交期请联系 SCI Materials Hub 获取最新报价。
H15C14 是 H15CX483 的新型号名称，属于产品升级后的统一命名，材料体系及应用方向保持一致。
H15C15 采用更薄的基材设计，在保持较低穿透电阻的同时，能够满足高压紧、高电流密度及长寿命运行要求，因此适用于重型商用车、公交车、船舶及轨道交通等应用。
建议始终将 MPL 一侧朝向催化层。
这样可以：
可以。
对于 CO₂ 电还原、部分电解水实验及部分燃料电池研究，可直接将催化剂喷涂于 MPL 表面，制备气体扩散电极（GDE）。
建议喷涂在 MPL 面。
MPL 可提供更均匀的表面，有利于催化层附着和电流分布。
一般无需清洗。
如需去除表面灰尘，可采用：
避免使用强氧化剂、浓酸、浓碱等腐蚀性介质。
不建议。
长时间超声可能导致：
如确需分散表面污染物，建议采用低功率水浴超声，时间控制在 5–10 分钟 内。
正常使用条件下不会。
若出现脱落，通常与以下因素有关：
少量表面微粉属于正常现象，不影响使用。
若出现明显大片脱落，则应检查是否存在运输挤压、超声处理或安装过程中受到外力损伤。
科研测试中可根据实际情况重复使用，但需确认：
对于正式性能测试，建议使用新的 GDL，以确保实验重复性。
不是。
压缩过大会：
一般建议压缩率控制在 20%–30%。
不建议。
虽然碳纸具有一定柔韧性，但反复折叠可能导致：
建议平放或采用卷绕方式运输（卷绕半径应足够大）。
建议：
兼容绝大多数燃料电池催化剂，包括：
可搭配多种离聚物使用，例如：
通常不需要。
H15 系列出厂即可使用，无需酸洗、烧结或等离子处理。
导电性能受以下因素共同影响：
因此，不同型号会针对不同应用进行优化设计。
这是由于不同产品采用了不同的测试方法。
由于测试标准不同，两者不能直接换算，应结合官方测试方法进行比较。
SCI Materials Hub 建议：
如需综合考虑导电性、机械强度及长期耐久性，可联系 SCI Materials Hub 获取选型建议。
Freudenberg H15系列代表了高性能 PEM 燃料电池 GDL 的重要发展方向，通过优化碳纤维基材、PTFE 疏水处理及 MPL 微孔层设计，实现了导电性、传质能力、水管理及机械稳定性的良好平衡。
SCI Materials Hub 对 H15 系列的应用定位总结如下：
| 型号 | 产品定位 | 推荐指数 |
| H15C13 | 高湿稳定型 GDL | ★★★★★ |
| H15C14 | 综合性能型 GDL | ★★★★★ |
| H15C15 | 重载高功率型 GDL | ★★★★★ |
作为专业的燃料电池材料供应平台，SCI Materials Hub 长期提供 Freudenberg 全系列 GDL 产品及相关电化学材料，涵盖碳纸、碳布、离聚物、离子交换膜、催化剂、MEA、电解水材料及 CO₂ 电还原材料，并提供科研小尺寸、标准尺寸、整张供货及定制裁切服务。
此外，SCI Materials Hub 还可为科研院所、高校及企业用户提供材料选型、电极制备、MEA 组装及燃料电池测试等技术支持，帮助用户快速开展电化学研究及产品开发。
对于追求高性能、长寿命及高可靠性的 PEM 燃料电池系统而言，Freudenberg H15系列提供了从固定式 CHP 到重载商用车的多样化解决方案。不同型号针对水管理、导电性能及机械强度进行了优化，能够满足科研开发、中试验证及产业化应用等多种需求。
结合丰富的产品供应经验和技术支持能力，SCI Materials Hub 将持续为全球科研和工业用户提供高品质燃料电池材料及系统化解决方案，助力氢能与电化学技术的发展。
