Millipore 和 Sigma-Aldrich 均为 Merck 旗下品牌。Nylon 尼龙滤膜是 Millipore 提供的一类亲水性滤膜产品，具有良好的化学兼容性、较高的机械强度以及多种孔径规格选择，广泛应用于实验室分析、样品前处理、有机溶剂过滤、颗粒去除、微生物收集和工业清洁度检测等场景。
尼龙滤膜最大的特点是天然亲水，在过滤水相样品时通常无需额外预润湿，能够简化实验步骤，提高操作效率。同时，尼龙材质对多种极性有机溶剂也具有良好耐受性，例如乙腈、甲醇、四氢呋喃等，因此非常适合用于 HPLC、UHPLC、GC 等分析检测前的样品过滤。
Millipore 尼龙滤膜产品通常可分为两大类型：
尼龙表面滤膜
孔径范围通常为 0.2 至 1.2 µm，适合精细颗粒去除、澄清过滤、样品前处理及除菌过滤等应用。
尼龙编织网格膜
网孔范围通常为 5 至 180 µm，适合大颗粒截留、颗粒计数、显微观察、工业清洁度分析以及生物样品收集等应用。
凭借亲水性、耐溶剂性和较高机械强度，尼龙滤膜可满足从精密实验室分析到工业颗粒监测的多种过滤需求。
尼龙滤膜本身具有良好的亲水性，在过滤水相样品时通常可以直接使用，无需像疏水性膜材那样预先用醇类润湿，操作更加简便。
尼龙材质对多种有机溶剂和水溶液具有良好耐受性，适用于乙腈、甲醇、四氢呋喃等极性有机相溶液的过滤，常用于色谱分析前的样品前处理。
产品规格覆盖从 0.22 µm 到 20 µm，甚至更大网孔规格，可满足除菌过滤、微粒去除、澄清过滤、大颗粒预滤和颗粒分析等不同应用。
尼龙滤膜具有较好的韧性和机械强度，在常规真空过滤、压力过滤和样品前处理过程中不易破损，适合高频次实验使用。
尼龙滤膜最高操作温度可达 100 °C。需要注意的是，当使用温度超过 75 °C 时，滤膜可能出现一定卷曲，因此在高温应用中建议提前进行兼容性测试。
| 材质 | 厚度 | 型号 | 孔径 | 可选直径 | 货号 | 包装规格 | 推荐用途 |
|---|---|---|---|---|---|---|---|
| Nylon 尼龙 | 175 µm | GNWP | 0.22 µm | 13、25、47、90 mm | GNWP01300 / GNWP02500 / GNWP04700 / GNWP09025 | 13 / 25 / 47 mm：100 片； 90 mm：25 片 | 极性有机溶剂过滤、高机械强度过滤、精细颗粒去除、除菌过滤场景 |
| Nylon 尼龙 | 175 µm | HNWP | 0.45 µm | 13、25、47、90 mm | HNWP01300 / HNWP02500 / HNWP04700 / HNWP09025 | 13 / 25 / 47 mm：100 片； 90 mm：25 片 | 极性有机溶剂过滤、样品澄清、常规颗粒去除、高机械强度过滤 |
| Nylon 尼龙 | 175 µm | NY200 | 20 µm | 47 mm | NY2004700 | 100 片 | 大颗粒过滤、有机溶剂预滤、粗颗粒截留、样品预处理 |
尼龙滤膜对多种极性有机溶剂具有良好的兼容性，可用于乙腈、甲醇、四氢呋喃等有机相样品过滤。对于 HPLC、UHPLC 等分析检测，使用尼龙滤膜进行前处理可以有效去除颗粒杂质，减少仪器堵塞风险，提高检测稳定性。
适用场景包括：
HPLC 流动相过滤
有机溶剂澄清
色谱样品前处理
实验室分析样品过滤
极性有机溶液颗粒去除
尼龙滤膜亲水性好，适合直接过滤水相样品。0.45 µm 孔径常用于常规颗粒去除和样品澄清，0.22 µm 孔径则适合更精细的颗粒截留和除菌过滤场景。
适用样品包括：
水样
缓冲液
生物分析样品
实验室制备溶液
混合水相 / 有机相样品
0.22 µm 孔径的尼龙表面滤膜可用于生物分析、水相样品及部分有机相样品的除菌过滤场景。实际用于无菌过滤时，建议结合样品性质、过滤装置、操作环境和实验验证结果综合判断。
适用场景包括：
生物样品前处理
水相溶液除菌过滤
部分有机相溶液除菌过滤
实验室微生物控制过滤
尼龙编织网格膜适合颗粒表面截留，颗粒不会深度进入膜内部，因此便于后续显微观察、颗粒计数和图像分析。其中 5 µm 编织网格膜常用于汽车、机械制造、精密零部件等行业的清洁度检测。
适用场景包括：
汽车零部件清洁度检测
精密制造颗粒残留分析
工业冲洗液颗粒收集
显微镜下颗粒观察
颗粒成像系统背景过滤
尼龙滤膜可用于水样或生物样品中的藻类、细胞和微生物收集。根据目标样品尺寸，可选择不同孔径或网孔规格，以实现有效截留和后续观察分析。
适用场景包括：
藻类收集
细胞收集
微生物富集
环境水样分析
生物样本预处理
尼龙滤膜也可用于秀丽隐杆线虫和斑马鱼等模型生物实验中的样品过滤、筛选和转移处理，适用于部分药物筛查和毒理学研究流程。
适用场景包括：
秀丽隐杆线虫筛选
斑马鱼药物筛查
毒理学实验样品处理
生物模型样品分离
| 应用需求 | 推荐孔径 |
|---|---|
| 除菌过滤、精细颗粒去除 | 0.22 µm |
| 常规样品澄清、HPLC 样品过滤 | 0.45 µm |
| 大颗粒过滤、预过滤 | 20 µm |
| 工业清洁度颗粒分析 | 5 µm 或其他编织网格规格 |
| 藻类、细胞、大颗粒生物样品收集 | 根据目标颗粒或细胞尺寸选择 |
| 样品类型 | 推荐选择 |
|---|---|
| 水相样品 | GNWP 0.22 µm 或 HNWP 0.45 µm |
| 极性有机溶剂 | GNWP / HNWP 尼龙滤膜 |
| 高颗粒负载样品 | 先用 NY200 20 µm 预滤，再用 0.45 µm 或 0.22 µm 精滤 |
| 需要颗粒观察和计数 | 尼龙编织网格膜 |
| 需要除菌过滤 | GNWP 0.22 µm |
| 直径 | 适用场景 |
|---|---|
| 13 mm | 小体积样品过滤，适合少量样品前处理 |
| 25 mm | 常规实验室样品过滤，适配注射器过滤器或小型过滤装置 |
| 47 mm | 真空过滤、溶剂过滤、较大体积样品处理 |
| 90 mm | 大体积样品过滤或工业实验室应用 |
使用前应根据样品类型、过滤目的和过滤体积选择合适的滤膜孔径和直径。确认滤膜包装完整，无破损、污染或受潮现象。
建议准备以下工具：
尼龙滤膜
过滤支架或滤膜夹具
真空过滤装置或压力过滤装置
镊子
接收瓶或收集容器
待过滤样品
必要的个人防护用品
用洁净镊子夹取滤膜，避免直接用手接触滤膜有效过滤区域。将滤膜平整放置在过滤支撑面上，确保滤膜无折叠、无翘边、无破损。
安装时应注意：
滤膜需完全覆盖过滤区域
边缘应压紧，避免漏液
不要过度拉伸或弯折滤膜
如用于精密分析，应避免灰尘和颗粒污染
将待过滤样品加入过滤装置中，缓慢施加真空或压力，使样品通过滤膜完成过滤。
操作建议：
高颗粒样品建议先进行粗滤或预滤
不建议一开始使用过高压力
若流速明显下降，应更换滤膜
对于贵重样品，可先用少量样品润洗过滤系统
对于有机溶剂，应确认过滤装置和密封件与溶剂兼容
过滤完成后，根据实验目的选择后续处理方式：
若目标是滤液：收集滤液用于后续分析
若目标是颗粒：取下滤膜用于显微观察、称重、成像或颗粒计数
若目标是微生物或细胞：将滤膜转移至培养基、载玻片或其他分析系统中
使用后的滤膜应根据样品性质进行分类处理。如果过滤的是有毒、有机溶剂、腐蚀性溶液或生物样品，应按照实验室安全规范和当地法规进行废弃处理。
尼龙滤膜虽然具有较好的耐溶剂性，但在使用强酸、强碱或特殊溶剂前，建议先进行兼容性测试。
高温过滤时需注意滤膜可能出现卷曲，尤其是在超过 75 °C 的条件下。
高颗粒负载样品不建议直接使用 0.22 µm 滤膜，可先用 20 µm 或更大孔径滤膜进行预过滤。
进行 HPLC 或 UHPLC 分析前，应确保滤膜不会对目标分析物产生明显吸附或干扰。
若用于除菌过滤，应结合无菌操作环境、过滤装置和实验验证结果综合判断。
滤膜为耗材产品，通常不建议重复使用。
使用镊子夹取滤膜时，应夹持边缘区域，避免污染有效过滤面。
适合。尼龙滤膜对多种极性有机溶剂具有良好耐受性，例如乙腈、甲醇、四氢呋喃等，常用于 HPLC 流动相过滤和有机相样品前处理。
可以。尼龙滤膜属于亲水性滤膜，过滤水相样品时通常无需预润湿，可直接用于水溶液澄清、颗粒去除和样品前处理。
如果需要更精细的颗粒去除或除菌过滤场景，通常选择 0.22 µm；如果用于常规样品澄清、HPLC 样品过滤或一般颗粒去除，0.45 µm 是更常用的选择。
不建议。高颗粒样品容易堵塞小孔径滤膜。建议先使用 20 µm 或其他大孔径滤膜进行预过滤，再使用 0.45 µm 或 0.22 µm 滤膜进行精细过滤。
NY200 20 µm 尼龙滤膜主要用于大颗粒过滤、有机溶剂预滤和粗颗粒截留，适合在精细过滤前作为预处理步骤使用。
用于水相样品时通常不需要预润湿，因为尼龙滤膜本身具有亲水性。但在特殊溶剂体系、低表面张力样品或高精度分析中，可以根据实验方法要求进行预处理。
尼龙滤膜最高操作温度可达 100 °C。但需要注意，当温度超过 75 °C 时，滤膜可能出现卷曲，因此高温应用前建议先进行测试。
适合。特别是尼龙编织网格膜，其表面截留结构有利于颗粒停留在膜表面，便于后续显微观察、颗粒计数和图像分析。
可以。尼龙滤膜可用于部分生物样品中的细胞、藻类、微生物收集，也可用于生物分析样品的澄清和除菌过滤场景。具体选择应根据样品性质和目标颗粒尺寸确定。
GNWP 通常对应 0.22 µm 孔径，适合精细颗粒去除和除菌过滤场景；HNWP 通常对应 0.45 µm 孔径，适合常规颗粒去除、样品澄清和色谱样品前处理。
Millipore / Sigma-Aldrich Nylon 尼龙滤膜是一类兼具亲水性、耐溶剂性和高机械强度的实验室过滤耗材。其孔径规格覆盖 0.22 µm、0.45 µm、20 µm 以及更大范围的编织网格膜，可满足从除菌过滤、样品澄清、有机溶剂过滤到工业颗粒分析和生物样品收集等多种需求。
如果您的实验涉及极性有机溶剂、水相样品、颗粒去除、HPLC 前处理或工业清洁度分析，尼龙滤膜是一种稳定、通用且操作便捷的选择。
对于精细过滤，可选择 GNWP 0.22 µm；对于常规澄清过滤，可选择 HNWP 0.45 µm；对于大颗粒预滤，可选择 NY200 20 µm。根据样品性质、过滤目标和处理体积合理选择滤膜规格，能够有效提升过滤效率和实验结果稳定性。
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn

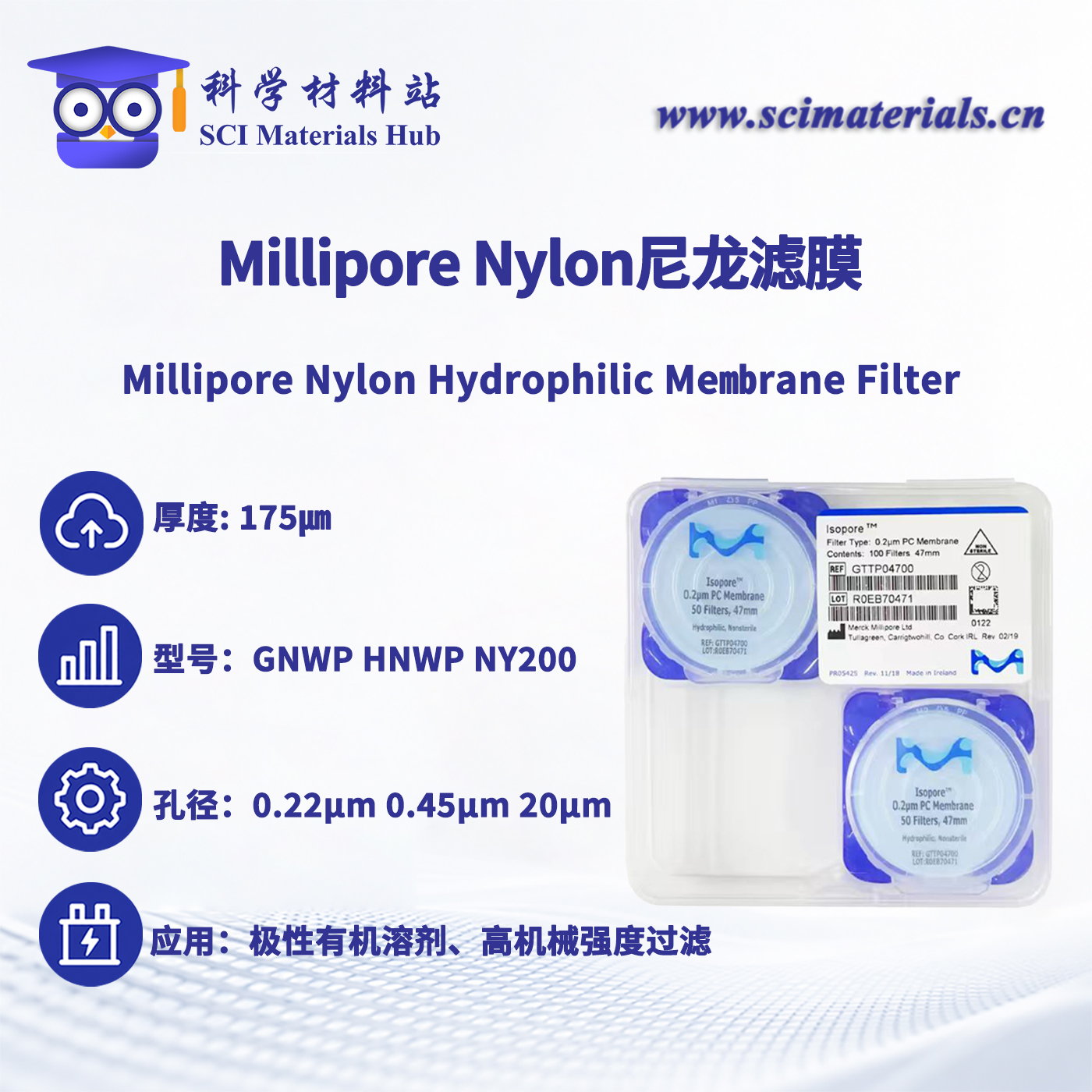

Millipore Nylon尼龙滤膜
| 型号 / 孔径 | Φ13mm，100片/盒 | Φ25mm，100片/盒 | Φ47mm，100片/盒 | Φ90mm，25片/盒 |
|---|---|---|---|---|
| GNWP / 0.22μm | GNWP01300询价 | GNWP02500，￥1248 | GNWP04700，￥1584 | GNWP09025询价 |
| HNWP / 0.45μm | HNWP01300询价 | HNWP02500，￥1560 | HNWP04700，￥1656 | HNWP09025询价 |
| NY200 / 20μm | — | — | NY2004700,￥1704 | — |
