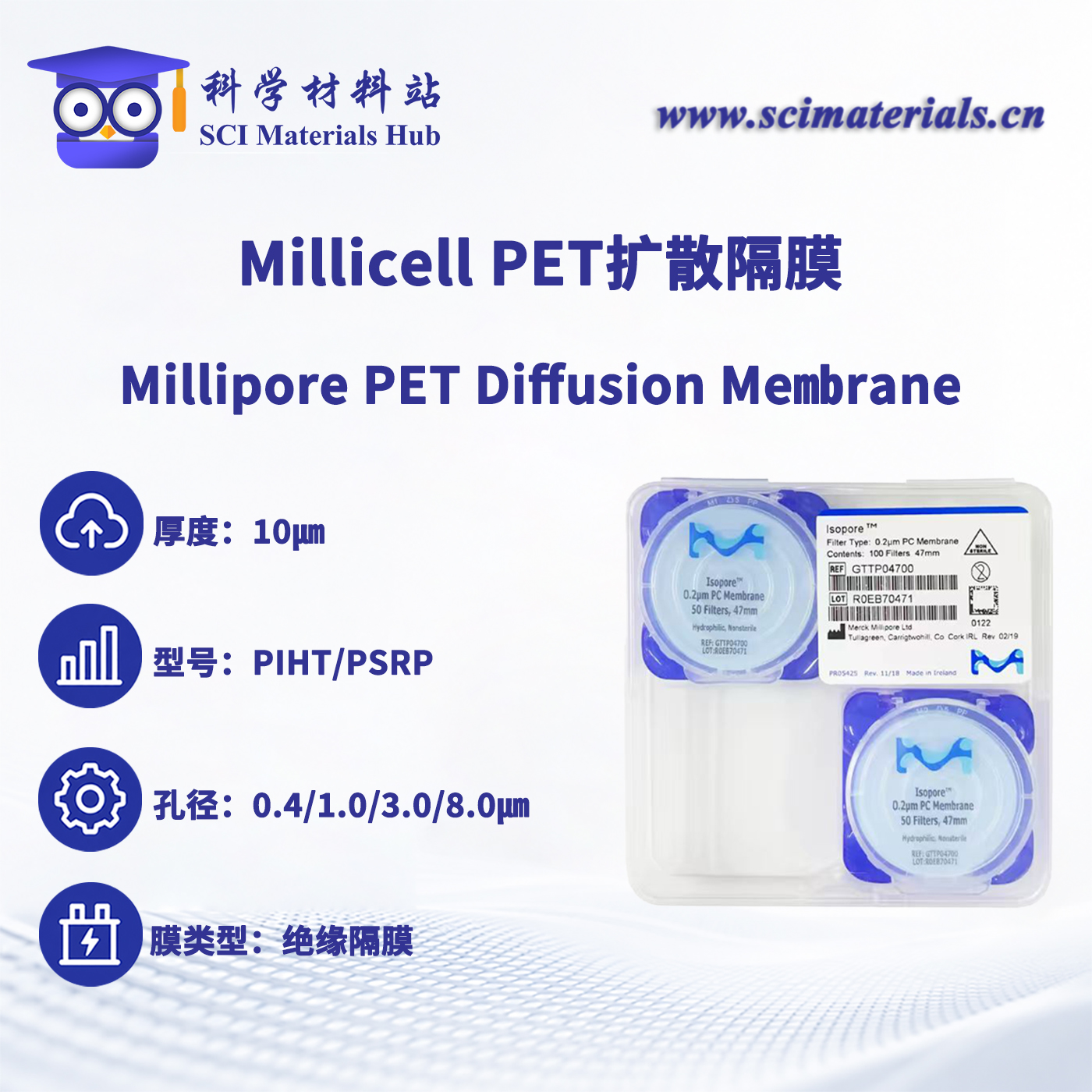

Millicell PET / PC 扩散隔膜是一类适用于扩散、渗透、屏障评价和隔离支撑实验的微孔膜材料，可根据实验需求进行圆形或方形定制裁切。该系列产品主要包括 PET 扩散隔膜和 PC 扩散隔膜两类，均可作为绝缘隔膜、扩散隔膜、渗透测试隔膜或细胞屏障实验支撑膜使用。
PET 扩散隔膜以聚酯类膜材为基础，常见型号包括 PIHT、PSRP，孔径覆盖 0.4μm、1.0μm、3.0μm、8.0μm，可用于细胞屏障扩散池、药物透过实验、燃料电池渗透测试以及电化学体系中的隔离与扩散研究。PC 扩散隔膜以聚碳酸酯膜材为基础，常见型号包括 PSHT、PSST，孔径覆盖 0.4μm、3.0μm、5.0μm、8.0μm，适合对孔径一致性、颗粒通透性和扩散行为有明确要求的实验场景。
该产品支持圆形 12mm、25mm 以及方形 12×12mm、24×24mm、48×48mm 等规格裁切，也可根据客户夹具、电池池体、扩散池、Transwell 类结构或自研装置进行定制裁切。产品适用于科研实验、燃料电池、电解液扩散、细胞屏障模型、药物渗透评价、材料通透性研究和实验室定制装置开发。
| 产品名称 | 材质 | 厚度 | 型号 | 孔径规格 | 膜类型 | 可选形状与尺寸 | 定制服务 | 典型应用 |
|---|---|---|---|---|---|---|---|---|
| Millicell PET扩散隔膜 | PET聚酯膜 | 10μm | PIHT/PSRP | 0.4/1.0/3.0/8.0μm | 绝缘隔膜/扩散隔膜 | 圆形12/25mm；方形12×12/24×24/48×48mm | 支持定制裁切 | 燃料电池渗透、细胞屏障扩散池、药物扩散、离子/分子通透性测试 |
| Millicell PC扩散隔膜 | PC聚碳酸酯膜 | 10μm | PSHT/PSST | 0.4/3.0/5.0/8.0μm | 绝缘隔膜/扩散隔膜 | 圆形12/25mm；方形12×12/24×24/48×48mm | 支持定制裁切 | 燃料电池渗透、细胞屏障扩散池、颗粒通透性研究、扩散测试 |
| 对比项目 | PET扩散隔膜 | PC扩散隔膜 |
|---|---|---|
| 材质特点 | 聚酯类膜材，适合细胞屏障、扩散与渗透实验 | 聚碳酸酯膜材，适合孔径控制、颗粒通透与扩散研究 |
| 可选孔径 | 0.4/1.0/3.0/8.0μm | 0.4/3.0/5.0/8.0μm |
| 推荐场景 | 细胞屏障扩散池、药物透过、燃料电池渗透测试 | 颗粒扩散、分子通透、燃料电池渗透、细胞扩散模型 |
| 常用尺寸 | 圆形12/25mm；方形12×12/24×24/48×48mm | 圆形12/25mm；方形12×12/24×24/48×48mm |
| 定制适配 | 适合圆片、方片、异形片裁切 | 适合圆片、方片、异形片裁切 |
| 选择建议 | 偏细胞培养、屏障模型、药物扩散时优先考虑 | 偏颗粒通透、孔径均一性和扩散行为研究时优先考虑 |
PET 扩散隔膜提供 0.4μm、1.0μm、3.0μm、8.0μm 等孔径选择，PC 扩散隔膜提供 0.4μm、3.0μm、5.0μm、8.0μm 等孔径选择。小孔径适合细胞屏障、分子扩散和精细通透性研究，大孔径适合颗粒迁移、细胞相关实验、快速扩散和高通量渗透测试。
PET 和 PC 材质均可作为实验装置中的绝缘隔膜，适用于部分燃料电池、电化学扩散池、离子迁移测试和渗透测试结构中，实现两侧体系的物理隔离与扩散通道构建。
产品支持圆形 12mm、25mm 以及方形 12×12mm、24×24mm、48×48mm 等常用规格，也可根据客户夹具、扩散池、电解池、燃料电池测试夹具或自研装置进行定制裁切，减少二次加工误差，提高实验装配效率。
在燃料电池和电化学测试中，该类扩散隔膜可用于隔离两侧腔体，构建可控扩散界面，适合研究水、醇类燃料、电解液、离子或小分子在隔膜中的渗透行为。
在细胞屏障模型中，PET / PC 扩散隔膜可作为细胞生长、贴附或扩散评价的支撑界面，用于药物透过实验、屏障完整性评价、细胞迁移研究和体外扩散池实验。
许多实验装置并非标准商业尺寸，例如自制扩散池、微型燃料电池夹具、H 型池、Franz 扩散池、微流控夹具或特殊电化学反应池。定制裁切可根据实际装置尺寸加工，提升装配适配性和密封稳定性。
Millicell PET / PC 扩散隔膜可用于燃料电池相关渗透测试，例如醇类燃料渗透、电解液扩散、离子迁移、小分子穿透和隔膜性能对比研究。通过将隔膜固定在两侧腔体之间，可构建稳定的扩散界面，便于观察浓度变化、电化学信号变化或渗透速率差异。
该产品可用于细胞屏障模型中的扩散池实验，例如药物跨膜扩散、细胞单层屏障评价、营养物质透过实验、细胞迁移实验和体外渗透模型搭建。根据细胞类型和实验目的，可选择不同材质、孔径和尺寸。
在药物研发和制剂评价中，PET / PC 扩散隔膜可作为药物释放或透过实验的隔离膜材料，用于模拟药物从供体侧向受体侧扩散的过程，适合缓释体系、凝胶体系、纳米载体和小分子药物扩散研究。
在电化学和材料实验中，该类隔膜可用于电解液两侧体系隔离、小分子扩散观察、离子迁移趋势分析和电解液渗透性评价。根据测试体系不同，可选择 PET 或 PC 材质及合适孔径。
PC 扩散隔膜适合用于颗粒通透性评价、微粒迁移、纳米颗粒扩散和悬浮体系过滤扩散研究。不同孔径可用于筛分或限制不同尺寸颗粒的迁移。
对于实验室自制扩散池、燃料电池夹具、电化学池、微反应池、H 型扩散池和非标测试装置，可根据实际尺寸定制圆片、方片或异形片，提高实验一致性。
| 孔径 | 推荐应用 | 选择说明 |
|---|---|---|
| 0.4μm | 细胞屏障、药物扩散、小分子通透、微粒阻隔 | 适合较精细扩散控制和屏障模型实验 |
| 1.0μm | PET细胞相关实验、分子扩散、较快通透实验 | 适合需要更高通透速率的 PET 扩散应用 |
| 3.0μm | 细胞迁移、颗粒通透、中等孔径扩散测试 | 适合细胞或微粒迁移相关实验 |
| 5.0μm | PC颗粒通透、细胞迁移、较大颗粒扩散 | 适合 PC 膜体系中更大颗粒或细胞相关通透实验 |
| 8.0μm | 高通透扩散、细胞迁移、较大颗粒穿透 | 适合对通透速率要求高或目标颗粒尺寸较大的实验 |
| 尺寸 | 推荐用途 | 适配场景 |
|---|---|---|
| 圆形12mm | 小型扩散池、小面积夹具、微型反应池 | 适合小样品量、低成本筛选实验 |
| 圆形25mm | 常规扩散池、过滤夹具、电化学池 | 适合中等面积扩散和常规实验 |
| 方形12×12mm | 小型方形夹具、微型测试窗口 | 适合小面积非标装置 |
| 方形24×24mm | 中等面积扩散池、燃料电池夹具 | 适合常规非标裁切实验 |
| 方形48×48mm | 大面积扩散测试、片状夹具、批量裁切 | 适合较大面积渗透或扩散研究 |
使用前应先明确实验目的，例如燃料电池渗透测试、细胞屏障扩散、药物释放、颗粒迁移、离子扩散或电解液隔离。不同目标对应不同材质、孔径和尺寸选择。
如果实验偏向细胞屏障、药物扩散和常规生物实验，可优先考虑 PET 扩散隔膜；如果实验偏向颗粒通透、孔径控制和扩散行为评价，可优先考虑 PC 扩散隔膜。孔径越小，阻隔能力越强；孔径越大，通透速率通常越高。
根据扩散池、夹具、燃料电池测试装置或自研反应池的有效窗口尺寸选择裁切规格。常规可选圆形 12mm、25mm 或方形 12×12mm、24×24mm、48×48mm；特殊尺寸可提供定制裁切。
用洁净镊子夹取隔膜边缘，避免直接触碰有效扩散区域。将隔膜平整放置在夹具、扩散池或支撑结构中，确保膜面无褶皱、无卷曲、无破损，并保证边缘密封良好。
根据实验设计，在隔膜两侧加入对应介质，例如燃料、电解液、缓冲液、培养基、药物溶液或纳米颗粒悬液。加入液体时应避免产生大量气泡，气泡会影响有效扩散面积和实验重复性。
启动实验后，根据预设时间点采集样品，检测浓度变化、电导率变化、吸光度变化、电化学信号变化、荧光信号变化或细胞相关指标。对于细胞实验，应维持合适温度、湿度、CO₂ 条件和无菌操作环境。
根据供体侧和受体侧浓度变化计算扩散速率、渗透系数、通量或截留效果。不同孔径、材质和厚度会影响实验结果，因此建议在同一实验系列中保持膜材、孔径和裁切面积一致。
实验结束后，根据样品性质处理隔膜。如果样品涉及生物污染、有机溶剂、腐蚀性介质或电化学反应液，应按照实验室安全规范进行废弃处理。该类裁切隔膜通常建议一次性使用。
安装隔膜时应保持膜面平整，避免褶皱、划伤和局部拉伸。
夹取时建议使用洁净镊子夹取边缘，不要直接接触有效扩散区域。
扩散池或夹具密封不良会造成旁路泄漏，影响渗透和扩散结果。
使用前应确认 PET 或 PC 材质与实验介质、溶剂、电解液或培养基兼容。
对于细胞实验，应根据实验要求选择合适灭菌方式，并验证灭菌过程是否影响膜性能。
对于燃料电池或电化学体系，应避免强机械挤压导致膜面破损。
定制裁切尺寸应与实际有效窗口和密封圈尺寸匹配，避免过小导致漏液或过大造成褶皱。
若实验对扩散面积要求严格，应记录有效暴露面积，而不只是记录裁切外形尺寸。
不同孔径之间扩散速率差异较大，建议进行平行对照实验。
该类隔膜通常不建议重复使用，以避免污染、孔结构变化或实验误差。
主要用于燃料电池渗透测试、细胞屏障扩散池、药物透过实验、离子扩散、电解液隔离、颗粒通透性研究和非标实验装置配套。
PET 扩散隔膜适合细胞屏障、药物扩散和常规通透实验；PC 扩散隔膜更适合颗粒通透、孔径控制和扩散行为研究。实际选择应根据实验体系、孔径需求和介质兼容性决定。
可以。常规支持圆形 12mm、25mm，以及方形 12×12mm、24×24mm、48×48mm，也可根据扩散池、夹具或非标装置要求进行定制裁切。
0.4μm 适合精细屏障和小分子扩散控制，3.0μm 适合细胞迁移和中等颗粒扩散，5.0μm 适合 PC 膜颗粒通透研究，8.0μm 适合高通透速率或较大颗粒迁移实验。
可以。该类隔膜可用于燃料、电解液、小分子或离子在两侧腔体之间的渗透与扩散研究，适合燃料电池材料评价和渗透行为对比实验。
可以。PET / PC 膜可作为细胞屏障扩散池中的支撑膜，用于药物透过、细胞迁移、屏障完整性评价和细胞单层扩散实验。具体孔径应根据细胞类型和实验目的选择。
圆形适合圆形过滤器、扩散池、夹具和电化学池；方形适合片状夹具、燃料电池测试窗口、方形扩散池和非标装置。选择时应以有效扩散面积和密封结构为准。
10μm 膜厚较薄，有利于降低扩散路径长度，提高通透效率，适合扩散、渗透和屏障模型实验。但具体实验效果仍与孔径、材质、介质体系和夹具结构有关。
通常不建议重复使用。重复使用可能带来污染、孔结构变化、膜面损伤和实验重复性下降，尤其是细胞实验和精密扩散实验中更建议一次性使用。
常见原因包括隔膜尺寸过小、密封圈压合不均、膜面褶皱、夹具压力不足或隔膜边缘受损。建议重新确认裁切尺寸、有效窗口、密封圈位置和装配压力。
如果用于细胞培养或细胞屏障实验，通常需要进行适合实验体系的无菌处理。不同膜材和孔径对灭菌方式的耐受性可能不同，建议先进行小样验证。
是否适用取决于 PET 或 PC 材质与具体溶剂的兼容性。使用有机溶剂、强酸、强碱或特殊电解液前，建议先进行小样浸泡和性能验证。
Millicell PET / PC 扩散隔膜是一类适用于扩散、渗透、隔离和屏障实验的微孔膜材料，可用于燃料电池渗透测试、细胞屏障扩散池、药物透过、电解液扩散、颗粒迁移和非标实验装置配套。PET 膜适合细胞屏障和药物扩散等应用，PC 膜适合颗粒通透和扩散行为研究。产品支持圆形 12mm、25mm，以及方形 12×12mm、24×24mm、48×48mm 等规格，并可根据实验装置进行定制裁切。
对于精细扩散控制和屏障实验，可选择 0.4μm 孔径；对于细胞迁移或中等颗粒通透，可选择 3.0μm 或 5.0μm；对于高通透速率或较大颗粒迁移，可选择 8.0μm。合理选择材质、孔径和裁切尺寸，可提高实验装配稳定性、扩散数据重复性和样品测试效率。
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn
| 型号 / 孔径 | Φ12mm | Φ25mm | 12×12mm | 24×24mm | 48×48mm |
|---|---|---|---|---|---|
| PIHT / 0.4μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PIHT / 1.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PIHT / 3.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PIHT / 8.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PSRP / 0.4μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PSRP / 1.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PSRP / 3.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
| PSRP / 8.0μm | 询价 | 询价 | 询价 | 询价 | 询价 |
