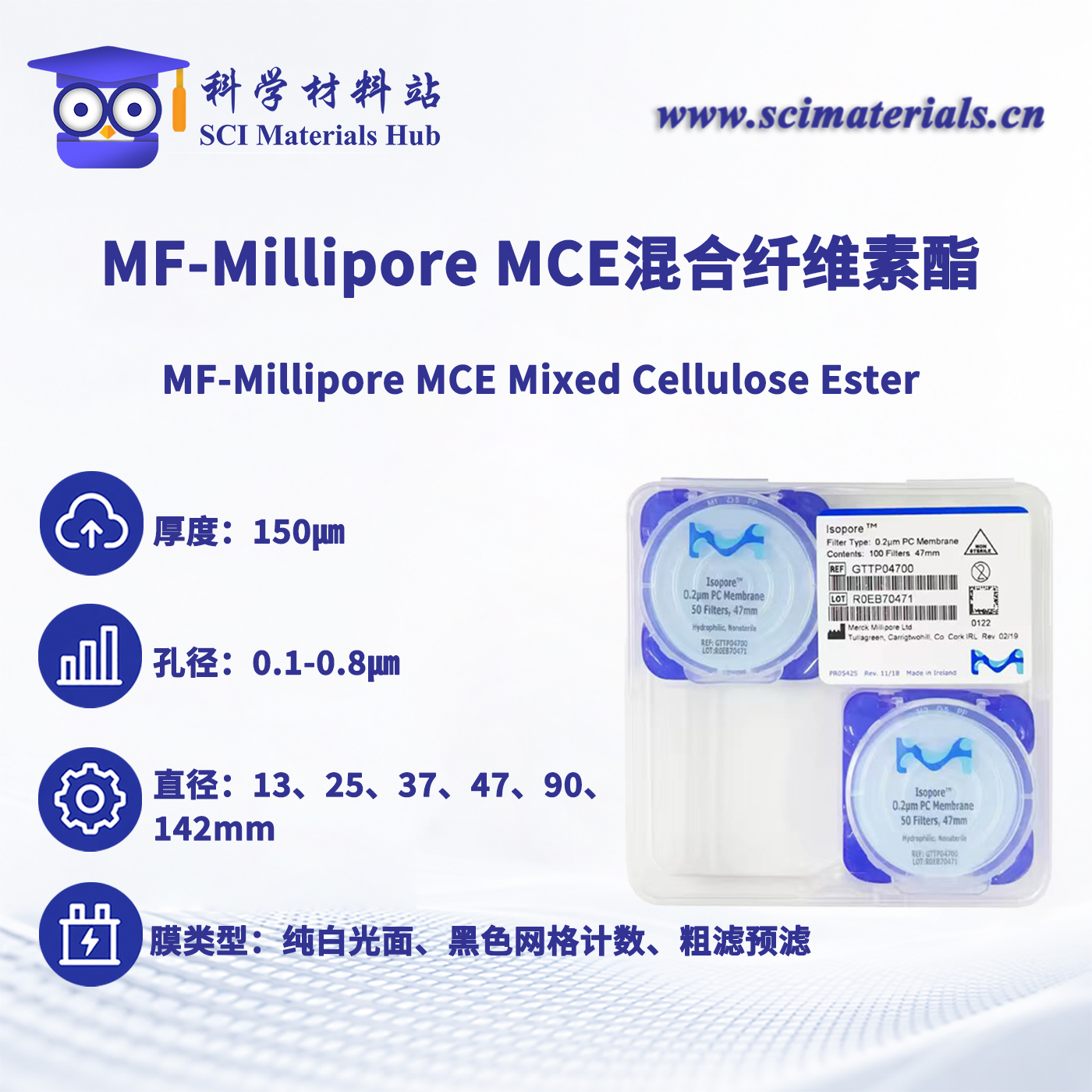

MF-Millipore MCE 混合纤维素酯滤膜是一类经典的亲水性实验室微孔滤膜，主要由混合纤维素酯材料制成，具有良好的亲水性、较高孔隙率、稳定过滤性能和多种孔径规格选择。该系列滤膜广泛用于水系样品过滤、水质微生物检测、微生物菌落计数、颗粒去除、澄清过滤、电解液预滤和粗颗粒预过滤等实验场景。
MCE 混合纤维素酯滤膜表面洁净、润湿性好，适用于水相体系和常规实验室样品前处理。根据不同应用需求，该系列产品提供从 0.025μm 到 5μm 的多种孔径规格，可覆盖超细颗粒截留、除菌过滤、微生物检测、澄清过滤、大颗粒去除和粗滤预处理等不同过滤任务。
该系列产品包含纯白光面膜、黑色网格计数膜和粗滤预滤膜等不同表面形式。其中，纯白光面膜适合常规过滤和样品澄清；黑色网格计数膜适合微生物菌落观察和计数；粗滤预滤膜适合高颗粒负载样品的前处理，可减少后续精密滤膜堵塞，提高过滤效率。
| 产品系列 | 厚度 | 型号 | 孔径 | 表面类型 | 可选直径 | 货号 | 包装规格 | 推荐用途 |
|---|---|---|---|---|---|---|---|---|
| MF-Millipore MCE混合纤维素酯 | 150μm | VSWP | 0.025μm | 纯白光面 | 47mm | VSWP04700 | 100片 | 亲水水系过滤、水质微生物检测、电解液精细预滤 |
| MF-Millipore MCE混合纤维素酯 | 150μm | VCWP | 0.1μm | 纯白光面 | 13/25/47mm | VCWP01300/VCWP02500/VCWP04700 | 100片 | 亲水水系过滤、超细颗粒截留、水质微生物分析、电解液预滤 |
| MF-Millipore MCE混合纤维素酯 | 150μm | GSWP | 0.22μm | 纯白光面 | 13/25/37/47/90/142mm | GSWP01300/GSWP02500/GSWP04700/GSWP09025/GSWP14250 | 13/25/37/47mm=100片；90/142mm=25/50片 | 亲水水系过滤、除菌过滤、水质微生物检测、电解液预滤 |
| MF-Millipore MCE混合纤维素酯 | 150μm | PHWP | 0.3μm | 纯白光面 | 25/47/90/142mm | PHWP02500/PHWP04700/PHWP09025/PHWP14250 | 25/47mm=100片；90/142mm=25/50片 | 亲水水系过滤、微粒去除、水质检测、样品澄清 |
| MF-Millipore MCE混合纤维素酯 | 150μm | HAWP | 0.45μm | 纯白光面 | 13/25/37/47/90/142mm | HAWP01300/HAWP02500/HAWP04700/HAWP09025/HAWP14250 | 13/25/37/47mm=100片；90/142mm=25/50片 | 亲水水系过滤、水质微生物检测、常规颗粒去除、电解液预滤 |
| MF-Millipore MCE混合纤维素酯 | 150μm | HAWG | 0.45μm | 黑色网格计数 | 25/47mm | HAWG02500/HAWG04700 | 100片 | 亲水水系过滤、微生物菌落计数、菌落观察 |
| MF-Millipore MCE混合纤维素酯 | 150μm | RAWP | 1.2μm | 纯白光面 | 47/90mm | RAWP04700/RAWP09025 | 47mm=100片；90mm=25片 | 亲水水系过滤、大颗粒去除、样品预过滤 |
| MF-Millipore MCE混合纤维素酯 | 150μm | AAWP | 0.8μm | 纯白光面 | 13/25/37/47/90mm | AAWP01300/AAWP02500/AAWP04700/AAWP09025 | 13/25/37/47mm=100片；90mm=25片 | 亲水水系过滤、澄清过滤、较大颗粒去除 |
| MF-Millipore MCE混合纤维素酯 | 150μm | SMWP | 5μm | 粗滤预滤 | 47mm | SMWP04700 | 100片 | 粗颗粒预过滤、高颗粒负载样品前处理 |
MCE 混合纤维素酯滤膜具有良好的亲水特性，适用于水溶液、缓冲液、环境水样、培养液、电解液和其他水相样品过滤。对于常规水系过滤，通常无需复杂预润湿步骤，使用方便。
该系列提供 0.025μm、0.1μm、0.22μm、0.3μm、0.45μm、0.8μm、1.2μm 和 5μm 等多种孔径，可满足从超细颗粒截留、除菌过滤、微生物检测，到澄清过滤、预过滤和粗颗粒去除的多层级过滤需求。
MCE 滤膜是水质微生物检测中常用的膜过滤材料。样品通过滤膜后，微生物被截留在膜表面，随后可将滤膜转移至培养基上进行培养、观察和计数。HAWG 黑色网格计数膜尤其适合菌落观察，黑色背景可增强浅色菌落对比度，网格线有助于快速定位和计数。
VSWP、VCWP、GSWP、PHWP、HAWP、RAWP 和 AAWP 等纯白光面滤膜适合常规过滤、颗粒截留和样品前处理。白色表面有利于颗粒、沉积物或微生物生长痕迹观察，适合实验室记录和显微分析。
MCE 混合纤维素酯滤膜适用于部分水系电解液预滤，可去除颗粒杂质和悬浮物，减少后续测试系统堵塞风险，提高电化学测试和材料实验的重复性。对于含有强溶剂、强酸、强碱或特殊添加剂的体系，建议先进行兼容性测试。
该系列覆盖 13mm、25mm、37mm、47mm、90mm、142mm 等常见直径规格，可适配注射器过滤器、真空过滤装置、微生物检测过滤器、大体积水样过滤装置和实验室自制过滤夹具。
MF-Millipore MCE 混合纤维素酯滤膜可用于水溶液、缓冲液、环境水样、培养液、实验室制备溶液和水系电解液的过滤处理。根据样品洁净度和颗粒大小，可选择 0.22μm、0.45μm、0.8μm 或 1.2μm 等不同孔径。
该系列滤膜适用于饮用水、环境水、工业用水、实验室水样和工艺用水中的微生物检测。通过膜过滤法截留微生物后，可将滤膜转移到培养基表面进行培养和菌落计数。0.45μm 是水质微生物检测中常用孔径，HAWG 黑色网格计数膜适合菌落观察和统计。
HAWG 0.45μm 黑色网格计数膜适合用于微生物菌落计数实验。黑色膜面能够提升白色、浅色或透明菌落的可视化效果，网格设计便于分区计数、记录菌落位置和提高统计效率。
对于部分水系电解液、盐溶液、缓冲电解质或材料实验溶液，MCE 滤膜可用于预过滤去除颗粒杂质。根据颗粒负载量，可先使用 SMWP 5μm 或 RAWP 1.2μm 进行粗滤，再使用 HAWP 0.45μm 或 GSWP 0.22μm 进行精滤。
GSWP 0.22μm 滤膜适合更精细的颗粒去除和除菌过滤场景；VCWP 0.1μm 和 VSWP 0.025μm 适合更小颗粒或特殊细微颗粒截留实验。实际除菌效果需结合样品性质、过滤装置和实验验证判断。
AAWP 0.8μm、RAWP 1.2μm 和 SMWP 5μm 适合用于样品澄清、大颗粒去除和高颗粒负载样品前处理，可有效降低后续精密滤膜堵塞风险，提高整体过滤效率。
| 过滤需求 | 推荐型号 | 推荐孔径 | 选择说明 |
|---|---|---|---|
| 超细颗粒截留 | VSWP | 0.025μm | 适合极细颗粒、胶体或特殊精细截留实验 |
| 细颗粒过滤 | VCWP | 0.1μm | 适合超细颗粒去除和高洁净度水系过滤 |
| 除菌过滤与精滤 | GSWP | 0.22μm | 适合细菌截留、精细颗粒去除和水系样品精滤 |
| 微粒去除与水质检测 | PHWP | 0.3μm | 适合微粒去除、水样检测和中等精度过滤 |
| 常规水系过滤 | HAWP | 0.45μm | 适合水质微生物检测、常规颗粒去除和电解液预滤 |
| 菌落计数 | HAWG | 0.45μm | 黑色网格膜适合微生物观察和菌落计数 |
| 澄清过滤 | AAWP | 0.8μm | 适合较大颗粒去除和样品澄清 |
| 大颗粒预过滤 | RAWP | 1.2μm | 适合大颗粒截留和预过滤 |
| 粗颗粒预过滤 | SMWP | 5μm | 适合高颗粒负载样品的粗滤预处理 |
| 滤膜直径 | 推荐应用 | 适配场景 |
|---|---|---|
| 13mm | 小体积样品过滤 | 少量样品、注射器过滤、小体积实验 |
| 25mm | 常规实验室样品过滤 | 中小体积样品、微生物检测、注射器过滤装置 |
| 37mm | 特定检测装置适配 | 气溶胶、水样检测或专用夹具 |
| 47mm | 真空过滤与水质检测常用规格 | 水样过滤、微生物检测、常规真空过滤 |
| 90mm | 大体积样品过滤 | 大体积水样、工业样品预处理 |
| 142mm | 大面积过滤 | 高通量过滤、大体积样品处理、工业实验室应用 |
使用前应根据样品类型、颗粒大小、过滤体积和实验目的选择合适孔径。对于高颗粒样品，建议采用由大孔径到小孔径的分级过滤方式，例如先用 5μm 或 1.2μm 预滤，再用 0.45μm 或 0.22μm 精滤。
根据滤膜直径选择合适的过滤夹具、真空过滤装置、注射器过滤器或微生物检测过滤器。使用前应确认滤膜直径与支撑网、密封圈和过滤杯尺寸匹配，避免漏液或膜边缘破损。
用洁净镊子夹取滤膜边缘，避免用手直接接触有效过滤区域。将滤膜平整放置在支撑面上，确保膜面无褶皱、无破损、无污染，边缘完全被密封圈压紧。
将待过滤样品加入过滤杯或过滤装置中，缓慢施加真空或压力。初始过滤时不宜压力过大，以免造成滤膜破裂、样品飞溅或颗粒压实堵膜。若过滤速度明显下降，应及时更换滤膜或增加预过滤步骤。
用于水质微生物检测时，可将一定体积水样通过滤膜过滤，使微生物截留在膜表面。过滤后用无菌镊子将滤膜转移至培养基表面，确保滤膜与培养基充分接触，再按实验方法进行培养和菌落计数。
用于电解液预滤时，建议先确认电解液体系与 MCE 膜材的兼容性。对于颗粒负载较高的样品，可先使用 SMWP 5μm 或 RAWP 1.2μm 粗滤，再使用 HAWP 0.45μm 或 GSWP 0.22μm 精滤，以降低堵膜风险。
若目标是滤液，应收集滤液用于后续分析；若目标是膜面截留物，可将滤膜取下用于培养、显微观察、颗粒分析或称重。使用后的滤膜应根据样品性质进行分类处理，涉及微生物、有害化学品或电解液时应按实验室规范废弃。
MCE 混合纤维素酯滤膜适合水系样品过滤，使用有机溶剂、强酸、强碱或特殊电解液前应进行兼容性测试。
滤膜较薄且为微孔结构，安装时应避免折叠、拉扯、刮擦和局部受力过大。
高颗粒负载样品不建议直接使用 0.22μm 或更小孔径滤膜，可先使用 5μm、1.2μm 或 0.8μm 进行预滤。
微生物检测时应使用无菌操作，避免环境污染影响培养和计数结果。
使用黑色网格计数膜时，应避免刮伤网格表面，以免影响菌落观察和计数。
真空过滤时应控制负压，过高负压可能导致膜面变形、样品快速冲击或颗粒压实。
滤膜通常为一次性耗材，不建议重复使用，以免交叉污染和孔结构变化。
过滤高黏度样品时，流速可能明显下降，可适当稀释或提高预过滤等级。
不同批次、不同孔径和不同表面类型滤膜不建议在同一组定量实验中混用。
对结果重复性要求较高的实验，应固定滤膜型号、孔径、直径、过滤压力和样品体积。
主要用于亲水水系样品过滤、水质微生物检测、微生物菌落计数、颗粒去除、澄清过滤、电解液预滤和粗颗粒预过滤。
MCE 滤膜更适合水系样品过滤。对于有机溶剂、强酸、强碱或复杂电解液体系，建议先进行膜材兼容性测试，避免膜材溶胀、变形或性能下降。
0.22μm 适合更精细的颗粒去除和除菌过滤场景；0.45μm 适合常规水系过滤、水质微生物检测和样品澄清，是水质检测中常用规格。
HAWP 是 0.45μm 纯白光面滤膜，适合常规水系过滤和水质检测；HAWG 是 0.45μm 黑色网格计数膜，适合微生物菌落观察和计数，尤其适合浅色菌落识别。
建议先使用 SMWP 5μm、RAWP 1.2μm 或 AAWP 0.8μm 进行预过滤，再根据需求使用 HAWP 0.45μm 或 GSWP 0.22μm 精滤。
HAWP 0.45μm 是常用水质微生物检测规格；如果需要更便于菌落计数和观察，可选择 HAWG 0.45μm 黑色网格计数膜。
对于水系电解液，可根据颗粒大小选择 HAWP 0.45μm、GSWP 0.22μm、RAWP 1.2μm 或 SMWP 5μm。高颗粒负载电解液建议先粗滤再精滤。
常见原因包括样品颗粒过多、孔径过小、样品黏度高、滤膜堵塞或过滤压力不足。可通过预过滤、换用更大孔径滤膜、降低样品浓度或更换新滤膜改善。
不建议重复使用。重复使用可能导致交叉污染、孔径堵塞、膜结构变化和过滤结果不稳定，尤其是微生物检测和定量分析实验中应一次性使用。
黑色网格膜适合微生物菌落计数、菌落观察和水质微生物检测。黑色背景可以提高浅色菌落对比度，网格线便于分区统计。
VSWP 0.025μm 适合极细颗粒、胶体或特殊精细截留实验，过滤速度通常较慢，适合对截留精度要求高的应用。
SMWP 5μm 主要用于粗颗粒预过滤，适合颗粒负载较高的样品前处理，可减少后续小孔径滤膜堵塞，提高整体过滤效率。
MF-Millipore MCE 混合纤维素酯滤膜是一类适用于亲水水系过滤、水质微生物检测、微生物菌落计数、电解液预滤和样品澄清的经典实验室滤膜。该系列覆盖 0.025μm 到 5μm 多种孔径，并提供纯白光面、黑色网格计数和粗滤预滤等不同表面形式，可满足从精细颗粒截留到粗颗粒预过滤的多层级过滤需求。
对于超细颗粒截留，可选择 VSWP 0.025μm 或 VCWP 0.1μm；对于除菌过滤和水系精滤，可选择 GSWP 0.22μm；对于水质微生物检测和常规过滤，可选择 HAWP 0.45μm；对于菌落计数，可选择 HAWG 0.45μm 黑色网格膜；对于大颗粒预滤和高颗粒负载样品，可选择 RAWP 1.2μm、AAWP 0.8μm 或 SMWP 5μm。合理选择孔径、表面类型和滤膜直径，可有效提升过滤效率、实验重复性和检测结果可靠性。
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn
| 型号 / 孔径 / 表面 | Φ13mm，100片/盒 | Φ25mm，100片/盒 | Φ37mm，100片/盒 | Φ47mm，100片/盒 | Φ90mm，25片/盒 | Φ142mm，50片/盒 |
|---|---|---|---|---|---|---|
| VSWP / 0.025μm / 纯白光面 | — | — | — | VSWP04700 ，￥3960 | — | — |
| VCWP / 0.1μm / 纯白光面 | VCWP01300 / 询价 | VCWP02500 / 询价 | — | VCWP04700 / 询价 | — | — |
| GSWP / 0.22μm / 纯白光面 | GSWP01300 / 询价 | GSWP02500，￥1512 | 询价 | GSWP04700，￥1560 | GSWP09025 / 询价 | GSWP14250 / 询价 |
| PHWP / 0.3μm / 纯白光面 | — | PHWP02500 / 询价 | — | PHWP04700 / 询价 | PHWP09025 / 询价 | PHWP14250 / 询价 |
| HAWP / 0.45μm / 纯白光面 | HAWP01300 / 询价 | HAWP02500 ，￥1512 | 询价 | HAWP04700，￥1536 | HAWP09025 / 询价 | HAWP14250 / 询价 |
| HAWG / 0.45μm / 黑色网格计数 | — | HAWG02500 / 询价 | — | HAWG04700 / 询价 | — | — |
| AAWP / 0.8μm / 纯白光面 | AAWP01300 / 询价 | AAWP02500，￥1536 | 询价 | AAWP04700 ，￥1536 | AAWP09025 / 询价 | — |
| RAWP / 1.2μm / 纯白光面 | — | — | — | RAWP04700，￥1572 | RAWP09025 / 询价 | — |
| SMWP / 5μm / 粗滤预滤 | — | — | — | SMWP04700，￥1555 | — | — |
