Fueiceel® 钛网气体扩散电极

  • 产品代码：
  • 产品描述：Fueiceel® Titanium Mesh Gas Diffusion Electrodes
  • 品牌：Fueiceel®
  • 货期：请咨询
  • 浏览次数：
  • 咨询电话：+86 130-0303-8751
  • 关键词：Fueiceel® 钛网气体扩散电极, Fueiceel® Titanium Mesh Gas Diffusion Electrodes, 科学材料站, SCI Materials Hub
Metal Mesh Gas Diffusion Electrodes

Fueiceel® 镍网 / 铜网 / 钛网气体扩散电极

Nickel Mesh · Copper Mesh · Titanium Mesh Gas Diffusion Electrodes

面向燃料电池、金属空气电池及气体参与型电化学研究的金属网气体扩散电极系列。 提供镍网、铜网及钛网三类金属基体，可根据实验体系、夹具尺寸、有效面积、 电解液环境及电极尺寸要求进行选型。

Ni / Cu / Ti 金属网基体 多尺寸规格 科研实验 支持定制
查看规格与价格 快速选型

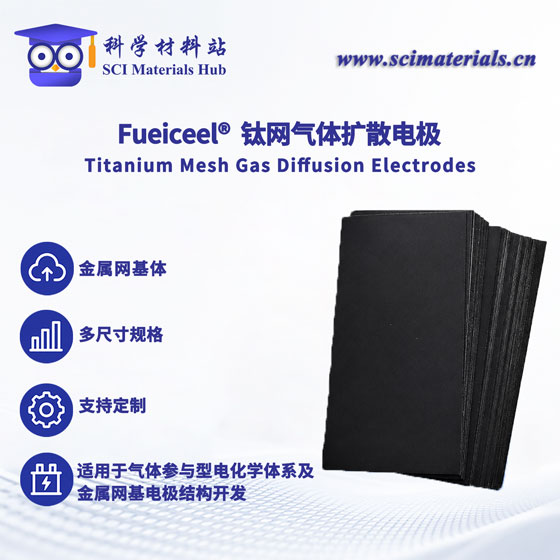

Product Photo · 实物图 Gas Diffusion Electrode

科研实验 支持定制 Ni / Cu / Ti
Product Overview

产品介绍

同一产品系列覆盖镍网、铜网与钛网三类金属基体， 可根据电化学体系、尺寸及材料兼容要求进行选型。

金属网气体扩散电极采用金属网作为导电与机械支撑基体， 可用于构建具有气体传输、电子导通和反应界面功能的电极结构。 金属骨架能够为电极提供稳定的机械支撑， 同时便于与电池夹具、电极端板及导电部件形成可靠接触。

本系列按照金属基体不同分为 镍网气体扩散电极、 铜网气体扩散电极和 钛网气体扩散电极。 不同金属材料具有不同的导电、耐腐蚀及电化学适配特点， 实际选型应结合电解液组成、工作电位、反应气氛和夹具结构综合判断。

常规产品覆盖从小尺寸实验片到较大面积片材， 可满足材料筛选、小型电化学池、 燃料电池、金属空气电池及其他气体参与型电化学实验的使用需求。

不同型号或不同应用版本的网孔、厚度、 表面功能层及具体结构可能存在差异。 如实验对网孔、厚度、表面处理或有效面积有明确要求， 建议在选型前确认具体技术参数。
3 金属网基体
镍 / 铜 / 钛
10 页面汇总
常规销售规格
35×80 常规小尺寸规格
单位：mm
165×200 常规大尺寸规格
单位：mm
Material Options

三种金属网基体

材料选择建议优先考虑电解液兼容性与工作电位， 再综合考虑导电、机械支撑及尺寸需求。

Ni

镍网气体扩散电极

NICKEL MESH GAS DIFFUSION ELECTRODE

以镍网作为导电与机械支撑骨架， 提供多种常用尺寸和片数规格， 适用于燃料电池、空气电极及相关电化学研究。

  • 金属网导电支撑
  • 多种常规尺寸
  • 便于裁切及夹具匹配
Cu

铜网气体扩散电极

COPPER MESH GAS DIFFUSION ELECTRODE

采用铜网作为金属导电支撑基体， 适用于对金属导电骨架具有明确需求的研究体系。 使用前应结合电解液与工作电位确认材料兼容性。

  • 铜基金属支撑
  • 适合特定电化学体系
  • 支持尺寸需求确认
Ti

钛网气体扩散电极

TITANIUM MESH GAS DIFFUSION ELECTRODE

以钛网作为金属基体， 常规规格覆盖范围较广， 可优先用于对金属基体耐腐蚀适配要求较高的电化学研究。

  • 多尺寸常规规格
  • 钛基金属骨架
  • 含酸性电极规格
基体主要选型方向建议重点确认常规规格使用建议
镍网 通用金属网导电支撑电解液兼容、网孔、厚度、裁切尺寸3 种常规研究优先对比
铜网 铜基金属导电骨架腐蚀环境、工作电位、表面状态1 种明确体系后选用
钛网 钛基金属支撑电解液环境、接触方式、表面处理6 种腐蚀体系重点考虑
Functional Structure

结构与功能关系

金属网基体在电极结构中主要承担机械支撑、 导电连接以及辅助构建气体传输界面的作用。

Typical Functional Relationship
01
气体侧 为反应气体进入电极反应区域提供传输路径
02
气体扩散 / 功能层 根据具体型号与应用构建相应功能界面
03
金属网基体 Ni / Cu / Ti 金属网提供导电及机械支撑
04
电极夹具 / 集流连接 与测试夹具或电化学装置建立导电接触
01
金属骨架支撑

金属网为扩散电极提供稳定的结构支撑， 便于裁切、安装和夹具固定。

02
导电连接

金属基体可作为电子传输与外部测试装置连接的重要路径。

03
开放网孔结构

金属网的开放结构有利于构建气体参与型电化学反应界面。

04
多材料选择

可根据体系选择镍、铜或钛金属基体， 满足不同实验环境的材料匹配需求。

Specifications

规格与价格

以下为当前整理的常规规格。 不同尺寸及片数均独立列出，便于实验选型。

Ni

镍网气体扩散电极

Nickel Mesh Gas Diffusion Electrodes
基体尺寸包装参考售价备注
镍网100 × 100 mm50 片¥1030 常规规格
镍网100 × 200 mm2 片¥90 小包装
镍网100 × 200 mm5 片¥210 常规包装
Cu

铜网气体扩散电极

Copper Mesh Gas Diffusion Electrodes
基体尺寸包装参考售价备注
铜网150 × 185 mm5 片¥295 常规规格
Ti

钛网气体扩散电极

Titanium Mesh Gas Diffusion Electrodes
基体尺寸包装参考售价备注
钛网35 × 80 mm5 片¥146 小尺寸
钛网60 × 100 mm5 片¥238 常规规格
钛网100 × 100 mm1 片¥190 酸性电极规格
钛网100 × 100 mm5 片¥390 常规包装
钛网165 × 100 mm5 片¥600.4 大尺寸
钛网165 × 200 mm5 片¥1132 大尺寸
说明：页面价格用于对应当前规格展示。 如需特殊尺寸、特殊片数、其他网孔或特殊基体要求， 请根据实际需求确认定制方案。
Selection Guide

快速选型

建议按照“实验体系 → 金属基体 → 电极尺寸 → 包装数量” 的顺序进行选择。

01

先确认电化学体系

根据电解液组成、工作电位、 反应气体及实验环境判断金属材料兼容性。

02

选择金属网基体

在镍网、铜网、钛网之间选择适配的导电支撑基体。

03

确认夹具尺寸

根据电池夹具、流场尺寸及有效反应面积选择片材尺寸。

04

确认使用数量

根据单次实验消耗量、 重复实验次数及样品筛选数量选择包装。

05

核对特殊参数

如对网孔、厚度、表面状态或有效面积存在特殊要求， 建议提前确认。

06

非标尺寸可定制

常规规格不能满足实验装置时， 可进一步确认非标准尺寸和数量需求。

Applications

典型应用

适用于气体参与型电化学体系及金属网基电极结构开发。

01
燃料电池研究

用于气体扩散电极、 电极结构及相关材料研究。

02
金属空气电池

适用于空气电极及气体参与型电化学体系开发。

03
电催化研究

用于构建金属网支撑型反应电极及功能界面。

04
电极基体筛选

对比不同金属基体在目标实验体系中的适配情况。

05
气体反应电极

适用于需要建立气体—电极—电解质界面的实验结构。

06
电极结构开发

用于不同基体、功能层及夹具结构之间的适配研究。

07
小型电化学池

多种小尺寸规格便于匹配实验室电化学测试装置。

08
科研样品定制

可结合目标夹具、有效面积和实验方案确认非标需求。

Custom Metal Mesh Gas Diffusion Electrodes

除页面列出的镍网、铜网与钛网常规规格外， 如实验装置对片材尺寸、包装数量、有效区域或其他结构参数存在特殊要求， 可根据实验方案进一步确认定制需求。

基体材质 Ni / Cu / Ti
外形尺寸 按夹具与有效区域确认
包装数量 按实验需求确认
特殊参数 网孔 / 厚度等需确认
FAQ

常见问题

关于镍网、铜网、钛网气体扩散电极选型与使用的常见问题。

建议首先根据电解液组成、工作电位和实验环境判断材料兼容性， 再根据导电、机械支撑、尺寸及成本等因素进一步选择。 对材料兼容性要求较高的体系建议在使用前明确实验条件。
金属网片材通常可根据实验夹具进行裁切， 但具体裁切方式应结合产品结构、边缘完整性及实验要求确定。 如需要固定尺寸，可直接确认非标尺寸需求。
不同型号、批次或功能版本可能对应不同基体及结构参数。 如实验对网孔、厚度、面密度或表面处理有明确要求， 建议在下单或选型前确认具体型号参数。
支持根据实验夹具、有效面积、片材尺寸和数量等需求确认定制方案。
当前规格表中包含一个 100 × 100 mm、1 片包装的“酸性电极”型号。 如用于特定酸性体系，建议进一步确认对应型号的具体结构和实验适配条件。

📞 联系方式

  • 🛒 手机淘宝店铺：科学材料站

  • 🔗 淘宝链接：点击进入淘宝网页

  • ☎ 电话：+86 130-0303-8751 / +86 156-0553-2352

  • 💬 微信：SCI-Materials-Hub

  • 📧 Email 报价/对公需求：contact@scimaterials.cn


Fueiceel® 金属网气体扩散电极价格表

镍网、铜网、钛网气体扩散电极规格与售价对照

尺寸规格镍网铜网钛网
35 × 80 mm ——
5片 ¥146
60 × 100 mm ——
5片 ¥238
10 × 10 cm 100 × 100 mm
50片 ¥1030
—
1片 酸性 ¥190
5片 ¥390
100 × 200 mm
2片 ¥90
5片 ¥210
——
150 × 185 mm —
5片 ¥295
—
165 × 100 mm ——
5片 ¥600
165 × 200 mm ——
5片 ¥1132
说明：“—”表示暂无对应规格；10 × 10 cm 钛网提供酸性电极 1片及常规规格 5片两种选择。
