面向粉末、薄膜、片状及微量样品的玻璃承载方案，覆盖方槽、圆槽、 密封结构、通用尺寸与非标定制。槽体尺寸清晰、表面平整， 便于样品装填、压平、密封和重复定位。

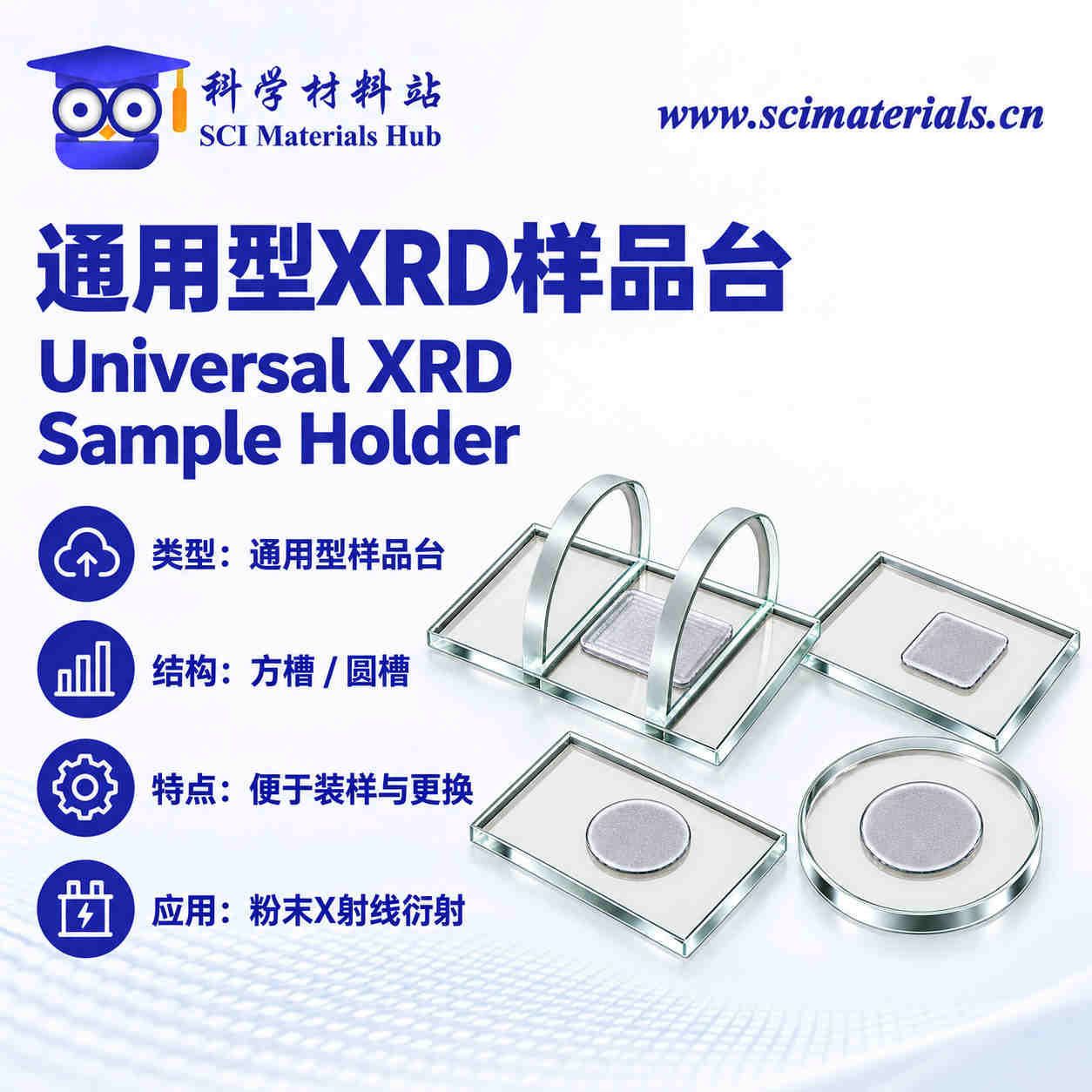

通用型XRD样品台用于承载粉末、颗粒、浆料、薄膜及片状样品， 可根据样品量与测试方式选择不同槽型、槽深和外形尺寸。 透明玻璃便于观察装样状态，平整表面有利于控制样品高度， 并减少因装填不均造成的测试偏差。
通用系列适合常规实验室测试；密封系列适合易散落、 需覆盖或需隔离环境的样品；定制系列可按照仪器托盘、 光路窗口、样品尺寸和装样量调整。
先确认仪器可容纳的外形尺寸，再根据样品量选择槽口面积与槽深。 粉末样品应优先保证表面与基准面齐平；薄膜或片状样品则需关注槽深与样品厚度的匹配。
涉及密封、开孔、圆槽、特殊外形或超薄槽时，建议下单前提供尺寸图。
样品台主体采用光学玻璃加工，表面平整、透明，便于观察样品装填范围、 铺样均匀性及槽内残留。玻璃基体适用于常规固体、粉末、 颗粒及片状样品的XRD定性与定量分析。
光学玻璃不等同于零背景单晶基片；对低含量物相、弱峰或背景敏感测试， 请结合测试方法评估基底影响。
通用玻璃外形：50×35×2 mm
密封挡板：参考直径Φ35 mm的半圆形挡板结构
常用槽体：10×10×0.5、15×15×0.5、20×20×0.5 mm
不同型号的外形、槽型、槽深和挡板结构可能不同， 具体以规格表及确认图纸为准。
| 类型 | 典型槽型 | 典型外形 | 结构特点 | 适用样品 | 选型提示 |
|---|---|---|---|---|---|
| 通用密封款 | 方槽10–20 mm | 50×35×2 mm | 带密封结构，可覆盖保护 | 粉末、易散落或需隔离样品 | 确认槽口、密封方式及是否开孔 |
| 通用玻璃款 | 方槽 / 圆槽5–20 mm | 50×35×2 mm | 结构简洁、规格通用 | 常规粉末、颗粒与片状样品 | 方槽或圆槽需在下单时注明 |
| 加厚玻璃款 | 20×20×2 mm | 50×35×4 mm | 槽深较大、整体厚度增加 | 样品量较大或需更深装样 | 确认仪器高度空间是否足够 |
| XRD标准方形款 | 10×10 / 15×15 mm | 75×25 mm | 长条外形，便于指定托盘适配 | 常规XRD粉末测试 | 核对托盘长度、宽度和槽深 |
| 定制方形款 | 方槽 / 圆槽 | 多种非标矩形外形 | 尺寸、槽位和深度可调整 | 专用夹具、微量或大面积样品 | 建议提供二维尺寸图 |
| 定制圆形款 | 圆槽Φ5–Φ33 mm | Φ15–Φ51 mm | 圆盘外形，适配圆形卡位 | 圆形托盘、圆片及粉末样品 | 确认外径、总厚和圆槽深度 |
| 类型 / 规格 | 槽体尺寸 | 外形尺寸 | 结构备注 |
|---|---|---|---|
| 通用密封款方槽 | 10×10×0.5 mm | 50×35×2 mm | 密封款 |
| 15×15×0.5 mm | 50×35×2 mm | 密封款 | |
| 20×20×0.5 mm | 50×35×2 mm | 密封款 | |
| 20×20 mm | 50×35×2 mm | 带Φ1 mm小孔 | |
| 通用方槽 | 5×5×0.5 mm | 35×50×2 mm | 圆槽需备注 |
| 10×10×0.5 mm | 35×50×2 mm | 圆槽需备注 | |
| 15×15×0.5 mm | 35×50×2 mm | 圆槽需备注 | |
| 20×20×0.5 mm | 35×50×2 mm | 圆槽需备注 | |
| 通用加厚玻璃方槽 | 20×20×2 mm | 50×35×4 mm | 加厚款 |
| XRD方形玻璃样品台 | 10×10×0.6–0.7 mm | 75×25×1 mm | 长条方形 |
| 15×15×2 mm | 75×25×3 mm | 长条方形 | |
| 定制XRD方形样品台 | 16×16×0.1 mm | 40×28×1.5 mm | 超浅方槽 |
| 20×15×0.5 mm | 55×36×2 mm | 矩形方槽 | |
| 20×15×0.8 mm | 46×36×3 mm | 矩形方槽 | |
| 20×20×0.5 mm | 27×24×2 mm | 紧凑外形 | |
| 21×5×1 mm | 26×10×9 mm | 窄长方槽 | |
| 26×13×2 mm | 30×20×4 mm | 矩形深槽 | |
| 86×86×0.5 mm | 100×100×2 mm | 大面积方槽 | |
| 圆槽Φ10×1 mm | 50×25×2 mm | 矩形外形 / 圆槽 | |
| 圆槽Φ15×4 mm | 55×35×7 mm | 矩形外形 / 深圆槽 | |
| 圆槽Φ35×0.5 mm | 50×50×2 mm | 方形外形 / 圆槽 | |
| 圆槽Φ40×2 mm | 50×50×4 mm | 方形外形 / 圆槽 | |
| 圆槽Φ1×0.2 mm | Φ50×2 mm | 原资料归类为方形定制，外形标注为圆形 | |
| 定制XRD圆形样品台 | 圆槽Φ5×0.5 mm | Φ24×1 mm | 微量圆槽 |
| 圆槽Φ10×2 mm | Φ15×4 mm | 紧凑圆形 | |
| 圆槽Φ25×1 mm | Φ51×8 mm | 加厚圆形 | |
| 圆槽Φ30×1 mm | Φ45×3 mm | 圆形外形 | |
| 圆槽Φ33×1 mm | Φ44×3 mm | 圆形外形 |
确认样品台可放入仪器托盘，并检查总厚度不会影响测试高度。
使用无尘纸和适配的清洁方式处理，充分干燥后再装样。
少量多次加入样品并轻压整平，避免明显孔洞、堆高和倾斜。
确认样品面水平、位置居中，密封款需检查覆盖与密合状态。
外形长度、宽度或直径；总厚度；槽型；槽口长度与宽度或直径； 槽深；槽中心位置；孔径、孔位及数量； 是否需要密封、盖片或特殊边缘处理。
请同时说明适配仪器或托盘限制、样品状态、预计装样量及关键公差。 若有实物配合关系，建议提供二维图、照片或原样尺寸， 便于评估加工可行性。
粉末样品两者均可使用。方槽便于利用边角空间， 圆槽更适合圆形光路、圆形卡位或圆片样品。 最终应优先匹配仪器托盘和样品形状。
不是。槽深应与样品量和测试要求匹配。 过深会增加样品消耗，过浅则可能难以铺平； 微量样品通常优先选择小槽口或浅槽。
适合容易散落、需要覆盖保护或希望减少外界接触的样品。 若样品具有腐蚀性、挥发性或对密封材料有特殊要求， 请提前说明介质与测试条件。
不可以。该玻璃样品台及参考密封结构不适用于抽真空或加热操作， 这些操作可能导致玻璃断裂或密封失效。 若实验涉及真空、升温或压力条件， 应选用专门设计并经过验证的原位测试腔体。
样品表面偏离仪器基准面可能造成几何位置变化， 从而引起峰位或强度偏差。 装样时应尽量压平，并保持表面高度一致。
可以。使用后应及时清除残留样品，避免硬质颗粒划伤槽面。 附件资料提示清洗时不要使用有机试剂， 以免相关密封部件脱胶； 再次使用前请检查玻璃是否存在裂纹、缺口及残留物。
可以。请提供托盘尺寸、卡位结构、允许总厚度、 槽中心位置和关键公差； 有图纸或实物照片时更便于确认。
可通过淘宝渠道选购通用规格，并咨询槽型确认、 仪器适配及非标样品台定制。
快速比较产品结构、槽体尺寸、外形参数及对应售价。选择产品系列和具体规格后，系统将自动显示匹配价格。
| 类型 / 规格 | 槽体尺寸 | 外形尺寸 | 售价 |
|---|---|---|---|
| 通用密封款方槽 | 方槽：10×10×0.5 mm | 50×35×2 mm | ¥160 |
| 通用密封方槽 | 方槽：15×15×0.5 mm | 50×35×2 mm | ¥170 |
| 方槽：20×20×0.5 mm | 50×35×2 mm | ¥170 | |
| 方槽：20×20 mm（带Φ1 mm小孔） | 50×35×2 mm | ¥210 | |
| 通用方槽（圆槽请备注） | 方槽：5×5×0.5 mm | 35×50×2 mm | ¥90 |
| 方槽：10×10×0.5 mm | 35×50×2 mm | ¥100 | |
| 方槽：15×15×0.5 mm | 35×50×2 mm | ¥110 | |
| 方槽：20×20×0.5 mm | 35×50×2 mm | ¥110 | |
| 通用加厚玻璃 方槽 | 方槽：20×20×2 mm | 50×35×4 mm | ¥110 |
| XRD方形玻璃样品台 | 方槽：10×10×0.6–0.7 mm | 75×25×1 mm | ¥228 |
| 方槽：15×15×2 mm | 75×25×3 mm | ¥228 | |
| 方槽：16×16×0.1 mm | 40×28×1.5 mm | ¥74 | |
| 方槽：20×15×0.5 mm | 55×36×2 mm | ¥110 | |
| 方槽：20×15×0.8 mm | 46×36×3 mm | ¥110 | |
| 方槽：20×20×0.5 mm | 27×24×2 mm | ¥90 | |
| 方槽：21×5×1 mm | 26×10×9 mm | ¥130 | |
| 方槽：26×13×2 mm | 30×20×4 mm | ¥110 | |
| 方槽：86×86×0.5 mm | 100×100×2 mm | ¥380 | |
| 圆槽：Φ10×1 mm | 50×25×2 mm | ¥100 | |
| 圆槽：Φ15×4 mm | 55×35×7 mm | ¥170 | |
| 圆槽：Φ35×0.5 mm | 50×50×2 mm | ¥150 | |
| 圆槽：Φ40×2 mm | 50×50×4 mm | ¥228 | |
| 圆槽：Φ1×0.2 mm | Φ50×2 mm | ¥206 | |
| XRD圆形玻璃样品台 | 圆槽：Φ5×0.5 mm | Φ24×1 mm | ¥228 |
| 圆槽：Φ10×2 mm | Φ15×4 mm | ¥110 | |
| 圆槽：Φ25×1 mm | Φ51×8 mm | ¥186 | |
| 圆槽：Φ30×1 mm | Φ45×3 mm | ¥210 | |
| 圆槽：Φ33×1 mm | Φ44×3 mm | ¥130 |
通用规格可直接选择购买；涉及圆槽备注、特殊开孔、密封结构或非标尺寸时，建议先确认关键参数，再提交订单。
