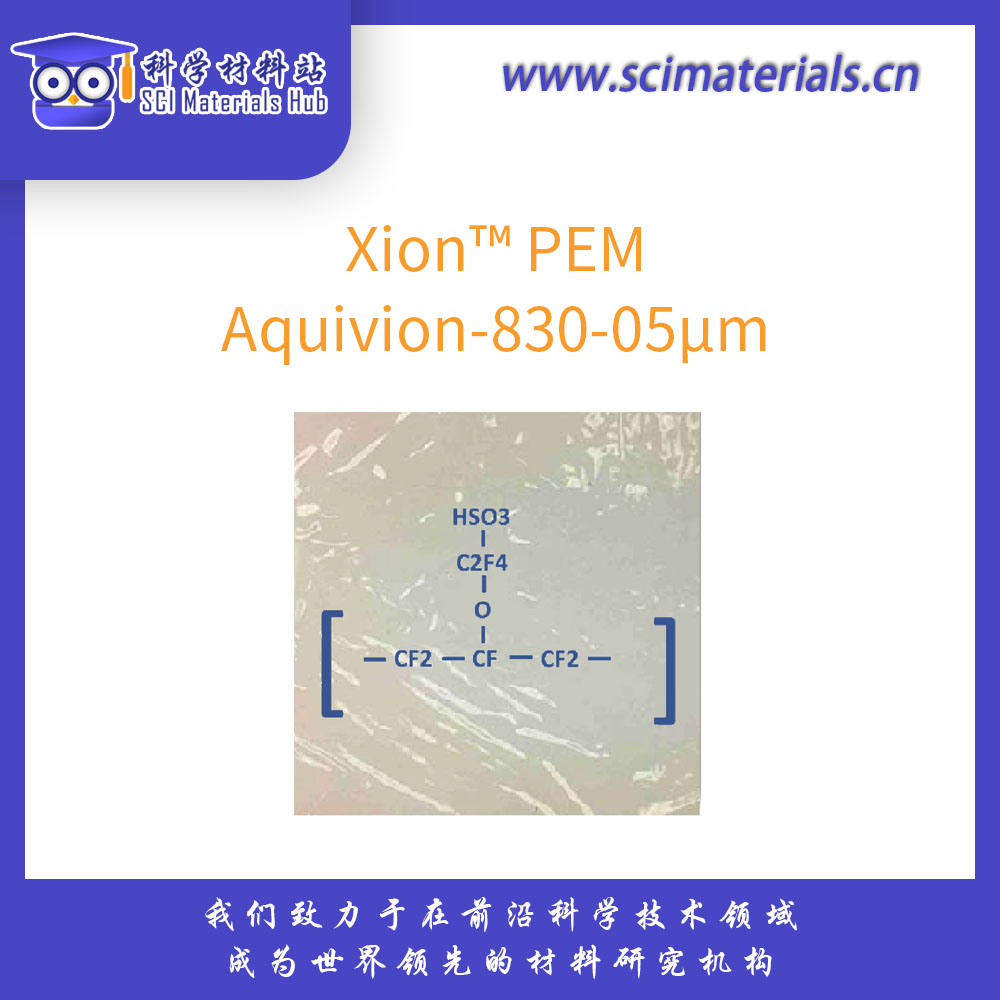

Xion-PEM-Aquivion-830 (5, 10, 20 30, 50μm) 质子交换膜

  • 产品代码:20021006 20021015 20021028 20021045 20021058
  • 产品描述:膜厚度:5, 10, 20, 30, 50μm;膜尺寸:5x5cm, 10x10cm, 15x15cm
  • 品牌:SCI Materials Hub
  • 货期:2-3周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Xion-PEM-Aquivion-830 (5, 10, 20 30, 50μm) 质子交换膜, SCI Materials Hub, 科学材料站
65.7K

Xion系列复合质子交换膜PEM(包括Xion-Dyneon复合膜,Xion-Nafion复合膜,Xion-Aquivion复合膜)是使用3M公司的Dyneon树脂,杜邦公司的Nafion树脂,索尔维公司的Aquivion树脂结合复合工艺制成的复合质子交换膜,可购买不同当量重量(EW)的膜片,它们在酸性和中性条件下都很稳定。


科学材料站可以提供Xion PEM-Aquivion-830不同厚度尺寸系列,其中厚度有5μm, 10μm, 20μm, 30和50μm,尺寸有5x5cm, 10x10cm15x15cm。更多型号将在厂家更新后提供。

如需购买请点进入方【购买渠道】进行购买或寻求报价单。


质子交换膜(PEM)又称阳离子交换膜(CEM),通常由磺酸基含氟聚合物组成,具有优异的离子导电性和热/化学耐久性。目前制造的阴离子交换膜(AEM)可以利用各种碱性稳定的聚合物材料作为主体材料,并具有多种功能位点来传导OH-或任何其他阴离子物种,AEMs的热/化学耐久性通常低于CEM。


所有的Xion系列复合质子交换膜均具有高选择性、高耐化学性和耐久性。由于所有这些膜产品都是经过复合材料机械强化的,它们非常适合于非加压或加压质子交换膜燃料电池(PEMFC)、PEM电解槽、PEM质子泵、PEM氧浓缩器、PEM制氢机、电池或任何其他酸性到中性的电化学装置。在气体或液体反应物使用也没有任何问题。


Xion-Aquivion复合阳离子交换膜是一种使用索尔维公司的Aquivion树脂的制作而成的一系列复合质子交换膜,Aquivion是索尔维公司开发的一款全氟磺酸(PFSA)离聚物,与传统的PFSA聚合物相比,索尔维公司生产的Aquivion离聚物具有更短的侧链,提供了不同的离聚物形态,从而提高了其物理和化学性能。Xion-Aquivion复合阳离子交换膜当量重量有720EW和830EW两种。其中720EW质子膜具有较高的离子电导率,而830EW质子膜具有更高的稳定性。下图显示了Aquivion树脂的化学分子式。

图片2 - 副本.png

Aquivion聚合物分子式


Xion-Aquivion复合膜通过复合工艺,将增强层集成到膜的结构中,提高了膜的机械性能,机械增强体是微孔膨胀聚四氟乙烯基体,在各种条件下具有优异的热稳定性、化学稳定性和机械稳定性,机械性能的增强就可以在不牺牲强度的情况下做得更薄,性质更稳定的同时提供更高的离子导电率。

目前,科学材料站(SCI Materials Hub)可以大量供应Xion-Aquivion复合质子交换膜的厚度有:5um、10um、20um、30um和50um;尺寸有:5cmX5cm、10cmX10cm、15cmX15cm,这种离子交换膜在酸性和中性条件下都很稳定,可用于燃料电池、电解槽、电渗析、氧化还原流电池、电化学压缩机、传感器和其他各种电化学设备。


选购说明:

1.当您的装置需要拥有最佳的效率并且整个膜上不会有太大的压差时。或者当反应物(燃料或氧化剂)以干燥气体(0%RH)或部分加湿(小于50%RH)的形式提供时。选用厚度较薄的膜(小于10um)可以在整个膜上提供出色的水传输,在阳极和阴极均保持足够的水合作用,因此,当燃料或氧化剂以干态供应时,过氧化氢自由基和其他对膜有害的自由基种类的产生减至最少或部分加湿。

2.当您的装置需要拥有很长的使用寿命,或者整个膜上有较大的压差,又或是装置以足够潮湿的状态(大于50% RH)提供反应物(燃料或氧化剂)时。您需要选用较厚的膜(大于10um)。


性能参数如下所示:

复合膜当量重量EW

720EW、830EW

复合膜厚度

5/10/20/30/50 um

复合膜尺寸(支持定制)

5cmX5cm、10cmX10cm、15cmX15cm


Membrane Properties
Thickness5, 10, 20 30, 50μm
Equivalent Weight (EW)830


1. Introduction

The Xion Composite PEM-Aquivion-830-05 is a 5 micrometers thick composite proton exchange membrane that uses the Aquivion resin with an equivalent weight of 830. It is stable under acidic and neutral conditions. This membrane can be used in fuel cells, electrolyzers, electrodialysis, redox flow batteries, electrochemical compressors, sensors, and a wide variety of other devices. All Xion membranes have high selectivity, high chemical resistance, and durability. Image on the right side shows the chemical composition of the Aquivion resin.

The Xion Composite PEM-Aquivion-830-05 is a reinforced composite ion exchange membrane that provides excellent mechanical strength and stability to a wide variety of ionomer chemistries. The mechanical reinforcement is the microporous expanded PTFE matrix, which has excellent thermal, chemical, and mechanical stability under various conditions.

2. Electrical, physical, mechanical properties of Xion Aquivion membranes

Xion Composite Aquivion membranes are ultra-thin, highly conductive, and highly stable reinforced proton exchange membranes (PEM). The membranes are based on a perfluorosulfonic acid (PFSA) ionomer developed by Solvay. The Aquivion ionomer produced by Solvay has much shorter side chains than traditional PFSA polymers, providing different ionomer morphology and therefore enhanced physical and chemical properties. A reinforcement layer is integrated into the structure of the membrane to provide enhanced mechanical properties. The enhanced mechanical properties allow Ultra-thin, Ultra-Strong, and Ultra-High-Performance free-standing membranes, i.e. providing higher ionic conductivity without sacrificing strength. Xion Composite Aquivion Membranes come in two variations based on the equivalent weight (EW) of the ionomer: 720EW has higher ionic conductivity, but 830EW has greater stability.


3. Benefits of Xion Composite Aquivion Membranes

-High proton or cation conductivity
-Great chemical stability at low and high temperatures
-Ultra-thin membranes with excellent mechanical strength


4. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

The XION composite PEM membrane with a thickness of 5 μm (Xion PEM-Aquivion-830-05μm) was obtained from SCI Materials Hub.


5. 科学材料站中Xion PEM系列

Membrane properties5μm10μm20μm30μm50μm
Xion PEM-Dyneon-725Xion PEM-Dyneon-725-05Xion PEM-Dyneon-725-10Xion PEM-Dyneon-725-20Xion PEM-Dyneon-725-30Xion PEM-Dyneon-725-50
Xion PEM-Dyneon-800Xion PEM-Dyneon-800-05Xion PEM-Dyneon-800-10Xion PEM-Dyneon-800-20Xion PEM-Dyneon-800-30Xion PEM-Dyneon-800-50
Xion PEM-Nafion-1000Xion PEM-Nafion-1000-05Xion PEM-Nafion-1000-10Xion PEM-Nafion-1000-20Xion PEM-Nafion-1000-30Xion PEM-Nafion-1000-50
Xion PEM-Nafion-1100Xion PEM-Nafion-1100-05Xion PEM-Nafion-1100-10Xion PEM-Nafion-1100-20Xion PEM-Nafion-1100-30Xion PEM-Nafion-1100-50
Xion PEM-Aquivion-720Xion PEM-Aquivion-720-05Xion PEM-Aquivion-720-10Xion PEM-Aquivion-720-20Xion PEM-Aquivion-720-30Xion PEM-Aquivion-720-50
Xion PEM-Aquivion-830Xion PEM-Aquivion-830-05Xion PEM-Aquivion-830-10Xion PEM-Aquivion-830-20Xion PEM-Aquivion-830-30Xion PEM-Aquivion-830-50

Dyneon: 725EW has higher ionic conductivity, but 800EW has greater stability.

Nafion: 1000EW has slightly higher ionic conductivity, but 1100EW has slightly greater stability.

Aquivion: 720EW has higher ionic conductivity, but 830EW has greater stability.


1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

科学材料站 XION PEM 质子交换膜系列
产品名称产品型号厚度产品代码5*5cm10*10cm15*15cm备注
PEM2103质子交换膜Xion PEM-Dyneon-7255μm20021003725 EW Series
PEM2112质子交换膜10μm20021012
PEM2125质子交换膜20μm20021025
PEM2142质子交换膜30μm20021042
PEM2155质子交换膜50μm20021055
PEM2104质子交换膜Xion PEM-Dyneon-8005μm20021004800 EW Series
PEM2113质子交换膜10μm20021013
PEM2126质子交换膜20μm20021026
PEM2143质子交换膜30μm20021043
PEM2156质子交换膜50μm20021056
PEM2101质子交换膜Xion PEM-Nafion-10005μm200210011000 EW series
PEM2110质子交换膜10μm20021010
PEM2123质子交换膜20μm20021023
PEM2140质子交换膜30μm20021040
PEM2153质子交换膜50μm20021053
PEM2102质子交换膜Xion PEM-Nafion-11005μm200210021100 EW series
PEM2111质子交换膜10μm20021011
PEM2124质子交换膜20μm20021024
PEM2141质子交换膜30μm20021041
PEM2154质子交换膜50μm20021054
PEM2105质子交换膜Xion PEM-Aquivion-7205μm20021005720 EW series
PEM2114质子交换膜10μm20021014
PEM2127质子交换膜20μm20021027
PEM2144质子交换膜30μm20021044
PEM2157质子交换膜50μm20021057
PEM2106质子交换膜Xion PEM-Aquivion-8305μm20021006830 EW series
PEM2115质子交换膜10μm20021015
PEM2128质子交换膜20μm20021028
PEM2145质子交换膜30μm20021045
PEM2158质子交换膜50μm20021058
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!

注:下单时请联系客服,注明选择哪个系列。

2-3张 (9.5折);4-5张 (9折);6-7张 (8.8折);8-9张 (8.5折);≥10张 (8折)


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn
