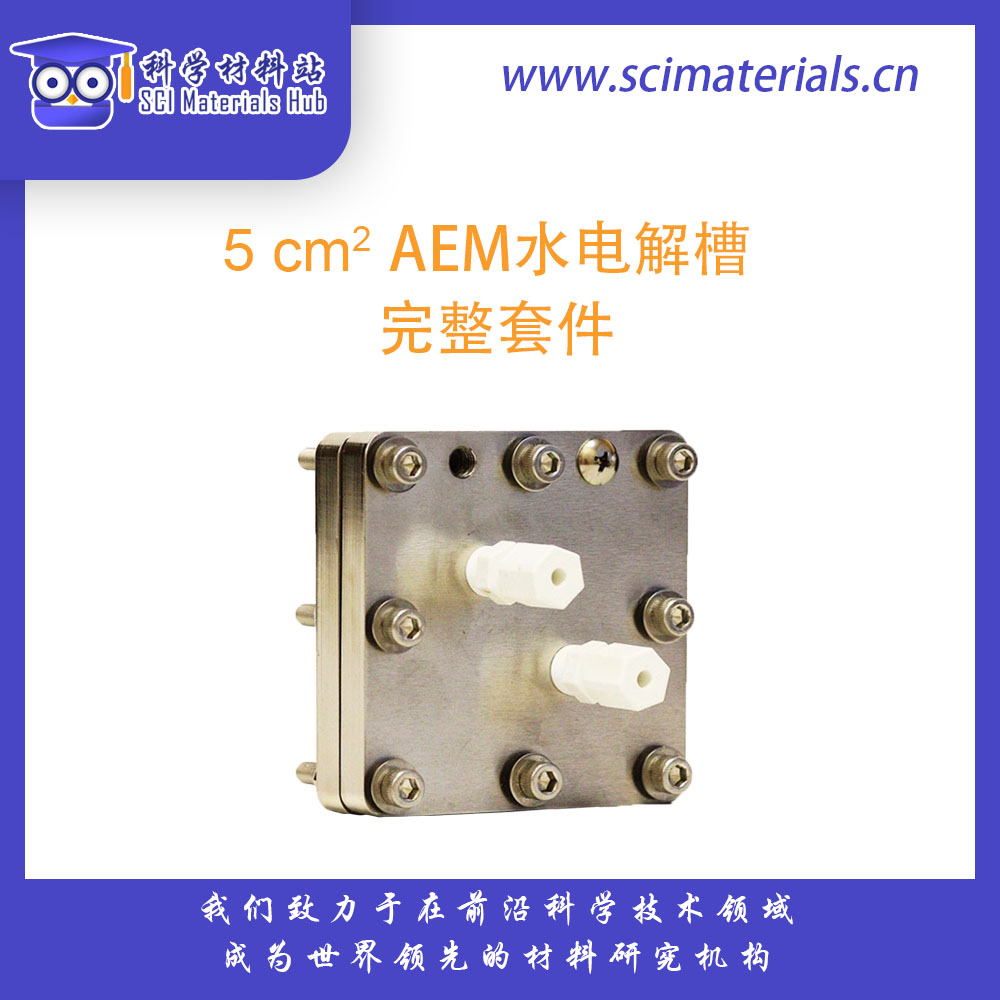

一台完整的碱性阴离子交换膜水电解槽。

该装置包括耐腐蚀的5平方厘米阳极和阴极流场、带有贱金属催化剂的MEA、金属气体扩散层、o形密封圈和特氟龙衬垫。不包括加热器或电缆。

该电解槽设计为在阳极和阴极上流动1M KOH，如Zengcai Liu等人所述。“膜对碱性水电解槽的影响”

https://doi.org/10.1016/j.ijhydene.2017.10.050

详情请见我们的英文网站

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

“***Buyer represents and warrants that all uses of Product will be for Buyer's own use, which means, in particular, that Buyer will not sell, distribute, or transfer Product, whether directly or indirectly, to any class of trade (each a Product Diversion ). Any Product Diversion shall be considered a material breach of this Purchase Contract. The Products contain chemical substances not on the Toxic Substances Control Act (TSCA ) inventory. Samples may be hazardous. Buyer represents and warrants that it will only use the samples for research and development purposes under the supervision of a technically qualified individual.”

这种碱性水电解槽显示出创纪录的性能，因为它包含Sustainion阴离子交换膜

水电解槽用支撑膜的长期效果

1. 它在高电流下工作：1 A/cm²，在60°C下约1.9 V，流速为1 M KOH。

2. 不需要贵金属。

3. 电解槽可以快速打开和关闭。

4. 电解槽的设计使PEM电解槽可以替代碱性水电解槽，获得类似的性能。

使用说明

DM碱水电解槽的初步设置

系统设置（推荐）

通常，系统设置使用蠕动泵测量1M KOH溶液，该溶液从具有两个独立气体分离的公共溶液储层均匀地分到阳极和阴极（图1）。泵的总流量约为3毫升/分钟。建议使用外径为1/8英寸、内径为1/16英寸的聚四氟乙烯管。为了减少阳极和阴极之间的电流泄漏量（或分流电流），分成两股流进入两个电极室后，每侧的管道长度应至少为8英寸（20厘米）。带有两个电极室气体的出口液体流分别流向气体分离器，气体分离器允许液体落入单独的部分，因此两种产品气体不会混合在一起。同时，气体分离器也充当电流断路器。

流体连接

流体入口和出口位于单元的中心（图2）。将泵上的聚四氟乙烯管（1/8“OD）连接到位于底部的压缩配件（6）；将另一个聚四氟乙烯管（1/8”OD）从气体分离装置连接到顶部的压缩配件（6）；并用手指拧紧螺母。在牢房的另一边重复这个。

电源连接

将电线连接的螺纹孔定位在电池顶部（较小的通孔8-32螺纹）。然后用Phillips圆头螺钉（#9）连接环形端子。对阳极和阴极使用相同的步骤。

电池测试和操作

以3ml/min的速率从溶液储罐和气体分离器的底部连接处开始泵送1M KOH溶液，该溶液被分成两个流，一个流到阳极室的入口，另一个流到阴极室。然后通过打开温度控制器并将温度设置为60°C（单独出售的加热器）开始加热电池，并在通电前将温度保持在60°C至少30分钟。用电线/电缆（不包括）将电源上的阳极电线（红色）和阴极电线（黑色）分别连接到正极和负极连接上。将电源电压设置为2.2V，然后慢慢开始将电流增加至5 a（1A/cm²）。电池电流将在几分钟或几小时内达到所需的5A，这取决于电池膜和电极的调节。也可以使用恒电位仪进行测试，但连接取决于测试协议。

1. 手机淘宝（官方淘宝店铺：科学材料站）

2. 点击进入淘宝网页链接

*包含以下服务

- 科学材料站的全程技术服务: 已包含

科学材料站提供该设备购买后的使用技术全程支持, 建立用户与厂家的技术对接。

**用户选择免除以下服务, 可在原价基础上减免相应费用

- 取消科学材料站的技术服务: 减免500元

科学材料站提供该设备购买后的全程使用技术支持。 如取消该服务, 科学材料站将不再提供该项服务, 用户遇到问题亦可联系原厂家。 取消后, 如再需科学材料站的技术支持, 需额外缴纳双倍服务费用(1000元)。

- 取消科学材料站的售后服务: 减免500元

科学材料站提供该设备购买后的售后服务。主要包含: 如设备在购买后存在质量问题，或在使用过程中存在问题 需进行返厂维修的, 科学材料站将全力协助用户经行退换货或维修, 在厂家同意退换货的情况下, 科学材料站将负担退换货过程中产生的国际运费, 清关费用及其它所有费用。科学材料站负责设备的其它售后服务。如减免该项服务，遇到问题, 用户需直接联系厂家进行解决。如再需我方服务, 需额外收取双倍服务费用(1000元)及产生的其它费用（如物流，关税等）。

**DM电解槽质保和售后服务：科学材料站是美国DM中国代理，负责其所有产品在中国的销售、质保及售后，科学材料站将为用户提供尽可能多的售后服务，所有质保及售后将仅在【美国Dioxide Materials质保和售后】的框架内进行。

a. 用户在收到电解槽时，请勿必仔细检查外观，如有明显的擦伤、缺陷，请第一时间联系科学材料站客服。科学材料站将会把用户问题反馈到DM总部，经DM总部认定是他们的问题 并得到DM同意退货或换货的，科学材料站将对购买质保服务的用户进行免费的退换货，在此过程中产生的任何费用（往返国际运费、税费、清关费用等），将有科学材料站承担。

注意：对于取消科学材料站质保服务的，需要自行承担所有退换货过程中的费用。

注意：在未使用前进行问题反馈，是最容易得到DM有效反馈的阶段，请用户勿必在为使用前进行仔细检查。

b. 对于电解槽完整配件，使用后，如用户不能重复出厂家测试报告的性能。请用户以WORD或PDF的形式，提供详细的书面报告，尽量证实是DM的产品在出厂时有问题，这样可以最大可能得到DM的认可。经DM总部认定是他们的问题 并得到DM同意退货或换货的，科学材料站将对购买质保服务的用户进行免费的退换货，在此过程中产生的任何费用（往返国际运费、税费、清关费用等），将有科学材料站承担。

注意：对于取消科学材料站质保服务的，需要自行承担所有退换货过程中的费用。

注意：在使用后出现问题的，需要提供充分证据，以得到DM的认可。

c. 对于电解槽硬件，使用后即无法得到质保及售后服务。美国Dioxide Mateirals和科学材料站均不保证用户使用该硬件可以重复出DM官方数据或者文献数据。因为这里面涉及到电解槽硬件内部最核心的部分，即膜电极组件（MEA）。然而，用户亦可以WORD或PDF的形式，提供详细的书面报告，最大可能得到DM的认可。经DM总部认定，并同意退货或换货的，科学材料站将对购买质保服务的用户进行免费的退换货，在此过程中产生的任何费用（往返国际运费、税费、清关费用等），将有科学材料站承担。

注意：对于取消科学材料站质保服务的，需要自行承担所有退换货过程中的费用。

注意：在使用后出现问题的，需要提供充分证据，以得到DM的认可。

3. 其它联系方式

电话：+86 130-0303-8751/+86 156-0553-2352

微信：SCI-Materials-Hub

如需报价单请联系：Email: contact@scimaterials.cn
