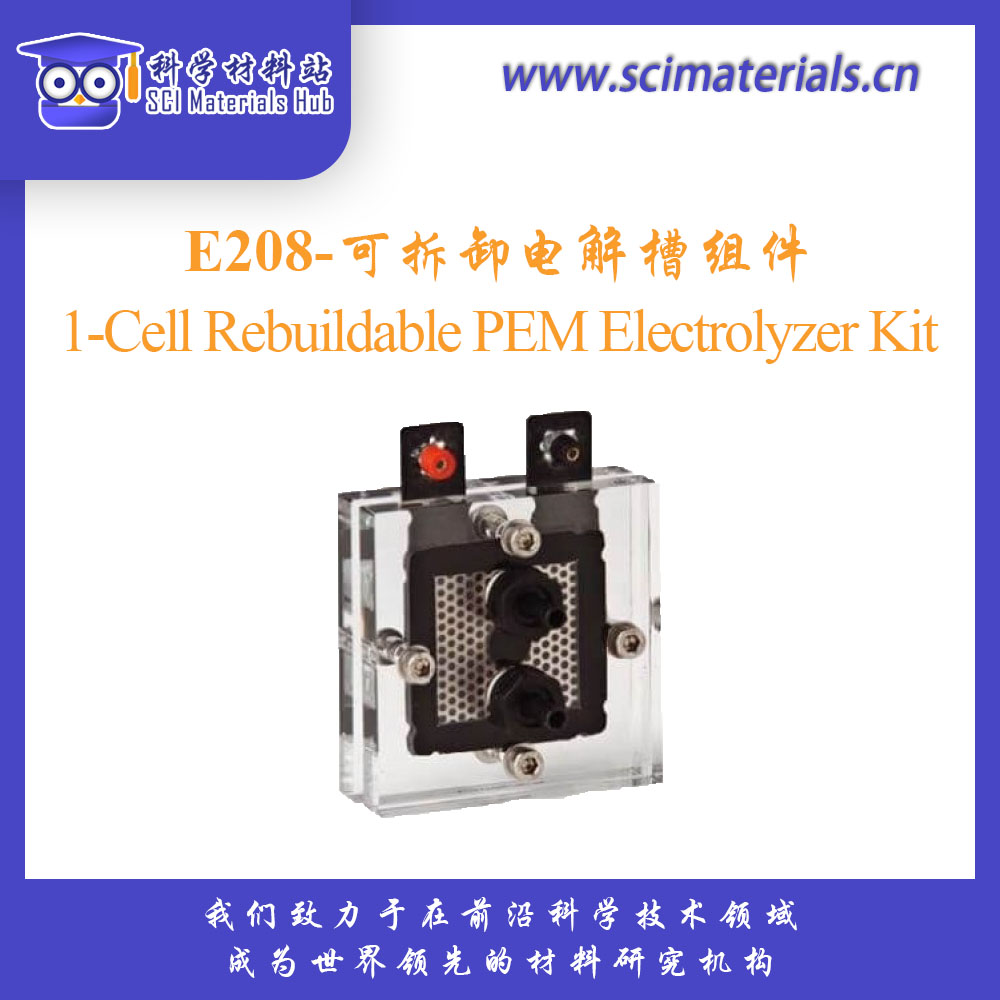

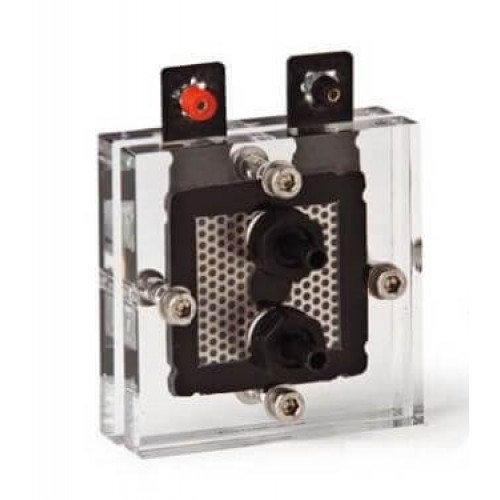

H-TEC Education's 1-Cell Rebuildable PEM Electrolyzer Kit contains a Proton Exchange Membrane ElectrolyZer (PEMEZ) that can be completely disassembled and then reassembled especially for education and research purposes. The PEM electrolyzer can generate hydrogen and oxygen from de-ionized water (or distilled water) with the aid of a power supply. This education kit is ideal for students to learn about hydrogen economy and clean energy technologies. All the tools needed for assembly/disassembly of the 1-cell hardware are included! A power supply is not included in the education kit. A small and simple power supply that can provide the following voltage and current values will be sufficient to operate this electrolyzer cell: 0 V to 2.5 V and 0 A to 5 A.
In an electrolyzer, electrical energy is converted directly to chemical energy via electrochemical route. De-ionized water (or distilled water) is supplied from outside to the anode side of the electrolyzer cell and gets converted into hydrogen and oxygen gas. This is also known as electrolysis. In the electrolysis reaction, at the anode side, de-ionized water (or distilled water) is converted into protons, oxygen gas, and electrons. Protons travel to the cathode side by going through the membrane used inside the electrolyzer cell. Electrons travel to the cathode through the external circuit. At the cathode, proton ions get converted into hydrogen gas.
√ Anode: 2H2O → 4H+ + O2 + 4e-
√ Cathode: 4H+ + 4e- → 2H2
√ Complete Reaction: 2H2O → 2H2 + O2
Technical Specifications:
√ Electrode Area: approximately 16 cm2
√ Electrical voltage input (with room temp. de-ionized water, 20-23 ℃: 0 V to 2.0 V
√ Electrical current input (with room temp. de-ionized water, 20-23 ℃: 0 A to 4.0 A
√ Current Density (with room temp. de-ionized water, 20-23 ℃: approximately 0 mA/cm2 to 250 mA/cm2
√ Electrical voltage input (with slightly warmed de-ionized water, 36-39 ℃: 0 V to 2.0 V
√ Electrical current input (with slightly warmed de-ionized water, 36-39 ℃: 0 A to 5.0 A
√ Current Density (with slightly warmed de-ionized water, 36-39 ℃: approximately 0 mA/cm2 to 312 mA/cm2
√ Requires Commercial distilled (deionized) water with a conductivity of < 2 μS/cm
√ Max. temperature for de-ionized water (or distilled water) for anode inlet: 60 ℃
√ Dimensions (H x W x D): 98 x 80 x 78 mm
√ Weight: 225 g

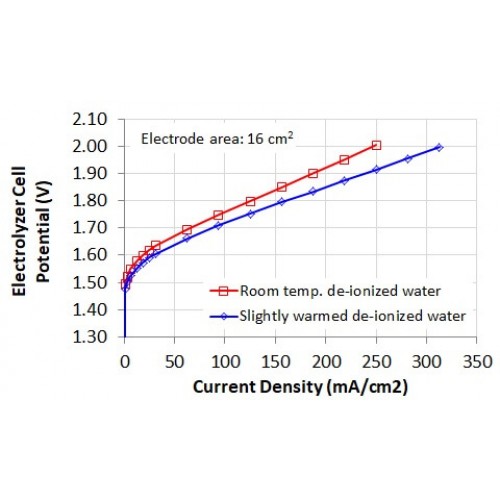

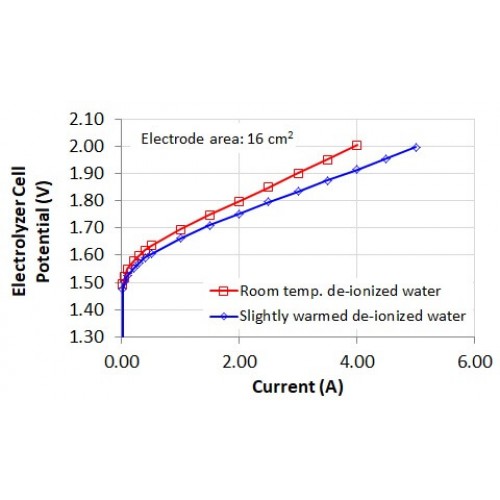

The provided electrolyzer performance data is only for reference purposes. Depending on the quality of the de-ionized water, temperature of the water, ambient temperature, water transfer method (actively-fed with a liquid pump or gravity-fed), etc., the customers may get slightly lower or higher performance than the ones posted for this particular product.
资料下载:
E208 1-Cell Rebuildable PEM Electrolyzer Manual.pdf
E208-可拆卸电解槽组件 技术参数 | |
产品型号 | E208 |
产品代码 | 1401037 |
电极面积 | 16 cm2 |
电压输入(20-23℃去离子水) | 0-2 V |
电压输入(36-39℃去离子水) | 0-2 V |
电流输入(20-23℃去离子水) | 0-4 A |
电流输入(36-39℃去离子水) | 0-5 A |
电流密度(20-23℃去离子水) | 0-250 mA/cm2 |
电流密度(36-39℃去离子水) | 0-312 mA/cm2 |
阳极入口去离子水的最高温度 | 60 ℃ |
尺寸 | 98X80X78 mm |
重量 | 225 g |
科学材料站致力于提供最优的价格和用户服务! |
特别说明:因本商品为科研用具,一经使用,如非质量问题,恕不退换货,请在下单之前与客服充分沟通。
氢气是可燃气体,因为其热值高,且燃烧产物为水,无污染物排放,对环境很友好,正日益受到人们的关注。
氢气的制取方式很多,其中以电解水制氢为最主要的制氢方式。

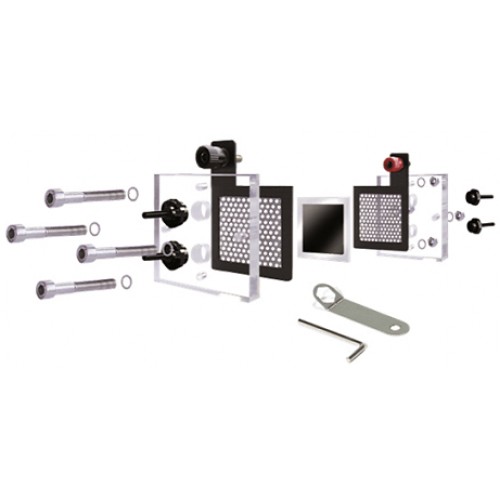

E208-可拆卸电解槽套件包含一个质子交换膜电解槽(PEMEZ),可完全拆卸,然后重新组装,特别是用于教育和研究目的。

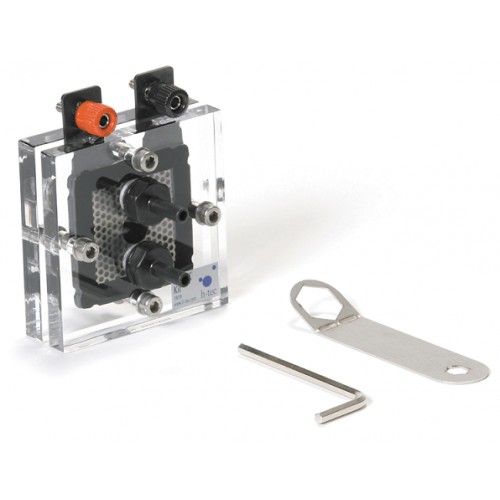

本套件包括组装/拆卸单电池硬件所需的所有工具,教育工具包中不包括电源。一个能提供以下电压和电流值的小而简单的电源足以操作该电解槽:0V到2.5V和0A到5A。
科学材料站作为美国FuelCellStore在中国代理,负责H-TEC(隶属于FuelCellStore)系列产品的销售及售后。E系列电解槽是H-TEC公司研发的一系列用于教学和研究的电解水制氢设备,采用先进的质子交换膜技术,给电解槽的正极、负极提供电力,通过电解水就可以制取氢气,其结构包括:阴极、阳极、质子交换膜(PEM)。
其内部会发生以下反应:
阳极反应:2H2O -> 4H+ + 4e- + O2
阴极反应:4H+ + 4e- -> 2H2
特别说明,本电解槽组件免维护,但是,请记住每次使用新鲜蒸馏水或者电导率小于2μS/cm的商用蒸馏(去离子)水,并在使用后必须将储罐中的水排出。

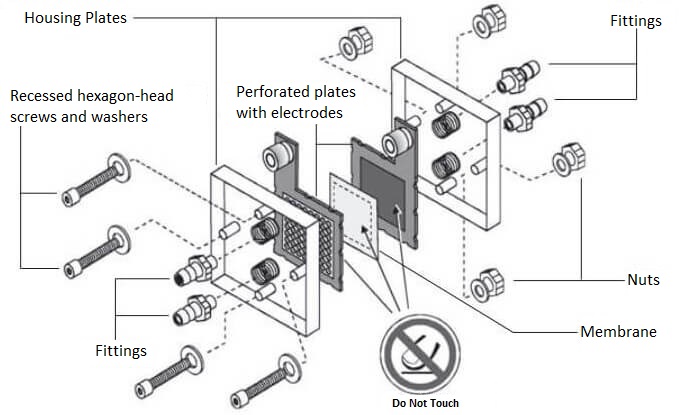

E208型结构图
1. 手机淘宝(官方淘宝店铺:科学材料站)
2. 点击进入淘宝网页链接
H-TEC 电解槽(组件)系列 | |||
产品代码 | 产品描述 | 价格(¥) | 货期 |
1401030 | E101-单极电解槽(组件) | 1930 | 请咨询 |
1401031 | E103-单极电解槽(单个电极) | 1299 | 请咨询 |
1401032 | E104-双极电解槽(单个电极) | 1499 | 请咨询 |
1401033 | E105-四极电解槽(单个电极) | 1899 | 请咨询 |
1401034 | E205-双极电解槽(组件) | 2250 | 请咨询 |
1401035 | E206-电解槽双模块组件 | 3999 | 请咨询 |
1401036 | E207-电解槽七模块组件 | 5999 | 请咨询 |
1401037 | E208-可拆卸电解槽组件 | 2480 | 请咨询 |
