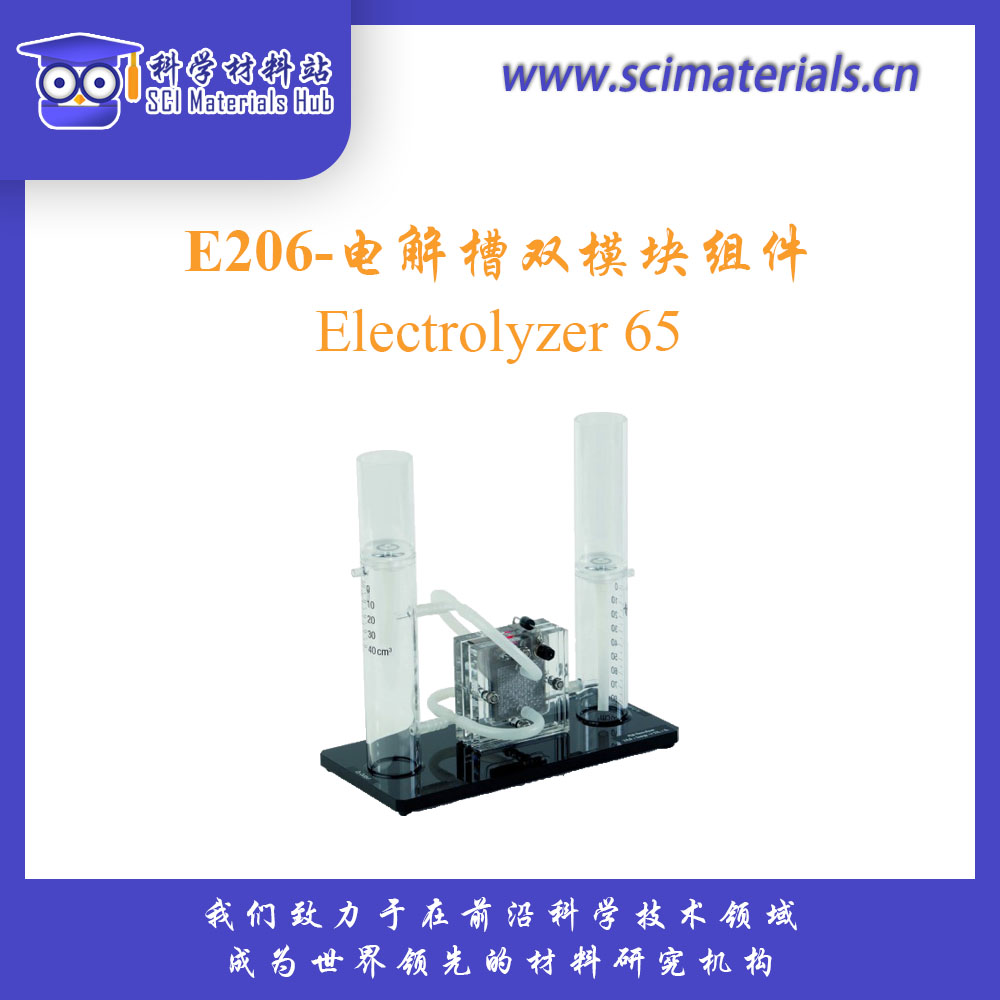

E206-电解槽双模块组件

  • 产品代码:1401035
  • 产品描述:E206 Electrolyzer 65
  • 品牌:H-TEC
  • 货期:2-4周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:E206-电解槽双模块组件, E206 Electrolyzer 65, SCI Materials Hub, 科学材料站
65.7K

The Electrolyzer 65 is Double-Cell PEM electrolyzer stack, for production of hydrogen from distilled water. The center of the cell houses the hydrogen side of the two individual cells. The two outer sides of the cell have the function of supplying water and removing the oxygen produced. The two individual cells are connected electrically in series. Both cells have an electrode area of 16 cm2.

The electrolyzer provided in this set is maintenance-free. However, always remember to use fresh, distilled water each time and to drain the water from the storage tanks after use.


Specifications:

Hydrogen Production Rate: 65 cm3/min
Oxygen Production Rate: 32.5 cm3/min
Hydrogen Storage Volume: 80 cm3/min
Oxygen Storage Volume: 40 cm3/min
Power Consumption: 16 Watts at 4.0 VDC
Permissible Operating Voltage: 0 - 4 VDC
Permissible Operating Current: 0 - 4.4 A
Permissible Operating Pressure: 0 - 5 mbar
Electrode Area: 2 cells at 16cm2 each
Operating Medium: Distilled Water
Dimensions (H x W x D): 250 x 250 x 120 mm
Weight: 950 g


About PEM Electrolyzers

The growing significance of PEM electrolyzers mirrors the development of fuel cells. Electrolyzers generate the hydrogen required by fuel cells from water in an environmentally conscious manner. The electrical energy required for this purpose can be gained from renewable sources such as solar cells, wind farms or hydroelectric plants.

Water reacts in the electrolyzer under the influence of electrical energy according to the following formula: 2H2O → 2H2 + O2. This process takes place in the MEA (membrane electrode assembly). The MEA consists of the cathode, the anode, and a special polymer membrane (PEM) which is permeable to protons but which presents a barrier to electrons. Your h-tec electrolyzer functions on the PEM principle. The energy stored in chemical form in the gases can be converted back to electrical energy in a fuel cell as and when required.


The electrolyser does not produce hydrogen when the solar cell is connected.
Cause 1: The light intensity is insufficient.
Solution 1: Check the power specifications of the light source. You need sufficient sunlight or halogen lamps with focused light such as the Sun Simulator Light. Energy-saving lamps, fluorescent tubes, etc. are not suitable for the operation of solar modules.

Cause 2: You are using a double-cell electrolyser (electrolyser 10 or electrolyser cell 10) and are running it with a solar module for single cells.

Solution 2: Use the appropriate solar module - the Tutorial Double Solar Module.


The electrolyser does not work despite being set up correctly.
You have not used distilled water. The cell is permanently damaged.

资料下载:

E206 Electrolyzer 65 Manual.pdf


H-TEC 电解槽模块组件 技术参数
产品型号

E206

E207

产品代码

14010351401036

电解板组数

2组

7组

制氢速率(额定功率下)

65毫升/分钟

230毫升/分钟

制氧速率(额定功率下)

32.5毫升/分钟

115毫升/分钟

氢气侧填充体积

90 毫升

90 毫升

氧气侧填充体积

130 毫升

130 毫升

氢气储存量

80毫升

80毫升

氧气储存量

40毫升

40毫升

允许工作电压

0-4V/DC

0-14V/DC

允许工作电流

0-4.4A

0-4.4A

整体功耗

16W

56W

允许工作压力

0-2000Pa

0-2000Pa

电解板面积

2X16cm2

7X16cm2

尺寸(长X宽X高)

250X250X120mm

250X330X200mm

重量

950g

1850g

制氢速率(额定功率下)

65毫升/分钟

230毫升/分钟

制氧速率(额定功率下)

32.5毫升/分钟

115毫升/分钟

氢气侧填充体积

90 毫升

90 毫升

氧气侧填充体积

130 毫升

130 毫升

氢气储存量

80毫升

80毫升

氧气储存量

40毫升

40毫升

允许工作电压

0-4V/DC

0-14V/DC

允许工作电流

0-4.4A

0-4.4A

整体功耗

16W

56W

允许工作压力

0-2000Pa

0-2000Pa

电解板面积

2X16cm2

7X16cm2

尺寸(长X宽X高)

250X250X120mm

250X330X200mm

重量

950g

1850g

实物图
科学材料站致力于提供最优的价格和用户服务!


氢气是一种可燃气体,因其热值高,燃烧产物为水,无污染物排放,对环境非常友好,越来越受到人们的关注。

制氢的方法有很多种,其中电解水是制氢最主要的方法之一。

科学材料站作为FuelCellStore中国区代理,负责H-TEC(FuelCellStore旗下)系列产品的销售和售后工作。 E系列电解槽是H-TEC公司为教学和研究开发的系列水电解制氢设备。 它采用先进的质子交换膜技术为电解槽的正负极提供电力,可以通过电解水来生产。 氢气,其结构包括:阴极、阳极、质子交换膜(PEM)。

电解水反应:

阳极反应:2H2O -> 4H+ + 4e- + O2

阴极反应:4H+ + 4e- -> 2H2

模块组由单个电解槽串联组成,使产氢率大大提高,模块化设计还可以让用户单独扩展。

特别是该电解槽组件免维护,但请记住每次使用电导率小于2 μS/cm的蒸馏水或去离子水,并且使用后必须将储罐中的水排干保存。

1. E206-电解槽双模块组件

E206型电解槽双模块组件是一款升级版的电解槽组件,包含两块模块化电解板,该组件由一个电解板模块、两条溢流管、一个反应水箱、一个250mL独立管接头、一套连接管道和两个管夹组成。


E206型电解槽双模块组件


2. E207-电解槽七模块组件

E207电解槽七模块组件是电解槽组件的升级版。 它包含七个模块化电解板。 该组件由一个电解板模块、两个溢流管、一个反应水箱、一个250mL独立管接头、一套连接管、两个管夹组成


E207型电解槽七模块组件
