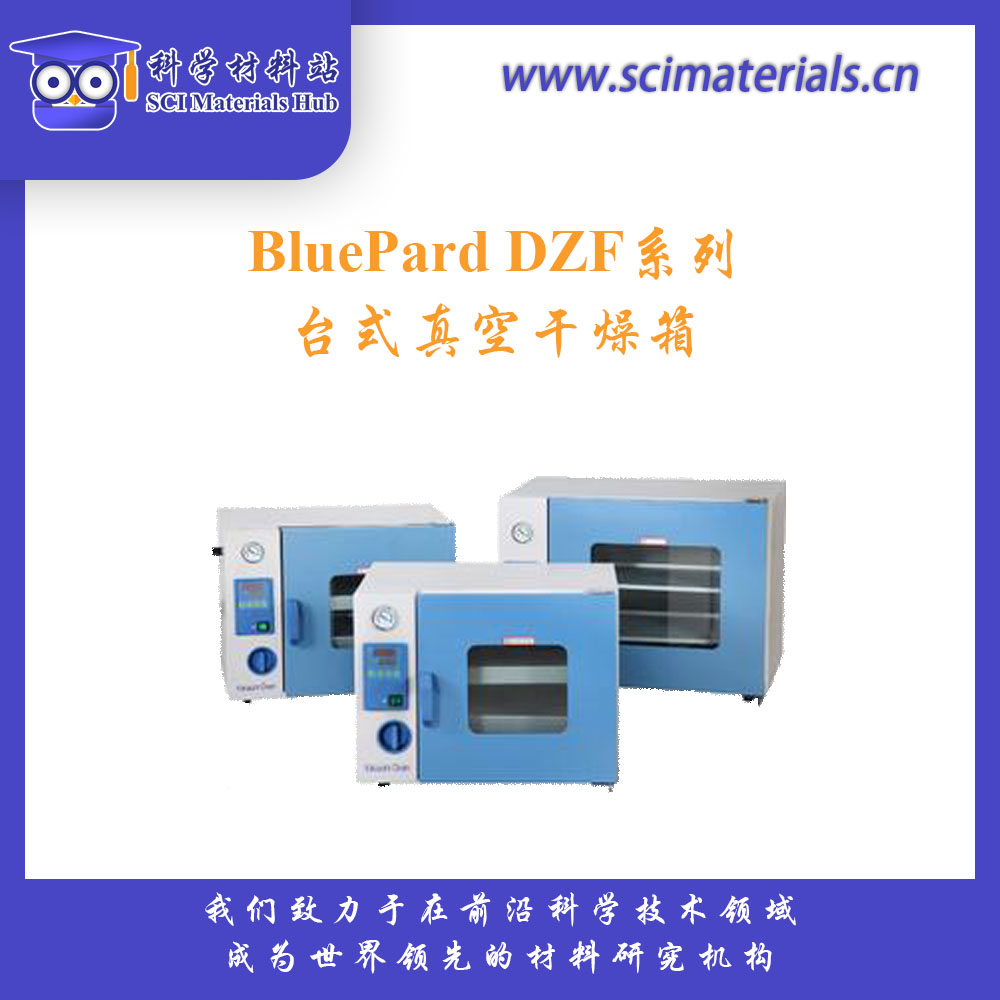

DZF-台式真空干燥箱(热销)

  • 产品代码:3002021
  • 产品描述:DZF Desktop vacuum drying oven
  • 品牌:BluePard
  • 货期:3天
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:DZF-台式真空干燥箱, DZF Desktop vacuum drying oven, SCI Materials Hub, 科学材料站
65.7K

新一代真空干燥箱,集公司多年在箱体加热方面的成功经验,通过不断潜心研究,突破传统技术创造性解决了在热传导过程中的“瓶颈”——寻找到完美的热传导方式。


用途概述:

真空干燥箱专为干燥热敏性、易分解和易氧化物质而设计,能够向内部充入惰性气体,特别是一些成分复杂的物品也能进行快速干燥。


产品特点:

● 长方体工作室,使有效容积达到最大,微电脑温度控制器,控温精确可靠,与传统真空箱相比,干燥时间减少40%以上。

● 钢化、防弹双层玻璃门观察工作室内物体,一目了然,能够向内部充入惰性气体(选配)。

● 箱门闭合松紧可调节,整体成型的合成硅门封圈,确保箱内保持高真空度。

● 工作室采用不锈钢板材料制成,确保产品经久耐用,便于清洁。

● 储存、加热、试验和干燥可在没有氧气或者充满惰性气体环境里进行,不会导致氧化。

资料下载:

DZF-台式真空干燥箱.pdf


DZF-台式真空干燥箱 技术参数

型号

台式机

DZF-6050

DZF-6053

DZF-6055

DZF-6056

DZF-6012

DZF-6020(爆款)

DZF-6022

DZF-6024

DZF-6021

DZF-6051

化学专用

DZF-6030A

DZF-6032

DZF-6034

生物专用

DZF-6030B

DZF-6050B

DZF-6055B

电源电压

AC220V 50HZ

输入功率

1450W

400W/400W/700W/700W

400W/1450W

850W

300W/650W/650W

控温范围

RT+10200℃

RT+1065℃

温度分辨率/波动度

0.1℃ / ±1℃

达到真空度

133Pa

真空表

机械指针式

工作环境温度

540℃

内胆尺寸

(mm)W×D×H

415×370×345

220×210×220

300×300×275

300×300×275

415×370×345

320×320×300

320×320×300

415×370×345

外形尺寸

(mm)W×D×H

730×560×550

500×375×410

605×490×450

605×490×450

730×560×550

630×510×490

610×510×490

730×560×550

搁板

2/3/5/6

2/1/2/4

1/2

1/2/4

1/2/5

工作室材料

不锈钢304

(1Cr18Ni9Ti)

冷轧板(08F)

不锈钢316

(OCr17Ni12Mo2

不锈钢304(1Cr18Ni9Ti)

价格

RMB6390

RMB6890

RMB7590

RMB8390

RMB3490

RMB4590

RMB5290

RMB5890

RMB3890

RMB5690

RMB6690

RMB7290

RMB8390

RMB5790

RMB6890

RMB8190


DZF-台式真空干燥箱 技术参数

型号

DZF-6213

DZF-6216

DZF-6123

DZF-6126

DZF-6092

DZF-6094

DZF-6096

电源电压

AC220V 50HZ

输入功率

1550W /2850W

1500W/2300W

870W/1950W/1950W

控温范围

RT+10~200℃

温度分辨率/波动度

0.1℃ / ±1℃

达到真空度

133Pa

真空表

进口真空表/机械指针式

工作环境温度

+5~40℃

内胆尺寸(mm)W×D×H

600×600×600

500×500×500

450×450×450

外形尺寸(mm)W×D×H

890×760×741

790×660×641

740×610×591

搁板

3块(独立控温)/6块

3块(独立控温)/6块

2块/4块/6块

工作室材料

不锈钢304(1Cr~18Ni9Ti)

价格

RMB35000

RMB40900

RMB27000

RMB32900

RMB18000

RMB20900

RMB24900


注:1、台式系列带进气阀门控制(不标配真空泵)

2、根据用户需要,产品控温范围可扩至RT+10~250℃,或RT+10~100℃,交货期为15天,按市场价加收15%费用

3、6020、6021、6213、6123、6092的加热方式为搁板式加热方式,其余产品采用内胆四周捆绑式加热

4、如定制300℃真空干燥箱,只能采用搁板加热方式,交货期20天,加收市场价20%费用


选购件:(增加选购件交货期7天)

1、智能型程序液晶温度控制器

¥1500 元

2、惰性气体进气阀

¥500元

3、进口真空表

¥800元

4、下箱体柜

¥1000元

5、液态水过滤器(按规格型号定价,适用高湿干燥用)

¥700元

6、干燥罐

¥550元

7、进口Vacuumer VOP-100/200

¥8800元/10900元

8、可选配排气油污过滤装置(建议6个月更换一次)

¥2500元

9、可选配搁板

10、国产真空泵2XZ-2

11、国产真空泵2XZ-4

每块¥500~2000元

¥1850元

¥2250元


※ 最少的能量损失(零热能损失)

6020、6021、6213、6123、6092加热器都位于箱体内部搁板上,最大限度的减少热量损失。

化学专用的真空干燥箱(6030A、6032、6034)箱体工作室内胆材料为防腐蚀的不锈钢材料(316:OCr17Ni12Mo2)
