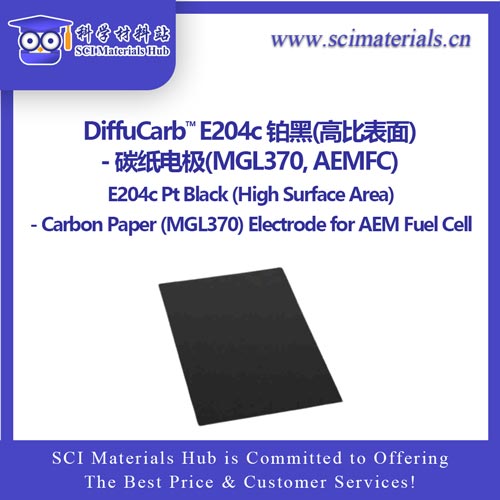

DiffuCarb™ E204c 铂黑(高比表面)-碳纸电极(MGL370，AEMFC)是一种用于碱性燃料电池（AFC）和阴离子交换膜燃料电池（AEMFC）的高效电极。同时，该电极可用于AEMWE碱性电解水阴极。它结合了高电催化活性的铂黑（Pt black）、高导电性的碳纸基材，并使用了MGL370碳纸基材，且未经过PTFE（聚四氟乙烯）处理。这种电极设计旨在提高燃料电池的整体性能、耐久性和成本效益。以下是这种电极在AFC和AEMFC中的详细介绍。

1. 材料组成与结构

• 铂黑（Pt black）:

  • 铂黑是一种高比表面、高活性的铂催化剂，其颗粒极其微小（纳米级），大大增加了暴露在反应环境中的活性表面积。铂黑的高比表面积使其能够提供更多的催化位点来促进氧气还原反应（ORR）和氢气氧化反应（HOR），从而提升燃料电池的功率密度和效率。
  • 铂黑的多孔结构能够提高电极的反应效率，通过增大电极的接触面使反应物更容易扩散到催化位点。

• 高比表面碳支持材料:

  • 铂黑通常分散在高比表面碳材料（如碳黑或碳纳米管）上，以防止铂颗粒团聚并提高电极的整体导电性。高比表面碳材料还帮助稳定铂颗粒并延长电极的使用寿命。

• MGL370碳纸基材:

  • MGL370是一种具有高导电性和机械强度的碳纸基材。MGL370具有高孔隙率和透气性，使其更适合在燃料电池电极中应用。MGL370的微孔结构优化了气体扩散，确保氧气和氢气能够有效到达催化剂层。
  • MGL370碳纸的厚度和孔隙结构提供了有效的气体扩散路径，同时还能支持催化剂层的附着和分布。

• 无PTFE处理:

  • 采用无PTFE处理的碳纸基材可以保留更高的导电性，因为PTFE是一种绝缘材料。未涂覆PTFE意味着碳纸表面完全由导电碳纤维构成，有助于电子更高效地传导。
  • 没有PTFE处理的表面也允许更自由的气体和液体传输，适合在实验室或湿度受控的环境下操作。然而，这种配置在实际应用中可能需要更严格的水管理以防止积水和电极堵塞。

2. 电极性能

• 高催化活性: 铂黑的高比表面积极大地增加了电极的活性位点，使其对ORR和HOR具有高催化效率。这种高活性有助于降低电极的启动电压，提高燃料电池的功率输出。

• 优良的导电性: MGL370碳纸基材提供了良好的导电路径，有助于减少电池的内部电阻。碳纸的纤维结构确保了电子能够有效地在电极和外部电路之间传递。

• 气体扩散和水管理: 高孔隙率的MGL370碳纸允许气体迅速扩散到催化剂层，同时促进反应生成的水分离。无PTFE处理的碳纸在保持湿润时可以更有效地管理气体和液体的传输，但可能需要严格的环境控制以避免过度积水。

3. 应用场景

• 碱性燃料电池 (AFC):

  • 在AFC中，铂黑/碳纸电极用作阳极（氢气氧化反应）或阴极（氧气还原反应）材料。AFC的碱性环境允许使用较少的铂，并且其操作温度较低，使铂黑电极在AFC中非常有效。
  • 铂黑电极的高催化活性可以提高氢气氧化和氧气还原的反应速率，从而提高AFC的整体效率。

• 阴离子交换膜燃料电池 (AEMFC):

  • 在AEMFC中，铂黑/碳纸电极通常作为阴极使用，以催化氧气还原反应。这些电极与阴离子交换膜（如PPO基膜）配合使用，可有效传导OH⁻离子，同时提供低电阻和高效率。
  • AEMFC由于可以使用碱性电解质，因此对催化剂材料的选择更加灵活，铂黑电极能够提供高性能的氧还原反应支持。

4. 优势与挑战

• 优势:

  • 高活性和效率: 铂黑的高比表面积提供了更多的活性位点，使得ORR和HOR反应的效率更高。
  • 高导电性和机械稳定性: MGL370碳纸确保了电极的导电性和机械强度，支持长期稳定运行。
  • 良好的气体和水管理能力: 高孔隙率结构使MGL370碳纸能够有效处理气体扩散和水生成问题。

• 挑战:

  • 铂的高成本: 铂的高成本和稀有性限制了其大规模商业化应用。因此，降低铂负载量或开发替代催化剂是燃料电池技术研究的关键方向。
  • 无PTFE处理带来的水管理问题: 无PTFE处理的电极在高湿度条件下可能容易积水，这会阻塞气体传输通道，影响电池性能。需要在设计中考虑额外的水管理策略。
  • 耐久性问题: 长时间运行过程中，铂颗粒可能会发生溶解或团聚，导致催化活性下降。开发更稳定的催化剂结构和碳支持材料是提高耐久性的研究重点。

5. 研究方向

• 优化铂负载: 通过优化铂黑的负载量和分布，可以最大化催化剂的利用效率，从而在保持高性能的同时降低成本。
• 替代催化剂开发: 研究非贵金属催化剂（如Ni、Co、Fe基材料）或铂合金催化剂，以降低对铂的依赖。
• 改进电极结构: 通过纳米结构化技术或采用多层复合材料，优化电极的孔隙结构和表面特性，提高气体扩散效率和水管理能力。

结论

DiffuCarb™ E204c 铂黑(高比表面)-碳纸电极(MGL370，AEMFC)在碱性燃料电池和阴离子交换膜燃料电池中显示出极高的性能潜力。其高催化活性、优良的导电性以及良好的气体扩散能力使其成为先进燃料电池系统的理想选择。然而，为了实现广泛的商业化应用，还需进一步优化电极材料和结构，提高电极的耐久性和经济性。
