Millipore Durapore™ 是 Merck Millipore 旗下经典 PVDF 聚偏二氟乙烯微孔滤膜系列，具有高流速、高通量、低溶出物、广泛化学兼容性等特点。Durapore™ 同时提供亲水型与疏水型两类产品，可根据水性样品、蛋白样品、溶剂样品、气体过滤、空气/气体除菌等不同实验场景进行选择。官方资料显示，亲水 Durapore™ PVDF 膜相比尼龙、硝酸纤维素或 PTFE 膜具有更低蛋白吸附，适合希望降低样品损失、提高回收率的实验。
| 特点 | Durapore™ 亲水 PVDF 滤膜 | Durapore™ 疏水 PVDF 滤膜 |
材质 | PVDF 聚偏二氟乙烯 | PVDF 聚偏二氟乙烯 |
表面性质 | 亲水，适合水性样品和生物溶液 | 疏水，适合气体、空气、溶剂和排气过滤 |
蛋白吸附 | 低蛋白吸附，适合高回收率样品过滤 | 蛋白结合量高于亲水型，常见官方参数为 150 μg/cm² |
典型用途 | 生物溶液除菌过滤、蛋白溶液过滤、缓冲液过滤、水性样品澄清、微生物截留 | 空气除菌、气体除菌、溶剂过滤、排气保护、疏水屏障过滤 |
流速表现 | 水流速高，适合液体过滤 | 空气流速表现好，水性液体通常需甲醇等相容溶剂预润湿 |
适合样品 | 水溶液、缓冲液、蛋白样品、生物制剂前处理 | 有机溶剂、空气、气体、非水体系样品 |
常见颜色/表面 | 白色、光面/plain filter | 白色、光面/plain filter |
是否可灭菌 | 可高压蒸汽灭菌、EO 或 γ 射线灭菌，具体以货号为准 | 可高压蒸汽灭菌、EO 或 γ 射线灭菌，具体以货号为准 |
以下参数依据 Merck Millipore Durapore™ 官方产品性能表及代表性商品页面整理；Filter Code 通常对应货号前 4 位，实际订购时需结合直径、包装数量和货号后缀确认。Durapore™ 通用规格包括白色、光面、典型厚度 125 μm、最高操作温度 85°C、重量溶出物<0.5%，灭菌方式可选高压蒸汽灭菌、EO 或 γ 射线。
系列 | Filter Code | 孔径 | 润湿性 | 泡点 | 水流速 | 空气流速 | 蛋白结合量 | 典型应用 |

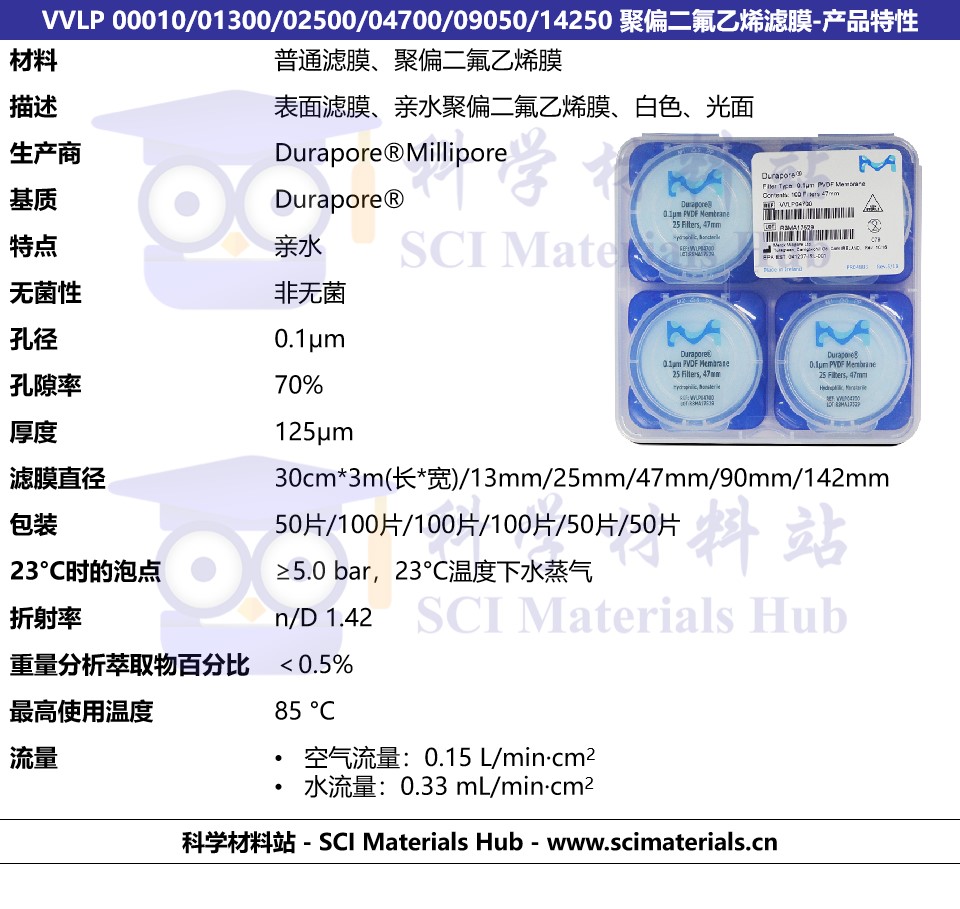

Durapore™ PVDF | VVLP | 0.1 μm | 亲水 | ≥75 psi，空气/水 | >4 mL/min/cm² | — | 4 μg/cm² | 精细颗粒截留、除菌级液体过滤、生物溶液过滤 |

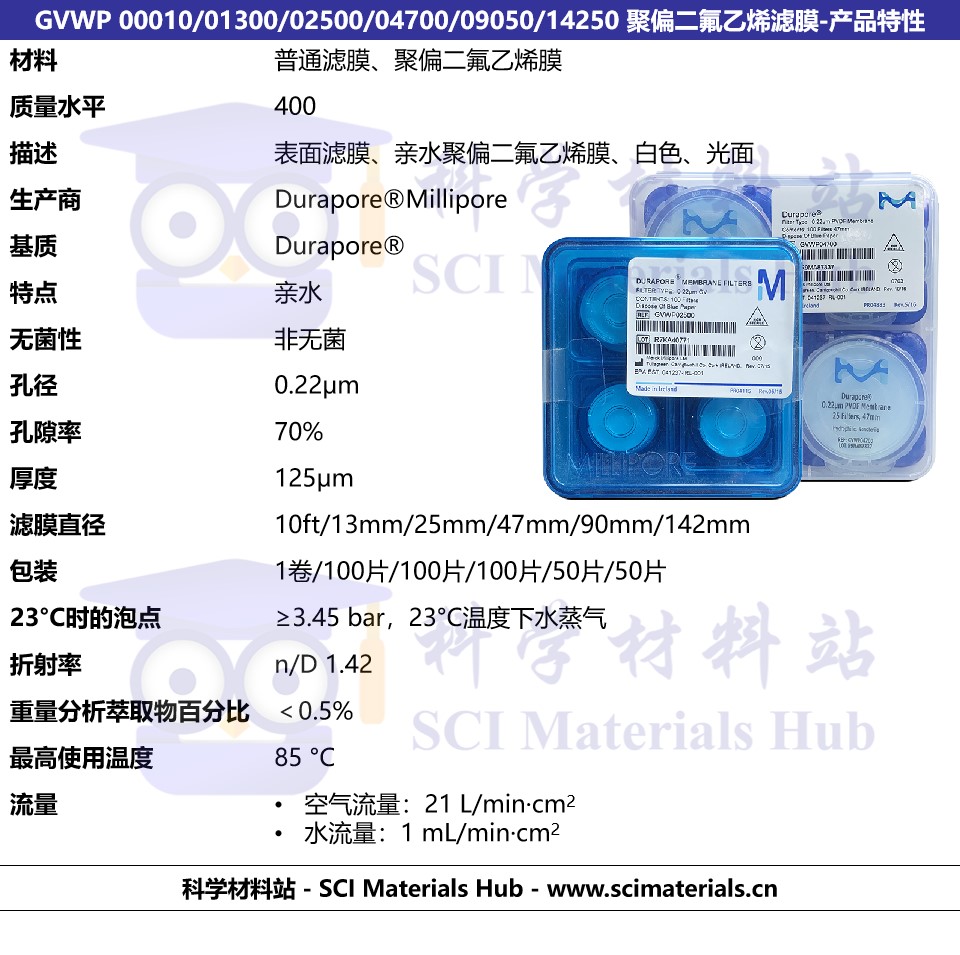

Durapore™ PVDF | GVWP | 0.22 μm | 亲水 | ≥50 psi，空气/水；代表页面为 ≥3.45 bar | >12 mL/min/cm²；代表页面 25 mm 为 >1 mL/min/cm² | 2 L/min/cm² | 4 μg/cm² | 生物溶液除菌过滤、蛋白样品过滤、缓冲液过滤 |

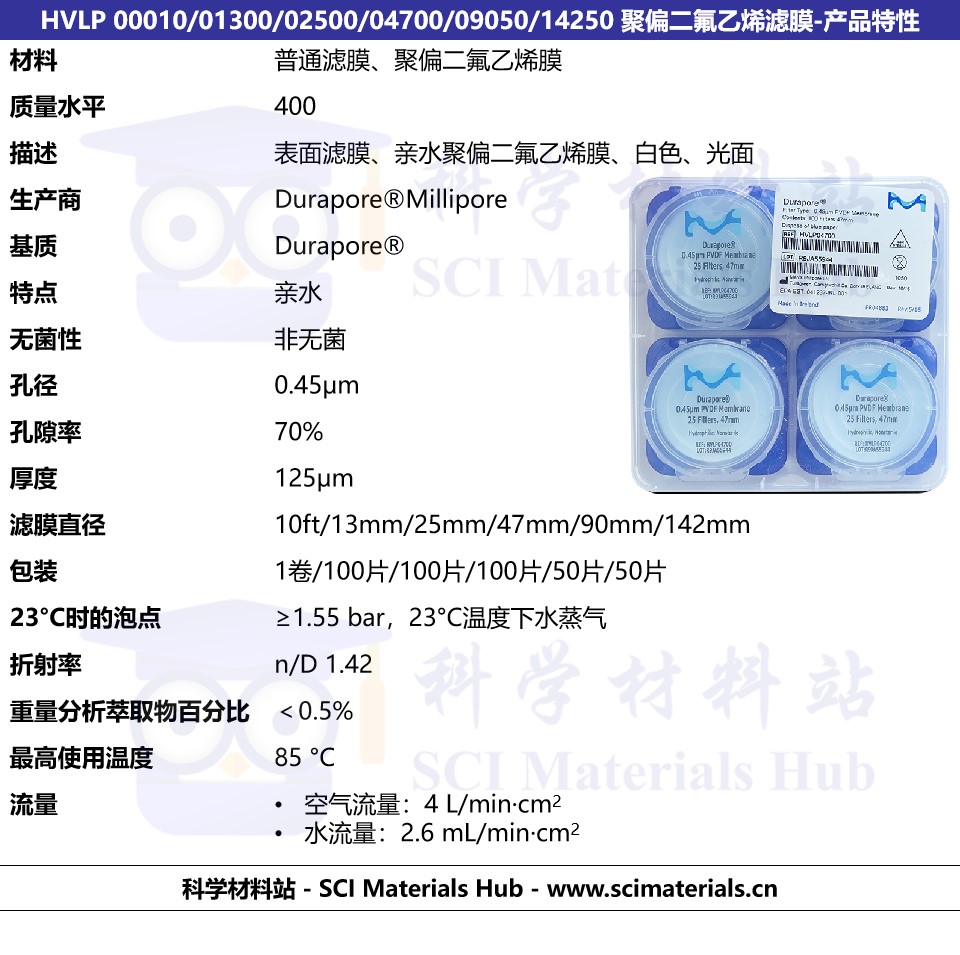

Durapore™ PVDF | HVLP | 0.45 μm | 亲水 | ≥22 psi，空气/水；代表页面为 ≥1.55 bar | >34 mL/min/cm²；代表页面 90 mm 为 >2.6 mL/min/cm² | 4 L/min/cm² | 4 μg/cm² | 常规澄清过滤、微生物截留、颗粒监测 |

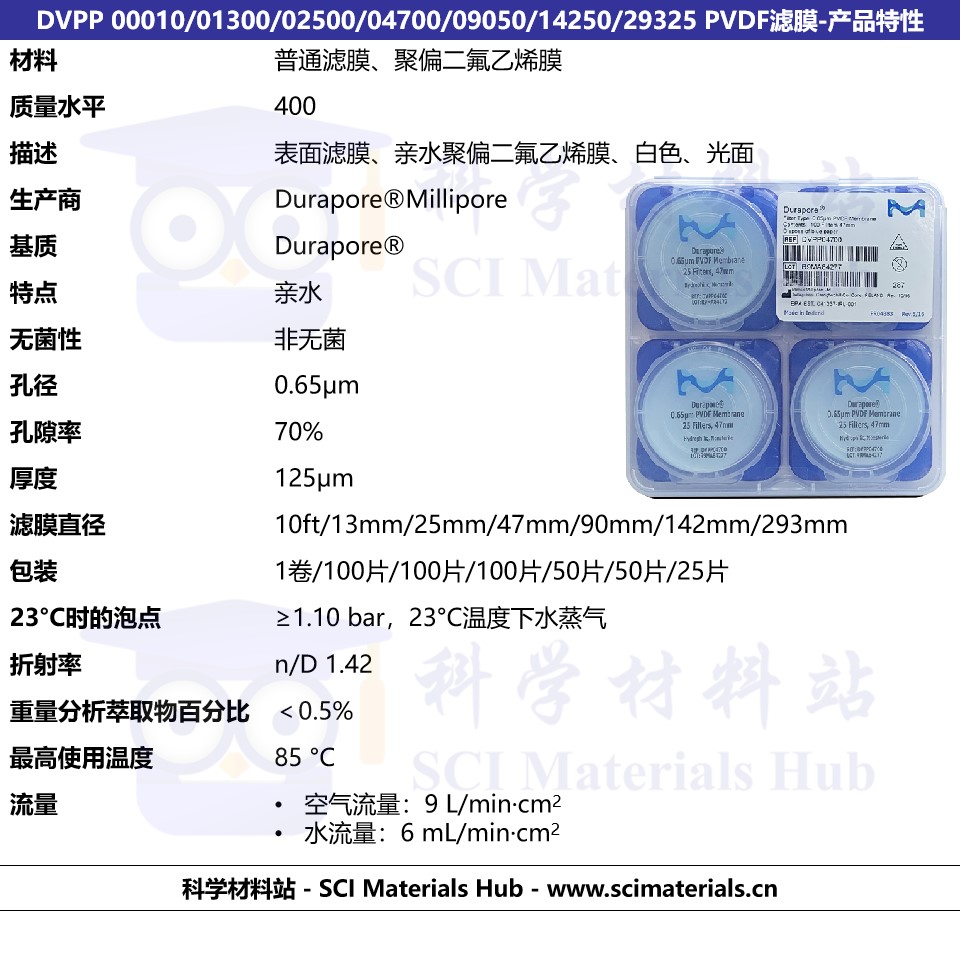

Durapore™ PVDF | DVPP | 0.65 μm | 亲水 | ≥15 psi，空气/水 | >78 mL/min/cm² | — | 4 μg/cm² | 大颗粒去除、微生物截留、快速澄清过滤 |

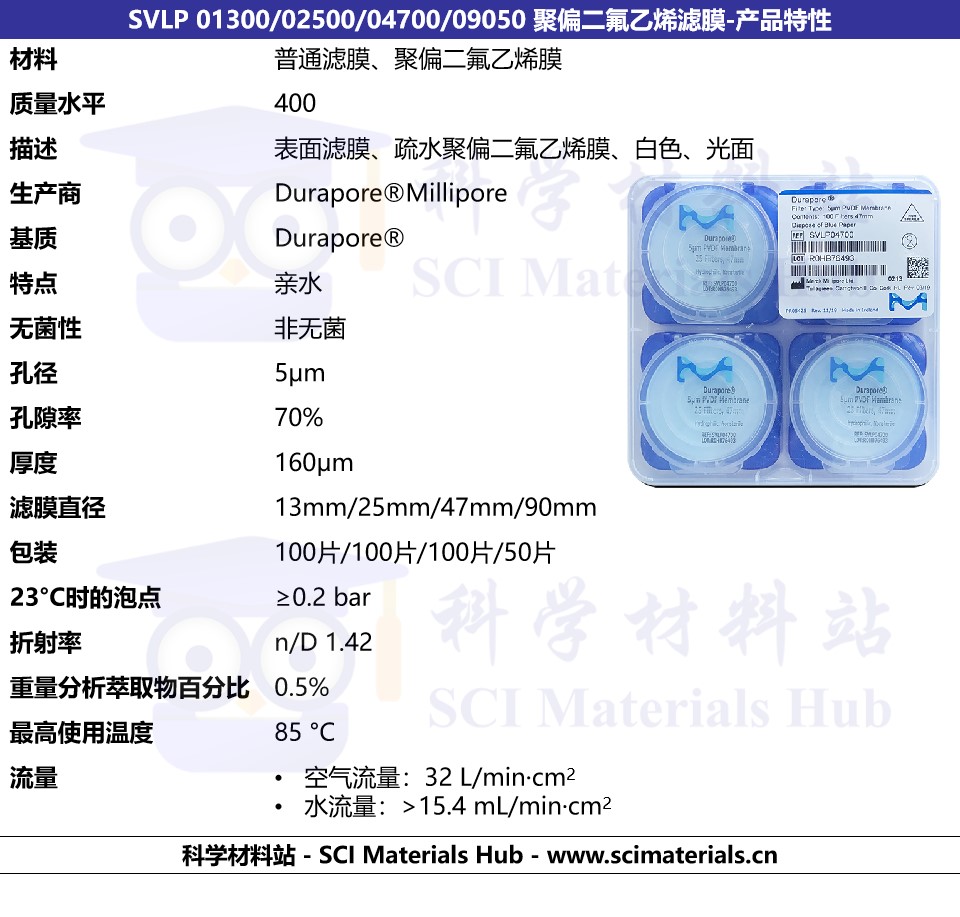

Durapore™ PVDF | SVLP | 5.0 μm | 亲水 | ≥3 psi，空气/水 | >208 mL/min/cm² | — | 4 μg/cm² | 生物溶液澄清、颗粒监测、样品预过滤 |
Durapore™ PVDF | VVHP | 0.1 μm | 疏水 | ≥26 psi，空气/甲醇 | — | 0.9 L/min/cm² | 150 μg/cm² | 气体过滤、空气过滤、精细颗粒屏障 |
Durapore™ PVDF | GVHP | 0.22 μm | 疏水 | ≥18 psi，空气/甲醇；代表页面为 ≥1.24 bar | 甲醇预润湿后可测水流速 | 1.7 L/min/cm²；代表页面 90 mm 为 ≥16 mL/min/cm² Gurley | 150 μg/cm² | 空气除菌、气体除菌、溶剂过滤 |
Durapore™ PVDF | HVHP | 0.45 μm | 疏水 | ≥9 psi，空气/甲醇 | — | 4.9 L/min/cm² | 150 μg/cm² | 溶剂过滤、气体过滤、排气保护 |
Durapore™ 亲水 PVDF 滤膜适合水性样品、生物溶液和蛋白样品过滤。其低蛋白吸附特性有助于减少样品与膜材之间的非特异性结合，适合蛋白溶液、酶溶液、缓冲液、培养基、细胞上清、实验室水溶液等过滤场景。0.22 μm 或更小孔径常用于液体除菌过滤，0.45 μm 或更大孔径可用于截留较大微生物、颗粒监测和澄清过滤。
Durapore™ 疏水 PVDF 滤膜适合空气除菌、气体除菌、溶剂过滤、排气保护、通气过滤和疏水屏障应用。代表性 GVHP 0.22 μm 疏水 PVDF 页面明确列出 Air sterilization、Gas sterilization、Solvent filtration 等用途；其水流速参数是在甲醇预润湿条件下测得，因此直接过滤水性样品时不如亲水型方便。
使用需求 | 推荐类型 | 推荐孔径 | 选择理由 |
蛋白样品过滤 | 亲水 PVDF | 0.22 μm / 0.45 μm | 低蛋白吸附，减少样品损失，提高回收率 |
生物溶液除菌过滤 | 亲水 PVDF | 0.22 μm 或更小 | 适合液体除菌过滤，常用于去除细菌、霉菌和酵母等生物污染物 |
常规水溶液澄清 | 亲水 PVDF | 0.45 μm | 流速较快，适合常规颗粒去除 |
高颗粒负载样品预过滤 | 亲水 PVDF | 0.65 μm / 5.0 μm | 大孔径流速高，可降低后续精过滤堵膜风险 |
空气/气体除菌 | 疏水 PVDF | 0.22 μm | 疏水膜适合气体通过，可作为空气和气体除菌屏障 |
有机溶剂过滤 | 疏水 PVDF | 0.22 μm / 0.45 μm | 适合非水体系和溶剂过滤场景 |
排气保护/通气过滤 | 疏水 PVDF | 0.22 μm / 0.45 μm | 疏水性可阻挡水性液体进入，同时允许气体交换 |
微生物截留培养 | 亲水 PVDF | 0.45 μm 或更大 | 适合截留较大生物污染物并支持后续培养分析 |
根据样品目的选择孔径：除菌过滤优先 0.22 μm 或更小，常规澄清过滤可选 0.45 μm，高浊度样品可先用 0.65 μm 或 5.0 μm 预过滤。
将滤膜平整放入过滤装置，确认膜面无折痕、无污染、无破损。
用少量待过滤液或相容缓冲液润湿滤膜，排除膜面气泡。
加入样品，采用真空抽滤、正压过滤、注射器过滤或夹具过滤方式进行过滤。
过滤完成后，根据实验目的收集滤液或保留膜面截留物。
若用于微生物或生物样品处理，应根据实验要求确认滤膜是否已灭菌或是否需要提前灭菌。
气体、空气、排气保护和有机溶剂过滤可优先选择疏水型 Durapore™ PVDF。
直接过滤水性样品时不建议优先选择疏水型；如必须用于水性体系，应先用甲醇、乙醇等相容溶剂预润湿，再用水或缓冲液置换。
气体过滤时应确认气体流向、过滤面积、压力范围和夹具密封性。
溶剂过滤前应确认滤膜、外壳、密封圈、接头和过滤装置整体材料兼容性。
使用后按样品性质和实验室安全规范处理废膜，避免有机溶剂、生物污染物或危险化学品残留造成二次污染。
注意事项 | 说明 |
亲水/疏水不能混用 | 水性样品优先选亲水 PVDF，气体/溶剂/排气场景优先选疏水 PVDF |
蛋白样品优先亲水型 | 亲水 Durapore™ PVDF 蛋白结合量低，官方性能表中典型值为 4 μg/cm² |
疏水型过滤水样需预润湿 | 疏水 PVDF 不易被水直接润湿，水流速通常需在甲醇预润湿后测定 |
控制压力与流速 | 过高压力可能造成膜材变形、破裂或截留效果下降 |
高浊度样品先预过滤 | 高颗粒样品直接用 0.22 μm 过滤容易堵膜，建议先用大孔径膜预处理 |
注意灭菌方式 | Durapore™ 通用规格支持高压蒸汽灭菌、EO 或 γ 射线灭菌，但具体商品仍需以货号说明为准 |
注意全系统兼容性 | PVDF 膜本身兼容性较好，但过滤杯、夹具、垫圈、接头也需要与样品兼容 |
非无菌包装需确认 | 很多圆片滤膜为非无菌包装，如用于无菌实验，需确认灭菌处理流程 |
Q1：Durapore™ PVDF 亲水膜和疏水膜最大的区别是什么？
A：亲水膜适合水性样品、生物溶液和蛋白样品过滤；疏水膜适合空气、气体、溶剂、排气保护和通气过滤。
Q2：过滤蛋白溶液应该选哪种？
A：建议优先选择 Durapore™ 亲水 PVDF。其低蛋白吸附特性有助于减少样品损失，适合追求最大回收率的实验。
Q3：过滤空气或气体应该选哪种？
A：建议选择 Durapore™ 疏水 PVDF，常用孔径为 0.22 μm 或 0.45 μm，可用于空气除菌、气体除菌和排气保护。
Q4：0.22 μm 和 0.45 μm 怎么选？
A：0.22 μm 更适合除菌级过滤和更高截留要求；0.45 μm 更适合常规澄清过滤、微生物截留和颗粒监测，通常流速更快。
Q5：疏水 PVDF 可以过滤水溶液吗？
A：可以在预润湿后使用，但不建议作为水性样品的首选。若样品是水溶液、缓冲液或生物溶液，通常直接选择亲水 PVDF 更方便。
Q6：Durapore™ PVDF 和 PTFE 滤膜有什么区别？
A：PVDF 尤其适合低蛋白吸附和生物样品过滤；PTFE 通常具有更强的化学惰性，常用于强溶剂、强酸强碱或特殊化学体系。水性蛋白样品一般优先考虑亲水 PVDF。
Q7：Durapore™ PVDF 是否可用于除菌过滤？
A：0.22 μm 或更小孔径的亲水 Durapore™ PVDF 可用于液体除菌过滤；疏水型 0.22 μm 常用于空气或气体除菌过滤。具体是否满足工艺要求，应结合样品、验证条件和对应货号资料确认。
Q8：Durapore™ PVDF 是否低溶出？
A：是。官方资料将 Durapore™ 描述为低溶出物滤膜，通用规格中重量溶出物为<0.5%，适合对滤膜析出物较敏感的实验场景。
Millipore Durapore™ PVDF 滤膜的核心优势是高流速、高通量、低溶出物、广泛化学兼容性和低蛋白吸附。对于水性样品、生物溶液、蛋白样品和液体除菌过滤，建议优先选择 Durapore™ 亲水 PVDF；对于空气除菌、气体过滤、溶剂过滤、排气保护和疏水屏障应用，建议选择 Durapore™ 疏水 PVDF。实际选型时，应综合考虑样品性质、孔径、过滤面积、流速、蛋白吸附、灭菌方式和过滤装置兼容性。
通过聚合材料沉淀或拉伸制成的膜滤器，可用于多种应用（如过滤、空气颗粒物监测）。滤膜性质因其组成、制造方法、表面处理技术和孔径而存在显著差异。
膜滤器特性
化学相容性：为避免损害分子结构，过滤器材料必须与过滤物质的化学性质相容。因此，必须考虑与滤膜接触的液体样品和溶质的相容性。
可湿润性：进行液体过滤时，滤膜必须可被过滤流体润湿。亲水膜很容易用水润湿，因此是过滤水溶液的首选。疏水膜推荐用于过滤气体、低表面张力溶剂和通气，同时可被有机溶剂（如甲醇）润湿，同时适于过滤水性液体和有机溶剂。
孔径：孔径指滤膜孔的最大直径，与滤膜可滤除特定大小颗粒的能力有关。起泡点和细菌保留实验是两种常用的孔径测量方法。
直径：滤膜直径、大小和形状是基于过滤或样品收集设备选择。
流速：指流体通过过滤器所需的时间，可测出空气或液体流速。通常孔径越小，流速越小，但滤膜材料、厚度、孔隙率和孔结构改变都可能导致流速变化。
分析物吸附：分析物吸附指过滤过程中分析物损失，会导致滤液分子组成与预期差异。限定功能滤膜（如PVDF、PTFE）可呈现超低的分析物吸附率，功能性更高的滤膜（如尼龙、MCE膜）可呈现高水平的分析物吸附能力
光学性质：目视分析保留物时，滤膜的光学特性必须与成像方法兼容，从而使滤膜可在整个样品表面上提供一致的背景，且在检验过程中不会产生额外噪声。
溶出物：溶出物是源自过滤器或设备，溶入最终滤液的污染物。过滤器溶出物可分为三种类型：过滤器脱落材料或颗粒溶出物、生产工艺残留的化学物质，以及冲洗过滤器的表面改性化学物质。溶出物的存在还可能与滤膜和过滤溶液的化学相容性有关。通常，如果滤膜与滤液化学不相容，则可在滤液中观察到较高水平的溶出物。
截留能力：截留能力指的是滤膜截留目标颗粒物或分子的能力。
预过滤和深度过滤器
预过滤：预过滤利用大孔径膜滤器从样品中去除大颗粒物（如污垢或沉积物），之后再利用孔径更小的膜滤器进一步过滤。在样品制备过程中，可借助预过滤避免过滤器过早堵塞或结垢。
深度过滤器：深度过滤器可将颗粒物截留在内部，而非过滤器表面。由于具有较高的颗粒截留能力，深度过滤器常用于预过滤。
粘合剂：粘合剂常用于非织造纤维基材料，可为最终产品提供塑形和强度。尽管玻璃纤维过滤器常使用粘合剂，但这类添加成分会降低热稳定性，并可能导致可溶出物污染样品。
滤网：滤网具有尺寸均匀的大孔径和网状结构，用于去除大颗粒物（如细胞、蛋白质、污垢），以澄清颗粒物分析溶液。
滤膜类型
MF-Millipore 混合纤维素酯 圆片滤膜由生物惰性的醋酸纤维素和硝酸纤维素制成，为生物学、分析和环境监测以及研究应用提供了多功能选择。MF-Millipore 亲水滤膜具有一致的厚度，均匀的孔结构和光滑的表面，可提供各种孔径、颜色、表面和直径选择。这种不含Triton 表面活性剂的滤膜，所含润湿剂的量极少，且水溶出物含量低于标准MF-Millipore 滤膜。
纤维素支撑垫可加固监控仪中的滤膜，适于污染分析——特别是在高压或高速流动条件下的污染物分析。当用生长培养基饱和后，该类支撑垫也可用于培养微生物。 编织网间隔膜位于串列过滤的滤膜之间，以防下游滤膜“阻塞”上游滤膜孔，从而提高流量和通量。
增强纤维素滤膜（RW滤膜）是刚性筛网滤膜。RW滤膜的刚性、高容量和低压降特性非常适合从重度污染液体和气体中去除污染物，尤其适合预滤。
Durapore 聚偏二氟乙烯（PVDF）滤膜具有亲水性和疏水性版本选择，可提供高流速、高通量、低溶出物和广泛的化学相容性。由于具有出色的溶剂和高温耐受性，Durapore PVDF滤膜可用于各种生物医学研究应用。相对于尼龙、硝酸纤维素或PTFE膜，亲水性Durapore 膜的蛋白吸附率超低，而疏水性Durapore 膜具有高蛋白吸附率。
Millipore Express PLUS 聚醚砜（PES）滤膜常用于替代纤维素膜，并因其热稳定性、耐用性以及酸碱性溶液耐受性而闻名。Millipore Express PLUS膜可提供高流量、高过滤容量和低蛋白吸附率，同时仍具有细菌截留能力。独特的不对称结构拓展了Millipore Express PLUS的过滤能力和使用寿命，使其能够承受更高的颗粒物负荷量和蛋白浓度。
聚四氟乙烯(PTFE) 是由四氟乙烯的自由基聚合反应制得的耐化学、柔性、耐热、无粘性、高强度氟聚合物。由于同时具有高强度和广泛的化学相容性，PTFE常用在滤膜中。PTFE具有公认的高强度，同时可添加高密度聚乙烯（HDPE）背衬改善滤网处理性能。亲水性LCR和Omnipore PTFE滤膜常用于过滤水溶液。Fluoropore 疏水性PTFE滤膜和Mitex疏水性PTFE滤膜均可过滤有机溶剂和气体。用于PM2.5过滤的Fluoropore 和PTFE滤膜也用于颗粒物监测。
Isopore 聚碳酸酯 滤膜具有尺寸固定的孔径和光滑透明表面，非常适合
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn
Millipore Durapore 聚偏二氟乙烯(PVDF)亲水滤膜
| 产品名称 | 0.1μm （VVLP） | 0.22μm（GVWP） | 0.22μm （CCGL 带电） | 0.45μm（HVLP） | 0.45μm （HVWG） | 0.65μm （DVPP） | 5.0μm （SVLP） | 5.0μm （SVWG） |
|---|---|---|---|---|---|---|---|---|
| Millipore Durapore PVDF亲水滤膜 30cm×3m，1卷/盒 | VVLP00010 / ￥3919 | GVWP00010 / ￥8745 | — | HVLP00010 / ￥8765 | — | DVPP00010 / ￥4123 | — | — |
| Millipore Durapore PVDF亲水滤膜 Φ13mm，100片/盒 | VVLP01300 / ￥1332 | GVWP01300 / ￥1332 | — | HVLP01300 / ￥1332 | — | DVPP01300 / ￥1332 | SVLP01300 / ￥1332 | — |
| Millipore Durapore PVDF亲水滤膜 Φ25mm，100片/盒 | VVLP02500 / ￥1614 | GVWP02500 / ￥1614 | — | HVLP02500 / ￥1614 | — | DVPP02500 / ￥1614 | SVLP02500 / ￥1614 | — |
| Millipore Durapore PVDF亲水滤膜 Φ47mm，100片/盒 | VVLP04700 / ￥2066 | GVWP04700 / ￥2066 | — | HVLP04700 / ￥2066 | HVWG04700 / ￥2428 | DVPP04700 / ￥2066 | SVLP04700 / ￥2236 | SVWG04700 / ￥2665 |
| Millipore Durapore PVDF亲水滤膜 Φ90mm，50片/盒 | VVLP09050 / ￥2778 | GVWP09050 / ￥2778 | — | HVLP09050 / ￥2778 | — | DVPP09050 / ￥2778 | SVLP09050 / ￥3784 | — |

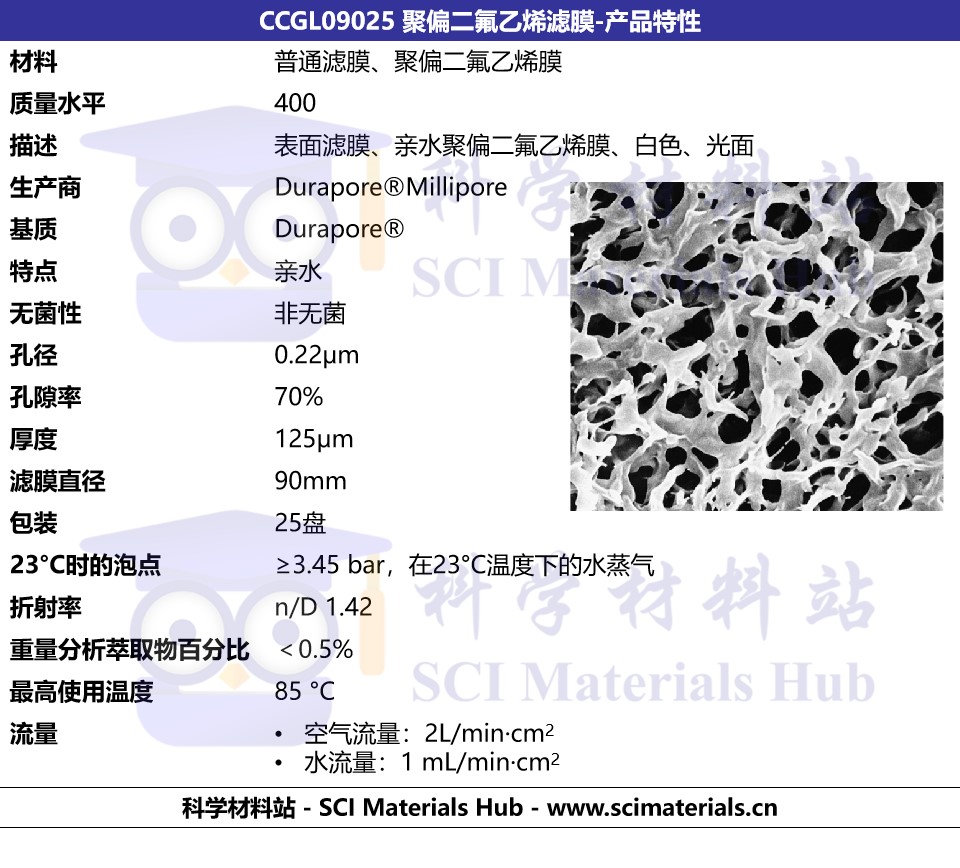

| Millipore Durapore PVDF亲水滤膜 Φ90mm，25片/盒 | — | — | CCGL09025 / ￥4631 | — | — | — | — | — |
| Millipore Durapore PVDF亲水滤膜 Φ142mm，50片/盒 | VVLP14250 / ￥4925 | GVWP14250 / ￥4925 | — | HVLP14250 / ￥4925 | — | DVPP14250 / ￥4925 | — | — |
| Millipore Durapore PVDF亲水滤膜 Φ293mm，25片/盒 | — | — | — | — | — | DVPP29325 / ￥8733 | — | — |
