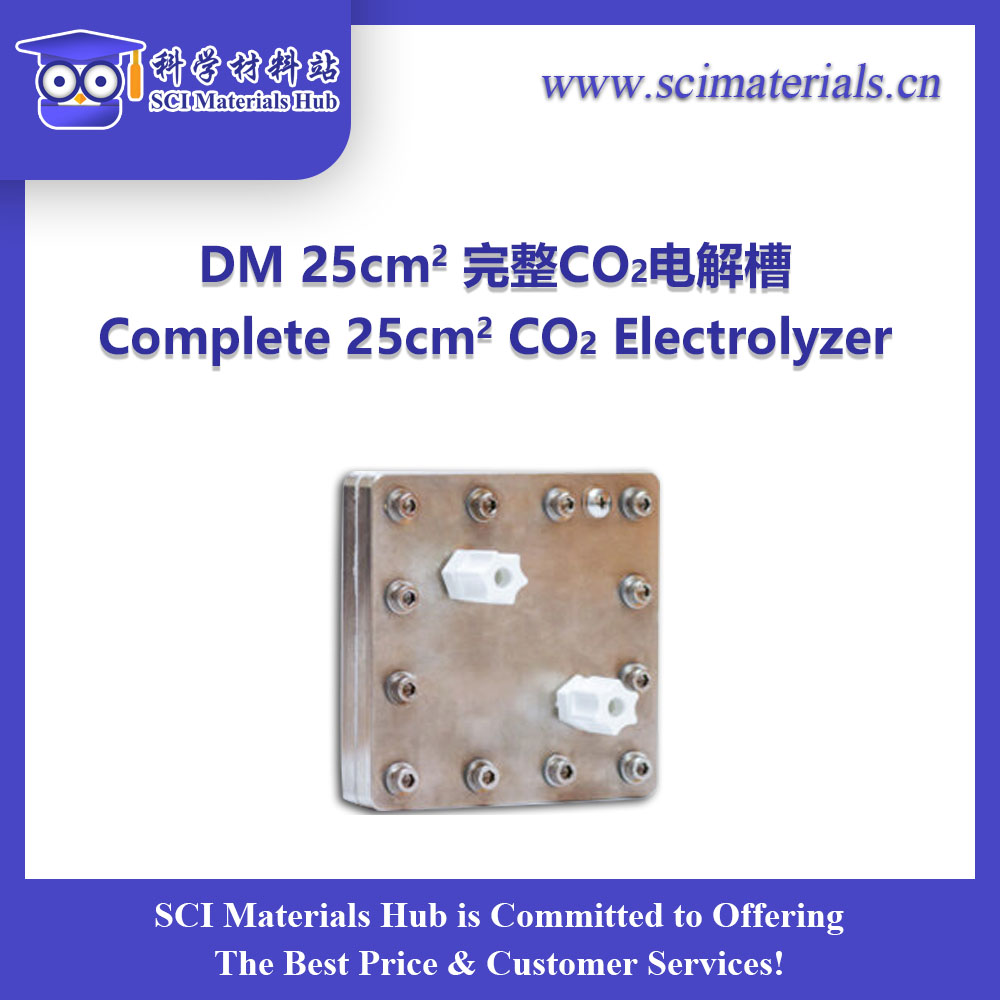

DM 25cm2 完整CO2电解槽

  • 产品代码:13001006
  • 产品描述:DM Complete 25 cm2 CO2 Electrolyzer
  • 品牌:DM
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:DM 25cm2 完整CO2电解槽, DM Complete 25 cm2 CO2 Electrolyzer, SCI Materials Hub, 科学材料站
65.7K

A complete 25 cm2 CO2 electrolyzer. Includes the following components: Titanium anode flow field, 904 L Stainless Steel cathode flow field, catalyst covered electrodes for anodes and cathodes of 25 cm2 cell, Sustainion? membrane, nuts, bolts, o-rings and insulating kit and electrolyzer testing service.

一个完整的25平方厘米二氧化碳电解槽。包括以下组件:钛阳极流场、904 L不锈钢阴极流场、25 cm2电池阳极和阴极的催化剂覆盖电极、Sustainion膜、螺母、螺栓、O形圈和绝缘套件以及电解槽测试服务。


INSTRUCTIONS FOR USE

Initial set up for DM Alkaline CO2 Electrolyzer Cell

System set up (recommended)

使用说明

DM碱性CO2电解槽的初始设置

系统设置(推荐)


Typically, the system setup uses a peristaltic pump to circulate a 10mM KHCO3 aqueous solution (from the reservoir) into the anode chamber at flowrate of 25 mL/min. The suggested tubing used is a 1/4” OD, 1/8” ID PTFE tubing. Pure CO2 from a cylinder is humidified with water using a bottle humidifier (sold separately) and then fed to the cathode chamber at a flow rate of 150 sccm.

通常,系统设置使用蠕动泵将10mM KHCO3水溶液(从储液罐中)以25 mL/min的流速循环至阳极室。建议使用的管道为外径1/4英寸、内径1/8英寸的PTFE管道。使用瓶式加湿器(单独出售)用水对气瓶中的纯CO2进行加湿,然后以150 sccm的流速将其送入阴极室。


Fluid Connections

流体连接

i) Cathode: remove the nuts from compression tubing and remove black rubber rod from the nut, connect the tubing (PTFE, 1/4”OD) from CO2 humidifier to the compression fitting at the top of cathode (stainless steel flow field); connect another tubing (PTFE, 1/4” OD)to the compression fitting at the bottom of cathode, route to the catholyte collector and then to THE EXHAUST. Please note that CO is poisonous, so please do not emit or release the cathode product gas into lab or working area.

i 阴极:从压缩管上取下螺母,从螺母上取下黑色橡胶棒,将CO2加湿器的管(PTFE,外径1/4“)连接到阴极顶部的压缩配件(不锈钢流场);将另一根管子(聚四氟乙烯,外径1/4英寸)连接到阴极底部的压缩接头上,连接到阴极集电极,然后连接到排气管。请注意,CO是有毒的,所以请不要向实验室或工作区域排放或释放阴极产品气体。


ii) Anode: Remove the nuts from the compression fittings and remove the black rubber rod from the nut. Then push the tubing from the pump tubing 1/4” (OD) PTFE through the nuts, turn the nuts with tubing inside onto the compression fitting at the bottom. Connect another tubing (1/4” OD, PTFE) to the compression fitting at the top, and route back the the anolyte reservoir. Tighten the nuts with fingers only.

ii)阳极:从压缩配件上拆下螺母,并从螺母上拆下黑色橡胶棒。然后将泵管1/4”(外径)PTFE上的管穿过螺母,将管内的螺母转动到底部的压缩接头上。将另一根管子(外径1/4英寸,聚四氟乙烯)连接到顶部的压缩接头上,并将阳极液储液罐向后布线。仅用手指拧紧螺母。


Power Connections

电源连接
Locate the threaded hole for wire connection on top of the cell (smaller through-hole 8-32 thread). Then connect the ring terminal with the Phillips round head screw. Use this same procedure for both anode and cathode.

在单元顶部找到用于接线的螺纹孔(较小的通孔8-32螺纹)。然后用菲利普斯圆头螺钉连接环形端子。阳极和阴极使用相同的程序。


Figure 1. The electrolyzer setup / Figure 2. Diagram of the 25 cm2 cell

图1. 电解槽设置/2. 25 cm2电池示意图


Cell Testing and Operation

电解槽测试和操作

Begin pumping a 10mM KHCO3 aqueous solution from reservoir at a rate of 25mL/min to the inlet (at the bottom) of the anode chamber and feeding CO2 through a bottle humidifier to the inlet (at the top) of the cathode chamber. Connect the anode electrical lead (red) and cathode lead (black) to the positive and negative connections, respectively, on the power supply with electric wires/cables (not included). Set the power supply voltage at 3-3.2V and slowly begin increasing the current to a setting of 5 A (0.2A/cm2). The cell current will reach the desired 5A in a few min or hours depending on the cell membrane and electrode conditioning. Testing can also be done with potentiostat, but the connections depend on the testing protocol.

开始以25mL/min的速率将10mmKHCO3水溶液从储液罐中泵入阳极室的入口(底部),并通过瓶式加湿器将CO2注入阴极室的入口(顶部)。用电线/电缆(不包括)将阳极导线(红色)和阴极导线(黑色)分别连接到电源的正极和负极连接上。将电源电压设置为3-3.2V,然后慢慢开始将电流增加到5 a0.2A/cm2)的设置。电池电流将在几分钟或几小时内达到所需的5A,具体取决于电池膜和电极调节。也可以使用恒电位仪进行测试,但连接取决于测试协议。
