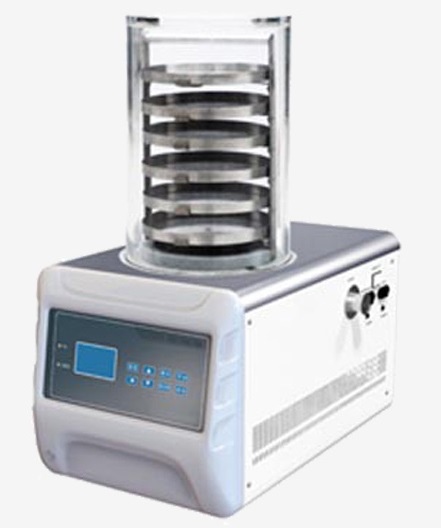

1、DGJ10实验室台式标准型冷冻干燥机(C系列,1100 W,0.12 m2/-50 ℃)
该型号是一种科研用的小型冻干机设备,主要用在医疗、制药、环境土壤、生物、化学科研实验室领域,为物料冻干生产提供可行性数据。

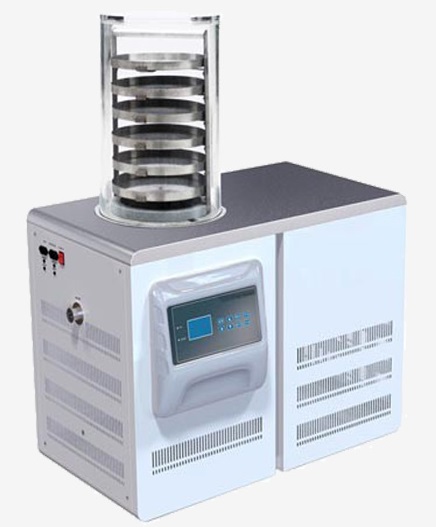

2、DGJ11实验室台式标准型冷冻干燥机(C系列,2200 W,0.27 m2/-80 ℃)
该型号可达到零下80度低温,可用于科研、实验室;具有体积小、简易适用、灵活性强等特点,适用于常规样品干燥实验。
3、DGJ12实验室台式标准型冷冻干燥机(C系列,2200 W,0.27 m2/-80 ℃)
该型号是一款冷凝温度可达零下80度的卧式小型冻干机设备,适用于生物制药、医疗、食品等行业产品如含有有机溶剂的产品冻干或者一些特殊产品的冻干。
DGJ10-12主要特点
■ 采用进口全封闭制冷机组,温度低,捕水能力强。
■ 采用风冷方式散热,不需水冷却,灵活性强。
■ 真空连接采用国际通用标准件,拆卸安装简易方便,密封性能可靠。
■ 冷阱温度及样品真空度均采用LED数字显示,简洁明确。
■ 特定设计的触摸软键可快速准确地实现各功能设置,操作简单方便。
■ 透明钟罩式冷冻干燥室,自然加热,安全直观。
■ 特殊设计的不锈钢样品架,普通型样品盘间距可调,层数自由设定。
■ 不锈钢冷阱和台面,清洁卫生,美观耐腐蚀。
型 号 | DGJ10 | DGJ11 | DGJ12 |
冷凝温度 | <-50 ℃ | <-80 ℃ | <-80 ℃ |
真空度 | <10 Pa(空载) | <10 Pa(空载) | <10 Pa(空载) |
冻干面积 | 0.12 m2 | 0.27 m2 | 0.27 m2 |
捕水能力 | 3 Kg/24h | 6 Kg/24h | 6 Kg/24h |
样品盘 | Φ200 mm×4层 | Φ240 mm*6层 | Φ240 mm*6层 |
电源要求 | 220 V 50 Hz | 220 V 50 Hz | 220 V 50 Hz |
功 率 | 800 W | 2200 W | 2200 W |
主机尺寸 | 405*630*(320+480) mm | 1200*500*870mm(不含干燥室) | 1200*500*870mm(不含干燥室) |
图片 |
实验室冻干机是一种小型冻干机设备,主要用在医疗、制药、环境土壤、生物、化学科研实验室领域,为物料冻干生产提供可行性数据。从功能上分,可分为:普通型、压盖型、多岐管型、多岐管压盖型、原位型。在生物实验室技术产品领域,冻干技术主要用于血清、血浆、疫苗、酶、抗生素、激素等药品的生产;生物化学的检查药品、免疫学及细菌学的检查药品;血液、细菌、动脉、骨骼、皮肤、角膜、神经组织及各种器官长期保存等。
1. 手机淘宝(官方淘宝店铺:科学材料站)
实验室台式标准型冷冻干燥机(A系列) | |||
产品代码 | 产品描述 | 产品价格及规格 | 库存状态 |
30050010 | DGJ10实验室台式标准型冷冻干燥机(C系列,1100 W) | 请询价 | 请咨询 |
30050011 | DGJ11实验室台式标准型冷冻干燥机(C系列,2200 W) | 请询价 | 请咨询 |
30050012 | DGJ12实验室台式标准型冷冻干燥机(C系列,2200 W) | 请询价 | 请咨询 |
SCI Materials Hub is Committed to Offering The Best Price & Customer Services! |
*大量需求请联系我们咨询更多折扣
**可提供13%增值税专用发票
3. 其它联系方式
电话:+86 130-0303-8751/+86 156-0553-2352
微信:SCI-Materials-Hub
如需报价单请联系:Email: contact@scimaterials.cn
