Fumasep FAAM-15

  • 产品代码:15110401
  • 产品描述:Fumasep FAAM-15 阴离子交换膜
  • 品牌:FuMA-Tech
  • 货期:现货
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:FuMA-Tech, 阴离子交换膜, 燃料电池, SCI Materials Hub, 科学材料站
65.7K

点此链接,观看更多开箱视频,关注科学材料站Bilibili主页


1. Fumasep FAAM-15 阴离子交换膜

Fumasep FAAM-15 is an anion exchange membrane - non-reinforced with low resistance, high selectivity, and high stability in acidic and caustic environment. The polymer backbone for this AEM is based on a hydrocarbon polymer material.


2. Fumasep FAAM-15 运输形式

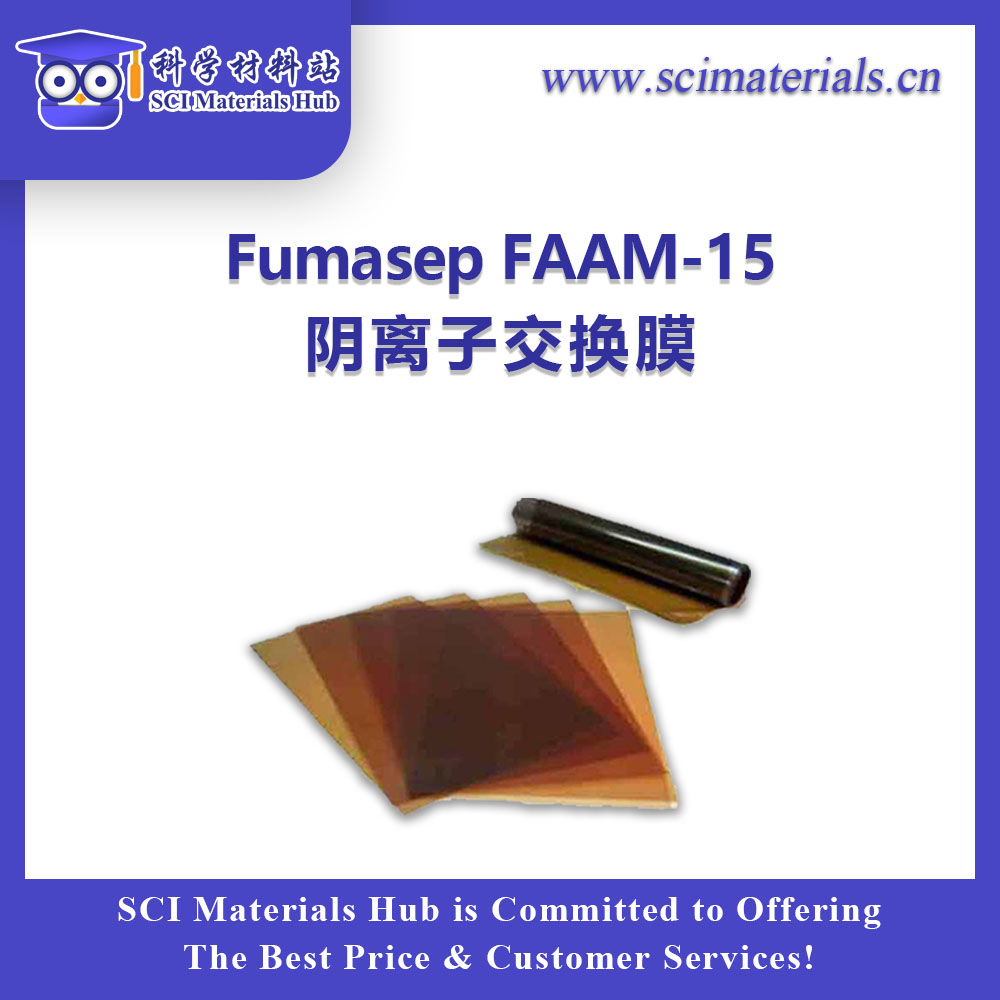

The membrane is the thin brown foil, delivered on a backing foil (colourless rigid PET foil). Pull off carefully the membrane (brown) from the backing foil. The membrane is delivered in dry form.

The standard size of this membrane is 10*10cm & 20*30cm. Customized dimensions can be made upon request.


3. Fumasep FAAM-15 注意事项

FuMA-Tech membranes are highly sensitive to differences in humidity and moisture content. Therefore the membranes can vary +/- 0.5cm from the original cut sizes. Also due to this sensitivity the manufacturer expects wrinkles to form, however soaking the membranes in deionized water will return the membranes to the full size planar state according to the manufacturer.


4. Fumasep FAAM-15 Features (特点)

- Applications: Alkaline Electrolysis using liquid aqueous KOH
- Anion Exchange Membrane
- Operation Range: 6 - 12 M KOH, Temperature RT - 100 °C

- Thickness (dry): 13 - 17 micrometers (μm)


5. 文章引用

欢迎在文章中引用从科学材料站(SCI Materials Hub)获取的材料

Fumasep FAAM-15, a non-reinforced anion exchange membrane (AEM), was obtained from SCI Materials Hub.


6. 科学材料站中FuMA-Tech阴离子交换膜系列 (FuMA-Tech Anion exchange membrane series in SCI Materials Hub)

FuMA-Tech AEM SeriesThickness (μm)pH
Temperature (°C)Counter ionReinforcement
Fumasep FAA-3-20201-1225 - 50°CBr-None
Fumasep FAA-3-PE-30
26-34--
--Br-PE
Fumapem FAA-3-PE-3020-301-1225 - 50°CBr-PE
Fumasep FAA-3-50500-1425 - 50°CBr-None
Fumapem FAA-3-50501-1225 - 50°CBr-None
Fumasep FAA-3-PK-7575
0-1425 - 50°C
Br-PK
Fumasep FAA-3-PK-1301300-1425 - 50°C
Br-PK
Fumasep FAAM-15156-12 M KOH
25 - 100°CNoneNone
Fumasep FAAM-2018-226-12 M KOH
25 - 100°CNoneNone
Fumasep FAAM-4035-456-12 M KOH
25 - 100°CNoneNone
Fumasep FAAM-75-PK60-806-12 M KOH
25 - 100°CNoneNone
Fumasep FAB-PK-1301300-1425 - 50°C
Br-PK
Fumasep FAD-55551-925 - 50°CBr-None
Fumasep FAD-PET-75751-925 - 50°CBr-PET
Fumasep FAP-45050<425 - 50°CNoneNone
Fumasep FAPQ-330301-925 - 50°CCl- / MeOSO3-None
Fumasep FAS-30301-1225 - 50°CBr-None
Fumasep FAS-50501-1425 - 50°CBr-None
Fumasep FAS-PET-75750-925 - 50°CBr-PET
Fumasep FAS-PET-1301300-925 - 50°CBr-PET

资料下载:

fumasep FAAM-15 Technical Data Sheet.pdf


Membrane Properties
MembraneAnion Exchange Membrane
Thickness13 - 17 μm (microns)
Appearance / ColorDark Yellow to Brown, Transparent
Backing FoilPET
Delivery FormDry
ReinforcementNone
Tensile Strength - max. (MPa)> 100 MPa
Elongation to Break (%)> 30
Counter IonNone


1. Handling (处理)

Keep membrane package closed / sealed when unused. Store, handle and process the membrane in a clean and dust-free area. Use only new and sharp knives or blades, when cutting the membrane. Always wear protective gloves when handling the membrane. Handle with care, be sure not to puncture, crease or scratch the membrane, otherwise leaks will occur. All surfaces in contact with the membrane during handling, inspection, storage and mounting must be smooth and free of sharp projections.


2. Pre-Treatment and Conditioning (预处理):

No specific pretreatment required. The membrane is self-activating in the cell after contact with aqueous caustic electrolyte (e.g. 6 - 9 M aqueous KOH solution) within several hours.

Depending on cell design, activation may also be done before assembling: Put the membrane sample between stabilizing meshes (in order to avoid curling) in aqueous KOH solution (concentration according to application) for at least 24 hrs at room temperature.

Use closed container to avoid CO2 contamination (carbonate formation that may affect conductivity). Membranes must be covered by KOH solution. Membranes will expand when subject to swelling process. The hydration level can be controlled by KOH concentration and temperature, e.g. 9 M KOH solution at room temperature leads to approx. 50 - 70 wt% hydration level.


3. Long Term Storage

The membrane can be stored dry for an unlimited amount of time. However, the membrane has to be conditioned (washed and rinsed) prior to use.

1.手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

Fumasep FAAM-15 阴离子交换膜

产品代码

15110401

产品描述

Fumasep FAAM-15 Anion Exchange Membrane

产品价格及规格

¥275 (10CM*10CM,货号:15110401-1010)

¥1350 (20CM*30CM,货号:15110401-2030)

695 (20CM*20CM)

库存状态

现货

SCI Materials Hub is Committed to Offering The Best Price & Customer Servics!


*大量需求请联系我们咨询更多折扣

**可提供13%增值税专用发票
