FS 燃料电池组(封闭式阴极)

  • 产品代码:1401016
  • 产品描述:FS PEM Fuel Cell Stack Kit (Closed Cathode)
  • 品牌:SCI Materials Hub
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:FS PEM Fuel Cell Stack Kit (Closed Cathode), FS 燃料电池组(封闭式阴极), SCI Materials Hub, 科学材料站
65.7K

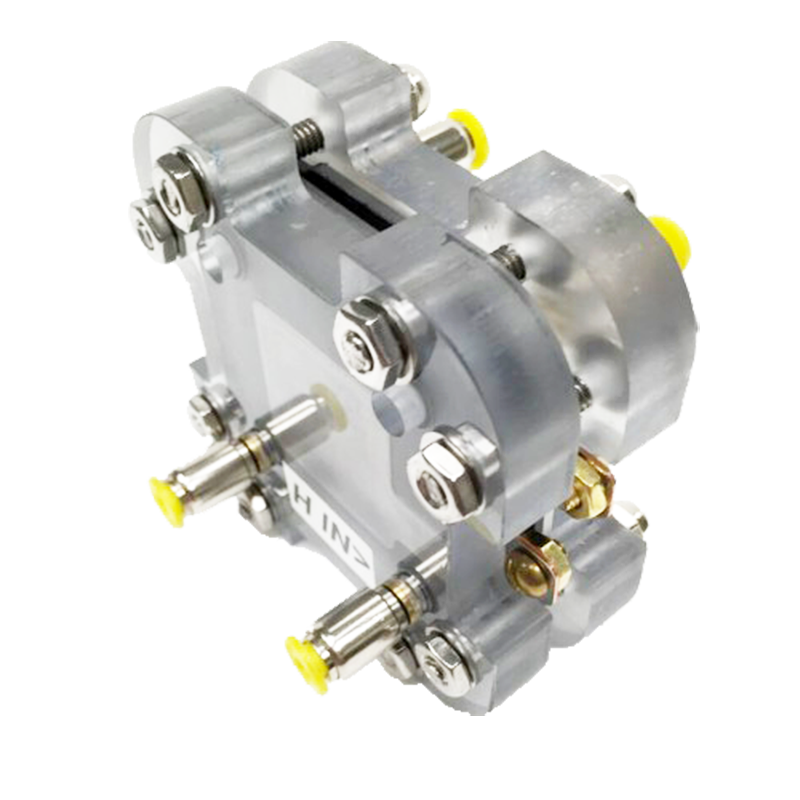

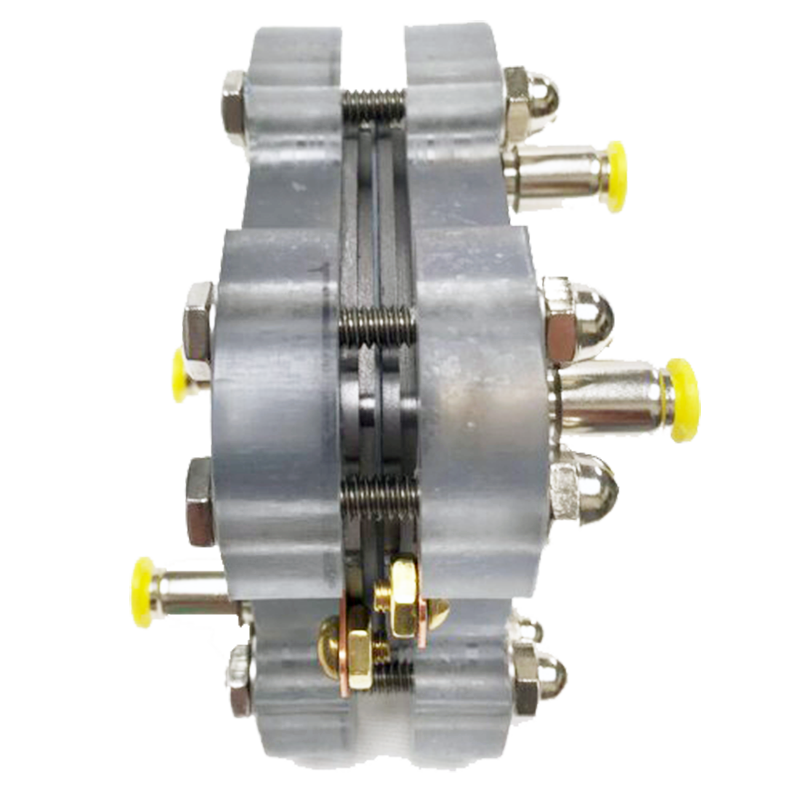

FS Electrochemical Cell - PEM Fuel Cell Stack is a closed cathode hydrogen fuel cell.

FS电化学电池——PEM燃料电池堆是一种封闭式阴极氢燃料电池。

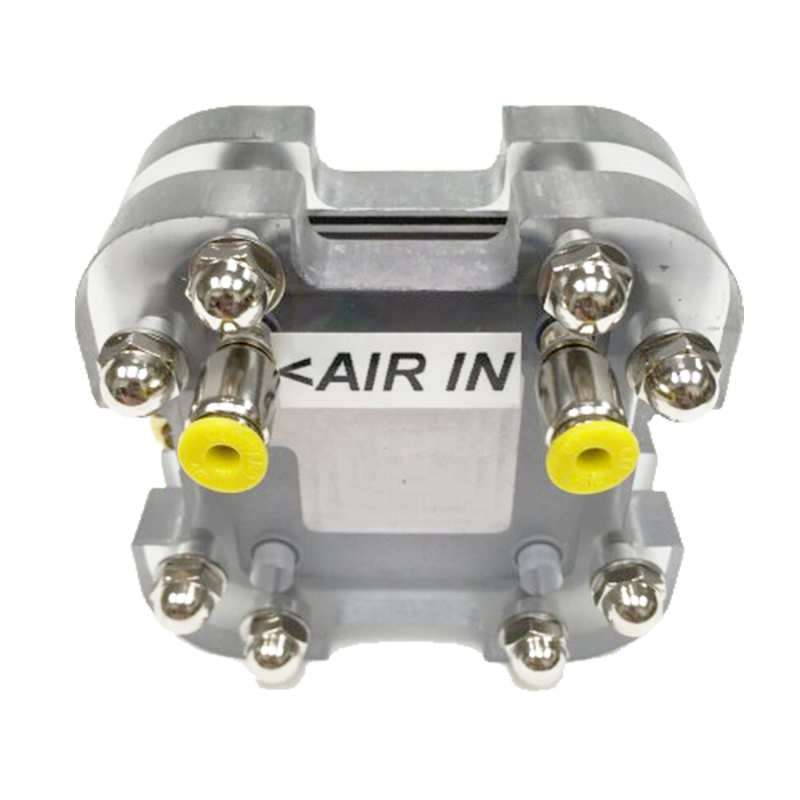

The closed cathode requires a air pump and the open cathode comes with a fan that will cool the fuel cell and also give it the oxygen it needs to operate.

封闭式阴极需要一个空气泵,而开放式阴极则配有一个风扇,可以冷却燃料电池,并为其提供运行所需的氧气。


* 1-cell FS Hydrogen Fuel Cell


* 5-cell FS Hydrogen Fuel Cell

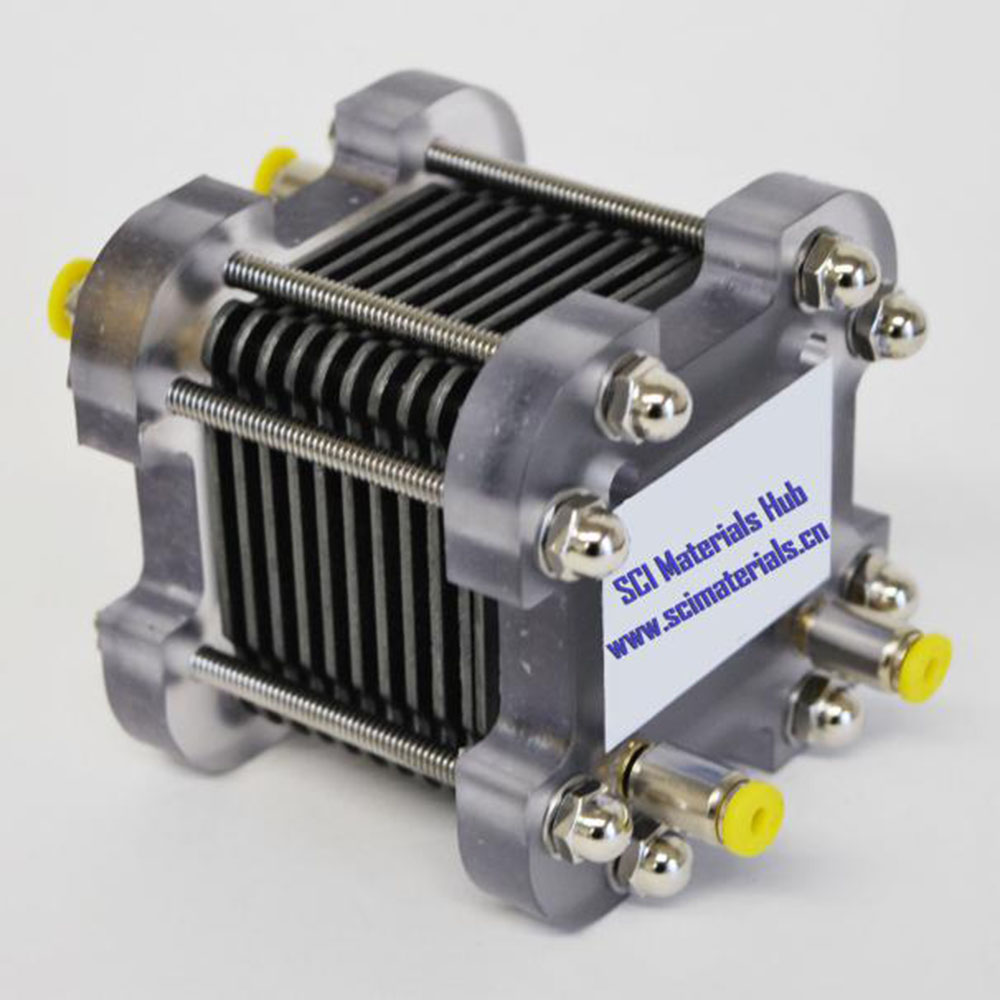

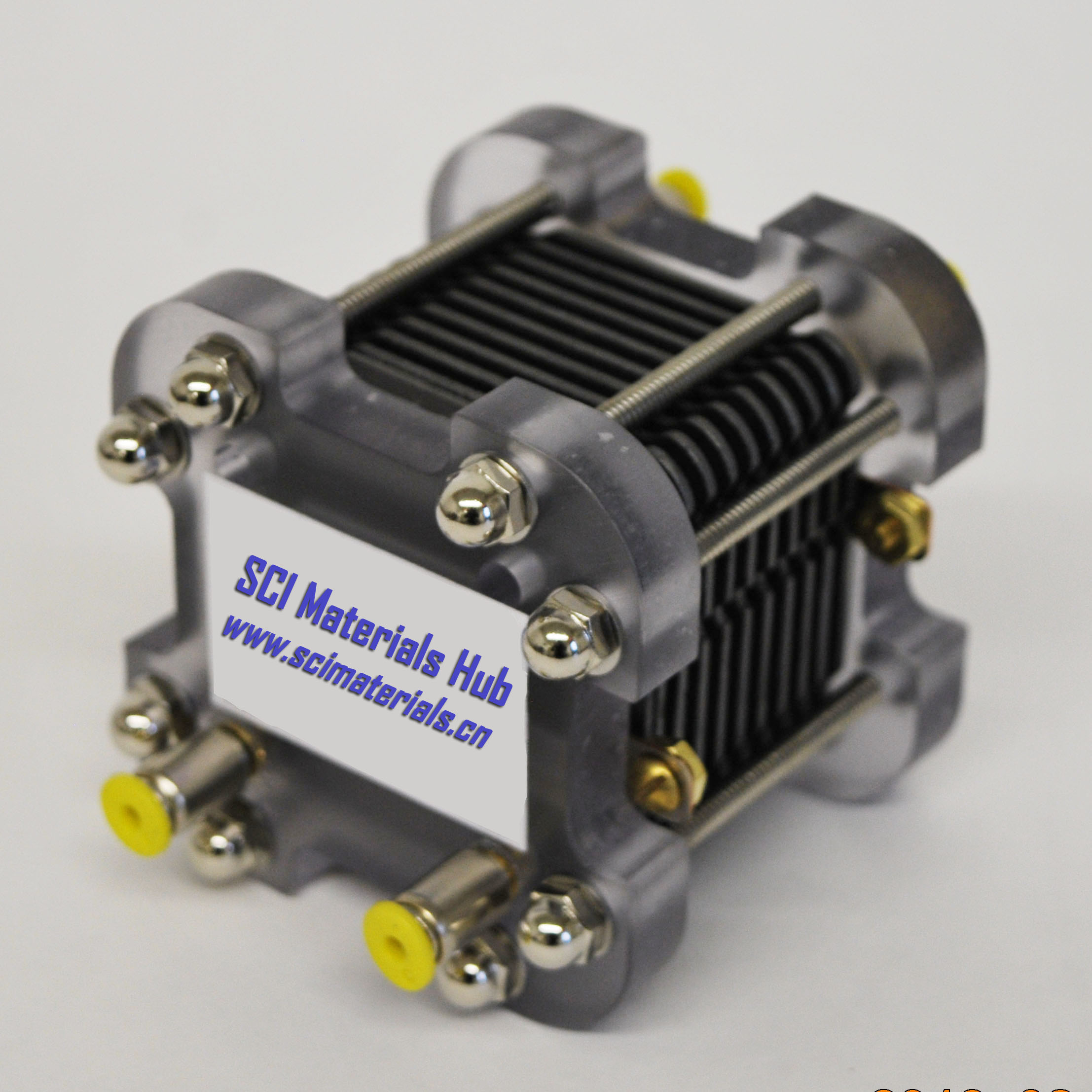

Disassemble and reassemble your own fuel cell stack of individually connected cells with the FS Electrochemical Cell. The FS comes in a 1-cell or 5-cell stack configuration depending on your requirements. The ease of use makes it simple to scale the FS to different power levels and integrate equipment and/or sensor. The FS fuel cell is an excellent learning tool that gives hands-on experience with promising fuel cell technology. Whether it’s advanced research on MEAs, creating your own fuel cell lab or conducting professional training the FS has a load of practical applications.

拆卸并重新组装您自己的燃料电池组,该燃料电池组由单独连接的电池和FS电化学电池组成。根据您的需求,FS采用1单元或5单元堆栈配置。由于使用方便,可以将FS扩展到不同的功率级别,并集成设备和/或传感器。FS燃料电池是一个优秀的学习工具,提供了有前途的燃料电池技术的实践经验。无论是MEA的高级研究,创建自己的燃料电池实验室,还是进行专业培训,FS都有大量的实际应用。

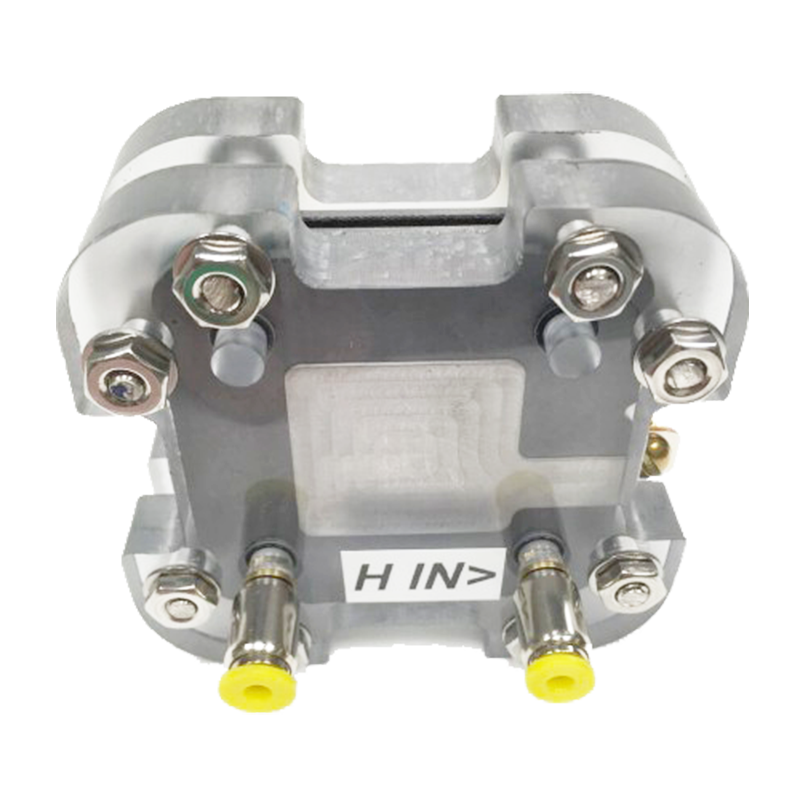

The FS Electrochemical Cell comes without MEAs and closed independent flow channels allowing reactant flows on each side of a membrane. Only a flathead screwdriver (1/4 inch) and torque wrench (1 in/lb, 3/8 inch nut) are necessary to assemble the FS Electrochemical Cell so you can concentrate on creating your own applications.

FS电化学电池没有MEA和封闭的独立流道,允许反应物在膜的每一侧流动。装配FS电化学电池只需要一把平头螺丝刀(1/4英寸)和扭矩扳手(1英寸/磅,3/8英寸螺母),这样您就可以专注于创建自己的应用程序。


The FS is a dismantable electrochemical stack that allows for users to input their own custom PEM MEAs for testing! Independent reactant flow on each side of the MEA allows this setup to be used in many different setups.

FS是一个可拆卸的电化学堆栈,允许用户输入自己的定制PEM MEA进行测试!MEA每侧的独立反应物流允许在许多不同的设置中使用该设置。


堆栈内容包括:

- Plastic Endplates
- Anode configuration on both sides of the bipolar plate
- Expandable Design
- No MEAs are included with this FS
- Hardware

-塑料端板

-双极板两侧的阳极配置

-可扩展设计

-本FS不包括MEAs

-硬件


技术性能:

- MEA Active Area: 3.2 x 80px (250px2)

- MEA Membrane Area: 5.3 x 132.5px

- Fittings: 4 x 1/8" Push-to-connect (2 per reactant side)

- Graphite Plate Overall Dimensions (L x W x D): 6.3 x 6.3 x 0.4 cm

-MEA有效面积:3.2x80px(250px2)

-MEA膜面积:5.3x132.5px

-配件:4 x 1/8“推接(每个反应物侧2个)

-石墨板外形尺寸(长x宽x深):6.3 x 6.3 x 0.4厘米


Please note that the FS Electrochemical Cell does not come with guide dowels. 1/8" guide dowels are reccommended for assembly of the stack to aid in the alignment of the components.

请注意,FS电化学电池不带导销。建议使用1/8“导销组装电堆,以帮助部件对齐。

技术性能:

- MEA Active Area: 3.2 x 80px (250px2)

- MEA Membrane Area: 5.3 x 132.5px

- Fittings: 4 x 1/8" Push-to-connect (2 per reactant side)

- Graphite Plate Overall Dimensions (L x W x D): 6.3 x 6.3 x 0.4 cm

-MEA有效面积:3.2x80px(250px2)

-MEA膜面积:5.3x132.5px

-配件:4 x 1/8“推接(每个反应物侧2个)

-石墨板外形尺寸(长x宽x深):6.3 x 6.3 x 0.4厘米


Please note that the FS Electrochemical Cell does not come with guide dowels. 1/8" guide dowels are reccommended for assembly of the stack to aid in the alignment of the components.

请注意,FS电化学电池不带导销。建议使用1/8“导销组装电堆,以帮助部件对齐。

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

FS 燃料电池反应堆

产品代码

产品描述

价格(¥)货期
1401014

FS 燃料电池组组

(开放式阴极)

¥67685电池组,货号:1401014-5

¥12942(10电池组,货号:1401014-10)

¥17760(15电池组,货号:1401014-15)

¥19656(20电池组,货号:1401014-20)

请咨询
1401015

FS PEM燃料电池

(开放式阴极)

¥4125(单电池组,货号:1401015-1)

¥7020(5电池组,货号:1401015-5)

¥11754(10电池组,货号:1401015-10)

¥14328(15电池组,货号:1401015-15)

¥18360(20电池组,货号:1401015-20)

现货
1401016

FS 燃料电池

(封闭式阴极)

¥3749(单电池组,货号:1401016-1)

¥8334(5电池组,货号:1401016-5)

现货
1401017FS直接甲醇燃料电池

¥5625(单电池组,货号:1401017-1)

¥11808(5电池组,货号:1401017-5)

¥20538(10电池组,货号:1401017-10)

¥35478(20电池组,货号:1401017-20)

现货
1401018FS液流电池堆¥16686请咨询
