在电池材料研究中，很多关键反应并不是静态发生的。电极材料的相变、界面膜生成、电解液分解、中间产物演化以及活性物质结构变化，往往都发生在充放电过程中。传统拆解测试只能获得某一状态下的离线结果，而原位拉曼测试可以在电池运行过程中实时观察材料和界面变化，更适合用于研究反应机理、失效过程和电极结构演变。

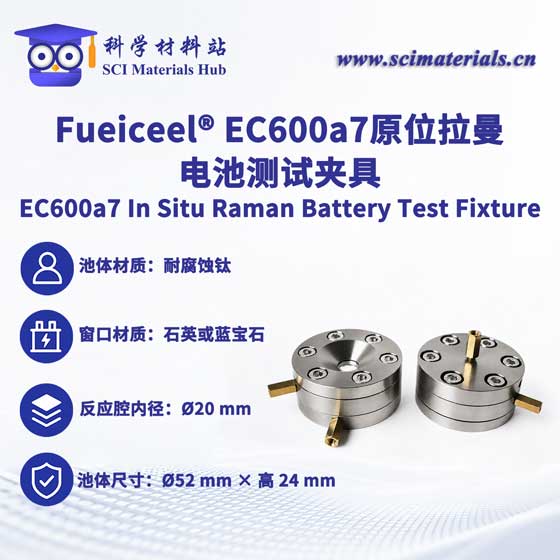

Fueiceel® EC600a7 原位拉曼电池夹具是一款用于电化学原位拉曼表征的专用测试夹具。产品采用耐腐蚀钛池体、石英或蓝宝石光学窗口、PTFE / 氟胶密封结构和弹性加压组件，可用于锂离子电池、钠离子电池、金属负极电池、水系电池等多类型体系的原位拉曼测试。
EC600a7 采用紧凑型圆柱式电池夹具结构，中部为反应腔，顶部配置透光窗口，拉曼激光可通过窗口进入电池内部，直接采集靠近窗口一侧电极表面的拉曼信号。
夹具内部通过弹簧和金属垫片提供稳定压力，使正极、隔膜、负极保持良好接触；通过 O 型圈、PTFE 或氟胶垫片实现密封；通过两侧铜柱与外部电化学工作站连接，从而实现电化学测试与拉曼光谱采集同步进行。
| 项目 | 参数 |
|---|---|
| 产品型号 | Fueiceel® EC600a7 |
| 产品名称 | 原位拉曼电池测试夹具 |
| 池体材质 | 耐腐蚀钛 |
| 窗口材质 | 石英或蓝宝石 |
| 密封垫片 | PTFE 或氟胶 |
| 窗口直径 | Ø10 mm |
| 池体尺寸 | Ø52 mm × 高 24 mm |
| 反应腔内径 | Ø20 mm |
| 主要用途 | 多类型电池原位拉曼测试 |
EC600a7 可用于多种电池和电化学体系的原位拉曼研究，适合观察电极材料、电解液、界面膜和中间产物在电化学过程中的变化。
| 测试体系 | 典型研究方向 |
|---|---|
| 锂离子电池 | 正负极材料结构演变、嵌锂 / 脱锂过程、界面副反应 |
| 钠离子电池 | 钠离子嵌入机制、层状氧化物相变、硬碳负极界面变化 |
| 钾离子电池 | 大半径离子嵌入过程、电极结构稳定性研究 |
| 锂金属电池 | 锂沉积 / 剥离行为、SEI 膜生成、枝晶相关界面变化 |
| 钠金属电池 | 金属钠界面反应、沉积形貌与电解液分解研究 |
| 锂硫电池 | 多硫化物中间体演化、硫正极反应路径分析 |
| 水系锌离子电池 | 锌沉积、界面副反应、水系电解液结构变化 |
| 超级电容器 / 电化学电容器 | 电极表面吸附、离子传输与界面结构变化 |
| 电催化体系 | 催化电极表面中间体、吸附物种和反应路径研究 |
实际测试时，应根据电极尺寸、隔膜尺寸、电解液体系、窗口透光范围和反应腔空间进行合理装配。
EC600a7 由光学窗口组件、反应腔组件、电极装配组件、弹性加压组件、绝缘密封组件和外部导电组件组成。
| 模块 | 组成部件 |
|---|---|
| 光学窗口组件 | 窗口盖、石英 / 蓝宝石窗口、窗口密封垫片 |
| 反应腔组件 | 钛金属反应腔、O 型圈、反应腔密封槽 |
| 电极体系 | 正极片、隔膜、负极片 |
| 加压组件 | 金属垫片、弹簧 |
| 绝缘组件 | 绝缘柱、PTFE 垫片、T 型绝缘管 |
| 底部与导电组件 | 底座、紧固螺栓、铜柱导电端子 |
这种分模块排版比单独罗列所有零件更紧凑，也更适合详情页展示。
EC600a7 的测试核心是让拉曼激光通过顶部石英或蓝宝石窗口进入电池内部，照射到靠近窗口一侧的电极表面。随着电池充放电进行，拉曼光谱仪可以实时采集电极材料、界面产物或电解液相关物种的信号变化。
为了获得更有效的拉曼信号，靠近窗口的一侧电极建议优先选择自支撑电极，例如碳纸、碳布、金属网负载材料、泡沫金属负载材料等。自支撑电极不需要厚重集流体遮挡，激光更容易到达电极活性表面，也有利于提升原位信号的稳定性和可重复性。
如果使用常规涂布电极，应确保测试面朝向窗口，并尽量避免厚集流体、过厚涂层或不透明基底阻挡光路。
取出金属反应腔，找到腔体上端环形密封槽，将 O 型圈完整压入槽内。安装时应确认 O 型圈无扭曲、无翘起、无局部挤压。O 型圈状态会直接影响后续密封性能。
将装好 O 型圈的反应腔整体翻转，使窗口侧朝下平稳放置。此时反应腔内部朝上，便于依次装入电极和隔膜。
用镊子夹取正极片放入反应腔，使测试面朝向下方窗口。随后放入隔膜，确保隔膜完整覆盖正极表面。最后放置负极片，使正极、隔膜、负极三层材料居中对齐，避免边缘偏移或直接接触。
将绝缘柱垂直放入反应腔，使其与负极背面接触。再将金属垫片放入绝缘柱中心，最后放置弹簧。弹簧可以提供持续压力，使电极与隔膜保持紧密接触，降低界面阻抗。
在反应腔上端平面放置 PTFE 垫片，使孔位对齐。将底座金属板盖在垫片上方，确保底座与反应腔孔位完全对应，两侧铜柱朝外，方便连接测试设备。
每根紧固螺栓需先穿入 T 型绝缘管，以避免螺栓导通上下金属件造成短路。六根螺栓对准孔位后先手动旋入，初步固定即可，不建议单点一次性拧紧。
完成底部固定后，将夹具整体翻转，使窗口安装面朝上，准备安装光学窗口组件。
将石英或蓝宝石窗口放入窗口凹槽，铺设密封垫片，再盖上窗口盖。锁紧时建议采用对角分步拧紧方式，使窗口受力均匀，避免窗口破裂或密封不良。
组装完成后，使用万用表连接两侧铜柱进行短路检测。确认正负极之间无短路后，再进行电解液加注、静置浸润和后续电化学测试。
建议提前准备电极片、隔膜、电解液、镊子、移液器、螺丝刀、万用表、电化学工作站和拉曼光谱仪。对于空气敏感体系，例如金属锂、金属钠或部分高活性电解液体系，建议在手套箱内完成装配和密封。
靠近窗口一侧的电极会直接影响拉曼信号质量。建议优先选择自支撑电极，例如碳纸、碳布、泡沫镍、金属网或其他可承载活性材料且不明显遮挡激光的基底。对于粉末材料，可以将活性物质负载在自支撑导电基底上，使激光能够有效照射到目标反应区域。
若采用常规铝箔、铜箔涂布电极，应注意测试面方向，避免集流体位于光路一侧，否则可能导致拉曼信号明显减弱甚至无法采集到有效电极信号。
电解液加入量应以充分浸润电极和隔膜为原则，不宜过少，也不宜过量。电解液过少可能导致电化学接触不稳定；电解液过多则可能在窗口区域形成较厚液层，影响激光聚焦和信号采集。
将两侧铜柱分别连接电化学工作站正负极端。测试前建议先进行开路电压检查、阻抗测试或简单电压响应测试，确认电池连接正常后再进行正式原位拉曼采集。
将夹具窗口朝上放置在拉曼显微镜载物台上，调整焦距，使激光聚焦在窗口下方目标电极表面。测试时应根据材料特性选择合适激光波长、激光功率、积分时间和采集间隔。对于易受热材料，应降低激光功率，避免局部烧蚀或热诱导结构变化。
可用于观察层状氧化物、磷酸盐、尖晶石等正极材料在充放电过程中的结构变化，帮助分析材料相变、晶格畸变和可逆性。
适合研究钠离子嵌入 / 脱出过程，尤其适用于层状氧化物、普鲁士蓝类材料、硬碳负极等体系的结构演变分析。
可用于锂金属、钠金属、锌金属等负极体系的界面研究，包括沉积 / 剥离过程、电解液分解、SEI 或界面膜形成等。
可用于研究硫正极反应过程中的多硫化物生成、转化和迁移行为，为理解穿梭效应和反应路径提供光谱证据。
对于水系锌离子电池、水系钠离子电池等体系，可用于观察电解液溶剂化结构、界面副反应和电极表面产物变化。
| 注意事项 | 说明 |
|---|---|
| 密封件安装 | O 型圈和垫片必须平整放置，避免夹偏、折皱或破损 |
| 电极对齐 | 正极、隔膜、负极应居中，隔膜需完全覆盖电极 |
| 光路方向 | 需要采集信号的电极面应朝向窗口 |
| 电极选择 | 优先使用自支撑电极，有利于激光到达电极表面 |
| 螺栓锁紧 | 建议对角、分步、均匀锁紧，避免窗口受力不均 |
| 短路检查 | 每次测试前必须使用万用表确认无短路 |
| 激光功率 | 易受热材料应降低功率，避免热损伤 |
| 清洁维护 | 测试后及时清理电解液，窗口避免硬物刮擦 |
可用于锂离子电池、钠离子电池、钾离子电池、锂金属电池、钠金属电池、锂硫电池、水系锌离子电池、超级电容器以及部分电催化体系的原位拉曼测试。具体适配情况需结合电极尺寸、电解液兼容性和实验装配方式判断。
原位拉曼测试需要激光穿过窗口照射到电极表面。如果靠近窗口的一侧是厚集流体或不透明基底，信号会被遮挡。自支撑电极，如碳纸、碳布、泡沫金属或金属网负载电极，可以让激光更有效地到达活性材料表面，从而提高信号强度和测试稳定性。
石英窗口适合常规拉曼测试，透光性好，应用范围广。蓝宝石窗口机械强度和耐磨性更高，适合对窗口强度要求更高的实验条件。
EC600a7 的窗口直径为 Ø10 mm，可满足常规原位拉曼激光聚焦和信号采集需求。
反应腔内径为 Ø20 mm，适合装配小尺寸电极、隔膜和弹性加压组件。
原位电池夹具内部包含正极、隔膜、负极和金属导电组件。如果隔膜偏移、极片错位或绝缘管未正确安装，可能造成内部短路。每次测试前进行短路检测，可以降低实验失败和设备风险。
弹簧可以提供持续稳定的压力，使电极与隔膜保持良好接触，有助于降低界面阻抗，提高电化学测试稳定性。
可以依次检查以下因素：电极测试面是否朝向窗口，窗口是否清洁，激光焦点是否对准电极表面，电解液层是否过厚，电极基底是否遮挡光路，激光功率和积分时间是否合适。若条件允许，建议使用碳纸、碳布等自支撑电极提升信号采集效果。
钛金属池体、窗口盖、底座、铜柱、螺栓等结构件可重复使用。O 型圈、PTFE / 氟胶垫片、隔膜和电极片属于消耗件，建议根据实验情况定期更换。
测试完成后应及时拆解夹具，去除残留电极、电解液和隔膜。钛金属件可根据电解液类型选择合适溶剂清洁，窗口需轻柔擦拭，避免划伤。所有部件应完全干燥后再收纳。
Fueiceel® EC600a7 原位拉曼电池夹具是一款面向电池材料与电化学界面研究的原位测试工具。它通过耐腐蚀钛池体、石英 / 蓝宝石光学窗口、稳定密封结构和弹性加压系统，将电池运行过程与拉曼光谱采集结合起来，帮助研究人员实时观察电极材料、界面膜、电解液和反应中间体的变化。
对于锂离子电池、钠离子电池、金属负极电池、锂硫电池、水系电池以及其他新型储能体系，EC600a7 都可以作为原位拉曼测试平台，用于研究反应机理、材料结构演变和界面稳定性。
🛒 手机淘宝店铺：科学材料站
🔗 淘宝链接：点击进入淘宝网页
☎ 电话：+86 130-0303-8751 / +86 156-0553-2352
💬 微信：SCI-Materials-Hub
📧 Email 报价/对公需求：contact@scimaterials.cn
| 产品名称 | 型号 / 规格 | 配置说明 | 单位 | 价格 |
|---|---|---|---|---|
| 原位拉曼电池测试夹具 | EC600a7 标准版 | 耐腐蚀钛池体，石英窗口，PTFE / 氟胶密封垫片，铜柱导电端子，标准紧固组件 | 套 | 询价 |
| 原位拉曼电池测试夹具 | EC600a7 蓝宝石窗口版 | 标准夹具配置，窗口升级为蓝宝石窗口，适合更高强度测试场景 | 套 | 询价 |
| 石英窗口 | Ø24 mm | 用于 EC600a7 光学窗口更换 | 5片 | ¥200 |
| 蓝宝石窗口 | Ø24 mm | 高强度、高耐磨光学窗口 | 5片 | ¥400 |
| PTFE 密封垫片 | EC600a7 专用（2片0.3mmPTFE） | 用于窗口盖、反应腔、底座之间的绝缘与密封 | 套 | ¥50 |
| 氟胶密封垫片 | EC600a7 专用（2片0.3mm氟胶） | 适合需要弹性密封补偿的测试场景 | 套 | ¥50 |
| O 型圈 | EC600a7 专用 | 反应腔密封用，建议定期更换 | 5个 / 套 | ¥30 |
| 弹簧 | EC600a7 专用 | 提供稳定压紧力，保证电极与隔膜贴合 | 个 | ¥50 |
| 绝缘柱 | EC600a7 专用 | 用于内部绝缘支撑，防止短路 | 个 | ¥50 |
| T 型绝缘管 | EC600a7 专用（6个） | 配合紧固螺栓使用，防止上下金属件导通 | 套 | ¥60 |
| 铜柱导电端子 | EC600a7 专用（2个） | 用于连接电化学工作站正负极 | 个 | ¥10 |
| 紧固螺栓 | EC600a7 专用（12个） | 窗口盖、反应腔、底座锁紧固定用 | 套 | ¥60 |
