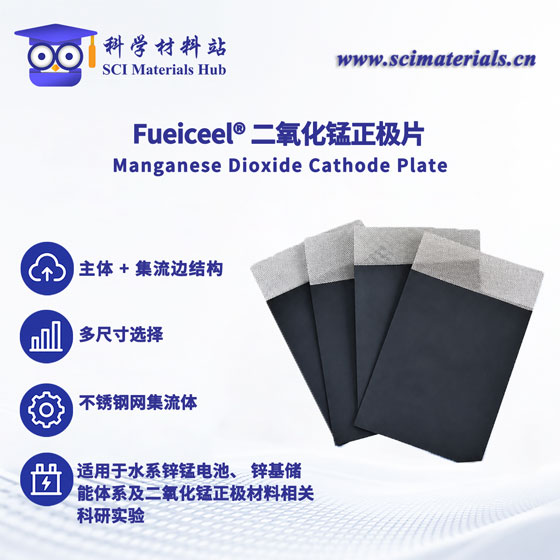

Fueiceel® 二氧化锰正极片

  • 产品代码：
  • 产品描述：Fueiceel® Manganese Dioxide Cathode Plate
  • 品牌：Fueiceel®
  • 货期：请咨询
  • 浏览次数：
  • 咨询电话：+86 130-0303-8751
  • 关键词：Fueiceel® 二氧化锰正极片, Fueiceel® Manganese Dioxide Cathode Plate, 科学材料站, SCI Materials Hub
Manganese Dioxide Cathodes

二氧化锰正极

MnO₂ Cathode Sheets · Stainless Steel Mesh Current Collector

面向水系锌锰电池、锌基电池及相关电化学科研实验的 二氧化锰正极片系列。 电极采用不锈钢网作为导电集流体， 提供常规双面涂覆及单面涂覆版本， 活性物质载量覆盖 12、24、48 mg/cm²， 并提供方形、小尺寸带集流边、90 × 76.5 mm 以及纽扣电池用电极等多种规格。

MnO₂ 不锈钢网集流体 双面 / 单面 12 / 24 / 48 mg/cm² 20 个常规 SKU 水系锌锰电池
查看规格与价格 查看参考参数
Product Overview

产品介绍

采用不锈钢网作为导电与机械支撑骨架， 覆盖双面标准型、单面型、方片、 带外露集流边及纽扣电池用规格。

二氧化锰正极是面向 水系锌锰电池及相关电化学体系的预制正极片。 电极以不锈钢网作为集流体， 在金属网骨架上构建二氧化锰活性物质电极层， 便于与实验夹具、导线或电池结构形成导电连接。

常规二氧化锰正极采用 双面活性物质结构， 即不锈钢网集流体两面均具有活性物质层； 部分规格明确标注为 单面， 该类产品仅在一面设置活性物质， 另一面保留不锈钢网集流体表面， 适合对电极反应方向或装配方式有特殊要求的实验。

常规活性物质载量包括 12、24 和 48 mg/cm²。 产品尺寸覆盖 10 × 10 mm、 20 × 20 mm、25 × 25 mm、 90 × 76.5 mm 及 Φ12 mm 等规格。 部分方片采用 “主体尺寸 + 10 mm 集流区”的形式， 其中额外的 +10 mm 为不锈钢网导电集流区域。

活性物质载量、尺寸和涂覆形式应按照具体 SKU 选型。 页面中的参考技术参数来自所提供的锰电极参数表， 用于说明代表性样品特征， 并不表示所有尺寸、载量和单/双面版本均具有完全相同的数值。
SS Mesh 导电集流体
不锈钢网
20 当前整理
常规 SKU
12–48 活性物质载量
mg/cm²
2 涂覆形式
双面 / 单面
Electrode Structure

双面与单面电极结构

以下使用 CSS 结构示意说明二氧化锰活性层与 不锈钢网集流体的关系， 不使用参考产品图片。

常规双面二氧化锰正极

Standard
MnO₂
活性物质层
不锈钢网
集流体
MnO₂
活性物质层

常规规格为双面涂覆结构。 不锈钢网位于电极内部， 两侧均设置二氧化锰活性物质层， 适用于一般水系锌锰电池及电化学材料实验。

单面二氧化锰正极

Single-Sided
MnO₂
活性物质层
不锈钢网
集流体
集流体
外露面

单面型号只有一面设置二氧化锰活性物质层， 另一面为不锈钢网集流体侧。 该结构适合对电极方向、 接触方式或单向反应界面有明确要求的实验。

Current Collector

不锈钢网集流方式

不锈钢网同时承担导电连接与电极层机械支撑功能， 部分型号设计有额外外露集流区域。

SS
不锈钢网骨架

金属网贯穿电极主体， 为二氧化锰电极层提供机械支撑， 同时建立电子传输路径。

+10
外露集流区域

规格中标记 10 × (10+10) mm、 20 × (20+10) mm、 25 × (25+10) mm 的额外 +10 mm 区域为不锈钢网集流区。

1S
单面外露集流体

单面电极背面不设置活性物质， 可直接看到不锈钢网集流体， 便于指定反应面和集流方向。

Specifications & Pricing

规格与价格

以下汇总当前整理的 20 个常规 SKU。 “单面”型号仅单侧具有活性物质， 其余常规型号按双面结构展示。

尺寸 / 规格涂覆形式活性物质载量包装数量参考售价
10 × 10 mm 双面 48 mg/cm²3 片¥120
Φ12 mm 单面 12 mg/cm²60 片¥1360
10 × (10 + 10) mm 双面 24 mg/cm²2 片¥90
10 × (10 + 10) mm 双面 24 mg/cm²3 片¥130
10 × (10 + 10) mm 双面 48 mg/cm²2 片¥90
20 × 20 mm 双面 24 mg/cm²2 片¥180
20 × 20 mm 双面 48 mg/cm²2 片¥180
20 × (20 + 10) mm 双面 24 mg/cm²—¥100
20 × (20 + 10) mm 双面 48 mg/cm²—¥100
25 × 25 mm 双面 24 mg/cm²1 片¥106
25 × 25 mm 双面 48 mg/cm²1 片¥106
25 × (25 + 10) mm 双面 24 mg/cm²—¥110
25 × (25 + 10) mm 双面 48 mg/cm²—¥110
90 × 76.5 mm 单面 12 mg/cm²1 片¥130
90 × 76.5 mm 双面 24 mg/cm²1 片¥170
90 × 76.5 mm 单面 24 mg/cm²1 片¥130
90 × 76.5 mm 双面 48 mg/cm²1 片¥170
90 × 76.5 mm 双面 48 mg/cm²8 片¥1181.5
纽扣用 25 × 25 mm 单面 12 mg/cm²5 片¥304
纽扣用 25 × 25 mm 单面 24 mg/cm²5 片¥304
说明：表中“参考售价”采用当前产品资料中的售价字段。 对于原始 SKU 名称中未明确标注片数的 20 × (20 + 10) mm 和 25 × (25 + 10) mm 规格，包装数量保持为“—”，避免擅自推定。 “+10 mm”为额外不锈钢网导电集流区域， 不计入主要活性物质区域尺寸。
Reference Parameters

参考技术参数

以下参数根据所提供的“锰电极参数表”整理， 用于代表性样品参考。 不同尺寸、载量及单/双面规格可能有所不同。

0.24 ± 0.01 mm 参考电极厚度
24 ± 1 mg/cm² 参考面密度
400 ± 50 mAh 参考容量
220 ± 20 mAh/g 参考比容量
序号项目单位测试 / 计算方法参考参数
01点电阻（万用表）Ω万用表直接测试最近的两个点50 ± 10
02点电阻（内阻仪）Ω内阻仪直接测试最近的四个点3 ± 0.5
03厚度mm测厚仪0.24 ± 0.01
04极片重量g电子称4.5 ± 0.2
05不锈钢重量g电子称2.2 ± 0.1
06极片涂料重量g电子称2.4 ± 0.1
07活性物质重量mg电子称1600 ± 50
08面积cm²直尺测量68 ± 2
09面密度mg/cm²计算24 ± 1
10极片吸液量g/g带集流体极片浸泡 2 M 硫酸锌溶液 24 h， 计算吸液量与总重量的比值0.55 ± 0.05
11容量mAh单片组装电池， 一正两负夹 AGM， 以 50 mA 放电， 约 0.73 mA/cm²400 ± 50
12比容量mAh/g实际容量除以活性物质质量220 ± 20
参数说明：上述数据来自所提供的参考参数表， 应理解为特定电极样品及对应测试条件下的参考值。 不同尺寸、活性物质载量、 单面 / 双面结构及实际组装条件均可能导致结果变化， 不作为所有 SKU 的统一保证值。
Selection Guide

快速选型

推荐按照 “电池结构 → 单/双面 → 电极尺寸 → 活性物质载量 → 集流方式” 的顺序确认规格。

01

选择单面或双面

常规实验可优先选择双面结构； 如果反应界面具有明确方向， 可选择单面型号。

02

确认活性物质载量

当前规格覆盖 12、24、48 mg/cm²， 应根据实验设计选择对应载量。

03

确认电极尺寸

小型实验可选择 10、20、25 mm 方片， 大片实验可选择 90 × 76.5 mm。

04

是否需要外露集流区

如果需要方便夹持或接线， 可选择带 +10 mm 不锈钢网集流区域的规格。

Applications

典型应用

适用于水系锌锰电池、 锌基储能体系及二氧化锰正极材料相关科研实验。

01
水系锌锰电池

用于水系锌锰电池正极材料及电池组装研究。

02
正极材料筛选

用于不同载量、 电极面积和结构条件下的材料对比。

03
水系锌基电池

用于锌基水系电化学体系和正极结构研究。

04
纽扣电池实验

提供 Φ12 mm 及纽扣实验用单面正极规格。

05
单面反应研究

单面型号适用于需要指定反应方向的实验结构。

06
双面电极研究

常规双面结构适合二氧化锰正极片的基础研究。

07
集流体结构研究

用于研究不锈钢网集流体与活性物质层之间的结构关系。

08
电极参数研究

可用于厚度、面密度、 吸液及容量等电极参数的实验研究。

FAQ

常见问题

关于二氧化锰正极、 单双面结构、不锈钢网集流体和规格选型的常见问题。

本系列采用不锈钢网作为集流体。 不锈钢网同时承担导电连接和电极层机械支撑作用。
常规二氧化锰正极为双面结构， 即不锈钢网两面均具有活性物质。 只有规格中明确标注“单面”的产品 才是一面具有活性物质、 另一面为不锈钢网集流体。
+10 mm 为外露的不锈钢网集流区域， 主要用于导电连接、夹持或接线， 不属于主要活性物质区域。
这些数值对应不同 SKU 的活性物质载量。 实际选型应根据实验设计、 电极面积、电池结构和目标研究条件确定， 不建议仅根据一个参数单独判断。
不是。 该数值来自所提供参考参数表中的特定样品及测试条件， 应作为代表性参考参数使用。 不同尺寸、载量、单/双面结构以及电池组装方式均可能产生不同结果。
当前原始 SKU 名称中， 部分带 +10 mm 集流区域的规格没有明确记录片数。 为避免擅自推定， 本页面将对应包装数量显示为“—”。

📞 联系方式

  • 🛒 手机淘宝店铺：科学材料站

  • 🔗 淘宝链接：点击进入淘宝网页

  • ☎ 电话：+86 130-0303-8751 / +86 156-0553-2352

  • 💬 微信：SCI-Materials-Hub

  • 📧 Email 报价/对公需求：contact@scimaterials.cn


二氧化锰正极价格表

不同尺寸、活性物质负载量及包装数量的二氧化锰正极规格与售价对照

尺寸规格电极形式活性物质负载量包装数量售价
10 × 10 mm 常规 48 mg/cm²3片¥120
Φ12 mm 圆形电极 单面 12 mg/cm²60片¥1360
10 × (10 + 10) mm 带连接区 24 mg/cm²2片¥90
3片¥130
48 mg/cm²2片¥90
20 × 20 mm 常规 24 mg/cm²2片¥180
48 mg/cm²2片¥180
20 × (20 + 10) mm 带连接区 24 mg/cm²未标数量 ¥100
48 mg/cm²未标数量 ¥100
25 × 25 mm 常规 24 mg/cm²1片¥106
48 mg/cm²1片¥106
25 × (25 + 10) mm 带连接区 24 mg/cm²未标数量 ¥110
48 mg/cm²未标数量 ¥110
90 × 76.5 mm 单面 12 mg/cm²1片¥130
常规 24 mg/cm²未标数量 ¥170
单面 24 mg/cm²未标数量 ¥130
常规 48 mg/cm²未标数量 ¥170
常规 8片¥1182
25 × 25 mm 纽扣电池规格 纽扣 / 单面 12 mg/cm²5片¥304
24 mg/cm²5片¥304
说明：表中仅展示最终售价；“单面”按照原始规格标注。 原数据中未注明包装数量的规格统一显示为“未标数量”， “带连接区”用于区分 10 × (10 + 10) mm、20 × (20 + 10) mm、 25 × (25 + 10) mm 等带延伸尺寸规格。
