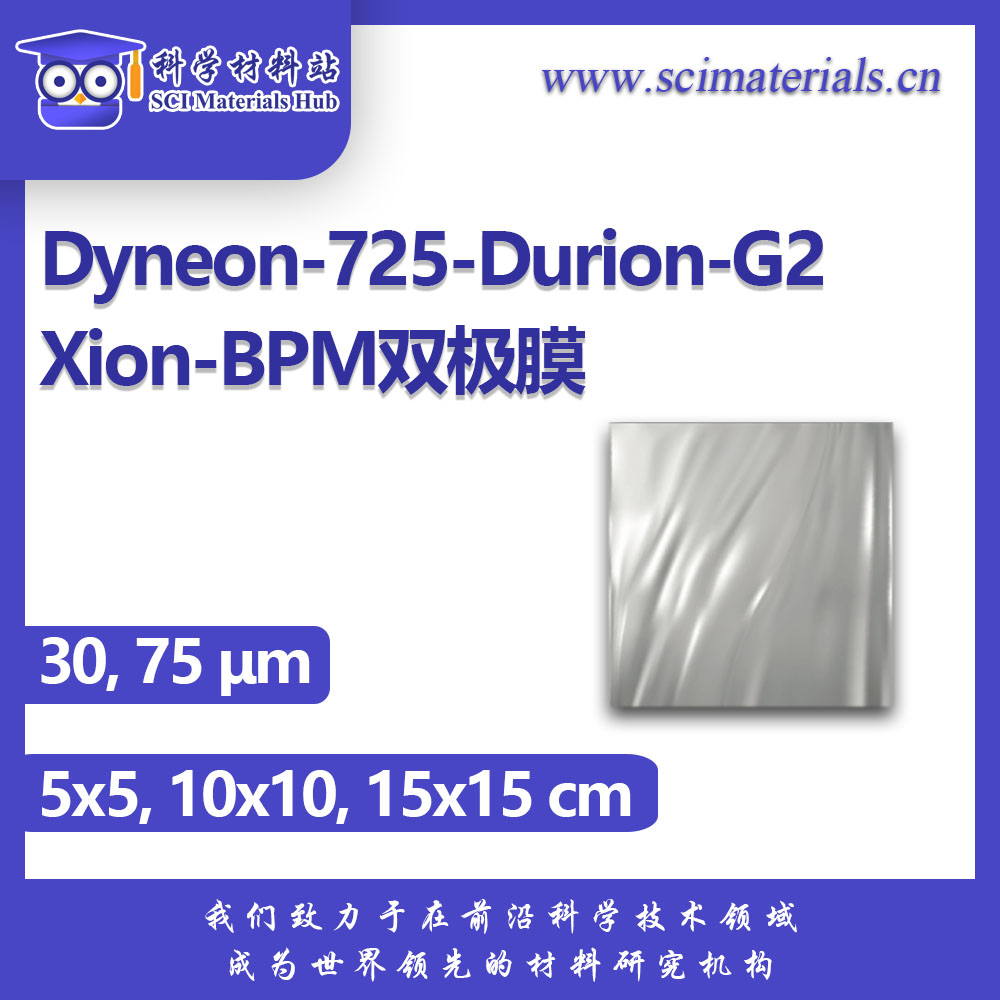

Xion BPM-Dyneon-725-Durion-G2 (30, 75μm) 双极膜

  • 产品代码:1801072, 1801073
  • 产品描述:膜厚度:30, 75μm;膜尺寸:5x5cm, 10x10cm, 15x15cm
  • 品牌:SCI Materials Hub
  • 货期:2-4周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:Xion BPM-Dyneon-725-Durion-G2, 双极膜, Bipolar Membrane, SCI Materials Hub, 科学材料站
65.7K

复合双极膜又称复合双层膜(BPM),通常由阳离子交换层、阴离子交换层和夹在两者之间的机械增强体组成。阳离子交换层(CEL)是由机械增强体一侧使用阳离子交换分散体制成的,阴离子交换层(AEL)是通过在机械增强体的对侧利用阴离子交换分散体而制成,基于聚四氟乙烯的微孔增强层集成到膜的结构中,以提供增强的机械性能和减少膨胀并增加CEL和AEL之间的界面面积,双极膜具有机械强度高、离子选择性强和化学稳定性高的特点。


科学材料站可以提供Xion BPM-Dyneon-725-Durion-G2 (30, 75μm) 双极膜不同厚度尺寸系列,其中厚度有30和75μm,尺寸有5x5cm, 10x10cm15x15cm。更多型号将在厂家更新后提供。

如需购买请点进入方【购买渠道】进行购买或寻求报价单。


科学材料站(SCI Materials Hub)可以根据用户需求设计和制造各种配置的双极膜,公司与诸如杜邦公司、科慕公司、3M公司、索尔维公司等多家知名的离子交换树脂供应商合作,可以获得Nafion、Aquivion、Dyneon、Pention、Durion等业内多种阳离子交换离聚物(CEI)和阴离子交换离聚物(AEI)以供选择,设计出多种组合的复合双极膜(BPM)。


双极膜通常用于各种电化学应用中的水裂解反应。在AEL和CEL的界面上,当超过大约0.8V的电位差时,水分子会分解成氢氧根和H+离子。CEL必须朝向阴极,AEL必须朝向阳极,并且操作模式必须反向偏压,以促进水离解反应。在反向偏压模式下,电子从阳极侧转移到阴极侧。由于AEL和CEL之间存在亲水结构域,水分子会自然地扩散到AEL和CEL之间的中间层中,水的分裂反应会产生氢离子和氢氧根离子。氢离子将从CEL层扩散到阴极室。另一方面,氢氧根离子会从AEL层扩散出去并迁移到阳极室中。与传统的水电解不同,电催化作用下的水分解无反应气体产生。因此,一摩尔的氢氧根和氢离子可以在大约22Wh的能量值下实现(电解:大约55 Wh/Mol),如下图所示:



复合双极膜的反向偏压和正向偏压操作模式:

下图a显示了在反向偏压模式下复合双极膜的示意图,在该模式下,界面层首先耗尽离子,然后水分解成氢离子和氢氧根离子。图b描述了复合双极膜在正向偏压模式下的操作,其中氢离子和氢氧根离子通过各自的层被输送到双极膜中,在双极结处形成水(也称为双极界面或界面层)。AEL代表阴离子交换层,CEL代表阳离子交换层,IL代表界面层。



复合双极膜和离子交换膜的各种用途的科学文献推荐:

Jaroszek和Dydo撰写的题为"Ion-exchange membranes in chemical synthesis-a review"一文是很好的来源,可以帮助我们正确地使用复合双极膜和其他离子交换膜,通过电渗析、2室膜电解、3室电渗析进行各种化学合成反应,四室电渗析复分解、双极膜电渗析、电去离子、离子置换电渗析、唐南透析等。

BPM-Dyneon-Durion复合双极膜由我公司研制的Durion-G2基阴离子交换层(AEL)和3M公司研制的Dyneon-725基阳离子交换层(CEL)组成,这种复合双极膜的厚度有30um和75um两种规格,尺寸有:5cmX5cm、10cmX10cm、15cmX15cm三种规格。



BPM-Dyneon-Durion-G2复合膜的参数:

高水解效率(在25℃,100mA/cm2时,0.5M NaCl中>98%)

低水解电压(在25℃,100mA/cm2时,0.5M NaCl中<1.2V)

低厚度下的优良机械性能

注:本节提供的值是基于其他商用双极膜性能的估计值。

Xion BPM-Dyneon-725-Durion-G2 composite bipolar membranes consist of Durion G2 based anion exchange layer (AEL) and Dyneon 725 based cation exchange layer (CEL). This composite bipolar membrane has a thickness of 75 micrometers. Durion G2 anion exchange resin is based on polyphenylene backbone with a hybridized imidazole side chain which functions as the functional groups for anion transfer within the AEL. Dyneon 725 resin is based on the perfluorosulfonic acid composition with short side chain and it has sulfonic acid as its functional groups for cation transfer within the CEL.


A composite bipolar membrane is usually comprised of a mechanical reinforcement that is sandwiched between a cation exchange layer and an anion exchange layer. Cation exchange layer (CEL) is formed by the cation exchange dispersion on one side of the mechanical reinforcement. An anion exchange layer (AEL), on the other hand, is formed from the use of an anion exchange dispersion on the opposite side of the mechanical reinforcement. A composite bipolar membrane can also be called as composite bilayer membrane. The microporous e-PTFE based reinforcement layer is integrated into the structure of the bipolar membrane to provide enhanced mechanical properties, reduced swelling, and increasing the interface area between the CEL and AEL.


Bipolar membranes are usually used for water splitting reactions in various electrochemical applications. At the interface of AEL and CEL, water molecules are dissociated into OH- and H+ ions when exceeding a potential difference of approximately 0.8 V. The CEL must be directed towards the cathode, the AEL must be directed towards the anode, and the mode of operation has to be reverse biased in order to promote the water dissociation reaction. Under the reverse biased mode, the electrons would be transferred from anode side to cathode side. Water molecules would naturally diffuse into the intermediate layer between AEL and CEL due to presence of hydrophilic domains within those respective layers and generation of H+ and OH- ions would occur as a result of water splitting reaction. H+ ions will diffuse out from the CEL layer and migrate into the cathode chamber. OH- ions, on the other hand, would diffuse out from the AEL layer and migrate into the anode chamber. The electro-catalytically forced water dissociation produces – in contrast to the classical electrolysis of water – no reaction gases. Therefore, one Mol of OH- and H+ – ions can be achieved at an energy value of approximately 22 Wh (Electrolysis: approximately 55 Wh per Mol).


These are developmental products that are currently being offered to researchers for their various electrochemical applications and hence, the amount of experimental data is is scarce and our team hopes that customers purchasing these products would provide some feedback in order to further improve their electrochemical performances.


Xion BPM-Dyneon-725-Durion-G2 composite bipolar membranes are easy to use and expected to deliver the following specs:

? High water splitting efficiency (> 98% at 100 mA cm-2 in 0.5 M NaCl at 25°C)*
? Low water splitting voltage (< 1.2 V at 100 mA cm-2 in 0.5 M NaCl at 25°C)*
? Excellent mechanical properties at low thickness (30 and 75 μm)

* The values provided in this section are estimated values that are based on the performance of other commercial bipolar membranes.


Xion BPM-Dyneon-725-Durion-G2 composite bipolar membranes features:

Applications: Water splitting, electrodialysis, production of acids and alkali from a corresponding salt which is also known as salt splitting reaction,
Bipolar Exchange Membrane
Stability range (pH) at 25 °C: 1 - 14
Thickness: 30 and 75 micrometers (nominal thickness)


Reverse Bias and Forward Bias Operation Modes with Composite Bipolar Membranes:

Figure (a) provides the schematic representation of the composite bipolar membrane under reverse bias mode, where first the junction is depleted of ions and then water dissociates into H+ and OH- ions. Figure (b) describes the operation of a composite bipolar membrane under forward bias mode, where H+ and OH- ions are transported into the bipoplar membrane through their respective layers and water is formed at the bipolar junction (also called as bipolar interface or interface layer). AEL stands for anion exchanger layer, CEL stands for cation exchange layer, IL stands for interface layer.

[This descriptive figure/image is from Parnamae et. al (January 2021), article entitled as "Bipolar membranes: A review on principles, latest developments, and applications", and can be found here: https://doi.org/10.1016/j.memsci.2020.118538]


Scientific Literature for Various Use of Composite Bipolar and Ion Exchange Membranes:

The article by Parnamae et. al entitled "Bipolar membranes: A review on principles, latest developments, and applications" is considered to be an excellent source that describes the operating principle of bipolar membranes, provides a very through analysis of the recent progress in the area of bipolar membranes and use of such membranes in various applications.


The article by Jaroszek and Dydo entitled " Ion-exchange membranes in chemical synthesis - a review" is considered to be an excellent source for how to properly use a composite bipolar and other ion exchange membranes for various chemical synthesis reactions via electrodialysis, 2-chamber membrane electrolysis, 3-chamber electro-electrodialysis, 4-chamber electrodialysis metathesis, electrodialysis with bipolar membrane, electrodeionization, ion substitution electrodialysis, Donnan dialysis, etc.


Please note that a current lead time of 2 - 3 weeks is to be expected.

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

科学材料站 Xion BPM 双极膜系列
产品描述厚度产品代码5*5cm10*10cm15*15cm备注
Aquivion-870-Durion-G2
30μm1801070166933284819870 EW/LMW Series
75μm1801071251251127428
Aquivion-870-Dappion30μm1801076180235945205870 EW/Dappion Series
75μm180107727135521
8023
Dyneon-725-Durion-G230μm1801072166933284819725 EW/LMW Series
75μm1801073251251127428
Dyneon-725-Dappion30μm1801078180235945205725 EW/Dappion Series
75μm180107927135521
8023
Nafion-1000-Durion-G230μm18010741669332848191000 EW/LMW Series
75μm1801075251251127428
Nafion-1000-Dappion30μm18010801802359452051000 EW/Dappion Series
75μm180108127135521
8023
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!

注:下单时请联系客服,注明选择哪个系列。

2-3张 (9.5折);4-5张 (9折);6-7张 (8.8折);8-9张 (8.5折);≥10张 (8折)


3. 其它联系方式

电话:+86 130-0303-8751/+86 156-0553-2352

微信:SCI-Materials-Hub

如需报价单请联系:Email: contact@scimaterials.cn



Partial references citing our materials (from Google Scholar)


二氧化碳还原

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.


5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.


6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO2 electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.


7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.


8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).


9. Advanced Energy Materials Interatomic Electronegativity Offset Dictates Selectivity When Catalyzing the CO2 Reduction Reaction

The bipolar membrane (Fumasep FBM), carbon paper (SIGRACET 29BC, Freudenberg paper H23C2), ion exchange membrane (Nafion N117), and anion exchange membrane (Fumasep, FAA-3-PK-130) were all obtained from SCI Materials Hub.


10. Separation and Purification Technology *CO spillover induced by bimetallic xZnO@yCuO active centers for enhancing C–C coupling over electrochemical CO2 reduction

5 % Nafion solution was obtained through SCI Materials Hub.


11. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

In this paper, PiperION-A5-HCO3 anion exchange resin, Fumion FAA anion exchange resin, PiperION-A15-HCO3 and FAA-3-50 were purchased from SCI Materials Hub.


12. Vacuum Controllable dual Cu–Cu2O sites derived from CuxAl-LDH for CO2 electroreduction to hydrocarbons

Nafion and carbon paper (TGPH060) were supplied through SCI Materials Hub.


13. Chemical Engineering Journal Coupling electrocatalytic CO2 reduction with glucose oxidation for concurrent production of formate with high efficiency

An AEM membrane (PiperION, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


14. Chem Identification of Cu0/Cu+/Cu0 interface as superior active sites for CO2 electroreduction to C2+ in neutral condition

In this paper, Sustainion X37-50 Grade RT membrane and the MEA electrolyzer (CRRMEA1a, Figure S34) with 1cm2 active area were obtained from SCI Materials Hub.

电池

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.


3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.


4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.


5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.


6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.


7. SSRN Cr-induced improvement of structural stability of δ-MnO2 optimizes cycling stability of aqueous Zn-ion batteries

The Zn sheet (99.99%) was purchased from SCI Materials Hub.


8. Nature Communications Atomic-scale regulation of anionic and cationic migration in alkali metal batteries

The lithium metal disk (purity: 99.9%, diameter: 16 mm, thickness: 0.6 mm) was obtained from SCI Materials Hub.


9. Chemical Engineering Journal Zinc-based energy storage with functionalized carbon nanotube/polyaniline nanocomposite cathodes

CNTs were purchased from SCI Materials Hub.


10. ACS Nano Interfacial Chemistry Modulation via Amphoteric Glycine for a Highly Reversible Zinc Anode

Zn foil (>99.99%, 100 μm) was purchased from SCI Materials Hub.


11. ACS Nano High-Energy and Long-Lived Zn–MnO2 Battery Enabled by a Hydrophobic-Ion-Conducting Membrane

Zn foil (99.9%), carbon paper, and carbon felt were obtained from SCI Materials Hub.


12. Nature Communications Unravelling rechargeable zinc-copper batteries by a chloride shuttle in a biphasic electrolyte

Carbon cloth (CeTech W0S1011), PP membrane (Celgard 2300), Glass fiber (Whatman GF/A), anion exchange membrane (Fumasep FAB-PK-130), and cation exchange membrane (Nafion N-117) were purchased from sci materials hub.


13. PROCEEDINGS OF SPIE A dendrite-free and corrosion-suppressive metallic Zn anode regulated by the hybrid aqueous/organic electrolyte

Zn foil (99.9%, 100 μm thickness) was obtained from the SCI Materials Hub.


14. Journal of Alloys and Compounds Cr-induced enhancement of structural stability in δ-MnO2 for aqueous Zn-ion batteries

The Zn sheet (99.99%) and Whatman GF/D paper were available for purchase on on the SCI Materials Hub.


15. Small Multifunctional Umbrella: In Situ Interface Film Forming on the High-Voltage LiCoO2 Cathode by a Tiny Amount of Nanoporous Polymer Additives for High-Energy-Density Li-Ion Batteries

Carbon coating aluminum foils with a thickness of 16 µm were acquired from SCI Materials Hub.


电解水

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.


2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.


3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub.


4. Chemical Engineering Journal Electronic configuration of single ruthenium atom immobilized in urchin-like tungsten trioxide towards hydrazine oxidation-assisted hydrogen evolution under wide pH media

The non-reinforced anion exchange membrane (AEM) of the coupled system was obtained from SCI Materials Hub (Fumasep FAA-3-50).


5. Cell Reports Physical Science Non-layered dysprosium oxysulfide as an electron-withdrawing chainmail for promoting electrocatalytic oxygen evolution

Nickel foam (NF) was offered by SCI Materials Hub (Wuhu, China), and was ultrasonicated in HCl solution, ethanol, and acetone in proper order before being used in electrochemical measurements.


6. Materials Today Catalysis Valence engineering via double exchange interaction in spinel oxides for enhanced oxygen evolution catalysis

Commercial Cu foam was purchased from SCI Materials Hub.


7. Advanced Functional Materials Elucidating the Critical Role of Ruthenium Single Atom Sites in Water Dissociation and Dehydrogenation Behaviors for Robust Hydrazine Oxidation-Boosted Alkaline Hydrogen Evolution

The nonreinforced anion exchange membrane (AEM) of the HzOR-assisted OWS system was purchased from SCI Materials Hub (Fumasep FAA-3-50).


8. ACS Omega Boosting Hydrogen Evolution through the Interface Effects of Amorphous NiMoO4–MoO2 and Crystalline Cu

Pt/C (20 wt %) was purchased from SCI Materials Hub.


9. SSRN The Dual Active Sites Reconstruction on Gelatin In-Situ Derived 3d Porous N-Doped Carbon for Efficient and Stable Water Splitting

Nafion D521 was purchased from SCI Materials Hub.


10. Molecules Interfacial Interaction in NiFe LDH/NiS2/VS2 for Enhanced Electrocatalytic Water Splitting

Carbon cloth (SCI Materials Hub) were employed as substrates for the in-situ formation of VS2 and NiS2/VS2 on its surface via hydrothermal synthesis.

燃料电池

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.


2. Polymer Development of rigid side-chain poly(ether sulfone)s based anion exchange membrane with multiple annular quaternary ammonium ion groups for fuel cells

Fumion FAA-3-solut-10 was obtained from SCI Materials Hub.


3. Journal of Power Sources Boosting the power density of the H3PO4/polybenzimidazole high-temperature proton exchange membrane fuel cell to >1.2 W cm-2 via the deposition of acid-based polymer layers on the catalyst layers

PBI resin (molecular weight: 60000, SCI Materials Hub), carbon paper 39BB (SGL Carbon), 70 wt% Pt/C (TANAKA) were obtained from SCI Materials Hub.


4. SSRN Bulky and Rigid Spiro-Adamantane-Fluorene Unit Promoted Microphase Separation in Di-Cation Side Chain Grafted Anion Exchange Membrane

Fumasep FAA-3-20 was obtained from SCI Materials Hub.


催化-ORR

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.


2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.


3. Catalysis Solution-Phase Synthesis of Co-N-C Catalysts Using Alkali Metals-Induced N-C Templates with Metal Vacancy-Nx sites

In this paper, PtRu-C (60 % PtRu (3.5nm) on High Surface Area Carbon, Pt:Ru = 1:1, SCI Materials Hub), an alkaline dispersion (PiperION-A5-HCO3-EtOH, 5 wt.%, SCI Materials Hub), anion exchange membrane (PiperION-A type-HCO3, SCI Materials Hub) were used as received.


电容器

1. Journal of Energy Storage Unraveling the detrimental crosstalk between cathode and anode in the aqueous asymmetric capacitor of activated carbon /copper oxide

In this paper, Fumasep FAA-3-50 anion exchange membrane (Thickness 50 μm, surface resistance 0.6–1.5 Ω cm−2, transference number 92–96 %) was bought from SCI Materials Hub.


催化加氢

1. Nature Communications Electrosynthesis of polymer-grade ethylene via acetylene semihydrogenation over undercoordinated Cu nanodots

In this paper, activated carbon (Vulcan XC-72) was obtained from SCI Materials Hub.


水处理

1. Water Research Electro-peroxone with solid polymer electrolytes: A novel system for degradation of plasticizers in natural effluents

In this paper, Nafion® N324 (SCI Materials Hub), between a 15 cm2 (3 cm × 5 cm) graphite plate anode and a graphite felt cathode (EP-SPE system)


表征

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.


理论计算

1. Sustainable Energy & Fuels A desulfurization fuel cell with alkali and sulfuric acid byproducts: a prototype and a model

A Fumasep®FKD-PK-75 membrane was used as the cation exchange membrane, in which the the oxygen permeability of membrane was about 1 cm3(STP)/(s cm2 cm Hg) [Ref. SCI Materials Hub]


器件

1. Journal of Materials Science: Materials in Electronics Preparation and application of electrical conductive composites with skin temperature-triggered attachable and on-demand detachable adhesion

Carbon black (CB, Ketjenblack EC 600JD) was purchased from SCI Materials Hub.


材料合成

1. Acta Materialia In situ epitaxial thickening of wafer-scale, highly oriented nanotwinned Ag on tailored polycrystalline Cu substrates

Single-crystal Cu (1 cm × 1 cm) substrates with a (111) orientation were purchased from SCI Materials Hub (www.scimaterials.cn).

相关产品

为科学研究提供来源广泛的材料
材料合成仪器装置及材料解决方案
备案号:皖ICP备2021011042号-1
关于我们
产品咨询
客服1
客服2
售后与技术咨询
客服1
客服2
微信客服

返回顶部
