首页 > 碱性水电解槽 > 研究级碱性水电解槽 > 碱性水电解槽(20电堆,研究级)


  • 产品代码:261005

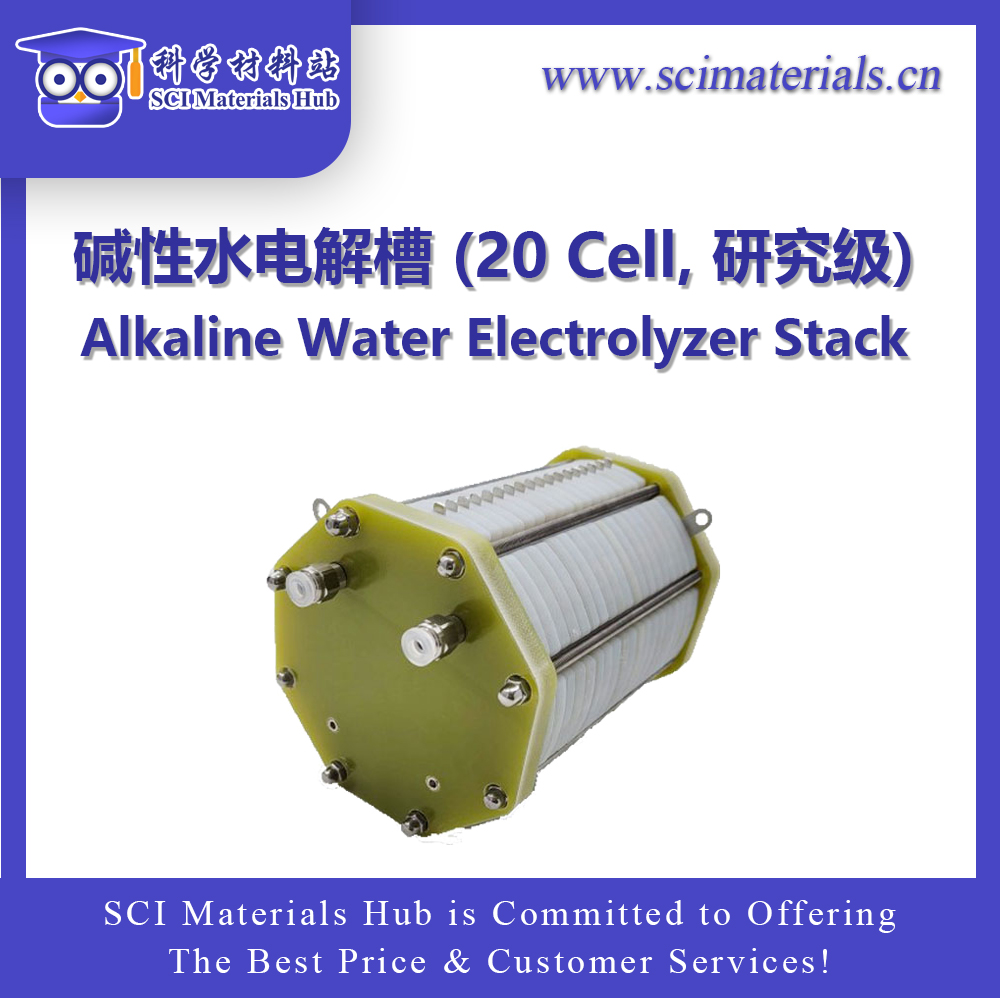

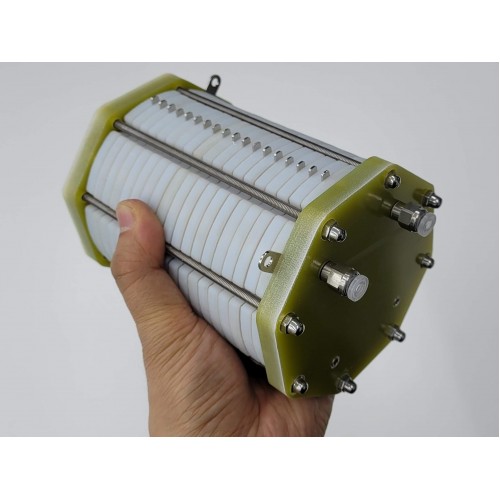

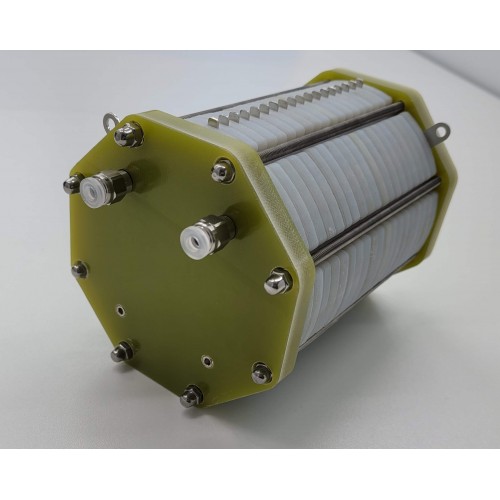

  • 产品描述:Alkaline Water Electrolyzer Stack (20 Cell, Research Grade)
  • 品牌:
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:碱性水电解槽(20电堆,研究级), Alkaline Water Electrolyzer Stack, SCI Materials Hub, 科学材料站

1. 介绍

The development of high-efficiency nickel electrodes based on the core technology reduces the system production cost and generates hydrogen through the high-yielding rate per input power, and this technology has a long life cycle activating over 10,000 hours (for nickel based electrodes). The estimated lifetime for the alkaline electrolyzer stack (or individual cells present in the stack hardware) is 6000 operational hours. This alkaline electrolyzer stack requires a caustic solution of 30 wt% KOH for its efficient operation.

基于核心技术的高效镍电极的开发降低了系统生产成本,并通过每输入功率的高产率产生氢气,该技术具有超过10000小时的长生命周期(对于镍基电极)。碱性电解槽堆(或堆硬件中的单个电池)的预计寿命为6000个工作小时。该碱性电解槽需要30 wt%KOH的苛性碱溶液才能有效运行。

Hydrogen generated from the water electrolyzer is used as the energy storage medium for HESS (Hydrogen Energy Storage System). The water electrolyzer can be even powered by renewable energy such as solar, wind-power, tidal, night-time electricity, and surplus power energy. When needed, hydrogen is converted to electricity by the fuel cell.


With our stack, all of our products generate hydrogen with about 82% of high-efficiency based on the nickel electrodes of our own.


This electrolyzer is tested before shippment and the test report will be also provided after production.

SC is short for a Small Cell, and C means a Cell.




2. 技术参数

- Size (L x W x H, mm): 100 x 100 x 141

- Material: FRP, Engineering plastic

- Number of Cells: 20

- Membrane: Proprietary porous polymer

- Electrolyzer Current Range: 6 - 10A

- Operating Temperature Range: 15 - 70°C

- Electrolyte: Alkali Solution (KOH, 30wt%)

- Active Area per Cell: 12 cm2

- H2 Flow Rate: 1400 mL/min

- O2 Flow Rate: 700 mL/min

- Applied Voltage Range: 32 - 40V

- Power Capacity Range: 50 - 400W

-尺寸(长xx高,毫米):100 x 100 x 141







-每个电池的有效面积:12 cm2





3. 应用

- Redundant renewable energy transformation and storage

- Lab experiment and teaching

- Laboratory analytic instrument

- Hydrogen healthy care industrial

- Hydrogen beauty industrial

- Fuel for special field

- Hydrogen supply for fuel cell

- Other pure H2 application field









技术参数 - 碱性水电解槽
尺寸 (mm)100 X 100 X 27100 X 100 X 33100 X 100 X 39100 X 100 X 51100 X 100 X 81100 X 100 X 141



材料FRP, 工程塑料
电解质碱液 (KOH, 30wt%)

FAQ1. For 1 Cell, 5 (5-cell), 10 (10-cell), what are the outer and inner diameters of the tube (outlet and inlet connection)?

The outer diameter and inner diameter of the series tube are as follows.
Input outer diameter: 4mm

Inner diameter: 1.8mm

Output outer diameter: 6mm

Inner diameter: 3.6mm







FAQ2. What is the hydrogen pressure at the outlet for 1 Cell, 5 (5-cell) and 10 (10-cell)?

At 3 barg, all LSCF series are the same.


在3 barg时,所有LSCF系列都是相同的。

FAQ3. What is the voltage range and current range of 1 Cell, 5 (5-cell) and 10 (10-cell)?
The current range of LSCF series is 6~15A, all are the same.
LSCF voltage range: 1.6~2V
LSCF5 Voltage range: 8~10V
LSCF10 Voltage range: 16~20V






FAQ4. How much energy in Wh is used for production of 1L H2 for 1 Cell, 5 (5-cell) and 10 (10-cell)?

LSCF, LSCF5 and LSCF10 are all the same, 4.8 Wh.

常见问题4:1电堆、5电堆和10电堆生产1L H2 需要多少Wh的能量?

1电堆、5电堆和10电堆都是相同的,4.8 Wh。

FAQ5. what flow rates of KOH solution is typically used for 5 (5-cell)?

In 5 (5-cell), 50cc/min of KOH can be introduced.



1. 手机淘宝(官方淘宝店铺:科学材料站)

2. 点击进入淘宝网页链接

碱性水电解槽 (研究级)



261000研究级碱性水电解槽 (1 Cell)8343请咨询
261001研究级碱性水电解槽 (2 Cell)13725请咨询
261002研究级碱性水电解槽 (3 Cell)19728请咨询
261003研究级碱性水电解槽 (5 Cell)27544请咨询
261004研究级碱性水电解槽 (10 Cell)43663请咨询
261005研究级碱性水电解槽 (20 Cell)70432请咨询
