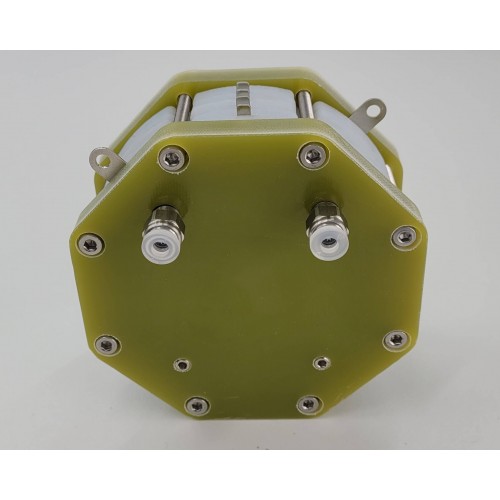

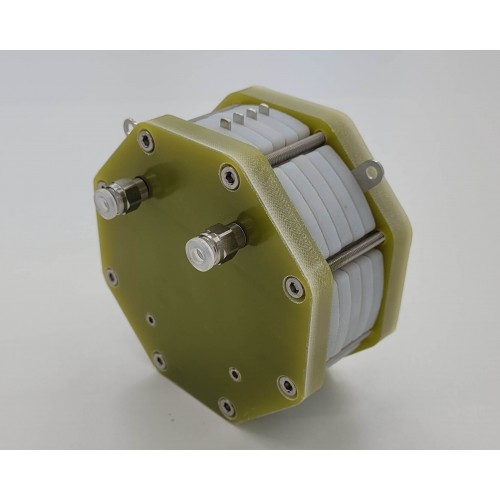

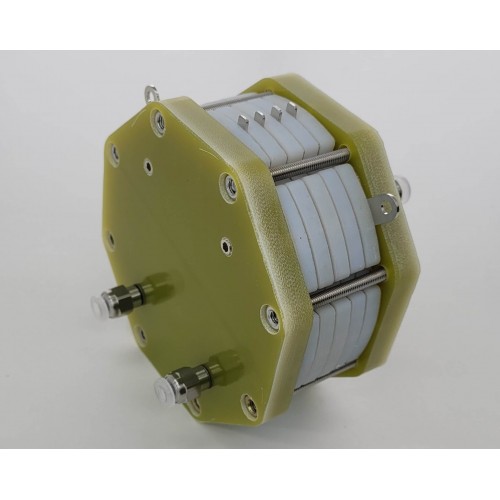

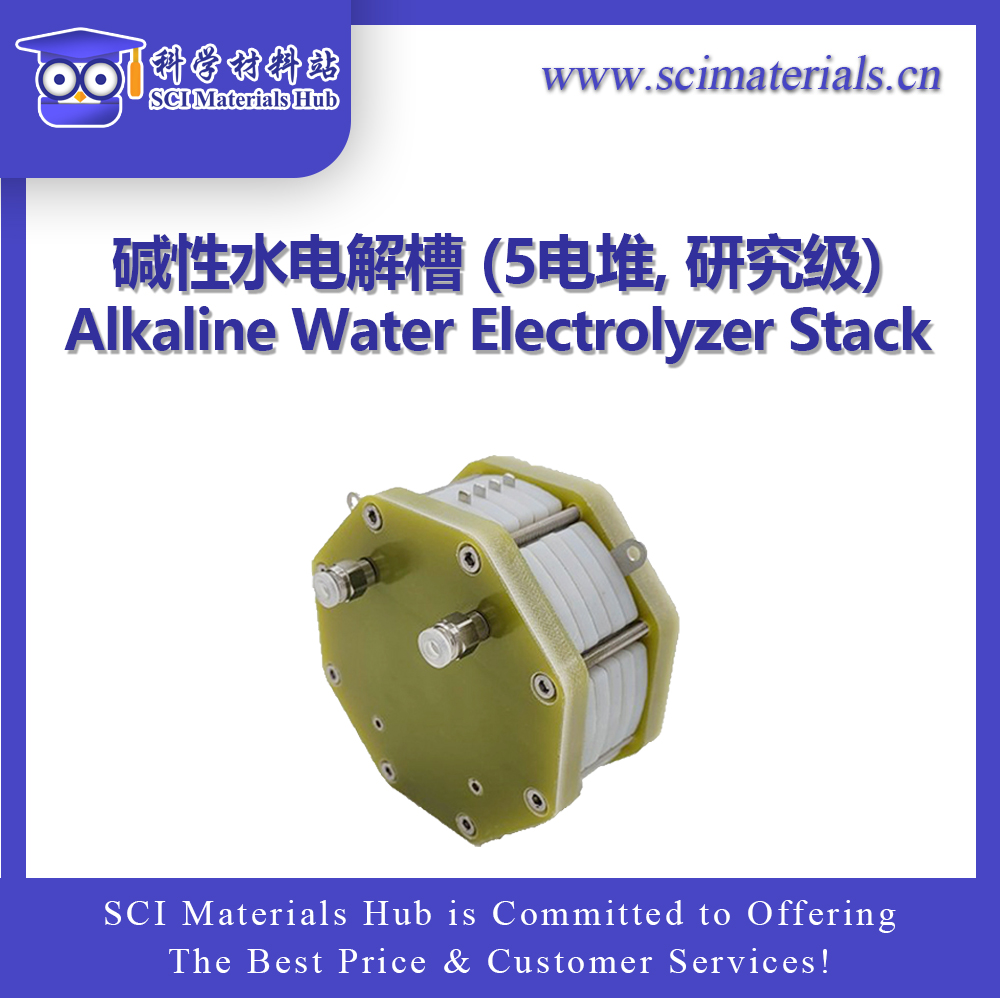

碱性水电解槽(5电堆,研究级)

  • 产品代码:261003
  • 产品描述:Alkaline Water Electrolyzer Stack (5 Cell, Research Grade)
  • 品牌:
  • 货期:请咨询
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:碱性水电解槽(五电堆,研究级), Alkaline Water Electrolyzer Stack, SCI Materials Hub, 科学材料站
65.7K

1. 介绍

The development of high-efficiency nickel electrodes based on the core technology reduces the system production cost and generates hydrogen through the high-yielding rate per input power, and this technology has a long life cycle activating over 10,000 hours (for nickel based electrodes). The estimated lifetime for the alkaline electrolyzer stack (or individual cells present in the stack hardware) is 6000 operational hours. This alkaline electrolyzer stack requires a caustic solution of 30 wt% KOH for its efficient operation.

基于核心技术的高效镍电极的开发降低了系统生产成本,并通过每输入功率的高产率产生氢气,该技术具有超过10000小时的长生命周期(对于镍基电极)。碱性电解槽堆(或堆硬件中的单个电池)的预计寿命为6000个工作小时。该碱性电解槽需要30 wt%KOH的苛性碱溶液才能有效运行。


Hydrogen generated from the water electrolyzer is used as the energy storage medium for HESS (Hydrogen Energy Storage System). The water electrolyzer can be even powered by renewable energy such as solar, wind-power, tidal, night-time electricity, and surplus power energy. When needed, hydrogen is converted to electricity by the fuel cell.

水电解槽产生的氢气用作HESS(氢能存储系统)的储能介质。水电解槽甚至可以使用可再生能源,如太阳能、风能、潮汐能、夜间电力和剩余电能。当需要时,氢由燃料电池转化为电能。


With our stack, all of our products generate hydrogen with about 82% of high-efficiency based on the nickel electrodes of our own.

利用我们的电堆,我们所有的产品都能以我们自己的镍电极为基础,以约82%的高效率产生氢气。


This electrolyzer is tested before shippment and the test report will be also provided after production.

SC is short for a Small Cell, and C means a Cell.

该电解槽在装运前进行测试,并在生产后提供测试报告。

SC是小电堆的缩写,C是电堆的意思。

点击上方【购买渠道】进行购买或咨询


2. 技术参数

- Size (L x W x H, mm): 100 x 100 x 51

- Material: FRP, Engineering plastic

- Number of Cells: 5

- Membrane: Proprietary porous polymer

- Electrolyzer Current Range: 6 - 10A

- Operating Temperature Range: 15 - 70°C

- Electrolyte: Alkali Solution (KOH, 30wt%)

- Active Area per Cell: 12 cm2

- H2 Flow Rate: 350 mL/min

- O2 Flow Rate: 175 mL/min

- Applied Voltage Range: 8 - 10V

- Power Capacity Range: 12.5 - 100W

-尺寸(长xx高,毫米):100 x 100 x 51

-材料:玻璃钢、工程塑料

-电堆数:5

-膜:专有多孔聚合物

-电解槽电流范围:6-10A

-工作温度范围:15-70°C

-电解液:碱溶液(KOH30wt%

-每个电池的有效面积:12 cm2

-氢气流速:350毫升/分钟

-氧气流速:175毫升/分钟

-施加电压范围:8-10V

-功率容量范围:12.5-100W


3. 应用

- Redundant renewable energy transformation and storage

- Lab experiment and teaching

- Laboratory analytic instrument

- Hydrogen healthy care industrial

- Hydrogen beauty industrial

- Fuel for special field

- Hydrogen supply for fuel cell

- Other pure H2 application field

-冗余可再生能源转换和储存

-实验室实验与教学

-实验室分析仪器

-氢保健工业

-氢美容工业

-专用燃料

-燃料电池的氢气供应

-其他纯氢应用领域


技术参数 - 碱性水电解槽
产品单电堆2电堆3电堆5电堆10电堆20电堆
产品代码261000261001261002261003261004261005
尺寸(mm)100 X 100 X 27100 X 100 X 33100 X 100 X 39100 X 100 X 51100 X 100 X 81100 X 100 X 141
电堆数12351020
施加电压范围(V)1.6~23.2~44.8~68~1016~2032~40
功率容量范围(W)

2.5~20

5~40

7.5~6012.5~10025~20050~400
材料FRP, 工程塑料
多孔聚合物
电极材料镍化合物
电解质碱液 (KOH, 30wt%)
工作温度范围15~70℃


FAQ1. For 1 Cell, 5 (5-cell), 10 (10-cell), what are the outer and inner diameters of the tube (outlet and inlet connection)?

The outer diameter and inner diameter of the series tube are as follows.
Input outer diameter: 4mm

Inner diameter: 1.8mm

Output outer diameter: 6mm

Inner diameter: 3.6mm

常见问题1:对于1电堆、5电堆、10电堆,管道的外径和内径(出口和进口连接)是多少?

管子的外径和内径如下所示。

输入外径:4mm

内径:1.8mm

输出外径:6mm

内径:3.6mm


FAQ2. What is the hydrogen pressure at the outlet for 1 Cell, 5 (5-cell) and 10 (10-cell)?

At 3 barg, all series are the same.

常见问题2:1电堆、5电堆和10电堆出口处的氢气压力是多少?

在3 barg时,所有都是相同的。


FAQ3. What is the voltage range and current range of 1 Cell, 5 (5-cell) and 10 (10-cell)?
The current range of LSCF series is 6~15A, all are the same.
1 Cell voltage range: 1.6~2V
5 Cell Voltage range: 8~10V
10 Cell Voltage range: 16~20V

常见问题3:1电堆、5电堆和10电堆的电压范围和电流范围是多少?

1电堆的电流范围为6~15A,均相同。

1电堆电压范围:1.6~2V

5电堆电压范围:8~10V

10电堆电压范围:16~20V


FAQ4. How much energy in Wh is used for production of 1L H2 for 1 Cell, 5 (5-cell) and 10 (10-cell)?

1 Cell, 5 Cell and 10 Cell are all the same, 4.8 Wh.

常见问题4:1电堆、5电堆和10电堆生产1L H2 需要多少Wh的能量?

1电堆、5电堆和10电堆都是相同的,4.8 Wh。


FAQ5. what flow rates of KOH solution is typically used for 5 (5-cell)?

In 5 (5-cell), 50cc/min of KOH can be introduced.

常见问题5:5电堆通常使用的KOH溶液流速是多少?

在5电堆中,可以引入50cc/min的KOH。

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

碱性水电解槽 (研究级)

产品代码

产品描述

价格(¥)货期
261000研究级碱性水电解槽 (1 Cell)8343请咨询
261001研究级碱性水电解槽 (2 Cell)13725请咨询
261002研究级碱性水电解槽 (3 Cell)19728请咨询
261003研究级碱性水电解槽 (5 Cell)27544请咨询
261004研究级碱性水电解槽 (10 Cell)43663请咨询
261005研究级碱性水电解槽 (20 Cell)70432请咨询
单电堆配套电源6000请咨询
单电堆配套温控系统2980请咨询
单电堆配套电解液循环及气液分离简易系统2980请咨询
配套蠕动泵(单通道)2980/台请咨询
配套蠕动泵(双通道)3980/台请咨询
配套齿轮泵(耐腐蚀)3980/台请咨询
配套隔膜30x30cm1999请咨询
