阴离子交换膜(AEM)是一种通常由离聚物制成的半透膜,设计用于传导阴离子,同时不渗透诸如氧气或氢气的气体。阴离子交换膜的主要优点是可以使用非铂/低铂催化剂,在达到相同性能的前提下,可以大大地降低成本,阴离子交换膜的其他优点还有:耐碱、抗氧化、耐氯离子腐蚀、扩散透析以回收酸。
科学材料站可以提供XION AEM-Dappion不同厚度尺寸系列,其中厚度有5μm, 10μm, 20μm和30μm,尺寸有5x5cm, 10x10cm及15x15cm。更多型号将在厂家更新后提供。
如需购买请点进入方【购买渠道】进行购买或寻求报价单。

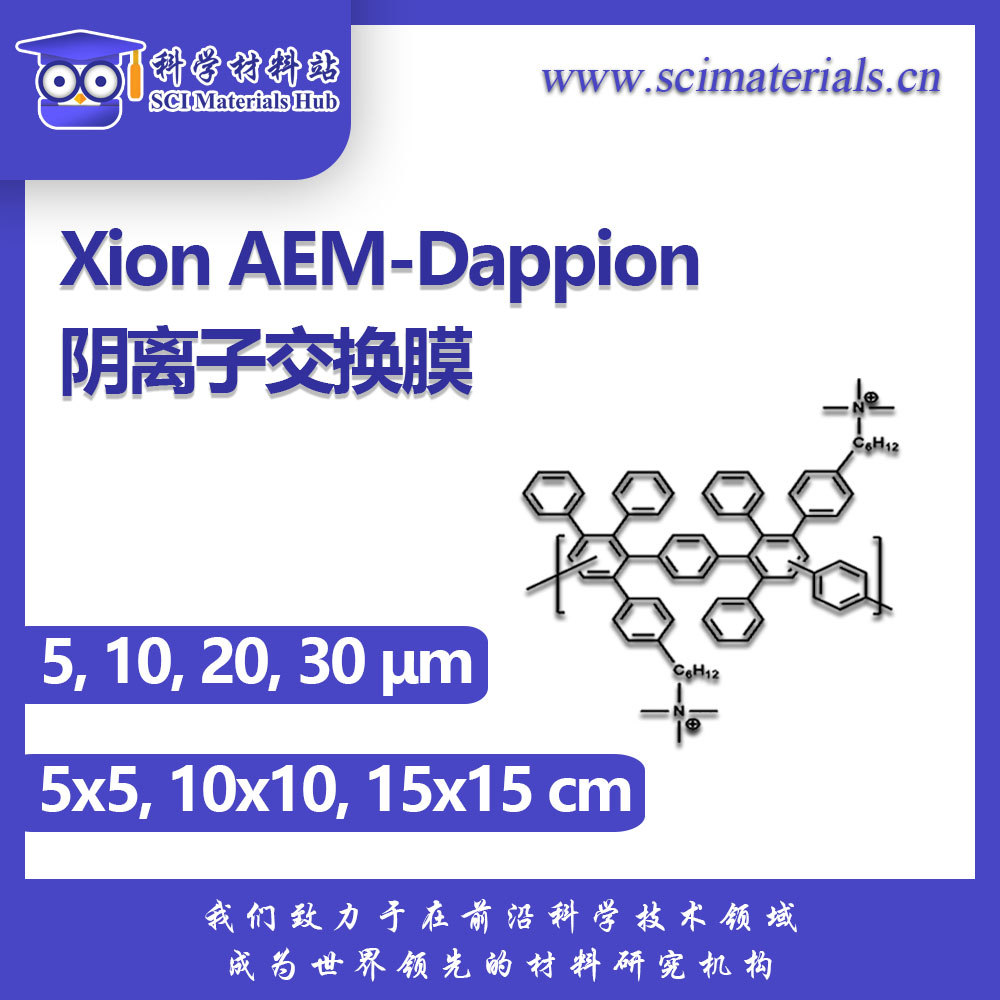

Xion-Dappion复合阴离子交换膜是新推出的一款复合阴离子膜片(AEM),离聚体结构为包含有季胺官能团的狄尔斯-阿尔德聚合物(次苯基)主链(如下图所示),增强层位于膜的结构中,具有较高的离子导电性、良好的化学稳定性、超薄的厚度、良好的机械性能,主要用于燃料电池、电解槽、液流电池等领域。

相关参考文献:
1. Park,E.J.; Kim,Y.S.,Quaternized aryl ether-free polyaromatics for alkaline membrane fuel cells: synthesis,properties,and performance–a topical review. Journal of Materials Chemistry A 2018,6(32),15456-15477.
2. Park,E.J.;Maurya,S.;Hibbs,M.R.;Fujimoto,C.H.;Kreuer,K.-D.;Kim,Y.S.,Alkal-ine Stability of Quaternized Diels–Alder Polyphenylenes. Macromolecules 2019,52 (14),5419-5428.
3. Hibbs,M.R.,Alkaline stability of poly (phenylene)‐based anion exchange membranes with various cations.Journal of Polymer Science Part B:Polymer Physics 2013,51(24),1736-1742.
4. Small,L.J.;Pratt III,H.D.;Fujimoto,C.H.;Anderson,T.M.,Diels Alder polyphenylene anion exchange membrane for nonaqueous redox flow batteries. Journal of The Electrochemical Society 2015,163(1),A5106.
目前Xion-Dappion复合阴离子膜可生产的厚度有5um、10um、20um、30um,尺寸有5cmX5cm、10cmX10cm、15cmX15cm。
Xion AEM-Dappion (5, 10, 20 30μm) 阴离子交换膜 - SCI Materials Hub |
Membrane Thickness | 5, 10, 20 30μm |
Polymer Type | 3-D Polyphenylene based backbone |
Functional Group | Benzyl Trimethyl Ammonium based functional groups |
Counter ion | Halide (Cl- or Br-) |
Mechanical Reinforcement | Yes, ePTFE (also known as expanded PTFE) is the mechanical reinforcement substrate |
Self-supporting Membrane | No |
Ion Exchange Capacity | 2.1 - 2.5 meq/g |
Ionic Conductivity | Undisclosed |
Molecular Weight | Undisclosed |
Water Uptake | Undisclosed |
Melting Point | Undisclosed |
Decomposition Point | Undisclosed |
pH range | 1 - 14. With alkaline electrolytes, concentrations greater than 1 - 1.5M should not be used with this membrane. |
The Xion AEM-Dappion membrane is a composite anion exchange membrane (AEM) that uses the Dappion Gen1 resin (3-D polyphenylene) as the polymer backbone with a benzyl trimethyl ammonium side chain as its functional group and has an ion exchange capacity of 2.1 - 2.5 mequiv/g. Dappion Gen1 membranes offer excellent mechanical strength and stability to a wide variety of chemistries.
SCI Materials Hub currently provides Dappion Gen1 anion exchange membrane sheets in 5, 10, 20, and 30μm thicknesses and 5x5cm, 10x10cm and 15x15cm sizes. Image on the right side shows the chemical composition of the anion exchange resin used to manufacture Xion Composite Dappion Gen1 membranes.
The Xion AEM-Dappion-5μm is a 5 micrometers thick anion exchange membrane and it can be used in fuel cells, electrolyzers, electrodialysis, redox flow batteries, electrochemical compressors, and a wide variety of other devices.
XION Composite Dappion Gen1 AEMs are ultra-thin, ultra-strong, provide ultra-high performance for various alkaline chemistry based applications. The ionomer structure contains a 3-D polyphenylene backbone with a benzyl trimethyl ammonium side chain for its functional groups. A reinforcement layer is integrated into the structure of the membrane to provide enhanced mechanical properties and this is composed of microporous ePTFE (also known as expanded PTFE). The enhanced mechanical properties as free-standing membranes, providing higher ionic conductance without sacrificing strength.
Benefits of Xion Composite Dappion Gen1 AEMs:
√ High anionic conductivity
√ Great chemical stability at low and high temperatures
√ Ultra-thin membranes with excellent mechanical strength
Pre-Treatment and Conditioning:
The membrane is delivered in dry form with the counter anion being either in bromide or chloride. Depending on application and cell design, assembling is possible in dry form (without pretreatment) or wet form.
For standard alkaline fuel cell / electrolysis applications, the membrane should be converted into OH-form by treating it with 0.5 – 1.0 M NaOH or KOH solution: Put the membrane sample in an aqueous solution of 0.5 – 1.0 M NaOH or KOH for at least 24 h at 20°C – 30°C. After rinsing with demineralised water (pH ~ 7) the membrane is ready to use. Use closed container to avoid CO2 contamination (carbonate formation that may affect conductivity). The membrane in OH-form must be stored under wet / humidified and CO2 -free conditions, avoid drying out of the membrane in OH-form. Long-term storage in dry conditions should be preferably done in carbonate, Cl- or Br-form.
For electrochemical CO2 reduction applications, the anion exchange membrane should be converted to the carbonate or bicarbonate form by treating the membrane initially with 0.1 to 0.5 M KOH or NaOH solution and then with 0.1 to 0.5 M water soluble carbonate or bicarbonate salt solutions (such as potassium carbonate or potassium bicarbonate that is dissolved in de-ionized water or distilled water). Fully submerging the anion exchange membrane into KOH or NaOH solution for 6 to 12 hours and then to the desired carbonate or bicarbonate salt solution for a period of 48-72 hours would be sufficient to fully convert the membrane into either carbonate or bicarbonate form. After rinsing the membrane (which is in the carbonate form) with deionized water or distilled water, it can be assembled inside the electrochemical setup for electrochemical CO2 reduction experiments. While the submersion of the membrane into the KOH or NaOH can be skipped, for such situations, a longer submersion time may be required in order to fully convert the membrane to carbonate or bicarbonate form. Initial conversion to OH-form significantly improves the carbonate ion exchange process due to expanded pore sizes.
For other electrochemical (electrodialysis, desalination, electro-electrodialysis, reverse electrodialysis, acid recovery, salt splitting, etc.) and non-electrochemical applications, the membrane should be converted into the anionic form that is relevant for the intended application. For example, if the application is requiring the Cl- anions to be transferred through the membrane, then this anion exchange membrane needs to be converted into the Cl-form. In order to convert this membrane into Cl- form, it needs to be submerged into a 1-2 M salt solution of NaCl or KCl (dissolved in deionized water) for a period of 24-72 hours and then rinsed with deionized water to remove the excess salt from the membrane surface. Or if the intended application is requiring to transfer sulfate anions, then this anion exchange membrane needs to be converted into the sulfate form prior to its assembly into the cell. A neutral salt solution of Na2SO4 or K2SO4 would usually be sufficient to achieve the full conversion of membrane into the sulfate form after fully submerging the membrane into the salt solution for 24-72 hours at room temperature.
If you have any concerns about storage, chemical stability, pre-treatment or before proceeding, please feel free to contact us for further information.
Scientific Literature for Various Use of Dappion Gen1 Membranes and Dispersion Products:
The article by Hibbs et al. entitled "Synthesis and Characterization of Poly(Phenylene)-Based Anion Exchange Membranes for Alkaline Fuel Cells" is an excellent article that details out the advantage of 3-D poly(phenylene) based backbones and their suitability for alkaline fuel cell and other applications including various synthesis pathways for manufacturing different compositions.
Thearticle by Kim et al. entitled "Resonance Stabilized Perfluorinated Ionomers for Alkaline Membrane Fuel Cells" is an excellent article that details out the advantage of 3-D poly(phenylene) based backbones and their suitability for alkaline fuel cell and other applications including actual alkaline fuel cell performance at a temperature of 80 °C with H2/O2 reactants.
The article by Choe et al. entitled "Alkaline Stability of Benzyl Trimethyl Ammonium Functionalized Polyaromatics: A Computational and Experimental Study" is an excellent article that investigates the stability of benzyl trimethyl ammonium as the functional group with 3-D poly(phenylene) based backbone both theoretically and experimentally and then suitability of such anion exchange membranes for alkaline electrochemical devices.
The article by Michael Hibbs entitled "Alkaline Stability of Poly(phenylene)-Based Anion Exchange Membranes with Various Cations" is an excellent article that investigates the stability of benzyl trimethyl ammonium and several other functional groups as the ion conducting entities with 3-D poly(phenylene) based backbone and demosntrates the advantages of the 3-D poly(phenylene) with benzyl trimethyl ammonium compared to other cationic groups.
A typical lead time of 2-3 weeks is to be expected.
1. 手机淘宝(官方淘宝店铺:科学材料站)
2. 点击进入淘宝网页链接
科学材料站 XION AEM碱性阴离子膜系列
|
?产品描述 | 厚度 | 产品代码 | 5*5cm | 10*10cm | 15*15cm | 20*20cm | 其它尺寸及价格 | 备注 |
AEM-Durion-G2 | 5μm | 1801001 | ¥1731 | ¥3392 | ¥5053 | -- | | LMW系列
|
10μm | 1801002 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801003 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801004 | ¥1523 | ¥3034 | ¥4361 | -- | |
AEM-Pention-72-5CL | 5μm | 1801005 | ¥1731 | ¥3392 | ¥5053 | ¥7682 | | 72系列-5%交联度
|
10μm | 1801006 | ¥1661
| ¥3288
| ¥4777 | ¥7261 | |
20μm | 1801007 | ¥1569 | ¥3231 | ¥4523 | ¥6874 | |
30μm | 1801008 | ¥1523 | ¥3034 | ¥4361 | ¥6629 | ¥5230 (15x18cm) ¥5930 (17x18cm) |
50μm | 1801009 | ¥2284 | ¥4546 | ¥6542 | -- | ¥6978 (15x16cm) ¥7443 (16x16cm) |
AEM-Pention-72-15CL | 5μm | 1801010 | ¥1731 | ¥3392 | ¥5053 | ¥7682 | | 72系列-15%交联度 |
10μm | ?1801011 | ¥1661
| ¥3288
| ¥4777 | ¥7261 | |
20μm | 1801012 | ¥1569 | ¥3231 | ¥4523 | ¥6874 | ¥5145 (16CM*16CM) |
30μm | 1801013 | ¥1523 | ¥3034 | ¥4361 | ¥6629 |
¥2375 (5CM*7.8CM) ¥2700 (6.5CM*9.5CM) ¥3980 (11CM*16CM) |
AEM-Pention-35-5CL | 5μm | 1801014 | ¥1731 | ¥3392 | ¥5053 | -- | | 35系列-5%交联度 |
10μm | 1801015 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801016 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801017 | ¥1523 | ¥3034 | ¥4361 | -- | |
50μm | 1801018 | ¥2284 | ¥4546 | ¥6542 | -- | |
AEM-Pention-35-15CL | 5μm | 1801019 | ¥1731 | ¥3392 | ¥5053 | -- | | 35系列-15%交联度 |
10μm | 1801020 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801021 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801022 | ¥1523 | ¥3034 | ¥4361 | -- | |
AEM-Pention-18-5CL | 5μm | 1801023 | ¥1731 | ¥3392 | ¥5053 | -- | | 18系列-5%交联度 |
10μm | 1801024 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801025 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801026 | ¥1523 | ¥3034 | ¥4361 | -- | |
50μm | 1801027 | ¥2284 | ¥4546 | ¥6542 | -- | |
AEM-Pention-18-15CL | 5μm | 1801028 | ¥1731 | ¥3392 | ¥5053 | -- | | 18系列-15%交联度 |
10μm | 1801029 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801030 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801031 | ¥1523 | ¥3034 | ¥4361 | -- | |
AEM-Dappion | 5μm | 1801032 | ¥1731 | ¥3392 | ¥5053 | -- | | Dappion系列
|
10μm | 1801033 | ¥1661
| ¥3288
| ¥4777 | -- | |
20μm | 1801034 | ¥1569 | ¥3231 | ¥4523 | -- | |
30μm | 1801035 | ¥1523 | ¥3034 | ¥4361 | -- | |
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services! |
注:下单时请联系客服,注明选择哪个系列(72系列、35系列、18系列)和哪种交联度(5%CL、15%CL),其中20X20cm规格的目前只有Pention-72系列;50μm厚度的只有Pention-72/35/18-5CL,Pention-72-5CL-50μm没有20x20cm。
