Xion AEM-Durion-G2 (5, 10, 20 30μm) 阴离子交换膜

  • 产品代码:1801001, 1801002, 1801003, 1801004
  • 产品描述:膜厚度:5, 10, 20, 30μm;膜尺寸:5x5cn, 10x10cm, 15x15cm
  • 品牌:SCI Materials Hub
  • 货期:0-4周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:XION Composite-AEM-Durion-G2, 阴离子交换膜, SCI Materials Hub, 科学材料站
65.7K

阴离子交换膜(AEM)是一种通常由离聚物制成的半透膜,设计用于传导阴离子,同时不渗透诸如氧气或氢气的气体。阴离子交换膜的主要优点是使用非铂/低铂催化剂,在达到相同性能的前提下,可以大大降低成本,阴离子交换膜的其他优点还包括:耐碱、抗氧化、耐氯离子、扩散透析以回收酸。


如需购买请点进入方【购买渠道】进行购买或寻求报价单。


Xion-Durion复合阴离子交换膜AEM使用的是一种TM1树脂,离子交换容量为2.0-2.3 Meq/g。Durion膜为各种电化学反应提供了优良的机械强度和稳定性。NREL研究发现,Xion-Durion复合阴离子膜及其下一代膜电极AEMs是最寿命最长的两种阴离子交换膜(AEM),利用这种TM1树脂制作的AEMs可在温度高达80°C的1M KOH下运行1000小时以上。在高温下运行1000小时后,电导率损失和IEC损失的降解率小于0.5%(注:以上数据来源于美国再生能源实验室 NREL在2019年10月进行的盲样试验,展示了优异的耐久性和使用寿命。)

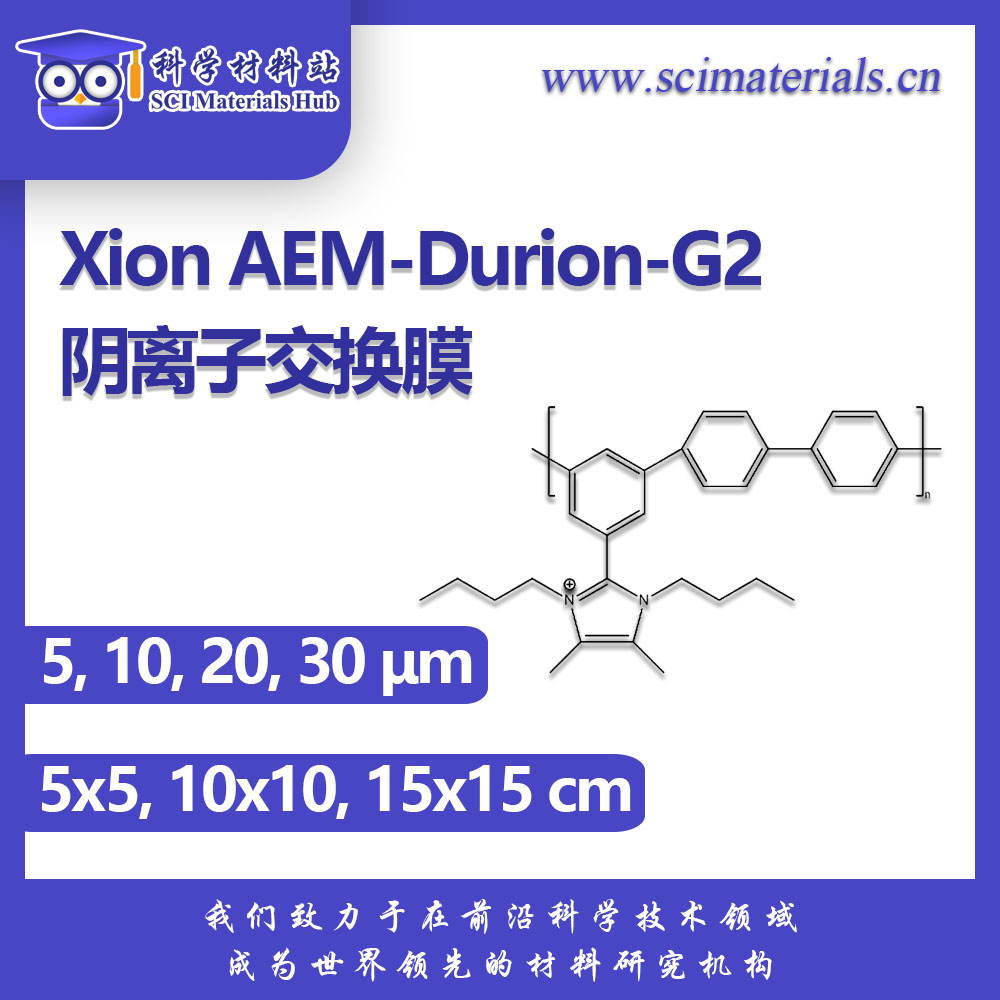

Xion-Durion复合阴离子交换膜离聚物结构包含一个带有季铵官能团的聚苯主链。复合材料来自于与膜结构整合的增强层,用以提高其机械性能,机械性能的增强可以使复合膜比独立膜更薄,在不牺牲强度的情况下提供更高的离子导电性,下图显示了用于制造Xion-Durion复合膜的阴离子交换树脂的化学成分。




Xion-Durion聚合物

Xion-Durion复合阴离子交换膜的优点:

-高阴离子电导率

-在低温和高温下具有良好的化学稳定性

-具有优异机械强度的超薄膜


SCI Materials Hub目前可以提供厚度为5、10、20和30um的Durion阴离子交换膜,尺寸为:5x5cm、10x10cm和15x15cm。由于所有这些膜产品都是经过机械增强的,因此特别适合于不加压或加压的阴离子交换膜燃料电池(带或不带碱性电解质),碱性燃料电池(带或不带碱性电解质),碱子泵,碱性氧浓缩器,碱性低氧和碱性电池或其他各种中性至碱性电化学装置。可以使用气态或液态反应物而不会出现任何问题。


性能参数如下所示:

复合膜厚度

5/10/20/30 um

复合膜尺寸(支持定制)

5X5cm、10X10cm、15X15cm

模量(在50%RH,23℃下测量)

800 MPa

最大抗拉强度(在50%RH,23℃下测量)

50-110 MPa

吸水率(在80℃水中浸泡24h后测量)

<80 wt%

膨胀率(在80℃水中浸泡24h后测量)

<80 %

面积比电阻(在100%RH,70℃下测量)

低至0.02Ω·cm2

氢交叉率(在100%RH,70℃下测量)

<2 mA/cm2

面内电导率(在100%RH,70℃下测量)

>60 mS/cm

渗水性

高达10(10-10gs-1m-1Pa-1) (ASTM E96)

IEC

2.0-2.3 meq/g

OH-电导率(在80℃时测量)

120-130 mS/cm


预处理方案:

Xion-Durion复合阴离子膜以溴化物或氯化物形式运输。

1.当用于标准碱性燃料电池/电解池时,应通过用0.5-1.0 M NaOH或KOH溶液处理将膜转化为OH-形式:将膜样品置于0.5–1.0 M NaOH或KOH的水溶液中,在20℃–30℃下放置24小时。用去离子水(pH?7)冲洗后,膜即可使用。请使用密闭容器以避免CO2污染(碳酸盐的形成可能会影响电导率)。OH-形式的膜必须在潮湿/加湿且不含CO2的条件下保存,避免OH-形式的膜变干。在干燥条件下的长期储存应优选以碳酸盐,Cl-或Br-形式进行。


2.当用于其他电化学(电渗析,脱盐,电渗析,反向电渗析,酸回收,盐分离等)和非电化学应用时,应将膜转换为与预期应用相关的阴离子形式。例如,如果应用程序要求将Cl-阴离子通过膜转移,则该阴离子交换膜需要转化为Cl-形式。为了将该膜转化为Cl-形式,需要将其浸入1-2 M NaCl或KCl盐溶液(溶于去离子水中)24-72小时,然后用去离子水冲洗以除去膜表面多余的盐。或者,如果预期的应用需要转移硫酸根阴离子,则该阴离子交换膜需要先预处理成硫酸根形式,在室温下将膜完全浸入盐溶液中24-72小时后,Na2SO4或K2SO4的中性盐溶液通常足以使膜完全转化为硫酸盐形式。

如果您对存储,化学稳定性,预处理或在进行操作之前有任何疑问,请随时与我们联系以获取更多信息。


Xion AEM-Durion-G2 (5, 10, 20 30μm) 阴离子交换膜 - SCI Materials Hub
Membrane Thickness5, 10, 20, 30μm
Polymer TypePolyphenylene based backbone
Functional GroupHybridized imidazole based functional groups
Counter ionHalide (Cl- or Br-)
Mechanical ReinforcementYes, ePTFE (also known as expanded PTFE) is the mechanical reinforcement substrate
Self-supporting MembraneNo
Ion Exchange Capacity2.1 - 2.5 meq/g
Ionic ConductivityUndisclosed
Molecular WeightUndisclosed
Water UptakeUndisclosed
Melting PointUndisclosed
Decomposition PointUndisclosed
pH range1 - 14. With alkaline electrolytes, concentrations greater than 1 - 1.5M should not be used with this membrane.


The Xion AEM-Durion-G2 membrane is a composite anion exchange membrane (AEM) that uses the Durion Gen2 resin as the polymer backbone with a hybridized imidazole side chain as its functional group and has an ion exchange capacity of 2.1 - 2.5 mequiv/g. Durion Gen2 membranes offer excellent mechanical strength and stability to a wide variety of chemistries. SCI Materiasl Hub currently provides Durion Gen2 anion exchange membrane sheets in 5, 10, 20, and 30μm thicknesses and 5x5cm, 10x10cm and 15x15cm sizes. Image on the right side shows the chemical composition of the anion exchange resin used to manufacture Xion Composite Durion Gen 2 membranes.


The Xion AEM-Durion-G2 can be used in fuel cells, electrolyzers, electrodialysis, redox flow batteries, electrochemical compressors, and a wide variety of other devices.


XION Composite Durion Gen2 AEMs are ultra-thin, ultra-strong, provide ultra-high performance for various alkaline chemistry based applications. The ionomer structure contains a polyphenylene backbone with a hybridized imidazole side chain for its functional groups. A reinforcement layer is integrated into the structure of the membrane to provide enhanced mechanical properties and this is composed of microporous ePTFE (also known as expanded PTFE). The enhanced mechanical properties as free-standing membranes, providing higher ionic conductance without sacrificing strength.


Benefits of Xion Composite Durion Gen2 AEMs:

High anionic conductivity
Great chemical stability at low and high temperatures
Ultra-thin membranes with excellent mechanical strength


Pre-Treatment and Conditioning:

The membrane is delivered in dry form with the counter anion being either in bromide or chloride. Depending on application and cell design, assembling is possible in dry form (without pretreatment) or wet form.


For standard alkaline fuel cell / electrolysis applications, the membrane should be converted into OH-form by treating it with 0.5 – 1.0 M NaOH or KOH solution: Put the membrane sample in an aqueous solution of 0.5 – 1.0 M NaOH or KOH for at least 24 h at 20°C – 30°C. After rinsing with demineralised water (pH ~ 7) the membrane is ready to use. Use closed container to avoid CO2 contamination (carbonate formation that may affect conductivity). The membrane in OH-form must be stored under wet / humidified and CO2-free conditions, avoid drying out of the membrane in OH-form. Long-term storage in dry conditions should be preferably done in carbonate, Cl- or Br-form.

For electrochemical CO2 reduction applications, the anion exchange membrane should be converted to the carbonate or bicarbonate form by treating the membrane initially with 0.1 to 0.5 M KOH or NaOH solution and then with 0.1 to 0.5 M water soluble carbonate or bicarbonate salt solutions (such as potassium carbonate or potassium bicarbonate that is dissolved in de-ionized water or distilled water). Fully submerging the anion exchange membrane into KOH or NaOH solution for 6 to 12 hours and then to the desired carbonate or bicarbonate salt solution for a period of 48-72 hours would be sufficient to fully convert the membrane into either carbonate or bicarbonate form. After rinsing the membrane (which is in the carbonate form) with deionized water or distilled water, it can be assembled inside the electrochemical setup for electrochemical CO2 reduction experiments. While the submersion of the membrane into the KOH or NaOH can be skipped, for such situations, a longer submersion time may be required in order to fully convert the membrane to carbonate or bicarbonate form. Initial conversion to OH- form significantly improves the carbonate ion exchange process due to expanded pore sizes.

For other electrochemical (electrodialysis, desalination, electro-electrodialysis, reverse electrodialysis, acid recovery, salt splitting, etc.) and non-electrochemical applications, the membrane should be converted into the anionic form that is relevant for the intended application. For example, if the application is requiring the Cl- anions to be transferred through the membrane, then this anion exchange membrane needs to be converted into the Cl- form. In order to convert this membrane into Cl- form, it needs to be submerged into a 1-2 M salt solution of NaCl or KCl (dissolved in deionized water) for a period of 24-72 hours and then rinsed with deionized water to remove the excess salt from the membrane surface. Or if the intended application is requiring to transfer sulfate anions, then this anion exchange membrane needs to be converted into the sulfate form prior to its assembly into the cell. A neutral salt solution of Na2SO4 or K2SO4 would usually be sufficient to achieve the full conversion of membrane into the sulfate form after fully submerging the membrane into the salt solution for 24-72 hours at room temperature.


If you have any concerns about storage, chemical stability, pre-treatment or before proceeding, please feel free to contact us for further information.


Scientific Literature for Various Use of Durion Gen2 AEMs and Dispersion Products:

The article by Chen and Lee entitled "Anion Exchange Polyelectrolytes for Membranes and Ionomers" is an excellent review that summarizes the development of various anion exchange polyelectrolytes (including polyphenylene based ones), importance of functional side's chemical structure and how it is connected to the backbone, importance of polymer backbone and how it affects the overall durability ionomer and membranes.


The article by Hugar et al. entitled "Imidazolium Cations with Exceptional Alkaline Stability: A Systematic Study of Structure-Stability Relationships" investigates the effects different substituents on the alkaline stability of imidazolium groups in 1M, 2M, and 5M KOH at 80 °C and their results indicate that polyphenylene-type anion exchange dispersions and membranes possess outstanding alkaline stability (ex-situ durability) and high anion conductivity.


A typical lead time of 2-3 weeks is to be expected.

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

科学材料站 XION AEM碱性阴离子膜系列
产品描述厚度产品代码5*5cm10*10cm15*15cm20*20cm其它尺寸及价格(现货)备注
AEM-Durion-G25μm1801001¥133126093887--
LMW系列
10μm18010021278
2529
3674--
20μm1801003120724853479--
30μm1801004117223343355--
AEM-Pention-72-5CL5μm1801005¥133126093887590972系列-5%交联度
10μm18010061278
2529
36745585
20μm18010071207248534795288
30μm18010081172233433555099

¥3250 (14*14.5cm)

¥2788 (10*14.5cm)

¥2188 (5*9.5cm)

50μm1801009175734975032--
AEM-Pention-72-15CL5μm1801010¥133126093887590972系列-15%交联度
10μm18010111278
2529
36745585
20μm18010121207248534795288
30μm18010131172233433555099


¥1688 (5CM*7.5CM)

¥1988 (8CM*9CM)

¥3488 (15CM*16CM)

¥3888 (16CM*17CM)

¥4488 (16CM*20CM)

AEM-Pention-35-5CL5μm1801014¥133126093887--35系列-5%交联度
10μm18010151278
2529
3674--
20μm1801016120724853479--
30μm1801017117223343355--
50μm1801018175734975032--
AEM-Pention-35-15CL5μm1801019¥133126093887--35系列-15%交联度
10μm18010201278
2529
3674--
20μm1801021120724853479--
30μm1801022117223343355--
AEM-Pention-18-5CL5μm1801023¥133126093887--18系列-5%交联度
10μm18010241278
2529
3674--
20μm1801025120724853479--
30μm1801026117223343355--
50μm1801027175734975032--
AEM-Pention-18-15CL5μm1801028¥133126093887--18系列-15%交联度
10μm18010291278
2529
3674--
20μm1801030120724853479--
30μm1801031117223343355--
AEM-Dappion5μm1801032¥133126093887--
Dappion系列
10μm18010331278
2529
3674--
20μm1801034120724853479--
30μm1801035117223343355--
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!

注:下单时请联系客服,注明选择哪个系列(72系列、35系列、18系列)和哪种交联度(5%CL、15%CL),其中20X20cm规格的目前只有Pention-72系列;50μm厚度的只有Pention-72/35/18-5CL,Pention-72-5CL-50μm没有20x20cm。

2-3张 (9.5折);4-5张 (9折);6-7张 (8.8折);8-9张 (8.5折);≥10张 (8折)
